Difference between Oilsyn Diesel Power/Race DNA, Oilsyn Hybrogen and Archoil AR6900-D

August 3, 2022 FTE 98 Comments

Fuel additive science is not definite. There are too many influencing factors and different requirements to produce the “ultimate additive” that universally works for all. What may work well on one engine does not guarantee success on another. This presents the need for different technologies to help match successful functions to the engine, fuel, and user requirements.

This is also why it becomes difficult to recommend the best fuel conditioner for you and why Oilsyn and Archoil usually offer sample sizes of their most popular products so you can test and decide which works best for you and your vehicle.

Take Archoil AR6900-D or Oilsyn Diesel Power DNA as examples. They deliver a multitude of functions that include fuel stabilization, anti-foaming, cleaning (via detergents), lubricity (via a lubricant), cetane improver, and combustion improvement (via a combustion catalyst). These are all delivered chemically to the fuel, and obtaining a balance of functions becomes more of an art form than science because the functions can compete against one another.

Too much lubricity can reduce cleaning performance; too much detergent can reduce combustion catalyst performance; too much cetane improver can negate MPG gains being delivered by the combustion catalyst, and it goes on and on. When you consider that fuels vary in lubricity, cetane number, and detergent performance and combine this with the fact that engines respond differently to each of the functions mentioned above, it is no wonder it is impossible to achieve a 100% success rate with additive use. However, Oilsyn can get closer to it than most by offering a range of technologies that provide different functions or deliver similar functions differently.  In contrast, most competitor products are simply cetane improvers with a cheap mono-acid lubricant.  This includes many of the popular brands.

This is where Oilsyn Diesel Race DNA enters the arena.  It delivers even more cetane, arguably the best-performing lubricant on the market right now, and a combustion catalyst.  It has low cleaning performance because that robs the engine of power.  Diesel Race DNA cannot be beaten for the ultimate performance and lubricity.  The difference can be night and day when using this.

Oilsyn Hybrogen is helpful for maximum MPG and lowest emissions or with engines that don’t respond well to higher cetane diesel.  Hybrogen is essentially an aggressive combustion modifier. It helps clean naturally through cleaner combustion gases. It improves combustion quality by manipulating the fuel rather than “treating” it.

From testing, we know that some customers prefer Diesel Race DNA, some Diesel Power DNA, some Archoil AR6900-D, and others Hybrogen. Most notice the greatest difference when using Diesel Power or Race DNA simply due to the lubricant that is not found in any other diesel additive.

Quick summary of each product:

Oilsyn Diesel Race DNA – Designed for maximum performance and lubricity.  Outstanding cetane improver, lubricant, and combustion improver. It is much better on engines that respond well to additional cetane and where the customer wants maximum performance and protection.

Archoil AR6900-D MAX – Designed for all-around performance and protection.  Good lubricant, stabilizer and cleaner, great cetane improver, and combustion improver. Often better on engines that respond well to additional cetane.

Oilsyn Diesel Power DNA – Designed for all-around performance and protection.  Outstanding lubricant and cleaner, great cetane improver, and combustion improver. Often better on engines that respond well to additional cetane or where there is a requirement to reduce diesel clatter.

Oilsyn Hybrogen Road – Designed for maximum MPG and lowest emissions.  Excellent combustion modifier with natural cleaning. Often works where MPG and power increase results have been less than expected with products that raise cetane.

Please note this is an approximate guide, and we are always available to advise further. However, we strongly recommend that customers test to see what works best for them.

Hybrogen
Fuel additive being poured into a cars fuel tank
Cetane Boosters & 2-EHN

Beyond Cetane Boosting: The Truth About Diesel Fuel Additives

June 20, 2022 FTE Leave a comment

Many diesel enthusiasts and vehicle owners are unaware that numerous regular-use additives on the market, typically sold in dosing bottles for each fill-up, are essentially glorified cetane improvers with minimal additional benefits. These products, typically packaged in 500ml to 1L bottles with recommended dosages of 1-2ml per litre of fuel, often fail to deliver the comprehensive fuel system benefits they promise.

This comprehensive analysis reveals the truth behind popular diesel additives, exposing industry practices and providing guidance on making informed choices for your diesel engine’s health and performance.

Table of Contents ▼
  • The Reality Behind Popular Diesel Additives
  • Understanding the Test Results
  • What You Should Look For in Diesel Fuel Additives
  • Fuel System Lubrication and Protection
  • Fuel System and Injector Cleaning
  • Cetane and Combustion Improvement
  • The Market Reality
  • Premium Alternatives: What Quality Looks Like
  • Archoil AR6900-D Development
  • Oilsyn Diesel Power DNA
  • Making Informed Choices

The Reality Behind Popular Diesel Additives

We recently received test results from arguably the most popular diesel additive in the UK. A household name with substantial brand history and recognition. This particular product, which comes in an attractive 500ml bottle, has gained significant popularity throughout Europe as well. This prompted a respected colleague to arrange a series of comprehensive tests, including FTIR Spectroscopy (to determine chemical composition) and titration (to measure detergent strength). A High-Frequency Reciprocating Rig (HFRR) test wasn’t necessary, as spectroscopy would reveal the type of detergent used.

The results confirmed what we already suspected. The product is essentially 2-Ethylhexyl Nitrate (2-EHN), a cetane improver, diluted in a solvent with a fatty acid lubricant, negligible detergent content, and an agent to improve the odor. In other words, it’s primarily a glorified cetane booster.

Key Test Results:

  • HFRR Response: Poor at best, often nonexistent when combined with 2-EHN
  • Titration Test: Just 2 drops (maintenance-strength products should register 15-20 drops)
  • Primary Component: Diluted 2-EHN with minimal additional benefits

The HFRR response (which measures diesel lubricity) with this outdated and low-cost fatty acid technology is poor at best and often nonexistent when combined with 2-EHN. The titration test for detergent (measures amine strength) resulted in just 2 drops. For context, a maintenance-strength cleaning product should register at least 15-20 drops.

What You Should Look For in Diesel Fuel Additives

If you use diesel fuel additives or conditioners, it’s crucial to understand what you’re purchasing. Here are the key components to consider:

1. Fuel System Lubrication and Protection

If protecting your fuel system is important to you, verify what lubrication technology the product uses. Most additives on the market still use cheap mono fatty acid technology—we know this because we have FTIR analysis for many of them. This outdated technology is ineffective when combined with 2-EHN, as the cetane improver reduces the HFRR response.

Lubrication Technology Recommendations:

  • Look for modern ester lubricants that aren’t negated by 2-EHN
  • Request HFRR test results to verify effectiveness
  • Avoid products relying solely on mono fatty acid technology

For optimal protection, look for products that use modern ester lubricants that aren’t negated by 2-EHN, and ask for HFRR test results to verify effectiveness.

2. Fuel System and Injector Cleaning

If you require cleaning performance, check what detergent technology is used and whether it’s present in sufficient dosage to provide continuous “keep clean” performance. Request test data to verify claims. Our analysis of many products on the market reveals that they contain very little to no detergent at all, despite marketing claims about cleaning capabilities.

Detergent Performance Indicators:

  • Titration Test: Maintenance products should register 15-20 drops minimum
  • Amine Content: Verify through FTIR spectroscopy analysis
  • Dosage Strength: Ensure sufficient concentration for “keep clean” performance

3. Cetane and Combustion Improvement

For cetane improvement, pure 2-EHN (not diluted with cheap solvent) remains the most effective option. Combining it with a combustion catalyst will further enhance combustion efficiency and help clean the Diesel Particulate Filter (DPF).

  • Pure 2-EHN: Most effective cetane improver without dilution
  • Combustion Catalyst: Enhances efficiency and DPF cleaning
  • Zero Solvent Fillers: 100% active ingredients for maximum value

The Market Reality

The market is flooded with brands selling thousands of bottles of diesel treatments daily that contain little more than diluted 2-EHN, a substandard lubricant, and some fragrance—yet they often receive glowing reviews. Why? Because 2-EHN will make a noticeable difference to most diesel engines, and manufacturers know this.

These companies focus on the one function that customers are most likely to notice: a more responsive engine from the cetane increase. It’s much harder for the average user to discern improved lubrication or effective cleaning. What’s particularly concerning is that these products typically contain less than £1.50 worth of chemicals in a 500ml bottle, despite their premium pricing.

Market Reality Facts:

  • Most products contain less than £1.50 worth of chemicals per 500ml bottle
  • Primary benefit comes from basic cetane improvement (2-EHN)
  • Marketing focuses on easily noticeable engine responsiveness
  • Lubrication and cleaning benefits are often minimal or nonexistent

Premium Alternatives: What Quality Looks Like

Understanding what quality diesel additives should contain helps distinguish between marketing hype and genuine value. Here are two examples of comprehensively formulated products that demonstrate what’s possible when cost isn’t the primary constraint.

Archoil AR6900-D Development

When we formulated AR6900-D for Archoil, our goal was to pack as much value as possible into the product using only high-end and proven components. The result includes:

Archoil AR6900-D Components:

  1. Ester Lubrication: Demonstrably improves lubricity in EN 590 diesel. The ester costs approximately four times more than traditional mono fatty acids.
  2. Comprehensive Detergent Package: Delivers the correct “keep clean” dosage for both older and modern vehicles, fully tested for cleaning performance and safety.
  3. Fuel Borne Catalyst: Helps improve combustion quality, particularly in the lower rev range, and assists with passive DPF regeneration.
  4. Pure 2-EHN Base: 100% active ingredients with zero solvent fillers.

This is a product we’re proud of as it genuinely offers quality and value. Fast forward a few years, and we faced a new challenge with Oilsyn Diesel Power DNA. The remit was similar to Archoil—to create a value-packed product—but with an important twist: make the best possible formulation regardless of cost and include additional carbon removal technology.

Oilsyn Diesel Power DNA

The Oilsyn Diesel Power DNA features:

Oilsyn Diesel Power DNA Components:

  1. Unique Ester Lubrication System: Not found in any other diesel product. This ester costs approximately eight times more than traditional mono fatty acids.
  2. Enhanced Detergent Package: Delivers optimal “keep clean” performance for both older and modern vehicles, fortified with polyether-amine to improve ongoing carbon removal and help neutralize carbon that might otherwise deposit in the intake, EGR, and valves.
  3. Stronger Fuel Borne Catalyst: Further improves combustion quality, particularly in the lower rev range, and enhances passive DPF regeneration.
  4. Pure 2-EHN Base: 100% active ingredients with zero solvent fillers.

Value Perspective:

The Oilsyn product offers so much value in a single bottle that it can be challenging to communicate its true worth to customers. To put it in perspective, a 50ml dose from a 1L bottle can contain more detergent performance and overall value than some competitors’ “high-strength” single bottle treatments that sell for £10+ per bottle.

Making Informed Choices

The best advice we can offer is to pay closer attention to what you’re putting in your fuel tank and ensure it aligns with what you want from an additive. Whether you’re seeking improved performance, better fuel economy, reduced emissions, or extended component life, understanding the actual composition of diesel additives will help you make more informed decisions and potentially save money in the long run.

Key Decision Factors:

  • Transparency: Look for products with clear information about their formulation
  • Test Data: Seek products with supporting performance claims through verified testing
  • Component Quality: Understand the difference between basic and premium ingredients
  • Value Analysis: Consider cost per effective dose, not just bottle price
  • Specific Needs: Match product capabilities to your engine’s requirements

Don’t be swayed by marketing claims alone – look for products with transparent information about their formulation and, ideally, test data to support their performance claims. Your diesel engine deserves better than diluted 2-EHN with minimal additional benefits.

Remember: An informed consumer is an empowered consumer. Take the time to understand what you’re buying, and your diesel engine will thank you with improved performance, longevity, and reliability.

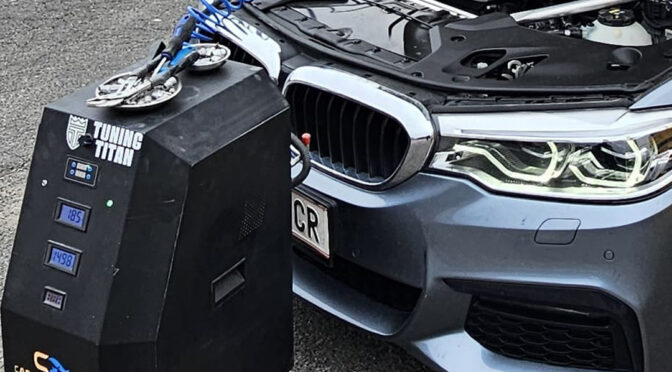

a carbon cleaning machine connected to a vehicles engine
Carbon Cleaning

Carbon cleaning risks, safety and cost considerations

May 24, 2022 FTE Leave a comment

Carbon cleaning has become an essential maintenance procedure for modern engines, but understanding the associated risks, safety considerations, and cost implications is crucial for making informed decisions about when, how, and where to have this service performed.

This comprehensive analysis examines every aspect of carbon cleaning safety and economics, from potential engine damage mechanisms and chemical exposure risks to detailed cost breakdowns and value assessments, providing the information needed to balance benefits against risks and costs for optimal engine maintenance decisions.

Table of Contents ▼
  • Can Carbon Cleaning Damage Your Engine?
  • Potential Damage Mechanisms
  • Risk Factors and Prevention
  • Professional vs. DIY Risk Assessment
  • Is Carbon Cleaning Safe?
  • Chemical Safety and Exposure Risks
  • Equipment Safety and Operational Protocols
  • Environmental and Disposal Considerations
  • Engine Carbon Cleaning Cost
  • Professional Service Cost Breakdown
  • DIY Cost Analysis and Comparison
  • Regional Cost Variations and Market Analysis
  • Cost-Benefit Analysis and Value Assessment
  • Return on Investment Calculations
  • Prevention vs. Correction Cost Analysis
  • Insurance and Warranty Considerations
  • Risk-Cost Decision Framework

Can Carbon Cleaning Damage Your Engine?

Carbon cleaning procedures, while generally beneficial for engine performance and longevity, do carry inherent risks that can potentially cause engine damage if performed incorrectly, using inappropriate methods, or on engines with pre-existing conditions. Understanding these risks and their mitigation strategies is essential for making informed decisions about carbon cleaning services.

The potential for engine damage during carbon cleaning varies significantly based on the cleaning method employed, the condition of the engine being cleaned, the expertise of the technician performing the service, and the quality of equipment and products used. Professional services using established protocols and quality equipment present minimal risk, while improper DIY attempts or substandard professional services can cause serious and expensive damage.

Potential Damage Mechanisms

Hydrolock represents the most serious immediate risk during carbon cleaning procedures that introduce liquid cleaning agents into the engine. This condition occurs when excessive liquid accumulates in combustion chambers, preventing normal piston movement and potentially causing catastrophic engine damage including bent connecting rods, cracked pistons, or damaged cylinder heads. Hydrolock risk is highest with aggressive chemical cleaning methods or improper application of intake cleaning sprays.

Chemical damage to sensitive engine components presents another significant risk category. Modern engines incorporate numerous sensors, seals, and emission control components that can be damaged by aggressive cleaning chemicals. Oxygen sensors are particularly vulnerable to contamination from cleaning residues, while rubber seals and gaskets may deteriorate when exposed to harsh solvents. Mass airflow sensors can be permanently damaged by cleaning spray overspray, requiring expensive replacement and potential engine management system recalibration.

Thermal shock damage can occur during cleaning procedures that cause rapid temperature changes in engine components. This is particularly relevant for walnut blasting procedures performed on hot engines, where the introduction of room-temperature blasting media against hot metal surfaces can cause cracking or warping of delicate components like intake valve seats or port surfaces.

Critical Damage Risk Factors:

  • Excessive liquid introduction causing hydrolock conditions
  • Chemical contamination of sensitive sensors and emission components
  • Thermal shock from rapid temperature changes during cleaning
  • Dislodged carbon deposits blocking oil passages or catalytic converters
  • Improper disassembly procedures damaging gaskets or sealing surfaces
  • Inadequate post-cleaning procedures leaving residues or contaminants

Deposit dislodgement represents a more subtle but potentially serious risk where carbon cleaning procedures loosen large deposits that subsequently block critical engine passages. This can occur when aggressive cleaning methods break loose large carbon chunks that travel through the engine and lodge in oil passages, causing bearing damage, or in exhaust systems, potentially damaging catalytic converters or turbochargers.

Risk Factors and Prevention

Several factors significantly influence the risk level associated with carbon cleaning procedures. Engine condition plays a crucial role, with high-mileage engines or those with known issues presenting elevated risks due to worn seals, weakened components, or excessive deposit accumulation that may cause problems when disturbed.

The cleaning method selected dramatically affects risk levels. Professional hydrogen cleaning presents the lowest risk profile due to its gentle, controlled process that doesn’t introduce foreign substances or require disassembly. Walnut blasting, while highly effective, carries moderate risks due to the disassembly requirements and potential for component damage during the mechanical cleaning process. Chemical cleaning methods present variable risks depending on the aggressiveness of the chemicals used and the application method employed.

Technician expertise and equipment quality represent critical risk factors often overlooked by consumers. Properly trained technicians using calibrated, maintained equipment following established protocols minimize risks significantly compared to inexperienced operators using substandard equipment or improvised procedures. This factor alone can mean the difference between a successful cleaning service and expensive engine damage.

Professional vs. DIY Risk Assessment

Professional carbon cleaning services typically present significantly lower risk profiles compared to DIY attempts, primarily due to specialized equipment, trained personnel, established safety protocols, and insurance coverage for potential damage. Professional services invest heavily in proper equipment, training, and procedures specifically designed to minimize risks while maximizing effectiveness.

DIY carbon cleaning attempts carry substantially higher risks due to limited access to professional equipment, lack of specialized training, absence of safety protocols, and no insurance coverage for potential damage. The most common DIY-related damage occurs from improper application of intake cleaning sprays, use of inappropriate cleaning chemicals, or attempts to perform procedures beyond the skill level of the operator.

Risk Category Professional Service DIY Attempt Risk Mitigation
Hydrolock Very Low High Controlled application rates
Chemical Damage Low Moderate-High Proper product selection
Component Damage Very Low Moderate Trained technicians
Warranty Issues Covered Not Covered Professional insurance

Is Carbon Cleaning Safe?

Carbon cleaner safety encompasses multiple dimensions including chemical exposure risks, equipment operation hazards, environmental considerations, and long-term health implications. Understanding these safety aspects is crucial for both professional technicians and consumers considering DIY applications.

The safety profile of carbon cleaning varies dramatically based on the method and products used. Professional hydrogen cleaning represents the safest approach, utilizing water electrolysis to generate cleaning gases without introducing foreign chemicals into the engine or environment. Chemical-based cleaning methods require more extensive safety precautions due to potential exposure risks and environmental considerations.

Chemical Safety and Exposure Risks

Chemical carbon cleaners contain various active ingredients that can pose health risks through inhalation, skin contact, or accidental ingestion. Common ingredients include petroleum distillates, aromatic hydrocarbons, and various detergents and dispersants that require careful handling and appropriate safety equipment.

Inhalation risks represent the primary safety concern with chemical carbon cleaners. Many products release vapors that can cause respiratory irritation, dizziness, or more serious health effects with prolonged exposure. Proper ventilation is essential when using these products, particularly in enclosed spaces like garages or service bays. Professional-grade respiratory protection may be necessary for extended exposure or when working with concentrated products.

Skin and eye contact risks require appropriate protective equipment including chemical-resistant gloves, safety glasses, and protective clothing. Many carbon cleaning chemicals can cause skin irritation, chemical burns, or serious eye damage upon contact. Emergency eyewash stations and first aid procedures should be readily available when working with these products.

Essential Safety Equipment for Chemical Cleaning:

  1. Chemical-resistant gloves (nitrile or neoprene)
  2. Safety glasses or face shield for eye protection
  3. Respiratory protection (N95 minimum, P100 for extended exposure)
  4. Protective clothing to prevent skin contact
  5. Adequate ventilation or exhaust systems
  6. Emergency eyewash and first aid supplies
  7. Fire suppression equipment appropriate for chemical fires

Equipment Safety and Operational Protocols

Professional carbon cleaning equipment incorporates numerous safety features designed to protect both operators and engines during cleaning procedures. Hydrogen generation equipment includes pressure relief valves, automatic shutdown systems, and gas concentration monitoring to prevent dangerous accumulations or equipment failures.

Electrical safety considerations are paramount when working with hydrogen generation equipment or other electrical cleaning systems. Proper grounding, circuit protection, and moisture management prevent electrical hazards that could cause injury or equipment damage. Regular equipment maintenance and calibration ensure continued safe operation and optimal performance.

Fire safety protocols are essential when working with flammable cleaning chemicals or hydrogen gas. Proper storage, handling, and disposal procedures minimize fire risks, while appropriate fire suppression systems provide protection in case of emergencies. Hot work permits and fire watch procedures may be required in commercial settings.

Environmental and Disposal Considerations

Environmental safety considerations include proper disposal of used cleaning chemicals, contaminated materials, and waste products generated during cleaning procedures. Many carbon cleaning chemicals are classified as hazardous waste requiring special handling and disposal procedures to prevent environmental contamination.

Air quality impacts from carbon cleaning procedures must be managed through proper ventilation and emission controls. Professional facilities typically incorporate air filtration and treatment systems to minimize environmental releases, while DIY applications require careful attention to local air quality regulations and neighbor considerations.

Engine Carbon Cleaning Cost

Carbon cleaning costs vary significantly based on the cleaning method selected, engine size and complexity, contamination severity, geographic location, and service provider qualifications. Understanding these cost factors and their relationship to effectiveness helps consumers make informed decisions about carbon cleaning investments.

Cost considerations extend beyond the immediate service price to include long-term value, warranty coverage, effectiveness guarantees, and potential savings from improved fuel economy and prevented repairs. A comprehensive cost analysis considers both direct expenses and indirect benefits to determine the true value proposition of different cleaning approaches.

Professional Service Cost Breakdown

Professional carbon cleaning services represent the highest upfront costs but typically provide the best value through superior effectiveness, warranty coverage, and reduced risk of damage. Understanding the cost structure helps consumers evaluate different service options and providers.

Hydrogen carbon cleaning services typically cost £150-300 for standard passenger vehicles, with larger engines or commercial vehicles commanding higher prices. This cost includes pre-cleaning assessment, the cleaning procedure itself, post-cleaning verification, and typically a 6-12 month warranty on the service. The price reflects the significant equipment investment, technician training requirements, and insurance costs associated with professional hydrogen cleaning systems.

Walnut blasting services represent the highest cost option at £600-900 for most applications, reflecting the labor-intensive nature of the procedure and the specialized equipment required. This cost includes intake manifold removal, the blasting procedure, reassembly with new gaskets, and comprehensive testing. The high cost is justified by the superior effectiveness for severe intake valve contamination that cannot be addressed through other methods.

Service Type Cost Range Duration Effectiveness Warranty
Hydrogen Cleaning £150-300 45-90 minutes 70-85% 6-12 months
Walnut Blasting £600-900 4-6 hours 95%+ 12-24 months
Chemical Cleaning £100-200 2-3 hours 50-70% 3-6 months
Combined Services £400-600 3-4 hours 85-95% 12-18 months

Chemical cleaning services occupy the middle ground at £100-200, offering moderate effectiveness at reasonable cost. These services typically use professional-grade chemical systems to clean accessible engine components without requiring disassembly. The lower cost reflects reduced labor requirements and equipment investment compared to hydrogen or walnut blasting systems.

DIY Cost Analysis and Comparison

DIY carbon cleaning options offer significant cost savings but with reduced effectiveness and increased risk. Understanding the true cost of DIY approaches requires considering not only product costs but also time investment, tool requirements, and potential consequences of improper application.

Premium fuel additives represent the most cost-effective DIY option at £15-40 per treatment. Quality products like Chevron Techron Concentrate Plus or Lucas Upper Cylinder Lubricant provide gradual cleaning action with minimal risk when used according to manufacturer instructions. Regular use every 3,000-5,000 miles maintains engine cleanliness and prevents severe contamination from developing.

Intake cleaning sprays cost £12-25 per application and offer more aggressive cleaning action than fuel additives. However, proper application requires technical knowledge and safety equipment, adding to the total cost. The risk of engine damage from improper application can result in repair costs far exceeding professional service prices.

Comprehensive DIY cleaning kits range from £30-80 and typically include multiple products and application tools. While these kits provide convenience and potentially better results than individual products, they still achieve only 40-60% of professional service effectiveness and carry higher risks than simple fuel additive treatments.

Regional Cost Variations and Market Analysis

Carbon cleaning costs vary significantly across different regions due to labor rates, market competition, regulatory requirements, and local demand factors. Understanding these variations helps consumers identify fair pricing and avoid overpriced services.

Urban areas typically command higher prices due to increased overhead costs, higher labor rates, and greater demand for specialized services. London and other major cities may see prices 20-30% above national averages, while rural areas often offer more competitive pricing but potentially limited service availability.

Market competition significantly influences pricing, with areas having multiple service providers typically offering more competitive rates than markets dominated by single providers. Franchise operations often provide standardized pricing and service quality, while independent shops may offer more flexible pricing but variable service quality.

Cost-Benefit Analysis and Value Assessment

Evaluating the value proposition of carbon cleaning requires analyzing both direct costs and indirect benefits including improved fuel economy, enhanced performance, reduced emissions, and prevented repair costs. This comprehensive analysis helps determine when carbon cleaning represents a sound investment versus unnecessary expense.

Return on Investment Calculations

Return on investment calculations for carbon cleaning consider fuel economy improvements, performance restoration, and prevented repair costs against the service cost. Typical fuel economy improvements of 5-15% can provide significant savings for high-mileage drivers, while performance restoration benefits are more difficult to quantify but contribute to overall vehicle value.

For a vehicle averaging 12,000 miles annually with 30 MPG fuel economy, a 10% improvement from carbon cleaning could save approximately 40 gallons of fuel per year. At current UK fuel prices of £1.45 per litre (approximately £6.60 per gallon), this represents annual savings of £264, making a £200 cleaning service pay for itself within one year.

ROI Calculation Example:

Vehicle Profile: 12,000 miles/year, 30 MPG average, £6.60/gallon fuel cost

Baseline Annual Fuel Cost: 400 gallons × £6.60 = £2,640

10% Efficiency Improvement: 360 gallons × £6.60 = £2,376

Annual Savings: £2,640 – £2,376 = £264

Payback Period: £200 service cost ÷ £264 annual savings = 9.1 months

Prevention vs. Correction Cost Analysis

Preventive carbon cleaning maintenance typically costs significantly less than corrective procedures required after severe contamination develops. Regular maintenance using fuel additives and periodic professional cleaning prevents the accumulation of deposits that require expensive corrective procedures or component replacement.

The cost of preventing carbon-related component failures through regular cleaning is typically 10-20% of the cost of replacing damaged components. For example, regular EGR valve cleaning costing £50-100 annually prevents valve replacement costs of £300-600, while DPF maintenance through engine cleaning prevents filter replacement costs of £1,500-3,000.

Insurance and Warranty Considerations

Insurance and warranty considerations play crucial roles in carbon cleaning decisions, affecting both the choice of service provider and the financial protection available in case of problems. Understanding these factors helps consumers make informed decisions about service selection and risk management.

Professional carbon cleaning services typically carry comprehensive insurance coverage protecting against damage caused during cleaning procedures. This coverage provides financial protection for expensive engine repairs that might result from service-related problems, making professional services significantly less risky than DIY attempts.

Vehicle warranty considerations vary by manufacturer and service type. Some manufacturers explicitly approve certain carbon cleaning methods while voiding warranties for others. Hydrogen cleaning is generally accepted by most manufacturers as a safe maintenance procedure, while aggressive chemical cleaning or DIY attempts may void warranty coverage if damage occurs.

Risk-Cost Decision Framework

Developing an effective decision framework for carbon cleaning requires balancing risk factors, cost considerations, and expected benefits based on individual circumstances including vehicle type, usage patterns, maintenance history, and financial constraints.

Decision Matrix for Carbon Cleaning:

Low Risk, Low Cost: Regular fuel additives for preventive maintenance (£15-40 annually)

Low Risk, Moderate Cost: Professional hydrogen cleaning for performance restoration (£150-300 every 40,000-60,000 miles)

Moderate Risk, High Cost: Walnut blasting for severe direct injection contamination (£600-900 as needed)

High Risk, Low Cost: DIY chemical cleaning (£30-80 with significant damage risk)

Optimal Strategy: Combine preventive additives with periodic professional cleaning based on engine type and usage

The most effective approach typically combines low-risk preventive maintenance using quality fuel additives with periodic professional cleaning services based on engine type and contamination severity. This strategy minimizes both costs and risks while maintaining optimal engine performance and preventing expensive component failures.

Risk tolerance and financial constraints ultimately determine the optimal carbon cleaning strategy for individual vehicle owners. Conservative approaches emphasizing safety and warranty protection may cost more initially but provide better long-term value through reduced risk and superior results. Aggressive cost-cutting through DIY methods may save money initially but can result in expensive consequences if problems occur.

References

  • Engine Carbon Clean – How It Works
  • Consumer Reports – What Is Walnut Blasting for Cars
  • CR Allen & Sons – Engine Carbon Cleaning Worth
  • Gerry’s Service – When Is Carbon Cleaning Necessary
  • MotorBiscuit – Does Carbon Cleaning Actually Work
  • RAC – Engine Carbon Cleaning Guide
oil filler cap on an engine
Oil Additives

Oil Additive Application and Usage

April 24, 2022 FTE Leave a comment

The debate over oil additives is as old as the automobile itself. Some swear by them, while others dismiss them as snake oil. The truth, as is often the case, lies somewhere in between. This article will provide a comprehensive guide to the application and usage of oil additives, helping you to make an informed decision about whether they are right for your vehicle. We will explore the effectiveness and performance of oil additives, their compatibility with different types of oil, and the potential risks of using them incorrectly. By the end of this article, you will have a clear understanding of when and how to use oil additives to maximize their benefits and avoid any potential pitfalls.

Table of Contents ▼
  • Are Oil Additives Worth It?
  • Are Oil Additives Good or Bad?
  • Oil Additive Effectiveness and Performance
  • Do Oil Additives Work?
  • Can Oil Additives Damage Your Engine?
  • Oil Additive Compatibility with Synthetic Oil
  • Oil Additive Mixing Ratios and Dosage
  • When to Use Oil Additives

Are Oil Additives Worth It?

The question of whether oil additives are worth the investment is a complex one, with no single answer that applies to every vehicle. For owners of high-mileage vehicles, typically those with over 75,000 miles on the odometer, a quality oil additive can be a very worthwhile investment. As engines age, seals can become brittle and shrink, leading to oil leaks. Certain additives contain seal conditioners that can rejuvenate these seals, restoring their flexibility and preventing leaks. Similarly, older engines are more prone to the buildup of sludge and deposits, which can restrict oil flow and reduce performance. A good additive can help to clean away these deposits, restoring lost power and efficiency. However, for newer vehicles that are still under warranty, it is generally best to stick with the manufacturer’s recommended oil and avoid any aftermarket additives. The use of an unapproved additive could potentially void your warranty. Ultimately, the decision of whether or not to use an oil additive should be based on the specific needs of your vehicle and your own personal risk tolerance.

Are Oil Additives Good or Bad?

Oil additives are not inherently good or bad, but rather a tool that can be used for good or ill. A high-quality additive from a reputable manufacturer, when used correctly, can provide a number of benefits, including improved wear protection, enhanced fuel economy, and a cleaner engine. However, a low-quality additive, or one that is used incorrectly, can do more harm than good. The main risk is that the additive can disrupt the carefully balanced chemistry of the motor oil, leading to a number of problems. For example, some additives can cause the oil to thicken excessively, which can impede its ability to flow to critical engine parts, especially during cold starts. Other additives can be incompatible with the seals and gaskets in your engine, causing them to swell or shrink, which can lead to leaks. The key to avoiding these problems is to do your research and choose a product from a brand that you trust. Reputable brands like Oilsyn and Archoil invest heavily in research and development to ensure that their products are both safe and effective.

Oil Additive Effectiveness and Performance

The effectiveness of oil additives is a subject of much debate, but there is a growing body of evidence to suggest that quality products can deliver real-world performance benefits. For example, a number of studies have shown that certain additives can significantly reduce engine friction, which can lead to improved fuel economy. Other studies have shown that additives can reduce engine wear, especially in high-load, high-stress situations. However, it is important to have realistic expectations. An oil additive is not going to turn your 20-year-old beater into a brand-new sports car. The effects are often subtle and may not be immediately noticeable. The best way to gauge the effectiveness of an additive is to monitor your vehicle’s performance over time. Keep track of your fuel economy, oil consumption, and any changes in engine noise or performance. If you notice a positive trend after using an additive, then it is likely that it is working for you.

Do Oil Additives Work?

Yes, many oil additives do work, but their effectiveness depends on a number of factors, including the quality of the additive, the condition of your engine, and the type of oil you are using. A quality additive can help to clean away sludge and deposits, reduce friction and wear, and improve the overall performance of your engine. However, it is important to remember that additives are not a substitute for regular maintenance. An additive is not going to fix a blown head gasket or a scored cylinder wall. The best way to keep your engine running smoothly is to change your oil regularly, use a high-quality oil and filter, and address any mechanical problems as soon as they arise. An oil additive should be seen as a supplemental treatment that can help to enhance the performance of a well-maintained engine.

Can Oil Additives Damage Your Engine?

While it is rare, it is possible for an oil additive to damage your engine. The most common cause of damage is using a low-quality additive or an incorrect dosage. A low-quality additive may contain chemicals that are incompatible with the seals and gaskets in your engine, which can cause them to swell or shrink, leading to leaks. An incorrect dosage can alter the viscosity of your oil, which can impede its ability to flow to critical engine parts, especially during cold starts. To avoid these problems, it is important to use a product from a reputable brand and to follow the manufacturer’s instructions carefully. If you are unsure about which additive to use, or how to use it, it is always best to consult with a qualified mechanic.

Oil Additive Compatibility with Synthetic Oil

Most high-quality oil additives are compatible with both conventional and synthetic oils. However, it is always a good idea to check the product label to be sure. Some synthetic oils, particularly those that are designed for high-performance applications, are already heavily fortified with additives. In these cases, adding a supplemental treatment may not be necessary, and could even be counterproductive. If you are using a high-quality synthetic oil, such as those from Oilsyn or Archoil, it is best to consult with the manufacturer before adding any aftermarket additives. They will be able to tell you whether their product is compatible with your oil and whether it is likely to provide any additional benefits.

Oil Additive Mixing Ratios and Dosage

Proper mixing ratios and dosage are critical for the safe and effective use of oil additives. Always follow the manufacturer’s instructions on the product label. Overdosing can be just as harmful as underdosing, as it can alter the oil’s viscosity and disrupt its chemical balance. Most additives are designed to be added during an oil change, when the old oil has been drained and the new oil is being added. This ensures that the additive is properly mixed with the oil and that it is distributed evenly throughout the engine. If you are unsure about the proper mixing ratio or dosage for your vehicle, it is always best to consult with a qualified mechanic.

When to Use Oil Additives

The best time to use an oil additive is when your engine starts to show signs of age, typically after 75,000 miles. They can also be beneficial for vehicles that operate under severe conditions, such as frequent towing or stop-and-go driving. For newer engines, using a high-quality synthetic oil is often sufficient. If you are considering using an oil additive, it is a good idea to do some research to find a product that is well-suited to the specific needs of your vehicle. You can also consult with a qualified mechanic to get their recommendation. By following these guidelines, you can use oil additives safely and effectively to help keep your engine running smoothly for years to come.

Car exhaust with visible fumes and test equipment attached
Car Emissions

Exhaust Emissions Testing Procedures Results and Troubleshooting

April 18, 2022 FTE Leave a comment

Exhaust emissions testing represents a critical intersection of environmental protection, vehicle safety, and regulatory compliance that affects millions of vehicle owners worldwide. Understanding the complexities of emission testing procedures, interpreting results accurately, and troubleshooting failures effectively requires comprehensive knowledge of both the technical aspects of emission measurement and the practical challenges of maintaining compliance with increasingly stringent standards. This detailed guide provides automotive professionals and vehicle owners with the essential information needed to navigate the emission testing landscape successfully.

Table of Contents ▼
  • Exhaust Emissions Testing Overview
  • How to Check Exhaust Emissions
  • Measuring Vehicle Exhaust Emissions
  • Remote Sensing Technology
  • Exhaust Emissions Testers and Gas Analyzers
  • MOT Emissions Test Results Explained
  • Importance of Regular Testing
  • Handling Test Failures
  • Understanding Emission Limits
  • Exhaust Leaks and Emissions
  • References

Exhaust Emissions Testing Overview

Exhaust emissions testing serves as the cornerstone of vehicular environmental compliance, providing quantitative measurement of pollutant concentrations released from vehicle tailpipes under standardized conditions. These testing procedures have evolved significantly since their introduction in the 1970s, progressing from simple visual opacity checks to sophisticated multi-gas analysis systems capable of detecting pollutant concentrations at parts-per-million levels. Modern emission testing protocols encompass both regulatory compliance verification and diagnostic capabilities that enable identification of specific engine and emission control system malfunctions.

The fundamental principle underlying emission testing involves sampling exhaust gases during controlled engine operation and analyzing the chemical composition using specialized instrumentation. Standard testing procedures require engine warm-up to normal operating temperature, followed by measurements at idle and elevated RPM conditions, typically 2500 RPM for gasoline engines. The testing duration varies by jurisdiction and vehicle type, with most protocols requiring 30-second measurement periods at each test condition to ensure stable readings and account for normal engine variability.

Regulatory frameworks governing emission testing vary significantly between jurisdictions, with the European Union, United States, and other regions implementing distinct testing protocols and emission limits. The UK’s MOT testing system, Ireland’s NCT program, and similar inspection schemes worldwide share common objectives of ensuring vehicle roadworthiness and environmental compliance, though specific procedures and limits may differ. Understanding these variations is crucial for automotive professionals working across multiple markets and for vehicle owners traveling between jurisdictions with different requirements.

Testing Statistics: Approximately 40 million vehicles undergo annual emission testing in the European Union, with failure rates ranging from 8-15% depending on vehicle age and maintenance standards. Modern vehicles (Euro 6/VI) show failure rates below 5%, while vehicles over 10 years old can exceed 20% failure rates, primarily due to catalytic converter degradation and oxygen sensor failures.

The technological foundation of emission testing relies on sophisticated analytical instruments capable of real-time measurement of multiple gas species simultaneously. Five-gas analyzers represent the current standard for comprehensive emission testing, measuring carbon monoxide (CO), carbon dioxide (CO2), hydrocarbons (HC), nitrogen oxides (NOx), and oxygen (O2). These measurements provide not only direct pollutant concentrations but also enable calculation of air-fuel ratios, combustion efficiency, and catalytic converter performance through mathematical relationships between the measured species.

Quality assurance and calibration procedures ensure the accuracy and reliability of emission testing results, with regulatory requirements for daily calibration checks using certified reference gases and annual comprehensive calibrations traceable to national standards. Testing facilities must maintain detailed records of calibration procedures, equipment maintenance, and quality control measures to ensure compliance with accreditation requirements. The precision and accuracy of modern gas analyzers typically exceed ±2% of reading for major species and ±5% for trace components, providing sufficient resolution for regulatory compliance verification.

How to Check Exhaust Emissions

Checking exhaust emissions requires systematic preparation, proper equipment operation, and careful interpretation of results to ensure accurate assessment of vehicle emission performance. The process begins with thorough vehicle preparation, including verification of proper engine operating temperature, fuel level adequacy, and absence of obvious mechanical problems that could affect test results. Engine warm-up procedures typically require 5-10 minutes of operation at varying loads to ensure all emission control systems reach optimal operating temperature and the catalytic converter achieves full conversion efficiency.

Professional emission testing equipment setup involves connecting the gas analyzer probe to the vehicle’s tailpipe using appropriate adapters and ensuring proper seal to prevent ambient air dilution. The probe insertion depth should be sufficient to sample representative exhaust gases while avoiding contact with internal tailpipe components that could damage the probe or affect readings. Modern analyzers include automatic leak detection systems that verify sample line integrity and alert operators to potential dilution problems that could compromise test accuracy.

The testing sequence follows standardized protocols beginning with idle measurements, where the engine operates at normal idle speed (typically 600-900 RPM) for the specified measurement duration. Stable readings require consistent engine operation without fluctuations in RPM or load, which may indicate underlying engine problems that should be addressed before emission testing. Following idle measurements, the engine speed is increased to the specified elevated RPM (usually 2500 RPM) and maintained for the required measurement period while monitoring for stable gas concentrations.

Interpretation of emission test results requires understanding both the absolute pollutant concentrations and their relationships to regulatory limits and normal operating ranges. Carbon monoxide levels provide immediate indication of air-fuel mixture richness, with concentrations above 1% typically indicating rich mixture conditions or catalytic converter problems. Hydrocarbon measurements reflect combustion efficiency and emission control effectiveness, with elevated levels suggesting incomplete combustion, ignition system problems, or catalyst degradation.

Professional Testing Tip: Lambda (λ) values calculated from exhaust gas composition provide critical insight into air-fuel ratio control. Values between 0.97-1.03 indicate proper stoichiometric operation, while values outside this range suggest fuel system problems, vacuum leaks, or oxygen sensor malfunctions requiring further diagnosis.

Basic emission checking can be performed using portable gas analyzers or OBD-II diagnostic tools that provide preliminary assessment of emission system health. While these tools may not provide the precision required for regulatory compliance testing, they offer valuable diagnostic information for identifying potential problems before formal testing. OBD-II systems monitor emission-related components continuously and store fault codes when malfunctions are detected, providing a cost-effective first step in emission system evaluation.

Documentation and record-keeping requirements for emission testing vary by jurisdiction and application, with regulatory testing requiring detailed records of test conditions, equipment calibration status, and results. Professional testing facilities must maintain comprehensive databases of test results for regulatory reporting and quality assurance purposes. Vehicle owners should retain emission test certificates as proof of compliance and for diagnostic reference when addressing emission-related problems.

Measuring Vehicle Exhaust Emissions

Vehicle exhaust emission measurement encompasses a sophisticated array of analytical techniques and instrumentation designed to quantify pollutant concentrations with high precision and accuracy across diverse operating conditions. The measurement process involves complex interactions between sampling systems, analytical instruments, and data processing algorithms that must account for variations in exhaust flow rates, temperature, pressure, and chemical composition. Understanding these measurement principles is essential for interpreting test results accurately and identifying potential sources of measurement error or uncertainty.

Laboratory-based emission measurement systems represent the gold standard for regulatory compliance testing, utilizing chassis dynamometers that simulate real-world driving conditions while maintaining precise control over test parameters. The Worldwide Harmonized Light Vehicles Test Procedure (WLTP) and similar standardized driving cycles provide repeatable test conditions that enable comparison of emission performance across different vehicles and technologies. These laboratory systems incorporate sophisticated exhaust dilution tunnels that mix exhaust gases with filtered ambient air to simulate atmospheric dispersion while maintaining sample integrity for analysis.

Portable Emissions Measurement Systems (PEMS) have revolutionized emission testing by enabling real-world measurement under actual driving conditions, addressing the limitations of laboratory testing that may not reflect real-world emission performance. PEMS equipment includes compact gas analyzers, exhaust flow measurement devices, and GPS-based data logging systems that record emission rates, vehicle speed, engine parameters, and environmental conditions simultaneously. The integration of PEMS data with vehicle diagnostic information provides comprehensive insight into emission control system performance under diverse operating scenarios.

Mass emission rate calculations require precise measurement of both pollutant concentrations and exhaust flow rates, with flow measurement representing one of the most challenging aspects of emission testing. Exhaust flow rates vary significantly with engine load, speed, and operating conditions, requiring sophisticated flow measurement techniques such as pitot tubes, hot-wire anemometers, or tracer gas methods. The accuracy of mass emission calculations depends critically on flow measurement precision, as errors in flow determination directly translate to proportional errors in calculated emission rates.

Measurement Precision: Modern laboratory-grade emission measurement systems achieve measurement uncertainties of ±2% for CO2, ±3% for CO and NOx, and ±5% for HC at typical exhaust concentrations. PEMS systems typically show higher uncertainties (±5-10%) due to the challenges of real-world measurement conditions, but provide invaluable data on actual emission performance.

Analytical techniques for emission measurement rely on fundamental physical and chemical principles including infrared absorption spectroscopy for CO and CO2, flame ionization detection for hydrocarbons, and chemiluminescence or electrochemical detection for nitrogen oxides. Each analytical method has specific advantages and limitations regarding sensitivity, selectivity, response time, and interference susceptibility. Understanding these characteristics enables proper selection of analytical methods for specific applications and interpretation of measurement limitations.

Data quality assurance procedures for emission measurement include regular calibration with certified reference gases, interference testing with known interferents, and participation in inter-laboratory comparison programs to verify measurement accuracy. Statistical analysis of measurement data helps identify outliers, assess measurement uncertainty, and determine compliance with regulatory requirements. Advanced data processing techniques can compensate for known interferences and correct for environmental factors that affect measurement accuracy.

Remote Sensing Technology

Remote sensing of vehicle exhaust emissions represents a revolutionary approach to emission monitoring that enables rapid, non-intrusive measurement of pollutant concentrations from vehicles in normal traffic flow. This technology utilizes infrared and ultraviolet light absorption principles to measure exhaust gas concentrations as vehicles pass through optical beams positioned across roadways, providing instantaneous emission data without requiring vehicle stopping or driver interaction. Remote sensing systems have become increasingly important tools for emission compliance monitoring, high-emitter identification, and air quality management in urban areas worldwide.

The operational principle of remote sensing involves transmitting infrared and ultraviolet light beams across roadways at tailpipe height, with receivers on the opposite side measuring the absorption of specific wavelengths corresponding to target pollutants. As vehicles pass through the light beams, their exhaust plumes absorb characteristic wavelengths proportional to pollutant concentrations, enabling calculation of CO, HC, and NOx levels in real-time. The measurement process occurs in approximately 0.5 seconds, allowing monitoring of vehicles traveling at normal traffic speeds without disrupting traffic flow.

Accuracy and reliability of remote sensing measurements depend on numerous factors including atmospheric conditions, vehicle speed, exhaust plume characteristics, and system calibration. Modern remote sensing systems achieve measurement accuracies of 95% or better for identifying high-emitting vehicles when compared to conventional dynamometer testing. However, the technology is most effective for screening applications rather than precise quantitative measurement, as factors such as wind conditions, ambient temperature, and exhaust plume dispersion can affect measurement precision.

Applications of remote sensing technology extend beyond simple emission monitoring to include fleet screening, emission factor development, and evaluation of emission control program effectiveness. Over 200 cities worldwide have implemented remote sensing programs for various applications, with some jurisdictions using the technology for enforcement purposes while others focus on voluntary repair programs. The ability to measure large numbers of vehicles quickly and cost-effectively makes remote sensing particularly valuable for statistical analysis of fleet emission performance and identification of trends in emission control system effectiveness.

Integration of remote sensing data with vehicle registration databases enables targeted enforcement and repair programs that focus resources on the highest-emitting vehicles. Studies have shown that approximately 10% of vehicles typically account for 50% or more of total fleet emissions, making identification and repair of these high emitters a cost-effective emission reduction strategy. Remote sensing provides the screening capability necessary to identify these vehicles efficiently without the cost and complexity of testing entire vehicle fleets.

Technology Impact: Remote sensing programs in cities like London, Denver, and Phoenix have demonstrated 20-40% reductions in fleet-average emissions through targeted identification and repair of high-emitting vehicles. The technology’s ability to test thousands of vehicles per day makes it one of the most cost-effective emission monitoring approaches available.

Limitations of remote sensing technology include sensitivity to environmental conditions, inability to measure particulate matter emissions, and challenges in measuring emissions from vehicles with very low emission levels. Cold weather conditions can affect measurement accuracy due to changes in exhaust plume behavior and optical properties. Additionally, the technology cannot provide the detailed diagnostic information available from comprehensive emission testing, limiting its utility for identifying specific emission control system problems.

Future developments in remote sensing technology focus on improved measurement precision, expanded pollutant coverage, and integration with other monitoring technologies. Advanced optical systems may enable measurement of additional pollutants including particulate matter and ammonia, while improved data processing algorithms could enhance measurement accuracy under challenging environmental conditions. The integration of remote sensing with automatic license plate recognition and vehicle telematics systems offers potential for real-time emission monitoring and dynamic emission control strategies.

Exhaust Emissions Testers and Gas Analyzers

Professional exhaust gas analyzers represent sophisticated analytical instruments that combine multiple detection technologies to provide comprehensive measurement of exhaust pollutants with the precision and accuracy required for regulatory compliance testing. These instruments have evolved significantly from simple single-gas detectors to complex multi-gas systems capable of simultaneous measurement of five or more gas species while providing real-time data processing, automatic calibration, and comprehensive diagnostic capabilities. Understanding the operational principles, capabilities, and limitations of different analyzer technologies is essential for selecting appropriate equipment and interpreting measurement results accurately.

Five-gas analyzers represent the current standard for comprehensive emission testing, incorporating multiple analytical technologies within a single instrument package. Infrared absorption spectroscopy provides the foundation for CO and CO2 measurement, utilizing the characteristic absorption of infrared radiation by these molecules at specific wavelengths. The non-dispersive infrared (NDIR) technique offers excellent selectivity and stability for these measurements, with typical measurement ranges from 0-10% for CO and 0-20% for CO2, providing sufficient range for both normal and malfunctioning vehicles.

Hydrocarbon measurement in modern gas analyzers utilizes flame ionization detection (FID), which provides universal response to organic compounds and excellent sensitivity for total hydrocarbon measurement. The FID technique involves burning the sample in a hydrogen flame and measuring the ionization current produced by carbon-containing compounds, providing linear response across a wide concentration range typically from 0-10,000 parts per million. This measurement technique offers superior accuracy and stability compared to earlier infrared-based hydrocarbon analyzers, particularly for the low concentrations typical of modern vehicles.

Nitrogen oxide measurement employs either chemiluminescence detection or electrochemical sensors, each offering distinct advantages for different applications. Chemiluminescence analyzers provide excellent sensitivity and selectivity for NOx measurement but require more complex sample conditioning and higher maintenance requirements. Electrochemical sensors offer simpler operation and lower cost but may have limitations regarding long-term stability and interference susceptibility. The choice between these technologies depends on application requirements, cost considerations, and maintenance capabilities.

Equipment Investment: Professional five-gas analyzers suitable for regulatory testing typically cost £3,000-15,000 depending on features and capabilities. Annual calibration and maintenance costs range from £500-1,500, while portable units for basic diagnostic work are available for £200-500 but may not meet regulatory testing requirements.

Oxygen measurement provides critical information for air-fuel ratio calculation and emission control system diagnosis, typically utilizing electrochemical sensors that offer good accuracy and reasonable cost. The oxygen measurement enables calculation of lambda (λ) values that indicate whether the engine is operating rich, lean, or at stoichiometric conditions. This information is essential for diagnosing fuel system problems, oxygen sensor malfunctions, and catalytic converter performance issues that may not be apparent from pollutant measurements alone.

Calibration and quality assurance procedures for gas analyzers require regular verification using certified reference gases traceable to national standards, with daily calibration checks and comprehensive annual calibrations typically required for regulatory compliance. Modern analyzers include automatic calibration sequences that simplify this process while ensuring measurement accuracy. The calibration process involves zero and span adjustments for each measured species, linearity verification across the measurement range, and interference testing to verify selectivity.

Data management and reporting capabilities of modern gas analyzers include comprehensive databases for storing test results, automatic pass/fail determination based on programmed emission limits, and integration with vehicle information systems for complete test documentation. Advanced analyzers offer network connectivity for remote monitoring, automatic software updates, and integration with facility management systems. These capabilities enhance operational efficiency while ensuring compliance with regulatory reporting requirements.

MOT Emissions Test Results Explained

MOT emission test results provide comprehensive information about vehicle emission performance and compliance with regulatory standards, requiring careful interpretation to understand both immediate pass/fail status and underlying vehicle condition. The results encompass multiple measured parameters including pollutant concentrations, calculated values such as lambda, and comparative analysis against age-specific emission limits. Understanding these results enables vehicle owners and technicians to identify potential problems, assess emission control system effectiveness, and plan appropriate maintenance or repair actions.

Carbon monoxide results indicate the efficiency of combustion and emission control systems, with measurements expressed as percentage by volume in the exhaust gas. Modern vehicles (post-2002) must achieve CO levels below 0.5% at both idle and elevated RPM conditions, while older vehicles may have higher limits up to 3.5% depending on their age and emission control equipment. Elevated CO levels typically indicate rich air-fuel mixture conditions, catalytic converter problems, or ignition system malfunctions that prevent complete combustion of fuel.

Hydrocarbon measurements reflect the completeness of combustion and the effectiveness of emission control systems in oxidizing unburned fuel components. Results are expressed in parts per million (ppm) by volume, with modern vehicles required to achieve levels below 200 ppm while older vehicles may have limits up to 1200 ppm. High hydrocarbon levels can indicate ignition system problems, fuel injection malfunctions, valve timing issues, or catalytic converter degradation that reduces the conversion efficiency for organic compounds.

Lambda values calculated from the exhaust gas composition provide critical insight into air-fuel ratio control and engine management system operation. Lambda represents the ratio of actual air-fuel ratio to the stoichiometric air-fuel ratio, with values of 1.0 indicating perfect stoichiometric operation. Acceptable lambda ranges typically fall between 0.97-1.03 for gasoline engines, with values outside this range indicating fuel system problems, vacuum leaks, or oxygen sensor malfunctions that require further diagnosis.

Result Interpretation Guide: CO levels above 1% combined with lambda values below 0.97 typically indicate rich mixture conditions from fuel system problems or oxygen sensor failures. HC levels above 500 ppm with normal CO and lambda values suggest ignition system problems or catalytic converter degradation requiring specific diagnostic procedures.

Diesel emission results focus primarily on opacity measurements expressed in m⁻¹ (inverse meters), which quantify the light absorption characteristics of the exhaust smoke. Naturally aspirated diesel engines must achieve opacity levels below 2.5 m⁻¹, while turbocharged engines have slightly higher limits of 3.0 m⁻¹. High opacity readings indicate excessive particulate matter emissions typically caused by fuel injection problems, air intake restrictions, or diesel particulate filter malfunctions in vehicles so equipped.

Comparative analysis of emission results against historical data for the same vehicle can reveal trends in emission control system performance and help predict future maintenance requirements. Gradual increases in pollutant levels over time may indicate normal component aging, while sudden changes often suggest specific component failures requiring immediate attention. This trend analysis is particularly valuable for fleet operators managing large numbers of vehicles with similar emission control systems.

Documentation requirements for MOT emission testing include retention of detailed test results for regulatory compliance and warranty purposes. The official MOT certificate provides summary pass/fail information, while detailed test data may be available from the testing facility for diagnostic purposes. Vehicle owners should retain these records for maintenance planning and to demonstrate compliance history when selling vehicles or addressing emission-related warranty claims.

Importance of Regular Testing

Regular exhaust emission testing serves multiple critical functions that extend far beyond simple regulatory compliance, providing early detection of engine and emission control system problems that can prevent costly repairs, ensure optimal vehicle performance, and protect public health and environmental quality. The systematic monitoring of emission performance through regular testing enables identification of degrading components before complete failure occurs, allowing for planned maintenance that minimizes vehicle downtime and repair costs while maintaining emission compliance throughout vehicle life.

Early problem detection represents one of the most significant benefits of regular emission testing, as many emission control system problems develop gradually over time before becoming apparent through obvious symptoms such as check engine lights or performance degradation. Catalytic converter efficiency typically decreases slowly due to thermal cycling, contamination, and normal aging processes, with emission testing capable of detecting 10-20% efficiency reductions that may not trigger diagnostic codes but indicate the need for preventive maintenance or component replacement.

Cost savings from regular emission testing can be substantial, as early detection and repair of emission system problems prevents cascade failures that can result in expensive multiple component replacements. For example, a failing oxygen sensor that causes rich mixture operation can damage the catalytic converter within 10,000-20,000 miles, turning a £50-100 sensor replacement into a £500-1,500 catalytic converter replacement. Regular testing enables identification of oxygen sensor degradation before catalyst damage occurs, providing significant cost savings.

Legal compliance requirements make regular emission testing mandatory in many jurisdictions, with penalties for non-compliance including fines, vehicle registration suspension, and prohibition from operating in low emission zones. The UK’s MOT system requires annual emission testing for vehicles over three years old, while other jurisdictions may have different testing frequencies and requirements. Understanding and complying with these requirements is essential for legal vehicle operation and avoiding enforcement actions.

Environmental Impact: A single vehicle with failed emission controls can produce 10-50 times more pollutants than a properly functioning vehicle. Regular testing ensures that the small percentage of high-emitting vehicles are identified and repaired, preventing disproportionate environmental impact from a few poorly maintained vehicles.

Health protection benefits of regular emission testing contribute to improved air quality and reduced exposure to harmful pollutants for both vehicle occupants and the general public. Properly functioning emission control systems reduce exposure to carcinogenic compounds such as benzene and diesel particulate matter, while also minimizing respiratory irritants including nitrogen oxides and carbon monoxide. The cumulative effect of maintaining emission compliance across vehicle fleets provides measurable public health benefits in urban areas.

Vehicle performance optimization through regular emission testing ensures that engines operate at peak efficiency, providing benefits including improved fuel economy, enhanced drivability, and extended engine life. Emission control systems that function properly typically indicate well-maintained engines with proper air-fuel ratios, ignition timing, and combustion efficiency. Conversely, emission problems often correlate with reduced performance, increased fuel consumption, and accelerated engine wear that can be addressed through timely maintenance.

Handling Test Failures

Emission test failures require systematic diagnostic approaches to identify root causes and implement effective repairs that address underlying problems rather than merely treating symptoms. The complexity of modern emission control systems means that test failures can result from numerous potential causes ranging from simple maintenance issues to complex electronic control system malfunctions. Successful troubleshooting requires understanding the relationships between different system components and the ability to interpret diagnostic information from multiple sources including emission test results, OBD-II codes, and component-specific testing.

Common causes of emission test failures include catalytic converter degradation, oxygen sensor malfunctions, fuel system problems, ignition system issues, and air intake restrictions. Catalytic converter problems account for approximately 40% of emission test failures in vehicles over 10 years old, typically manifesting as elevated CO and HC levels with normal or slightly rich lambda values. Oxygen sensor failures often cause erratic air-fuel ratio control, resulting in variable emission levels and lambda values outside normal ranges.

Diagnostic procedures for emission test failures should begin with comprehensive OBD-II system analysis to identify stored fault codes, pending codes, and system readiness status. Many emission problems trigger diagnostic codes that provide specific guidance for troubleshooting, though some intermittent problems may not set codes consistently. Freeze frame data captured when codes are set provides valuable information about operating conditions when problems occurred, helping to identify specific scenarios that trigger emission control system malfunctions.

Repair strategies for emission test failures should prioritize the most likely causes based on test results and diagnostic information, beginning with simple and cost-effective repairs before proceeding to more complex and expensive solutions. Basic maintenance items such as air filter replacement, spark plug renewal, and fuel system cleaning can resolve many emission problems at relatively low cost. More complex repairs involving catalytic converter replacement or engine management system reprogramming require careful diagnosis to ensure that root causes are addressed.

Repair Cost Management: Emission test failure repairs range from £20 for air filter replacement to £1,500+ for catalytic converter replacement. Proper diagnosis before repair can prevent unnecessary component replacement and ensure that repairs address actual problems rather than symptoms, potentially saving hundreds of pounds in unnecessary work.

Retest procedures and timing requirements vary by jurisdiction, with most systems allowing 10-20 working days for repairs and retesting after initial failure. Some jurisdictions offer partial retests that focus only on the failed emission parameters, while others require complete retesting of all parameters. Understanding these requirements helps plan repair schedules and avoid additional testing fees or compliance deadlines.

Prevention strategies for emission test failures include regular maintenance of emission-related components, use of quality fuels and lubricants, and prompt attention to check engine lights or other emission system warning indicators. Preventive maintenance schedules should include oxygen sensor replacement every 60,000-100,000 miles, air filter replacement every 15,000-30,000 miles, and fuel system cleaning every 30,000-50,000 miles depending on operating conditions and fuel quality.

Understanding Emission Limits

Emission limits represent the maximum allowable concentrations of specific pollutants that vehicles may emit while maintaining regulatory compliance, with these limits varying significantly based on vehicle age, engine type, emission control equipment, and jurisdiction-specific requirements. Understanding the rationale behind these limits, their relationship to environmental and health protection objectives, and the factors that influence limit-setting provides essential context for interpreting test results and planning compliance strategies. The evolution of emission limits over time reflects advancing technology capabilities and increasing environmental awareness that drives progressively more stringent requirements.

Age-based emission limits recognize that older vehicles were designed to meet less stringent standards and may not be capable of achieving modern emission levels due to technology limitations or component aging. Pre-1992 vehicles typically have the most lenient limits, reflecting the absence of catalytic converters and sophisticated engine management systems in many vehicles from this era. Vehicles manufactured between 1992-2002 have intermediate limits that account for basic catalytic converter technology, while post-2002 vehicles must meet the most stringent limits reflecting advanced emission control systems.

Engine type considerations result in different emission limits for gasoline and diesel engines, reflecting the distinct combustion characteristics and emission formation mechanisms of these technologies. Diesel engines typically have higher allowable NOx levels but lower CO limits compared to gasoline engines, while opacity limits apply specifically to diesel vehicles to control particulate matter emissions. These differences acknowledge the fundamental trade-offs between different engine technologies while ensuring that all vehicles contribute to overall emission reduction objectives.

Default limits and manufacturer-specific limits provide flexibility for vehicles that may not fit standard categories or have unique emission control systems. Default limits typically represent conservative values that ensure environmental protection while accommodating vehicles with unusual configurations or limited documentation. Manufacturer-specific limits may be available for vehicles with documented emission control specifications that differ from standard requirements, though these limits must be verified through appropriate documentation.

Limit Evolution: UK MOT emission limits have become 85% more stringent over the past 20 years, with CO limits for modern vehicles reduced from 3.5% to 0.5% and HC limits decreased from 1200 ppm to 200 ppm. These reductions reflect technological advances and environmental protection priorities that continue to drive emission standard development.

Temporary exceedances of emission limits may occur during specific operating conditions such as cold starts, DPF regeneration cycles, or transient load changes, with testing protocols designed to account for these normal variations. Cold start emissions can be 2-10 times higher than warm engine emissions due to incomplete catalytic converter activation and rich mixture operation required for engine warm-up. Understanding these normal variations helps distinguish between temporary exceedances and persistent emission control system problems.

Future emission limit trends indicate continued tightening of allowable emission levels as technology advances and environmental protection requirements become more stringent. The introduction of Real Driving Emissions (RDE) testing in Europe and similar initiatives worldwide represent movement toward more realistic emission limits that reflect actual operating conditions rather than laboratory test results. These developments will likely influence future emission testing protocols and limit-setting approaches globally.

Exhaust Leaks and Emissions

Exhaust system leaks represent a significant concern for emission testing compliance, vehicle safety, and environmental protection, with the location and severity of leaks determining their impact on emission test results and overall vehicle operation. Leaks occurring before emission control devices can dramatically affect emission measurements by allowing unmetered air to enter the exhaust system, diluting exhaust gases and creating false readings that may mask actual emission control system performance. Understanding the relationship between leak location, emission test results, and safety implications is essential for proper diagnosis and repair prioritization.

Pre-catalyst exhaust leaks create the most significant problems for emission testing accuracy, as ambient air entering the exhaust system dilutes pollutant concentrations and can create artificially low readings that do not reflect actual engine-out emissions. These leaks typically occur at exhaust manifold gaskets, header pipe connections, or flex pipe joints where thermal cycling and vibration create stress concentrations. The dilution effect can reduce measured CO and HC concentrations by 20-50% or more, potentially allowing vehicles with serious emission control problems to pass testing despite producing excessive pollutants.

Post-catalyst exhaust leaks generally have less impact on emission test results since the exhaust gases have already passed through emission control devices, though these leaks still present safety concerns due to potential exposure to toxic exhaust gases. Leaks in this portion of the exhaust system may actually result in slightly higher measured concentrations due to reduced dilution, though the effect is typically minimal compared to pre-catalyst leaks. However, any exhaust leak represents a potential safety hazard that should be repaired regardless of its impact on emission testing.

Detection methods for exhaust leaks include visual inspection for obvious damage or corrosion, audible detection of escaping gases during engine operation, and smoke testing using specialized equipment that introduces visible smoke into the exhaust system. Professional smoke testing equipment can identify even small leaks that may not be apparent through visual or audible inspection, providing comprehensive assessment of exhaust system integrity. Thermal imaging cameras can also detect leaks by identifying temperature differences caused by hot exhaust gases escaping from the system.

Safety Consideration: Exhaust leaks in passenger compartment areas can expose occupants to carbon monoxide concentrations exceeding 1,000 ppm, well above the 35 ppm 8-hour exposure limit recommended by OSHA. Even small leaks can create dangerous conditions in enclosed spaces or during extended idling periods.

Repair approaches for exhaust leaks depend on the location, severity, and underlying cause of the problem, ranging from simple gasket replacement to complete exhaust system section renewal. Temporary repairs using exhaust paste or bandage materials may provide short-term solutions for minor leaks, but permanent repairs typically require component replacement or professional welding. The cost of exhaust leak repairs varies significantly from £20-50 for gasket replacement to £200-500 for major pipe or component replacement.

Prevention strategies for exhaust leaks include regular inspection of exhaust system components, prompt repair of minor damage before it progresses to major failures, and use of quality replacement parts that can withstand the thermal and chemical stresses of exhaust system operation. Stainless steel components typically offer superior durability compared to mild steel alternatives, though at higher initial cost. Regular inspection should focus on connection points, flex joints, and areas where the exhaust system contacts the vehicle underbody or heat shields.

References

  1. UK Government MOT Test Information
  2. EPA Vehicle and Fuel Emissions Testing
  3. SAE International Emission Testing Standards
  4. UNECE Global Technical Regulation on WLTP
  5. Irish Road Safety Authority NCT Information
  6. Remote Sensing Technology Research
A line of cars
Engine Oils

Engine break-in procedures, new cars, rebuilds and specific vehicles

April 10, 2022 FTE Leave a comment

Engine break-in procedures vary significantly across different vehicle types, engine configurations, and operational contexts. This comprehensive guide examines break-in requirements for new cars, motorcycles, rebuilt engines, and specialized applications, providing practical guidance that balances modern manufacturing realities with specific operational demands. Understanding these variations is essential for optimizing performance across diverse automotive applications.

Table of Contents ▼
  • New Car Break-In Procedures
  • Motorcycle Engine Break-In
  • Rebuilt Engine Break-In
  • Diesel Engine Break-In
  • Small Engine Break-In
  • Dyno Break-In Procedures
  • Comparative Analysis
  • Professional Recommendations
  • References

New Car Break-In Procedures

Modern new car break-in procedures have evolved dramatically from traditional recommendations, reflecting advances in manufacturing precision, quality control, and surface treatment technologies. Contemporary automotive manufacturers have generally reduced break-in recommendations significantly, with many eliminating specific break-in periods entirely in favor of general careful operation guidelines.

Evolution of Manufacturer Recommendations

Leading automotive manufacturers have progressively reduced break-in recommendations over the past two decades. Where traditional guidance once suggested 1,000-1,500 miles of restricted operation, contemporary recommendations typically range from 200-500 miles of careful driving, with some premium manufacturers eliminating specific break-in periods entirely.

This evolution reflects confidence in modern manufacturing processes, particularly plateau honing techniques that pre-condition cylinder surfaces to approximate final operating characteristics. Quality control improvements have also reduced the variability that once necessitated extended conditioning periods to ensure consistent performance across production units.

Industry Trend: Approximately 60% of major automotive manufacturers have reduced break-in recommendations by 50% or more compared to their guidance from 20 years ago, with luxury brands leading this trend toward minimal or eliminated break-in periods.

Modern New Car Break-In Approach

The contemporary approach to new car break-in emphasizes normal operation with initial caution rather than extended restrictions. This method focuses on avoiding extremes during the first few hundred miles while allowing the engine to operate across its intended range under controlled conditions.

Key principles include immediate elevation to operating temperature, varied driving conditions to prevent bore glazing, and avoidance of sustained high-stress operation during the initial period. This approach recognizes that modern engines are designed to operate optimally from the start while acknowledging that some initial conditioning may still provide benefits.

  • First 200 miles: Focus on varied driving with moderate acceleration and engine braking
  • 200-500 miles: Normal driving with occasional spirited acceleration
  • Beyond 500 miles: Full normal operation without restrictions
  • Throughout: Avoid extended idling and constant-speed operation

Motorcycle Engine Break-In

Motorcycle engine break-in presents unique challenges and considerations that differ significantly from automotive applications. Factors including air cooling, higher specific power outputs, and varied operational demands require tailored approaches that account for thermal management and performance characteristics specific to motorcycle applications.

Motorcycle-Specific Considerations

Motorcycle engines often operate under more demanding conditions than automotive engines, with higher specific power outputs, more aggressive duty cycles, and frequently air-cooled designs that require careful thermal management. These factors influence break-in procedures, particularly regarding heat management and loading patterns.

Air-cooled motorcycle engines require particular attention during break-in, as inadequate cooling during initial operation can cause thermal distress that permanently affects performance. Liquid-cooled designs offer more consistent thermal management but still benefit from controlled initial operation to optimize component interfaces.

Motorcycle Break-In Procedures by Type

Different motorcycle categories require adapted break-in approaches based on their intended use and design characteristics. Sport bikes, with their high-performance orientation, may benefit from more careful initial treatment, while touring and cruiser motorcycles often follow procedures similar to automotive applications.

The break-in period for motorcycles typically ranges from 200-600 miles depending on engine type and manufacturer recommendations. Sport bikes may require the longer end of this range due to higher performance demands, while standard motorcycles often complete break-in within 300-400 miles.

Heat Management Protocol: For air-cooled motorcycles, limit initial rides to 15-20 minutes with cooling periods between sessions during the first 100 miles to prevent thermal stress that could affect long-term performance.

Rebuilt Engine Break-In

Rebuilt engines present unique break-in challenges that differ from both new engines and simple component replacements. The combination of new and used components, assembly variables, and potential tolerance stack-up issues requires more careful attention during initial operation compared to factory-fresh engines.

Variables Affecting Rebuilt Engine Break-In

Rebuilt engines involve numerous variables that can significantly impact break-in requirements and success. Assembly quality, component condition, machining precision, and the combination of new and reused parts all influence the break-in process and final performance characteristics.

Unlike new engines where manufacturing processes are controlled and consistent, rebuilt engines depend heavily on the skill and attention of the rebuilder. Proper assembly techniques, appropriate clearances, and quality component selection have more impact on break-in success than the specific break-in procedure itself.

Rebuilt Engine Break-In Procedures

Rebuilt engines typically require 500-1,000 miles of careful break-in, longer than modern new engines due to the variables involved in the rebuilding process. The focus should be on monitoring performance indicators, oil consumption, and operational characteristics while using controlled loading to optimize component interfaces.

Initial startup procedures are particularly critical for rebuilt engines, with careful attention to oil pressure, temperature control, and leak detection. The first few hours of operation often reveal assembly issues that require immediate attention, making careful monitoring essential during this period.

  • Pre-startup: Verify oil pressure, coolant circulation, and all connections
  • First 100 miles: Careful monitoring with frequent checks for leaks and performance
  • 100-500 miles: Controlled loading with attention to oil consumption and temperature
  • 500+ miles: Gradual increase to normal operation with continued monitoring

Diesel Engine Break-In

Diesel engines present unique break-in requirements due to their higher compression ratios, different combustion characteristics, and typically more robust construction. These factors influence both the duration and methodology of break-in procedures, particularly for rebuilt diesel engines where component conditioning is more critical.

Diesel-Specific Break-In Factors

Diesel engines operate with compression ratios typically 40-50% higher than gasoline engines, creating greater cylinder pressures that affect ring seating and component break-in. The compression ignition process also generates different thermal and mechanical stresses that influence break-in requirements.

Additionally, diesel fuel’s lubricating properties and combustion characteristics create different conditions for component conditioning compared to gasoline engines. These factors generally extend break-in periods for diesel engines, particularly after rebuilds where proper ring seating against higher pressures becomes more critical.

Diesel Break-In Procedures

Diesel engine break-in after rebuild typically requires 500-1,000 miles of controlled operation, with particular attention to loading patterns that promote proper ring seating against higher compression pressures. The break-in process should emphasize varied loading while avoiding extended idling that can cause glazing issues.

Oil consumption monitoring becomes particularly important with diesel engines, as initial consumption patterns provide valuable information about ring seating progress. Diesel engines may show higher initial oil consumption than gasoline engines due to the higher pressures involved, but consumption should decrease steadily as break-in progresses.

Diesel Break-In Schedule: Focus on the first 500 miles with varied loading, avoid extended idling, and change oil at 500 miles to remove break-in debris. Monitor oil consumption carefully as diesels may show higher initial consumption due to compression pressures.

Small Engine Break-In

Small engines used in lawn equipment, generators, and similar applications have different break-in requirements compared to automotive engines. Their simpler construction, different manufacturing processes, and varied operational demands require adapted procedures that account for these unique characteristics.

Small Engine Break-In Characteristics

Small engines typically use simpler manufacturing processes compared to automotive engines, often requiring some break-in attention despite their basic construction. The break-in period is generally much shorter, typically completed within 5-10 hours of operation or 50-100 miles depending on the specific application.

Air cooling is common in small engines, requiring attention to thermal management during break-in. Adequate cooling airflow and avoiding sustained full-throttle operation during initial hours help prevent thermal stress that could affect long-term performance and reliability.

Small Engine Break-In Procedures

Small engine break-in focuses on varied loading during the initial operating period while ensuring adequate cooling and avoiding sustained maximum power operation. The relatively short break-in period requires attention to oil changes and performance monitoring during the critical initial hours.

Most small engines benefit from an oil change after the initial break-in period to remove any accumulated debris and provide fresh lubrication for continued operation. This practice is particularly important given the typically longer service intervals used with small engines.

Dyno Break-In Procedures

Dynamometer break-in offers unique advantages in terms of controlled loading and precise monitoring, but requires specific techniques to achieve optimal results. The controlled environment allows for systematic break-in procedures while providing detailed performance data throughout the process.

Dyno Break-In Advantages and Limitations

Dyno break-in provides precise control over loading conditions, allowing for systematic application of varied loads that optimize ring seating and component conditioning. Temperature monitoring, power output measurement, and controlled environmental conditions offer advantages over road break-in in terms of consistency and data collection.

However, dyno break-in lacks the varied conditions of real-world operation and requires careful attention to cooling airflow and heat management. Steady-state operation, while easier to control, may not provide the varied loading conditions that optimize break-in effectiveness compared to road operation.

Dyno Break-In Methodology

Effective dyno break-in uses varied load cycles rather than steady-state operation, with careful attention to temperature management and cooling airflow. The controlled environment allows for systematic progression through different load levels while monitoring key parameters throughout the process.

Most successful dyno break-in procedures combine controlled dyno operation with limited road operation to provide both systematic conditioning and real-world varied loading conditions. This hybrid approach optimizes the advantages of both methods while minimizing their respective limitations.

Dyno Break-In Protocol: Use varied load cycles with 25-75% power levels, ensure adequate cooling airflow, monitor temperatures closely, and combine with 100-200 miles of road operation for optimal results.

Comparative Analysis

Understanding the differences in break-in requirements across various engine types and applications helps inform appropriate procedures for specific situations. The variation in requirements reflects differences in manufacturing processes, operational demands, and performance expectations across different applications.

Break-In Duration Comparison

Break-in duration varies significantly across different applications, with modern new cars requiring the shortest periods (200-500 miles) and rebuilt diesel engines requiring the longest (500-1,000 miles). Small engines complete break-in fastest in terms of operating hours (5-10 hours) but may accumulate fewer total miles depending on application.

The trend toward shorter break-in periods reflects improved manufacturing quality and surface treatment technologies, with new engines requiring less conditioning than rebuilt units where assembly variables introduce more uncertainty and potential for component mismatch.

Professional Recommendations

Professional recommendations for engine break-in procedures emphasize matching the approach to the specific application while avoiding both excessive caution and inappropriate haste. The key is understanding the factors that influence break-in requirements and adapting procedures accordingly.

Application-Specific Guidance

Professional guidance emphasizes matching break-in procedures to specific applications rather than applying universal approaches. New cars with modern manufacturing require minimal break-in, while rebuilt engines need more careful attention. Motorcycles require thermal management consideration, and diesel engines need attention to higher compression pressures.

The most effective approach involves understanding the specific factors that influence each application and adapting procedures accordingly, rather than following rigid protocols that may not match the actual requirements of the specific engine and application.

  • New cars: Focus on first 200-500 miles with normal operation and initial caution
  • Motorcycles: Emphasize thermal management and varied loading for 200-600 miles
  • Rebuilt engines: Careful monitoring for 500-1,000 miles with attention to assembly quality
  • Diesel engines: Extended break-in with attention to compression pressures
  • Small engines: Short break-in period with attention to cooling and oil changes

References

  1. Fuel Tech Experts Engine Break-In Guide
  2. MAHLE Motorsport Break-In Procedures
  3. JE Pistons Engine Break-In Guide
  4. DSport Magazine Performance Break-In
  5. Motorcyclist Magazine Break-In Guide
Image of fuel being poured into a car from a fuel can.
Fuel Quality, Race Fuel

Anti-Knock Compounds for Gasoline, Racing Fuels and Octane Boosters

April 9, 2022 FTE Leave a comment

Introduction

High-octane fuels resist engine knock, allowing higher compression ratios and improved performance. To achieve high octane, fuel blenders use anti-knock additives – compounds that boost the Research Octane Number (RON) and Motor Octane Number (MON) of gasoline. Below we examine the leading octane improvers used in racing fuels and octane boosters, detailing their chemistry, effectiveness, usage, mechanisms, and safety/regulatory aspects. A summary comparison table is provided at the end for quick reference.

Tetraethyl Lead (TEL) – Pb(C₂H₅)₄

Octane Effectiveness

TEL was the gold standard octane booster for decades. Adding mere fractions of a percent (around 0.05–0.1% by weight lead) could raise fuel octane by 5–10 RON/MON points. It enabled mid-20th-century gasolines to reach octane levels unattainable with hydrocarbons alone. TEL itself doesn’t have a “neat” RON like a normal fuel (it’s used in ppm levels), but its blending octane value is enormous.

Usage

From the 1920s to 1970s, TEL was added to virtually all automotive gasolines worldwide. It allowed inexpensive production of high-octane fuel and was critical for WWII aviation fuels and post-war high-compression engines. Today, TEL is banned in motor gasoline worldwide due to toxicity. It saw a global phase-out by the early 2000s and by 2021 was eliminated from all road fuels. The only remaining legal uses are in some aviation gas (avgas) and specialized racing fuels. For example, 100LL avgas still contains TEL (Low-Lead) to achieve MON ~100 for piston aircraft engines.

Mechanism

TEL’s anti-knock power comes from radical scavenging in the combustion process. In the cylinder, TEL decomposes to produce lead atoms and lead oxides that quench free radical chain reactions in the fuel’s pre-flame (the “cool flame” stage). Engine knock is driven by runaway radicals causing early detonation; lead effectively “kills” these radicals and stops knock before it starts. The ethyl groups on TEL serve only to carry lead into the fuel – the metallic lead itself is the active agent anchoring and neutralizing radicals. TEL also had a side-benefit of lubricating valve seats, reducing wear in old engines.

Environmental/Regulatory

The drawback is extreme toxicity. Lead from TEL causes neurological and developmental damage (especially in children). The combustion of TEL-laden fuel emits lead oxide particles, which led to widespread lead poisoning and environmental contamination. By the 1980s–90s, most countries enacted bans on TEL in gasoline. TEL-containing fuel (“leaded gasoline”) is now largely illegal for on-road use globally, with the UNEP declaring the official end of automotive leaded fuel in 2021. Strict regulations remain; for instance, the U.S. Clean Air Act banned TEL in cars by 1996 and only allows it in aviation or racing fuel under specific exemption. Safety: TEL is highly toxic if inhaled or ingested, and even handling the additive requires extreme caution (it’s lipid-soluble and accumulates in the body). Today, only one company produced TEL for avgas, and illegal production had been reported in the past. The cost of TEL additive is low relative to its effect, but the health and regulatory costs are prohibitive – thus its use is now confined to narrow niches where suitable unleaded alternatives are still in development (e.g. some small aircraft engines).

Methylcyclopentadienyl Manganese Tricarbonyl (MMT) – C₉H₇MnO₃

Octane Effectiveness

MMT is an organometallic octane booster that emerged as a lead replacement. It is effective in very small doses – on the order of a few hundred parts per million. For example, about 16 mL of MMT per 1000 L of gasoline (≈18 mg Mn per liter) can increase the octane rating by up to +10 RON in a low-octane base fuel. In practice, refiners might use lower doses to get a few points of octane increase. MMT’s neat RON/MON are not typically reported (it’s not used as a bulk fuel) – instead its performance is given by the boost achieved. It tends to raise RON and MON roughly in parallel (little change in sensitivity), and it can be synergistic with other additives. Studies show combining MMT with aromatic amines or oxygenates yields greater-than-additive octane boosts.

Usage

MMT saw use in unleaded gasolines starting in the 1970s as TEL was phased out. It was used in Canada for decades (introduced in 1976) and in other markets to help increase octane economically. The US EPA initially withheld approval over health concerns, but a court ruling in 1995 forced the EPA to allow MMT in unleaded fuel. For a time in the late 1990s, MMT appeared in some US gasolines, but it never saw universal use. Many oil companies voluntarily avoided MMT due to potential engine and emissions impacts. MMT was also used in countries like Australia, Russia, and parts of Asia/Africa in the 2000s. However, by the 2010s, its use declined significantly: the Worldwide Fuel Charter (a global automaker guide) recommended against MMT, and jurisdictions like Europe, Japan, etc., forbid or severely limit it. As of the 2020s, MMT is banned or capped in the EU and many other regions, and in the US, it is not used in mainstream pump gasoline (even though it is legally permitted up to 8.3 mg Mn/L). It still finds use in some off-road fuels, racing gasoline, or octane booster additives sold to consumers. For instance, certain aftermarket “octane booster” products contain MMT (noted by an orange-colored tint and manganese content on the label).

Mechanism

Like TEL, MMT functions via combustion chemistry modification. When MMT burns, it forms microscopic manganese oxide particles. These Mn oxides perform a similar role as lead oxide – they scavenge free radicals in the fuel-air mixture, thereby raising the knock threshold. The manganese acts as a combustion inhibitor that slows the explosive pre-ignition reactions. The result is a smoother, controlled burn and higher octane. MMT was found to reduce engine knock without significantly altering bulk flame speed, indicating it targets the auto-ignition chemistry in the end-gas. MMT’s anti-knock mechanism is less thoroughly documented in open literature than TEL’s, but it’s understood to be a “lead-like” action of metal particles quenching hot radicals. One difference: the solid manganese oxide formed does not vaporize like lead halides, so it tends to stay in the engine/exhaust.

Environmental/Regulatory

MMT’s controversy stems from its health and engine impact. MMT is a neurotoxin – manganese is an essential element in small doses, but chronic inhalation of manganese particles can cause a Parkinson-like neurological disorder. Regulators feared that widespread MMT use would elevate Mn emissions. Studies in Canada and elsewhere showed mixed results: manganese levels in air did rise in some urban areas using MMT, but often remained within regulatory limits. Nonetheless, uncertainty about long-term exposure risks led many countries to adopt a precautionary ban.

Engine and emissions issues: MMT combustion products (Mn₃O₄, etc.) can deposit in engines and catalytic converters. Drivers and mechanics observed orange-brown deposits on spark plugs, oxygen sensors, and catalysts when using MMT-treated fuel, potentially causing misfires or catalyst plugging. Automakers complained MMT could impair onboard diagnostic sensors and increase tailpipe hydrocarbons. MMT’s manufacturer claims that it does not harm catalyst performance at recommended low concentrations, and some studies showed no significant difference in emissions. Even so, the trend is toward the elimination of MMT in commercial fuels. Many fuel standards (e.g. Euro V/VI) set manganese at 0 mg/L. In the US, MMT is technically allowed but subject to a health effects testing provision; it’s essentially absent from branded gasoline. In China, it was banned in 2013; Russia banned it in Euro-5 gasoline as of 2016.

MMT is still produced (often under the trade name HiTEC® 3000) and is used in certain markets or racing fuels. It is relatively low-cost – a big appeal to refiners since a few ppm can replace a larger volume of expensive high-octane blend stock. But given regulatory and liability issues, most refiners have moved to other octane boosters.

Ferrocene – Fe(C₅H₅)₂

Octane Effectiveness

Ferrocene (an iron organometallic) is another metal-based antiknock agent. It is quite effective per dosage, though not as potent as TEL or MMT. Typical ferrocene additive concentrations are in the tens of ppm of iron. On the order of 170 grams per 1000 kg of fuel (≈30–40 mg Fe per liter) yields about a 4–5 point increase in octane number. In other terms, ~0.017% ferrocene by mass can raise RON from, say, 88 to 92. It boosts MON as well. Ferrocene’s neat RON isn’t usually given (it’s a solid at room temp and used dissolved in a carrier), but it behaves as a high-octane component. It’s considered the cheapest way to improve octane on a cost-per-point basis in some refinery studies.

Usage

Ferrocene saw interest as a leaded-fuel replacement in the 1990s, particularly to allow classic cars to run on unleaded fuel. It’s commercially available in aftermarket gasoline additives (often marketed as octane boosters or “lead substitutes” for vintage engines). Fuel-grade ferrocene is typically a soluble solution added at the refinery or by the end-user. Some small-market gasoline blenders in regions without strict standards have used ferrocene to cheaply elevate octane. However, major fuel suppliers in developed countries generally do not use ferrocene in pump gasoline (it’s not registered for use by many regulators). In motorsports, ferrocene has seen use in certain racing gasoline formulations and in drag racing fuels (especially where leaded fuel is disallowed but high octane is needed). It’s also used in other industries – e.g., as a combustion catalyst in diesel/jet fuels to reduce smoke.

Mechanism

Ferrocene’s anti-knock function is analogous to other heavy metal additives: it decomposes during combustion to form iron oxides. These iron particles act as radical scavengers, interrupting the chain reactions that lead to knock. Essentially, ferrocene delays the auto-ignition of the fuel-air mixture by quenching free radicals (thus raising the fuel’s effective octane). Additionally, ferrocene deposits a thin layer of iron oxide on metal surfaces. In older engines, this provided some valve seat protection (similar to how lead deposits prevented valve recession). Unlike TEL, ferrocene does not require halogen “scavengers” – the iron oxides formed are solid particulates that mostly exit with exhaust or remain as a fine powdery deposit.

Environmental/Regulatory

Ferrocene is considered far less toxic than organolead or MMT. However, the iron oxide particles from combustion can still pose issues: they can foul spark plugs (leaving a reddish-brown residue), contaminate lubrication oil, and coat exhaust system components. High dosing of ferrocene leads to plug whiskering and deposits. Many jurisdictions implicitly ban ferrocene by prohibiting any metal in unleaded fuel. For example, the European fuel specification (EN 228) limits iron content to very low levels, effectively zero for intentional addition, and Euro V standards prohibit ferrocene use. In the US, ferrocene is not an EPA-registered fuel additive for on-road use. Countries without modern emissions standards have fewer restrictions, so ferrocene is still “actively used” in some places with no Euro 4/5 rules. It’s popular in parts of the Middle East and Africa as an octane improver for substandard fuel.

Engine warranty: Car manufacturers generally warn against ferrocene additives because of deposit concerns. Cost/availability: Ferrocene is relatively cheap and easy to manufacture. Because only small quantities are needed, it’s an economical option for fuel blenders if legally allowed. On the retail side, ferrocene-containing boosters are sold under various brand names. Given its limitations, ferrocene is best suited for controlled use (e.g., one bottle to treat a tank in a classic car occasionally, or carefully metered doses in racing fuel) rather than continuous use in modern cars.

Ethanol – C₂H₅OH (and other Alcohols)

Octane Effectiveness

Ethanol is a high-octane oxygenate widely used in gasoline. Pure ethanol has a RON of about 108–109 and MON ~89–90. This large RON and decent MON mean ethanol has an octane index higher than typical gasoline components. When blended, ethanol’s blending octane number can exceed its neat octane due to nonlinear effects (especially in low-octane fuel). For instance, adding 10% ethanol (E10) to base gasoline often raises the RON by ~2 to 3 points and MON by ~1 to 2 points. Higher blends yield larger boosts: going from E10 to E20 can add ~4–7 RON points in total. E85 can be around 100–105 (R+M)/2, roughly 108+ RON. Methanol (CH₃OH), another alcohol used in racing, has similar high octane (RON ~109, MON ~88).

Usage

Ethanol is one of the most common octane enhancers today. In contrast to other additives that are used in ppm levels, ethanol is blended in significant volume (several vol%). In many countries, E10 (10% ethanol) gasoline is standard pump fuel. The ethanol boosts octane and also serves as a renewable fuel component. The U.S., Europe, Brazil, China, and others all use ethanol-blended gasoline. In the US, virtually all “regular” gasoline contains ~10% ethanol, contributing about 3 octane numbers (allowing base gasoline of ~84 AKI to be sold as 87 AKI). Some premium fuels also contain ethanol (e.g., “95 E10” in EU or certain 100 RON fuels with 5–10% ethanol). Higher ethanol blends like E15 (15%) are approved for many modern cars in the US. E85 (85% ethanol) is used in flex-fuel vehicles and has very high octane. In racing, ethanol or methanol fuels are popular for high knock resistance and cooling effect.

Mechanism

Ethanol improves octane primarily through its inherent combustion characteristics and charge cooling:

  • High heat of vaporization lowers intake charge temperature.
  • The oxygen bound in ethanol leads to a leaner mixture in the cylinder, delaying auto-ignition.
  • Blending synergy can increase the octane more than predicted by linear mixing rules.

Environmental/Regulatory

Ethanol is seen as a cleaner additive – it reduces tailpipe CO and particulate emissions by oxygenating the fuel, and it’s biodegradable. It also comes from renewable sources (corn, sugarcane, cellulosic biomass), so it can lower net CO₂ emissions. Governments actively promote ethanol through mandates or incentives. There is no ban on ethanol; rather, there are minimum blending requirements in many regions. Downsides include a higher Reid vapor pressure (which can increase evaporative emissions), potential aldehyde emissions, and corrosion issues with older materials. Overall, ethanol is considered an environmentally beneficial octane booster, and virtually all modern gasoline cars are designed to run on at least E10. Ethanol is produced on a large scale; it typically has lower energy density, so fuel economy is slightly reduced.

MTBE (Methyl tert-Butyl Ether) – C₅H₁₂O

Octane Effectiveness

MTBE is a fuel ether that was widely used to boost octane. It has a high intrinsic octane: roughly RON 117–118 and MON ~101. In gasoline blends, MTBE gave strong octane improvement – adding 10% MTBE could increase RON by on the order of 5 points. Because MTBE raises both RON and MON, it was effective in enhancing the anti-knock index.

Usage

MTBE became the preeminent octane booster of the 1980s–90s after lead was removed. Refiners blended MTBE at ~5–15% in reformulated gasoline in the US and parts of Europe. It was also used to meet oxygenate requirements in some areas. By the early 2000s, MTBE use in the US declined sharply after widespread groundwater contamination was discovered. Many states banned or restricted MTBE, and refiners switched to ethanol. In Europe, MTBE is not entirely banned but is often replaced by ETBE (ethyl tert-butyl ether). Asia and the Middle East continue to produce and use MTBE.

Mechanism

MTBE improves octane by being a stable, high-octane component that dilutes more knock-prone hydrocarbons. Its oxygen content also helps with more complete combustion.

Environmental/Regulatory

MTBE is water-soluble and persistently contaminates groundwater if leaked. Even low levels can impart a strong taste/odor to water. While not definitively classified as a human carcinogen in all jurisdictions, health concerns and community backlash over water contamination drove its phase-out in many regions. Where ethanol logistics are less developed, MTBE may still be used, but storage systems must be carefully managed.

Aromatic Hydrocarbons: Toluene (C₇H₈) and Xylene (C₈H₁₀)

Octane Effectiveness

Aromatics such as toluene and xylenes are naturally high-octane components of gasoline. Toluene has a RON of around 120 and a MON near 109, while xylene is similar. Adding aromatic content to fuel raises its octane. In racing fuels, large percentages of toluene (sometimes exceeding 50%) have been used to attain very high octane numbers.

Usage

Commercial gasoline often contains 20–30% aromatics (including toluene, xylenes) from catalytic reforming. They are also used as direct octane boosters in some blends or aftermarket solutions. Toluene is a popular DIY octane booster, as it’s readily available in paint solvents. However, high aromatic content is regulated in many regions due to emissions concerns.

Mechanism

Aromatic rings are stable and resist auto-ignition due to their structure. They slow the formation of knock-driving radical chains.

Environmental/Regulatory

Although less carcinogenic than benzene, toluene and xylene can increase smog, particulate emissions, and NOx due to higher flame temperatures. Many fuel regulations now cap total aromatics (e.g., to 25–35%) to limit pollution. Overuse of aromatics can also cause deposit formation and material compatibility issues if extremely high in the fuel.

N-Methylaniline (Mono-Methyl Aniline, MMA) – C₆H₅NHCH₃

Octane Effectiveness

N-Methylaniline is an aromatic amine with exceptional octane-boosting power. Even low concentrations (1–2%) in gasoline can yield large octane gains. It can be synergistic with metal or oxygenate additives, further elevating the octane rating.

Usage

Historically, aniline derivatives were among the earliest anti-knock agents studied (even predating TEL). However, they were overshadowed by TEL. N-Methylaniline has been used in some countries as a cheap, unregulated booster. It appears in certain aftermarket octane boosters marketed as “racing” or “off-road use only.” Major fuel suppliers generally do not use NMA because it is banned or heavily restricted.

Mechanism

Aromatic amines feature high inherent knock resistance and may also act as radical scavengers, stabilizing reactive intermediates that drive knock. They can help drastically raise both RON and MON.

Environmental/Regulatory

N-Methylaniline is toxic and can promote gum, varnish, and soot formation at higher doses. Many jurisdictions effectively ban aniline-based additives by limiting nitrogen content in fuel. Overuse can also increase NOx and other harmful emissions. Consequently, it remains largely absent from official fuel specs but may be used illicitly or in some racing contexts.

2,2,3-Trimethylbutane (Triptane) – C₇H₁₆

Octane Effectiveness

Triptane is a highly branched paraffin with a RON of around 112–113 and MON ~101. Small amounts can significantly boost the octane of lower-quality gasoline beyond linear predictions. This non-linear blending advantage led to it being called a “super fuel” component.

Usage

During WWII, triptane was manufactured in limited quantities for aviation gasoline experiments. While beneficial for octane, it was difficult and expensive to produce at scale. It remains a research focus; modern methods are exploring bio-derived triptane as a potential drop-in high-octane blendstock.

Mechanism

Its structural branching resists auto-ignition, and in blends, it can suppress knock-prone reactions of other components. Unlike metal or amine additives, it simply contributes its own high knock resistance.

Environmental/Regulatory

No unique toxicity concerns. it’s just another hydrocarbon. Cost and production limits have historically prevented large-scale adoption. If production becomes economical, it could serve as a valuable high-octane blend stock without heavy metals or toxic side effects.

Comparison Table

Compound (Formula)Octane Boost & MechanismUsage & Status
Tetraethyl Lead (TEL)
Pb(C₂H₅)₄
+5–10 RON/MON boost with ~0.1% addition. Lead oxide scavenges radicals, quenching pre-ignition chain reactions.Historic leaded gasoline additive; banned globally for road fuel due to extreme toxicity. Still used in 100LL avgas and some racing fuels.
MMT (Methylcyclopentadienyl Mn tricarbonyl)
C₉H₇MnO₃
Up to +10 octane numbers at ppm levels. Manganese oxides formed on combustion quench free radicals (TEL-like).Used as lead substitute in some unleaded gasolines. Restricted or banned in many regions due to neurotoxicity and catalyst deposits.
Ferrocene
Fe(C₅H₅)₂
~+4–5 RON boost at ~30 mg/L Fe. Iron oxides inhibit knock.Aftermarket additive for older and modern engines; susceptible to deposit issues if overdosed. Also appears in some racing blends.
Ethanol (EtOH)
C₂H₅OH
Neat RON ~109, MON ~90. High latent heat (charge cooling) and oxygen content reduce knock.Widely used as E10-E85 in commercial and racing fuels. Renewable, mandated in many regions, lowers net emissions.
MTBE (Methyl tert-Butyl Ether)
C₅H₁₂O
RON ~118, MON ~101. Stable, oxygenated component dilutes low-octane hydrocarbons.Once the main oxygenate for reformulated gas; banned or restricted in some areas due to groundwater contamination. Still used in parts of Asia/Middle East.
Toluene/Xylenes (Aromatics)
C₇H₈, C₈H₁₀
RON ~115–120. Aromatic rings resist auto-ignition, raising RON/MON.Common in refinery blends, regulated for emissions. Popular as a DIY or racing octane booster. Toluene is now restricted in the EU due to toxicity.
N-Methylaniline (Aromatic Amine)
C₆H₅NHCH₃
Extremely high blending octane (can synergize with metals/oxygenates).Largely banned in modern fuel specs due to toxicity, deposits, and NOx concerns. Some niche/racing use.
2,2,3-Trimethylbutane (Triptane)
C₇H₁₆
RON ~112, MON ~101. Highly branched structure yields strong non-linear blending benefits.Historical interest for aviation. Not widespread commercially due to production cost. Potential future biofuel.
Anti-KnockCompounds for GasolineOctane BoostersRacing Fuels
MAF sensor installed in an engine
MAF & Air Intake Cleaning

MAF Sensor Problems, Symptoms & Diagnosis

March 20, 2022 FTE Leave a comment

The Mass Air Flow (MAF) sensor is a critical component in modern internal combustion engines, playing a pivotal role in the precise management of the air-fuel mixture. Located between the air filter and the throttle body, its primary function is to measure the amount of air entering the engine. This data is then transmitted to the engine control unit (ECU), which uses it to calculate the optimal amount of fuel to inject, ensuring efficient combustion, optimal performance, and reduced emissions. A properly functioning MAF sensor is essential for the smooth operation of your vehicle, influencing everything from fuel economy to engine power and idle stability. However, like any automotive component, MAF sensors are susceptible to various issues that can significantly impair engine performance and lead to a range of noticeable symptoms. Understanding these problems, their symptoms, and effective diagnostic methods is crucial for any vehicle owner or technician. This comprehensive guide will delve into the intricacies of MAF sensor operation, explore common problems and their manifestations, and provide detailed insights into diagnosing and addressing these issues to maintain your vehicle’s health and performance.

Table of Contents ▼
  • Common Symptoms of a Failing MAF Sensor
  • Rough Idle and Stalling
  • Hesitation or Surging During Acceleration
  • Decreased Fuel Economy
  • Illuminated Check Engine Light and DTCs
  • Loss of Power and Poor Performance
  • Black Smoke from the Exhaust
  • Other Related Symptoms
  • Diagnosing MAF Sensor Problems
  • Visual Inspection
  • Diagnostic Scan Tool Analysis
  • MAF Sensor Test with a Multimeter
  • What Happens If You Drive with a Bad MAF Sensor?
  • MAF Sensor Maintenance and Prevention
  • Conclusion
  • References

Common Symptoms of a Failing MAF Sensor

A malfunctioning Mass Air Flow (MAF) sensor can manifest in a variety of ways, often leading to noticeable changes in your vehicle’s performance. These symptoms arise because the inaccurate air intake data provided by a faulty MAF sensor causes the Engine Control Unit (ECU) to miscalculate the air-fuel ratio, leading to either a rich (too much fuel) or lean (too little fuel) condition. Recognizing these signs early can prevent further damage to your engine and other emission control components.

Rough Idle and Stalling

One of the most frequently reported symptoms of a bad MAF sensor is a rough or erratic idle. The engine may shake, vibrate excessively, or fluctuate in RPM when the vehicle is stationary. This occurs because the ECU, receiving incorrect airflow information, struggles to maintain a consistent air-fuel mixture at low engine speeds. In severe cases, the engine may even stall, particularly when coming to a stop or during initial startup. This stalling is a direct consequence of the engine receiving an air-fuel mixture that is too far from optimal to sustain combustion, leading to the engine dying unexpectedly.

Hesitation or Surging During Acceleration

When accelerating, a vehicle with a failing MAF sensor might exhibit hesitation, a noticeable delay in response, or surging, where the vehicle seems to accelerate unevenly. This is due to the ECU’s inability to adjust the fuel delivery precisely as engine load and airflow change rapidly. If the MAF sensor under-reports airflow during acceleration, the engine will run lean, causing hesitation. Conversely, if it over-reports, the engine might run rich, leading to a sluggish response or a feeling of being ‘bogged down’.

Decreased Fuel Economy

An often overlooked symptom of a failing MAF sensor is a noticeable decrease in fuel efficiency. When the MAF sensor provides inaccurate readings, the ECU may compensate by injecting more fuel than necessary, especially if it believes less air is entering the engine than actually is. This results in a rich running condition, where unburnt fuel is wasted, leading to more frequent trips to the gas station. While other factors can influence fuel economy, a sudden and unexplained drop should prompt an investigation into the MAF sensor’s health.

Illuminated Check Engine Light (CEL) and Diagnostic Trouble Codes (DTCs)

Perhaps the most definitive indicator of a MAF sensor issue is the illumination of the Check Engine Light (CEL) on your dashboard. When the ECU detects a significant discrepancy in the MAF sensor’s readings or a complete circuit failure, it will trigger the CEL and store a specific Diagnostic Trouble Code (DTC) in its memory. Common MAF-related DTCs include:

  • P0100 – Mass or Volume Air Flow Circuit Malfunction
  • P0101 – Mass or Volume Air Flow Circuit Range/Performance Problem
  • P0102 – Mass or Volume Air Flow Circuit Low Input
  • P0103 – Mass or Volume Air Flow Circuit High Input
  • P0104 – Mass or Volume Air Flow Circuit Intermittent

These codes provide valuable clues for diagnosis, pointing directly to an issue with the MAF sensor or its circuit.

Loss of Power and Poor Performance

A compromised MAF sensor directly impacts engine power and overall performance. The ECU relies on accurate airflow data to determine the optimal ignition timing and fuel injection strategy. If this data is flawed, the engine will not be able to produce its maximum power output. Drivers may experience a noticeable lack of acceleration, difficulty climbing hills, or a general feeling that the vehicle is underpowered. This diminished performance is a direct result of inefficient combustion caused by an incorrect air-fuel mixture.

Black Smoke from the Exhaust

If the MAF sensor consistently under-reports the amount of air entering the engine, the ECU will inject too much fuel, leading to a rich air-fuel mixture. This excess fuel does not burn completely during combustion and is expelled through the exhaust system as black smoke. This symptom is particularly common in diesel engines but can also occur in gasoline engines. Beyond being a visual indicator, black smoke signifies inefficient combustion and can lead to carbon buildup on engine components and premature failure of the catalytic converter.

Other Related Symptoms

While less common or direct, a faulty MAF sensor can also contribute to other issues:

  • High Idle: In some cases, if the MAF sensor reports lower-than-actual airflow, the ECU might compensate by increasing fuel delivery and opening the throttle more, attempting to achieve a target idle speed based on faulty data, leading to a high idle.
  • No Start Condition: In extreme cases, if the MAF sensor provides extremely erroneous or no airflow data, the ECU might not be able to establish a proper air-fuel mixture for ignition, preventing the engine from firing up at all.
  • Transmission Problems: Indirectly, a MAF sensor can affect transmission performance. The engine’s ECU communicates with the transmission control unit (TCU). If the engine runs poorly due to a bad MAF, the TCU might receive incorrect load signals, leading to erratic or harsh shifting. This can manifest as delayed, harsh, or improper gear changes.
  • P0420 Code: A faulty MAF sensor can indirectly contribute to a P0420 code (Catalyst System Efficiency Below Threshold). Inaccurate airflow readings can lead to an incorrect air-fuel mixture, which can damage the catalytic converter over time or cause it to operate inefficiently.
  • Limp Mode: A severely malfunctioning MAF sensor can cause a vehicle to enter limp mode. When the ECU detects critical errors in airflow data, it may activate limp mode to protect the engine from potential damage, limiting power and speed to prevent further harm.

It is important to note that many of these symptoms can also be indicative of other engine problems. Therefore, a thorough diagnostic process is essential to accurately pinpoint the root cause before replacing any components.

Diagnosing MAF Sensor Problems

Accurately diagnosing a faulty Mass Air Flow (MAF) sensor is crucial to avoid unnecessary parts replacement and ensure proper vehicle repair. While symptoms can point towards a MAF issue, a systematic diagnostic approach is necessary to confirm the sensor’s condition. This involves a combination of visual inspection, diagnostic scan tool analysis, and sometimes, electrical testing.

Visual Inspection

The first step in diagnosing a MAF sensor problem is a thorough visual inspection. The MAF sensor is typically located in the air intake tract, between the air filter box and the throttle body. Look for:

  • Contamination: The most common cause of MAF sensor failure is contamination of its sensing elements. These elements, often hot wires or films, can become coated with dirt, oil, or other debris that bypasses the air filter or comes from the crankcase ventilation system. Even a thin layer of contamination can insulate the sensing elements, leading to inaccurate readings. Inspect the wires or films for any visible buildup.
  • Damage: Check for any physical damage to the sensor housing, electrical connector, or wiring harness. Rodent damage, corrosion, or accidental impact can all compromise the sensor’s integrity.
  • Air Leaks: Inspect the entire air intake system for any cracks, loose clamps, or disconnected hoses between the MAF sensor and the engine. Unmetered air entering the engine after the MAF sensor will lead to a lean condition, mimicking MAF sensor symptoms. Pay close attention to the intake manifold gaskets and vacuum lines.

Diagnostic Scan Tool Analysis

A diagnostic scan tool is an invaluable tool for MAF sensor diagnosis. It allows you to access the vehicle’s Engine Control Unit (ECU) and monitor live data streams, as well as retrieve Diagnostic Trouble Codes (DTCs).

  • Retrieving DTCs: As mentioned earlier, a faulty MAF sensor will often trigger specific DTCs. After connecting the scan tool, check for codes such as P0100, P0101, P0102, P0103, and P0104. These codes directly indicate an issue with the MAF sensor circuit or its performance.
  • Monitoring Live Data: This is where the scan tool truly shines. By monitoring the MAF sensor’s live data stream, you can observe the grams per second (g/s) or pounds per minute (lb/min) readings in real-time. Compare these readings to manufacturer specifications or known good values for your vehicle’s make and model. Key parameters to observe include:
  • Idle MAF Reading: At idle, a healthy MAF sensor typically reads between 2-7 g/s or 0.7-1.2 lb/min, depending on engine size. A reading significantly lower or higher than this range can indicate a problem. A very low reading might suggest a dirty or faulty MAF sensor, while an excessively high reading could point to an air leak after the sensor.
  • WOT (Wide Open Throttle) MAF Reading: Under wide-open throttle conditions, the MAF sensor reading should increase proportionally with engine RPM. A MAF sensor that doesn’t show a significant increase in airflow at higher RPMs suggests it’s not accurately measuring the incoming air.
  • MAF vs. RPM Correlation: Observe how the MAF reading changes in relation to engine RPM. As RPM increases, the MAF reading should also increase smoothly and consistently. Erratic or jumpy readings can indicate an intermittent sensor fault.
  • Fuel Trims: Pay attention to the short-term (STFT) and long-term (LTFT) fuel trims. These values indicate how the ECU is adjusting fuel delivery to compensate for perceived air-fuel mixture imbalances. Positive fuel trims (e.g., +10% or higher) suggest a lean condition (ECU adding fuel), which could be caused by a MAF sensor under-reporting airflow or an unmetered air leak. Negative fuel trims (e.g., -10% or lower) suggest a rich condition (ECU removing fuel), which could be caused by a MAF sensor over-reporting airflow.

MAF Sensor Test with a Multimeter

While a scan tool is often sufficient, a multimeter can be used to perform basic electrical tests on the MAF sensor, particularly to check for proper power supply, ground, and signal output. This test requires a wiring diagram for your specific vehicle to identify the correct pins.

  • Power Supply Check: With the ignition on and the MAF sensor connected, use the multimeter to check for 12-volt power at the appropriate pin. A lack of power indicates a wiring issue, blown fuse, or a problem with the ECU.
  • Ground Check: Verify a good ground connection at the sensor’s ground pin using the multimeter. A poor ground can lead to erratic sensor operation.
  • Signal Output Check: This is the most critical test. The MAF sensor typically outputs a voltage or frequency signal that varies with airflow. With the engine running (and sometimes at different RPMs), back-probe the signal wire and measure the voltage or frequency. Compare this reading to the manufacturer’s specifications. A flat-line signal, an incorrect voltage range, or an erratic signal can confirm a faulty sensor.

Can a MAF Sensor Be Bad Without a Code?

Yes, a MAF sensor can indeed be bad without immediately triggering a Diagnostic Trouble Code (DTC) or illuminating the Check Engine Light. This often occurs when the sensor is providing inaccurate but plausible readings. For example, a slightly contaminated MAF sensor might consistently under-report airflow by a small percentage. The ECU might be able to compensate for this discrepancy through fuel trim adjustments, preventing a hard fault code from being set. However, even these subtle inaccuracies can lead to noticeable symptoms like reduced fuel economy, slight hesitation, or a less responsive engine. In such cases, monitoring live data with a scan tool and observing fuel trims becomes even more critical for diagnosis.

Will a New MAF Sensor Fix Stalling / Misfire?

If a faulty MAF sensor is indeed the root cause of stalling or misfires, then replacing it with a new, properly functioning sensor should resolve these issues. The new sensor will provide accurate airflow data to the ECU, allowing it to calculate and deliver the correct air-fuel mixture, thereby restoring stable idle and proper combustion. However, it’s crucial to ensure that the MAF sensor is the actual problem. If other underlying issues such as vacuum leaks, clogged fuel injectors, worn spark plugs, or a failing oxygen sensor are present, simply replacing the MAF sensor will not fix the stalling or misfires. A thorough diagnostic process, as outlined above, is essential to avoid misdiagnosis and unnecessary repairs.

What Happens If You Drive with a Bad MAF Sensor?

Driving with a faulty Mass Air Flow (MAF) sensor can lead to a cascade of negative effects on your vehicle, ranging from immediate performance issues to long-term damage to critical components. While some symptoms might seem minor initially, ignoring a bad MAF sensor can result in costly repairs down the line.

Reduced Performance and Fuel Economy

The most immediate and noticeable consequences of a bad MAF sensor are a significant reduction in engine performance and a drastic drop in fuel efficiency. As the ECU receives inaccurate airflow data, it struggles to maintain the optimal air-fuel ratio. This leads to inefficient combustion, resulting in:

  • Loss of Power: The engine will feel sluggish, lacking its usual acceleration and struggling to maintain speed, especially on inclines or during overtaking maneuvers. This is because the ECU cannot command the correct amount of fuel for the actual air entering the engine, leading to suboptimal power output.
  • Poor Fuel Economy: If the MAF sensor under-reports airflow, the ECU will inject too much fuel, causing the engine to run rich. This unburnt fuel is simply wasted, leading to a noticeable increase in fuel consumption. Conversely, if it over-reports, the engine might run lean, which can also be inefficient and potentially damaging.

Increased Emissions and Catalytic Converter Damage

One of the most severe long-term consequences of driving with a bad MAF sensor is damage to the catalytic converter. The catalytic converter is a crucial component of the exhaust system responsible for converting harmful pollutants into less toxic substances. When the engine runs consistently rich due to a faulty MAF sensor, unburnt fuel enters the exhaust system and reaches the catalytic converter. This excess fuel can overheat the catalyst, leading to its premature failure. Replacing a catalytic converter is an expensive repair, often costing hundreds or even thousands of dollars.

Furthermore, an incorrect air-fuel mixture directly leads to increased harmful emissions. Vehicles with a bad MAF sensor will likely fail emissions tests, contributing to air pollution.

Engine Damage

While less common than catalytic converter damage, prolonged driving with a severely malfunctioning MAF sensor can potentially lead to engine damage. If the engine runs excessively lean (too little fuel for the amount of air), it can cause:

  • Overheating: A lean mixture burns hotter than an optimal one, which can lead to engine overheating. Prolonged overheating can warp cylinder heads, damage pistons, and compromise engine gaskets.
  • Detonation/Pre-ignition: A lean mixture is more prone to detonation or pre-ignition, where the air-fuel mixture ignites prematurely or uncontrollably. This can cause severe internal engine damage, including piston and connecting rod failure.

If the engine runs excessively rich, carbon deposits can build up on spark plugs, valves, and piston crowns, leading to reduced efficiency and potential misfires.

Limp Mode and Driveability Issues

In many modern vehicles, if the ECU detects a critical fault with the MAF sensor, it may activate a ‘limp mode’ or ‘fail-safe mode’. This mode is designed to protect the engine from further damage by significantly reducing engine power, limiting RPMs, and sometimes restricting gear selection. While this allows you to drive the car to a repair shop, it severely impacts driveability and should not be ignored.

Impact on Transmission

Although the MAF sensor directly affects the engine, its malfunction can indirectly impact the transmission. The Transmission Control Unit (TCU) often relies on engine load and speed data from the ECU to determine optimal shift points. If the MAF sensor provides inaccurate data, the TCU might receive incorrect information about engine load, leading to:

  • Erratic Shifting: The transmission might shift harshly, irregularly, or at incorrect RPMs.
  • Delayed Shifts: Shifts might be delayed, causing the engine to rev higher than normal before engaging the next gear.
  • No Downshift: In some cases, the transmission might refuse to downshift when needed, leading to a lack of power.

Will Car Start Without MAF Sensor Connected? Can Car Run Without MAF Sensor?

Some vehicles might start without the MAF sensor connected, but they will almost certainly run very poorly. The ECU, lacking crucial airflow data, will typically revert to a default or ‘limp home’ mode, using pre-programmed values or relying on other sensors like the Throttle Position Sensor (TPS) and Oxygen Sensors to estimate airflow. This allows the engine to run, but with significantly reduced performance, poor fuel economy, and often with the Check Engine Light illuminated. It is not advisable to drive a car for an extended period with the MAF sensor unplugged or faulty, as it can lead to the long-term issues mentioned above.

Check Engine Light After Unplugging MAF?

Yes, almost immediately after unplugging the MAF sensor, the Check Engine Light (CEL) will illuminate. The ECU detects the open circuit or the absence of the MAF signal and registers a specific Diagnostic Trouble Code (DTC) related to the MAF sensor circuit (e.g., P0100). This is a normal response as the ECU recognizes a critical sensor is no longer providing data.

In summary, driving with a bad MAF sensor is not recommended. While the car might still be driveable, it will suffer from reduced performance, increased fuel consumption, and poses a significant risk of damaging expensive components like the catalytic converter, increased emissions, and in severe cases, even internal engine damage. The vehicle’s limp mode, while a protective measure, significantly impairs driveability and serves as a clear warning that immediate attention is required.

Prompt diagnosis and repair are essential to maintain your vehicle’s health and avoid more extensive and costly repairs.

MAF Sensor Maintenance and Prevention

While MAF sensors are designed to be durable, proper maintenance and preventative measures can significantly extend their lifespan and ensure accurate operation. The primary enemy of a MAF sensor is contamination, so keeping the air intake system clean is paramount.

Regular Air Filter Replacement

The most effective preventative measure is to regularly replace your engine’s air filter according to the manufacturer’s recommended schedule, or more frequently if you drive in dusty or dirty conditions. A clogged or dirty air filter allows contaminants like dust, dirt, and debris to bypass the filter and reach the delicate sensing elements of the MAF sensor. A clean air filter acts as the first line of defense, protecting the MAF sensor from harmful particles.

Proper MAF Sensor Cleaning

If you suspect your MAF sensor is contaminated, or as a preventative measure during routine maintenance, you can clean it. However, it is crucial to use the correct product and technique:

  • Use MAF Sensor Cleaner Only: NEVER use carburetor cleaner, brake cleaner, or any other harsh solvents. These products can damage the delicate hot wires or film of the MAF sensor. Always use a specialized MAF sensor cleaner, which is designed to be safe for these components and leaves no residue.
  • Gentle Application: Disconnect the battery before working on the sensor. Carefully remove the MAF sensor from its housing. Spray the sensing elements directly with the MAF sensor cleaner. Do NOT touch the wires or film with your fingers or any tools, as even slight contact can cause damage. Allow the sensor to air dry completely before reinstalling it. Reconnect the electrical connector securely and then reconnect the battery.

Addressing Oil Contamination

In some vehicles, especially those with high mileage or issues with their Positive Crankcase Ventilation (PCV) system, oil vapor can accumulate on the MAF sensor. If you notice oil residue on your MAF sensor, it’s important to address the root cause, which might be a failing PCV valve or excessive engine blow-by. Simply cleaning the MAF sensor without fixing the underlying oil issue will only provide a temporary solution.

Avoiding Aftermarket Oiled Air Filters

While some aftermarket air filters claim to offer improved airflow, many are pre-oiled. The oil from these filters can sometimes migrate onto the MAF sensor’s sensing elements, leading to contamination and inaccurate readings. If you use an oiled air filter, ensure it is properly oiled (not over-oiled) and consider the potential impact on your MAF sensor.

Professional Inspection

During routine vehicle servicing, ask your mechanic to inspect the air intake system and, if necessary, the MAF sensor. Early detection of minor issues can prevent them from escalating into more significant and costly problems.

By adhering to these maintenance practices, you can significantly prolong the life of your MAF sensor, ensure its accurate operation, and contribute to the overall health and efficiency of your vehicle’s engine.

Conclusion

The Mass Air Flow (MAF) sensor, though a small component, plays an indispensable role in the sophisticated operation of modern automotive engines. Its accurate measurement of incoming air is fundamental to the Engine Control Unit (ECU)’s ability to precisely manage fuel injection, ignition timing, and ultimately, the engine’s performance, fuel efficiency, and emissions. As we have explored, a malfunctioning MAF sensor can lead to a wide array of noticeable symptoms, from rough idling and stalling to reduced power, decreased fuel economy, and even the illumination of the ubiquitous Check Engine Light.

Understanding these symptoms and knowing how to effectively diagnose a faulty MAF sensor is crucial for any vehicle owner. While visual inspection for contamination and damage is a good starting point, the true power of diagnosis lies in utilizing a diagnostic scan tool to monitor live data streams and interpret Diagnostic Trouble Codes (DTCs). This allows for a data-driven approach to confirm whether the MAF sensor is indeed the culprit behind your vehicle’s woes. Electrical testing with a multimeter can further pinpoint issues within the sensor’s circuit, ensuring a comprehensive diagnosis.

Furthermore, recognizing the potential consequences of driving with a bad MAF sensor underscores the importance of prompt repair. Ignoring a faulty sensor can lead to a domino effect of problems, including costly damage to the catalytic converter, increased emissions, and in severe cases, even internal engine damage. The vehicle’s limp mode, while a protective measure, significantly impairs driveability and serves as a clear warning that immediate attention is required.

Finally, preventative maintenance, particularly regular air filter replacement and careful cleaning of the MAF sensor with appropriate products, can significantly extend the sensor’s lifespan and prevent many common issues. By taking a proactive approach to vehicle care and understanding the critical function of components like the MAF sensor, you can ensure your vehicle continues to run efficiently, reliably, and safely for years to come. When in doubt, consulting with a qualified automotive technician for diagnosis and repair is always recommended to ensure the longevity and optimal performance of your vehicle.

References

  1. Delphi Auto Parts MAF Sensor Guide
  2. Mike’s Auto Service MAF Sensor Signs
  3. MS Motorservice Air Mass Sensor Guide
  4. Valvoline MAF Sensor Importance
  5. EuroTech MAF Sensor Function
  6. Reddit Cartalk MAF Discussion
  7. Hollenshades MAF Sensor Failure Signs
  8. Quora MAF Sensor Calculation
  9. Samarins Airflow Sensor Glossary
  10. Wuling MAF Sensor Functions
  11. Colonial Hyundai MAF Problems
  12. MPG Tuning MAF Troubleshooting
  13. AutoZone Bad MAF Sensor Symptoms
  14. Quora MAF Sensor Diagnosis
  15. Corvette Forum MAF Symptoms
  16. CarParts.com MAF Sensor Symptoms
  17. Firestone Complete Auto Care MAF Guide
  18. JustAnswer Ford MAF Damage
  19. AutoZone MAF Sensor Cleaning
  20. AZO Sensors MAF Technology
  21. Just Diesel Performance MAF Maintenance
  22. Berryman Products MAF Cleaning
  23. O’Reilly Auto MAF Sensor DIY
  24. JB Tools MAF Sensor Cleaning
  25. WikiHow MAF Sensor Cleaning
  26. Colonial Hyundai MAF Sensor Problems
  27. Quora MAF Sensor Cleaning Frequency
Vehicle being fueled
Fuel Economy

Understanding Fuel Consumption Basics Measurement and Calculations

June 19, 2021 FTE Leave a comment
Fuel Consumption Measurement and Calculation Guide

Understanding fuel consumption is essential for every vehicle owner, fleet manager, and automotive professional. Whether you’re looking to reduce operating costs, improve environmental impact, or optimize vehicle performance, mastering the fundamentals of fuel consumption measurement and calculation provides the foundation for informed decision-making. This comprehensive guide explores everything from basic consumption calculations to advanced monitoring technologies, covering both personal vehicles and commercial fleet applications.

Modern vehicles consume fuel at varying rates depending on numerous factors including engine design, driving conditions, vehicle weight, and maintenance status. With fuel costs representing a significant portion of transportation expenses, understanding how to accurately measure, calculate, and optimize fuel consumption has become increasingly important for both individual drivers and commercial operations. This article provides detailed insights into measurement techniques, calculation formulas, monitoring technologies, and practical applications across different vehicle types and operational scenarios.

Table of Contents ▼
  • Understanding Average Fuel Consumption
  • Methods for Checking Fuel Consumption
  • Fuel Consumption Calculation Formulas
  • Brake Specific Fuel Consumption (BSFC)
  • Thrust Specific Fuel Consumption
  • Diesel Fuel Consumption Calculators
  • Fuel Consumption Comparison Tools
  • Fuel Consumption Tracking Systems
  • Fuel Consumption Sensor Technology

Understanding Average Fuel Consumption

Average fuel consumption represents the amount of fuel a vehicle uses to travel a specific distance, typically expressed in miles per gallon (MPG) in the United States or liters per 100 kilometers (L/100km) in most other countries. Understanding these metrics provides the foundation for evaluating vehicle efficiency, comparing different models, and making informed purchasing decisions. The concept of average fuel consumption encompasses both manufacturer-rated efficiency figures and real-world performance under various driving conditions.

Modern passenger vehicles demonstrate significant variation in fuel consumption based on their size, engine type, and intended purpose. Compact cars typically achieve between 30-40 MPG (6-8 L/100km) in combined city and highway driving, representing the most fuel-efficient category for conventional gasoline engines. Mid-size sedans generally fall within the 25-35 MPG range (7-9 L/100km), while full-size SUVs and pickup trucks often consume fuel at rates between 20-28 MPG (8-12 L/100km). These figures reflect the balance between vehicle capability, comfort, and efficiency that manufacturers must achieve to meet diverse consumer needs.

Fuel Economy Benchmarks: Industry experts consider 50+ MPG (5.5 L/100km) as excellent fuel economy, while 60+ MPG (4.7 L/100km) represents exceptional efficiency typically achieved by hybrid vehicles or highly optimized conventional engines. These benchmarks help consumers evaluate whether a vehicle offers superior fuel efficiency compared to market averages.

The relationship between vehicle characteristics and fuel consumption follows predictable patterns based on fundamental physics and engineering principles. Engine displacement, vehicle weight, aerodynamic efficiency, and transmission design all contribute significantly to overall fuel consumption. Larger engines typically consume more fuel due to increased displacement and higher internal friction, while heavier vehicles require more energy to accelerate and maintain speed. Aerodynamic drag becomes increasingly important at highway speeds, where vehicles with poor aerodynamics can experience fuel consumption penalties of 10-15% compared to well-designed alternatives.

Driving conditions significantly impact actual fuel consumption compared to laboratory-tested EPA ratings. City driving, characterized by frequent stops, starts, and idling, typically results in higher fuel consumption due to the inefficiency of internal combustion engines at low speeds and during acceleration. Highway driving generally provides better fuel economy as engines operate closer to their optimal efficiency range at steady speeds. However, excessive highway speeds above 65 mph can dramatically increase fuel consumption due to exponentially increasing aerodynamic drag forces.

Factors Affecting Fuel Consumption

Environmental factors play a crucial role in determining actual fuel consumption beyond the vehicle’s inherent design characteristics. Temperature extremes significantly impact engine efficiency, with cold weather reducing fuel economy by 10-20% due to increased engine warm-up time, thicker lubricants, and greater electrical system demands for heating and defrosting. Hot weather can also negatively impact fuel consumption through increased air conditioning usage, which can reduce efficiency by 5-15% depending on the system’s design and usage patterns.

Maintenance status directly correlates with fuel consumption efficiency, as poorly maintained vehicles often experience significant fuel economy degradation. Dirty air filters can reduce engine efficiency by restricting airflow, while worn spark plugs may cause incomplete combustion and increased fuel consumption. Underinflated tires create additional rolling resistance, potentially increasing fuel consumption by 3-5% for every 10 PSI below recommended pressure. Regular maintenance following manufacturer specifications helps ensure optimal fuel efficiency throughout the vehicle’s operational life.

Driver behavior represents one of the most variable factors affecting fuel consumption, with aggressive driving patterns potentially increasing fuel usage by 15-30% compared to efficient driving techniques. Rapid acceleration, excessive speeding, and frequent hard braking all contribute to increased fuel consumption by forcing the engine to operate outside its optimal efficiency range. Conversely, smooth acceleration, maintaining steady speeds, and anticipating traffic conditions can significantly improve fuel economy beyond EPA-rated figures.

Methods for Checking Fuel Consumption

Accurately measuring fuel consumption requires systematic approaches that account for variables such as driving conditions, fuel quality, and measurement precision. The most reliable method involves the traditional fill-up calculation, which provides real-world consumption data over extended driving periods. This approach eliminates many variables that can skew short-term measurements and provides data that reflects actual driving patterns rather than idealized laboratory conditions.

The fill-up method begins with completely filling the fuel tank at a consistent location, preferably the same fuel pump to minimize variations in shut-off sensitivity. Record the odometer reading precisely, noting both the total mileage and trip meter if available. Drive the vehicle normally for an extended period, typically 300-500 miles, to ensure the measurement represents typical usage patterns rather than short-term anomalies. When refueling, return to the same station and pump if possible, filling the tank to the same level as the initial fill-up.

Calculation Accuracy: For maximum accuracy, perform fuel consumption calculations over multiple fill-ups and average the results. Single tank measurements can vary by 5-10% due to differences in fuel pump shut-off points, tank expansion, and measurement errors. Three to five consecutive measurements provide much more reliable data.

Modern vehicles equipped with onboard trip computers offer convenient real-time fuel consumption monitoring, though these systems vary significantly in accuracy and sophistication. Basic trip computers calculate consumption based on fuel injector pulse width and vehicle speed sensors, providing instantaneous and average consumption figures. More advanced systems incorporate additional sensors including mass airflow, engine load, and temperature to improve calculation accuracy. However, these systems typically require periodic calibration and may not account for all variables affecting actual fuel consumption.

Digital Monitoring Tools

OBD-II (On-Board Diagnostics) systems provide access to detailed engine parameters that enable precise fuel consumption monitoring through aftermarket devices and smartphone applications. These systems read data directly from the engine control unit, including fuel injection timing, air-fuel ratios, and engine load factors. Popular OBD-II fuel monitoring devices like ScanGauge provide real-time consumption data, trip averages, and historical tracking capabilities with accuracy typically within 2-3% of actual consumption when properly calibrated.

Smartphone applications connected to OBD-II adapters offer sophisticated fuel tracking capabilities with features including GPS integration, driving pattern analysis, and cost calculations. These applications can identify inefficient driving behaviors, track consumption across different routes, and provide detailed reports for fleet management or personal optimization. Advanced applications incorporate weather data, traffic conditions, and route characteristics to provide context for consumption variations and suggest improvements.

Professional-grade fuel monitoring systems used in commercial applications employ multiple measurement techniques to ensure accuracy and prevent tampering. These systems often combine flow meters, level sensors, and engine data to provide comprehensive consumption monitoring. Flow meters measure actual fuel consumption in real-time, while level sensors detect fuel additions and potential theft. Integration with GPS tracking systems enables correlation between consumption, route characteristics, and driving behaviors for detailed analysis and optimization.

Measurement Best Practices

Consistent measurement conditions significantly improve the reliability and usefulness of fuel consumption data. Perform measurements during similar weather conditions when possible, as temperature variations can affect both engine efficiency and fuel density. Maintain consistent driving patterns during measurement periods, avoiding unusual trips or driving conditions that might skew results. Document any significant changes in vehicle loading, maintenance, or modifications that might affect consumption patterns.

Fuel quality and composition can impact both actual consumption and measurement accuracy. Different fuel brands and octane ratings may produce slightly different consumption figures, while seasonal fuel blends (such as winter gasoline formulations) can affect both energy content and engine performance. Ethanol content in gasoline reduces energy density by approximately 3-4% per 10% ethanol content, directly impacting fuel economy measurements. For consistent results, use the same fuel brand and grade throughout measurement periods when possible.

Fuel Consumption Calculation Formulas

Fuel consumption calculations form the mathematical foundation for understanding vehicle efficiency, comparing different vehicles, and optimizing operational costs. The fundamental principle underlying all fuel consumption calculations involves the relationship between distance traveled and fuel consumed, expressed in various units depending on regional preferences and application requirements. Understanding these formulas enables accurate analysis of vehicle performance and informed decision-making for both personal and commercial applications.

The basic fuel consumption formula applies universally across all vehicle types and measurement systems: Fuel Consumption = Distance Traveled ÷ Fuel Used. This simple relationship forms the basis for more complex calculations and can be expressed in multiple unit combinations. In the United States, the standard expression is Miles Per Gallon (MPG) = Miles Driven ÷ Gallons Used. In metric systems, the calculation becomes Liters per 100 Kilometers (L/100km) = (Liters Used ÷ Kilometers Driven) × 100, with the multiplication by 100 providing a more convenient scale for comparison.

Unit Conversion Formula: Converting between MPG and L/100km requires the formula: L/100km = 235.214 ÷ MPG. This conversion accounts for the different measurement scales and provides accurate comparisons between vehicles rated in different systems. For example, 30 MPG equals approximately 7.84 L/100km.

Fleet and commercial applications often require more sophisticated calculation methods that account for multiple vehicles, varying load conditions, and different operational patterns. Fleet fuel consumption calculations typically use the formula: Total Fleet Consumption = Total Fuel Used ÷ Total Distance Traveled by All Vehicles. This approach provides an overall efficiency metric for the entire fleet while individual vehicle calculations help identify outliers requiring attention or optimization.

Specialized Calculation Methods

Construction and industrial equipment often operates based on hours rather than distance, requiring hourly fuel consumption calculations. The formula for hourly consumption is: Fuel Consumption per Hour = Total Fuel Used ÷ Total Operating Hours. This method proves particularly valuable for stationary equipment, generators, and machinery that operates at fixed locations. Typical construction equipment consumes 3-8 gallons per hour depending on size, load, and operating conditions.

Marine applications utilize similar hourly calculations but often incorporate additional factors such as sea conditions, vessel loading, and propulsion efficiency. A simplified marine fuel consumption formula divides total engine horsepower by 10 for gasoline engines or by 17 for diesel engines to estimate gallons per hour consumption. More precise calculations consider specific fuel consumption rates, propeller efficiency, and hull resistance characteristics specific to each vessel design.

Real-time fuel consumption calculations in modern vehicles rely on engine control unit (ECU) data to provide instantaneous consumption figures. These calculations use fuel injector pulse width, engine RPM, and fuel pressure to determine fuel flow rate. The formula involves: Instantaneous Consumption = (Injector Pulse Width × Number of Injectors × Engine RPM × Fuel Pressure Constant) ÷ (2 × 60), with the result typically expressed in gallons per hour or liters per hour.

Advanced Calculation Considerations

Temperature and altitude corrections become important for precise fuel consumption calculations in varying environmental conditions. Fuel density changes with temperature, affecting the actual energy content per gallon or liter. The correction formula accounts for thermal expansion: Corrected Volume = Measured Volume × [1 + Coefficient of Expansion × (Measured Temperature – Reference Temperature)]. For gasoline, the coefficient of expansion is approximately 0.00096 per degree Celsius.

Load-adjusted fuel consumption calculations provide more meaningful comparisons for commercial vehicles operating under varying weight conditions. The formula incorporates vehicle weight: Load-Adjusted Consumption = Base Consumption × (Loaded Weight ÷ Empty Weight)^0.3. This exponential relationship reflects the non-linear impact of weight on fuel consumption, where doubling the vehicle weight typically increases consumption by approximately 20-25% rather than 100%.

Lifecycle fuel consumption calculations consider the total fuel used throughout a vehicle’s operational life, including factors such as efficiency degradation over time, maintenance impacts, and seasonal variations. These calculations help fleet managers make informed decisions about vehicle replacement timing and maintenance scheduling. The formula typically involves: Lifecycle Consumption = Annual Consumption × Operational Years × Degradation Factor, where the degradation factor accounts for efficiency loss over time, typically 1-2% per year for well-maintained vehicles.

Brake Specific Fuel Consumption (BSFC)

Brake Specific Fuel Consumption (BSFC) represents one of the most important metrics for evaluating engine efficiency, measuring the amount of fuel consumed per unit of power output over a specific time period. Unlike simple fuel economy measurements that depend on vehicle weight, aerodynamics, and driving conditions, BSFC isolates engine performance characteristics and enables direct comparison between different engine designs, technologies, and operating conditions. This metric proves invaluable for engine manufacturers, automotive engineers, and performance enthusiasts seeking to understand fundamental engine efficiency.

BSFC is typically expressed in grams of fuel consumed per kilowatt-hour of power produced (g/kWh), though some applications use pounds per horsepower-hour (lb/hp-hr). The calculation formula is: BSFC = Fuel Flow Rate (g/hr) ÷ Power Output (kW). Lower BSFC values indicate higher efficiency, as the engine produces more power per unit of fuel consumed. This measurement provides insight into how effectively an engine converts chemical energy in fuel into mechanical work, independent of external factors that affect overall vehicle fuel economy.

Typical BSFC Values: Modern gasoline engines typically achieve BSFC values around 250 g/kWh at their most efficient operating points, while diesel engines demonstrate superior efficiency with BSFC values around 200 g/kWh. High-performance racing engines may show higher BSFC values due to design priorities favoring power output over efficiency.

The relationship between BSFC and engine operating conditions reveals important insights into optimal engine usage and design characteristics. Most engines demonstrate their best BSFC at moderate load conditions, typically between 60-80% of maximum power output, where combustion efficiency peaks and mechanical losses remain relatively low. At very light loads, engines often show poor BSFC due to throttling losses in gasoline engines and incomplete combustion, while maximum load conditions may increase BSFC due to enriched fuel mixtures required for component protection.

BSFC Measurement Techniques

Accurate BSFC measurement requires sophisticated dynamometer testing equipment capable of precisely controlling engine load and speed while monitoring fuel consumption and power output. Engine dynamometers apply controlled loads to the engine while measuring torque and rotational speed to calculate power output. Simultaneously, fuel flow measurement systems track consumption with high precision, typically using gravimetric or volumetric flow meters accurate to within 0.1% of reading.

BSFC mapping involves testing engines across their entire operating range to create detailed efficiency maps showing consumption characteristics at various speed and load combinations. These maps typically display BSFC contours across engine speed (RPM) and load (torque or mean effective pressure) ranges, revealing optimal operating regions and identifying areas of poor efficiency. Modern engine management systems use these maps to optimize transmission shift points, hybrid system operation, and engine start-stop strategies.

Field measurement of BSFC requires portable instrumentation capable of measuring both fuel flow and power output under real-world conditions. OBD-II systems provide access to calculated engine load and fuel consumption data, though accuracy may be limited compared to laboratory measurements. Portable dynamometers and fuel flow meters enable more precise field measurements for research applications or detailed vehicle optimization projects.

Factors Affecting BSFC

Engine design characteristics significantly influence BSFC performance, with compression ratio representing one of the most important factors. Higher compression ratios generally improve BSFC by increasing thermal efficiency, though practical limits exist due to knock constraints in gasoline engines and mechanical stress considerations. Diesel engines benefit from compression ratios of 16:1 to 22:1, while gasoline engines typically operate between 9:1 and 12:1 depending on fuel octane rating and turbocharging applications.

Combustion system design affects BSFC through its impact on burn rate, heat transfer, and combustion completeness. Direct injection systems often demonstrate improved BSFC compared to port injection due to better mixture control and reduced heat transfer losses. Variable valve timing systems optimize BSFC across different operating conditions by adjusting intake and exhaust timing to maximize volumetric efficiency and minimize pumping losses.

Operating conditions including intake air temperature, fuel temperature, and ambient pressure affect BSFC measurements and real-world engine efficiency. Higher intake air temperatures reduce air density and may require fuel enrichment for component protection, increasing BSFC. Conversely, cooler intake temperatures improve volumetric efficiency and allow leaner air-fuel ratios, potentially improving BSFC. Altitude effects become significant above 3,000 feet, where reduced air density affects both power output and combustion characteristics.

Thrust Specific Fuel Consumption

Thrust Specific Fuel Consumption (TSFC) serves as the primary efficiency metric for jet engines and other thrust-producing propulsion systems, measuring the amount of fuel consumed per unit of thrust generated over a specific time period. Unlike automotive applications where power output drives efficiency calculations, aircraft propulsion systems require thrust to overcome drag and maintain flight, making TSFC the most relevant performance indicator for aviation applications. This metric enables direct comparison between different engine types, sizes, and technologies while providing essential data for aircraft range calculations and fuel planning.

TSFC is typically expressed in pounds of fuel consumed per hour per pound of thrust produced (lb/hr/lbf) in imperial units, or kilograms per hour per kilonewton of thrust (kg/hr/kN) in metric systems. The calculation formula is: TSFC = Fuel Flow Rate (lb/hr) ÷ Thrust Output (lbf). Lower TSFC values indicate superior efficiency, as the engine produces more thrust per unit of fuel consumed. Modern commercial turbofan engines typically achieve TSFC values between 0.5 and 0.8 lb/hr/lbf during cruise conditions, representing significant improvements over early jet engine designs that often exceeded 1.0 lb/hr/lbf.

Engine Type Comparison: Turbofan engines demonstrate superior TSFC compared to turbojet engines due to their higher bypass ratios, which improve propulsive efficiency. High-bypass turbofans used on commercial airliners achieve TSFC values of 0.5-0.6 lb/hr/lbf, while military turbojets may show TSFC values of 0.8-1.2 lb/hr/lbf depending on design priorities.

The relationship between TSFC and flight conditions reveals complex interactions between engine design, atmospheric conditions, and operational requirements. TSFC typically improves with altitude due to reduced air density and temperature, allowing engines to operate more efficiently in the thinner atmosphere. However, this relationship varies significantly between engine types, with some designs optimized for specific altitude ranges. Flight speed also affects TSFC, with most engines demonstrating optimal efficiency at their design cruise speed, typically Mach 0.8-0.85 for commercial aircraft.

TSFC Measurement and Testing

TSFC measurement requires specialized test facilities capable of simulating flight conditions while precisely measuring thrust output and fuel consumption. Engine test cells use sophisticated thrust measurement systems, typically employing load cells or strain gauges to measure forces with accuracy better than 0.1% of full scale. Fuel flow measurement systems must maintain similar precision across the wide range of flow rates encountered during different thrust settings, from idle to maximum power conditions.

Altitude testing facilities simulate high-altitude conditions using large vacuum chambers and refrigeration systems to replicate the low pressure and temperature conditions encountered during flight. These facilities enable accurate TSFC measurement across the entire flight envelope, revealing how engine efficiency varies with altitude, temperature, and Mach number. Some facilities can simulate conditions up to 100,000 feet altitude and temperatures as low as -70°F, covering the complete operational range of modern aircraft engines.

In-flight TSFC measurement presents additional challenges due to the difficulty of accurately measuring thrust during actual flight operations. Flight test programs typically use calibrated engine parameters such as exhaust gas temperature, fuel flow, and engine pressure ratios to estimate thrust output and calculate TSFC. Advanced flight test instrumentation can achieve TSFC measurement accuracy within 2-3% of laboratory values when properly calibrated and corrected for atmospheric conditions.

TSFC Optimization Strategies

Engine design optimization for improved TSFC involves balancing multiple competing factors including thermal efficiency, propulsive efficiency, and component weight. Higher bypass ratios generally improve TSFC by increasing propulsive efficiency, as more thrust is generated by accelerating a larger mass of air to lower velocities rather than accelerating smaller amounts of air to very high speeds. However, higher bypass ratios also increase engine diameter, weight, and drag, requiring careful optimization for specific aircraft applications.

Diesel Fuel Consumption Calculators

Diesel fuel consumption calculators serve as essential tools for fleet managers, logistics coordinators, and commercial vehicle operators seeking to optimize operational costs and improve efficiency. These specialized calculation tools account for the unique characteristics of diesel engines, commercial vehicle operations, and the complex variables affecting fuel consumption in heavy-duty applications. Unlike passenger car fuel economy calculations, diesel consumption calculators must consider factors such as payload variations, route characteristics, driver behavior, and seasonal fuel blend differences that significantly impact commercial vehicle efficiency.

Commercial diesel fuel consumption calculators typically incorporate multiple input variables to provide accurate cost estimates and efficiency projections. Basic calculations require vehicle miles traveled, average fuel economy (MPG), current diesel fuel prices, and fleet size. More sophisticated calculators include additional factors such as payload weight, route topography, seasonal variations, and driver efficiency ratings. The fundamental calculation formula remains: Fuel Cost = (Total Miles ÷ Average MPG) × Fuel Price per Gallon, though commercial applications often require more complex multi-variable calculations.

Fleet Calculation Example: A 50-truck fleet averaging 6.5 MPG, traveling 100,000 miles annually per truck, with diesel at $3.50 per gallon would consume approximately 769,230 gallons annually, costing $2,692,308. Small efficiency improvements of 0.5 MPG would save over $180,000 annually.

Industry-specific diesel consumption calculators address the unique requirements of different commercial sectors, including long-haul trucking, construction equipment, agricultural machinery, and marine applications. Long-haul trucking calculators often incorporate route optimization features, considering factors such as terrain, traffic patterns, and fuel stop locations. Construction equipment calculators typically use hourly consumption rates rather than distance-based calculations, as much construction equipment operates at fixed locations with varying load conditions.

Commercial Calculator Features

Advanced diesel fuel consumption calculators integrate real-time data sources to provide dynamic cost estimates and optimization recommendations. These systems often connect to fuel price databases, weather services, and traffic information to adjust calculations based on current conditions. GPS integration enables route-specific consumption estimates, accounting for elevation changes, traffic congestion, and road conditions that significantly affect diesel consumption in commercial applications.

Fleet management integration capabilities allow diesel consumption calculators to access vehicle telematics data, driver performance metrics, and maintenance records to improve calculation accuracy. These integrated systems can identify vehicles with declining fuel efficiency, drivers requiring additional training, and maintenance issues affecting consumption. Historical data analysis enables trend identification and predictive modeling for budget planning and fleet optimization decisions.

Regulatory compliance features in commercial diesel calculators help fleet operators meet environmental reporting requirements and tax obligations. These tools can calculate carbon emissions, track fuel tax liabilities across different jurisdictions, and generate reports required for various regulatory programs. International operations require additional complexity to handle different fuel specifications, tax structures, and emission standards across multiple countries.

Accuracy and Optimization Factors

Payload weight significantly affects diesel consumption calculations, with loaded vehicles typically consuming 15-25% more fuel than empty vehicles depending on the weight increase and route characteristics. Advanced calculators incorporate weight-based correction factors, often using exponential relationships rather than linear scaling to account for the non-linear impact of weight on fuel consumption. Aerodynamic considerations become increasingly important at highway speeds, where trailer configuration and loading can affect consumption by 5-15%.

Seasonal variations in diesel fuel consumption require sophisticated modeling to maintain calculation accuracy throughout the year. Winter diesel blends typically provide 3-5% less energy content than summer formulations, directly affecting fuel economy. Cold weather operations increase consumption through extended warm-up periods, increased electrical loads, and reduced engine efficiency. Conversely, summer operations may show increased consumption due to air conditioning loads and higher ambient temperatures affecting engine performance.

Driver behavior represents one of the most variable factors in diesel consumption calculations, with efficient drivers achieving 10-20% better fuel economy than average operators. Advanced calculators incorporate driver scoring systems based on acceleration patterns, speed management, idle time, and route adherence. Training programs guided by consumption calculator data can significantly improve fleet efficiency, with documented improvements of 5-15% common in well-managed programs.

Fuel Consumption Comparison Tools

Fuel consumption comparison tools provide essential capabilities for evaluating different vehicles, fuel types, and operational strategies to make informed decisions about vehicle purchases, fleet composition, and operational optimization. These sophisticated calculation platforms go beyond simple fuel economy comparisons to incorporate total cost of ownership, environmental impact, and operational suitability factors that affect real-world decision-making. Government agencies, automotive manufacturers, and independent organizations provide various comparison tools designed for different user needs and application requirements.

The Environmental Protection Agency’s fueleconomy.gov represents the most comprehensive government-sponsored comparison tool, providing detailed fuel economy data for virtually all vehicles sold in the United States since 1984. This platform enables side-by-side comparisons of fuel economy, annual fuel costs, and greenhouse gas emissions across different vehicle categories. The tool incorporates user-specific inputs including annual mileage, local fuel prices, and driving patterns to provide personalized cost estimates and environmental impact calculations.

Comparison Methodology: Effective fuel consumption comparisons must account for vehicle purchase price, fuel costs, maintenance expenses, insurance, and resale value to provide meaningful total cost of ownership analysis. A vehicle with poor fuel economy but low purchase price may prove more economical than an efficient but expensive alternative over typical ownership periods.

Alternative fuel comparison tools address the growing complexity of evaluating different propulsion technologies including hybrid, electric, compressed natural gas, and hydrogen fuel cell vehicles. These specialized calculators must account for different energy units, infrastructure availability, and operational characteristics unique to each technology. The Department of Energy’s Alternative Fuels Data Center provides comprehensive comparison tools that convert different energy sources to equivalent units and calculate total cost of ownership across multiple fuel types.

Commercial Comparison Platforms

Commercial fuel consumption comparison platforms offer advanced features tailored to business and fleet applications, including integration with procurement systems, financing calculators, and operational modeling tools. These platforms often provide access to real-world fuel consumption data from fleet operators, offering more accurate consumption estimates than laboratory-derived EPA ratings. Fleet-specific factors such as duty cycle, route characteristics, and operational requirements receive detailed consideration in commercial comparison tools.

Automotive manufacturer comparison tools typically focus on their own product lines while providing competitive analysis capabilities. These platforms often include detailed configuration options, allowing users to compare different engine, transmission, and equipment combinations within specific vehicle models. Manufacturer tools frequently incorporate incentive programs, financing options, and warranty considerations that affect total cost of ownership beyond simple fuel consumption calculations.

Third-party automotive websites and consumer publications provide independent comparison tools that aggregate data from multiple sources and incorporate user reviews, reliability ratings, and real-world fuel economy reports. These platforms often feature more user-friendly interfaces and simplified comparison criteria, making them accessible to general consumers while still providing detailed technical information for informed decision-making.

Advanced Comparison Features

Geographic customization capabilities in advanced comparison tools account for regional variations in fuel prices, climate conditions, and regulatory requirements that significantly affect vehicle operating costs. These tools can adjust calculations for local fuel taxes, emission testing requirements, and seasonal fuel blend differences. Climate-specific adjustments account for air conditioning usage in hot regions, heating system loads in cold climates, and altitude effects in mountainous areas.

Lifecycle analysis features extend comparison capabilities beyond initial purchase and fuel costs to include maintenance schedules, component replacement costs, and end-of-life value considerations. These comprehensive analyses often reveal significant differences in total ownership costs that may not be apparent from simple fuel economy comparisons. Hybrid and electric vehicles, for example, may show higher initial costs but lower maintenance requirements that improve their total cost position over extended ownership periods.

Environmental impact comparison tools incorporate carbon footprint calculations, air quality effects, and lifecycle emissions analysis to provide comprehensive environmental assessments beyond simple tailpipe emissions. These tools consider electricity generation sources for electric vehicles, fuel production and distribution emissions, and manufacturing impacts to provide complete environmental comparisons. Regulatory compliance features help users understand how different vehicle choices affect their ability to meet emission standards or qualify for environmental incentive programs.

Fuel Consumption Tracking Systems

Fuel consumption tracking systems represent sophisticated technological solutions that monitor, record, and analyze vehicle fuel usage patterns to optimize efficiency, reduce costs, and improve operational decision-making. These systems range from simple smartphone applications for individual vehicle owners to comprehensive fleet management platforms serving thousands of commercial vehicles. Modern tracking systems integrate multiple data sources including GPS positioning, engine diagnostics, driver behavior monitoring, and fuel transaction records to provide detailed insights into consumption patterns and optimization opportunities.

Personal fuel consumption tracking applications provide individual vehicle owners with tools to monitor their fuel usage, identify efficiency trends, and optimize driving habits. Popular applications such as Fuelio and GasBuddy enable users to log fuel purchases, track mileage, and calculate fuel economy over time. These applications often include features such as maintenance reminders, cost analysis, and efficiency comparisons with similar vehicles. Advanced personal tracking apps integrate with vehicle OBD-II systems to provide real-time consumption monitoring and driving behavior analysis.

Tracking System Benefits: Comprehensive fuel tracking systems typically reduce fleet fuel consumption by 5-15% through improved driver behavior, optimized routing, and proactive maintenance scheduling. The data visibility alone often motivates more efficient driving practices, while detailed analytics identify specific improvement opportunities.

Commercial fleet tracking systems provide enterprise-level capabilities designed to manage hundreds or thousands of vehicles across multiple locations and operational scenarios. These platforms integrate with existing business systems including dispatch software, maintenance management systems, and financial reporting tools to provide comprehensive operational oversight. Real-time monitoring capabilities enable immediate response to efficiency problems, route deviations, and maintenance issues that affect fuel consumption.

Tracking System Components

GPS tracking integration provides the foundation for comprehensive fuel consumption analysis by correlating fuel usage with specific routes, driving conditions, and operational patterns. Modern GPS systems provide accuracy within 3-5 meters and update position data every few seconds, enabling detailed analysis of driving behaviors that affect fuel consumption. Route optimization algorithms use this data to identify the most fuel-efficient paths between destinations, accounting for traffic patterns, road conditions, and elevation changes.

Engine diagnostic integration through OBD-II or CAN bus connections provides real-time access to engine parameters including fuel consumption rates, engine load, temperatures, and diagnostic trouble codes. This data enables immediate identification of mechanical issues affecting fuel efficiency and provides detailed insights into driver behavior impacts on consumption. Advanced systems can detect problems such as clogged air filters, faulty oxygen sensors, or inefficient driving patterns that increase fuel usage.

Fuel transaction monitoring systems track fuel purchases and integrate with fleet fuel cards to provide comprehensive fuel cost management. These systems can detect fuel theft, identify unusual consumption patterns, and verify fuel purchase locations against vehicle positions. Integration with fuel card systems enables automated expense reporting and helps identify opportunities for fuel cost savings through strategic purchasing programs.

Fuel Consumption Sensor Technology

Fuel consumption sensor technology represents the cutting edge of precision fuel monitoring, providing accurate real-time measurement of fuel usage across diverse vehicle types and operational conditions. These sophisticated sensors enable precise tracking of fuel consumption patterns, immediate detection of efficiency problems, and detailed analysis of factors affecting fuel usage. Modern sensor technology combines multiple measurement principles including flow measurement, level sensing, and pressure monitoring to provide comprehensive fuel consumption data with accuracy levels approaching laboratory-grade instrumentation.

Flow-based fuel consumption sensors measure the actual volume of fuel passing through fuel lines to provide direct consumption measurement independent of tank level variations or fuel density changes. These sensors typically use ultrasonic, electromagnetic, or mechanical measurement principles to detect fuel flow rates with accuracy within 1-2% of actual consumption. Ultrasonic flow sensors offer non-intrusive installation and excellent accuracy but require careful calibration for different fuel types and temperatures.

Sensor Accuracy Comparison: Flow-based sensors typically achieve 1-2% accuracy, level-based sensors provide 3-5% accuracy, and OBD-II calculated consumption shows 5-10% accuracy. The choice of sensor technology depends on accuracy requirements, installation complexity, and cost considerations for specific applications.

Level-based fuel consumption sensors monitor fuel tank levels continuously to calculate consumption based on level changes over time. These sensors must account for vehicle motion, temperature effects, and tank geometry to provide accurate consumption measurements. Advanced level sensors use multiple measurement points and sophisticated algorithms to compensate for fuel movement during acceleration, braking, and cornering. Capacitive and ultrasonic level sensors offer different advantages depending on fuel type, tank configuration, and environmental conditions.

Pressure-based fuel consumption measurement systems monitor fuel system pressure variations to infer consumption rates and detect system problems. These sensors can identify fuel leaks, clogged filters, and pump problems that affect both fuel consumption and system reliability. Integration with engine management systems enables correlation between fuel pressure, injection timing, and consumption patterns to optimize engine performance and efficiency.

Advanced Sensor Applications

Multi-sensor fusion systems combine data from multiple sensor types to provide enhanced accuracy and reliability compared to single-sensor approaches. These systems typically integrate flow sensors, level sensors, and engine diagnostic data to cross-validate measurements and identify sensor malfunctions. Machine learning algorithms analyze sensor data patterns to improve accuracy over time and adapt to changing operational conditions.

Wireless sensor networks enable comprehensive fuel monitoring across large fleets without complex wiring installations. These systems use cellular, satellite, or short-range wireless communications to transmit sensor data to central monitoring systems. Battery-powered sensors can operate for months or years without maintenance, making them suitable for remote or mobile applications where wired connections are impractical.

Predictive analytics integration with sensor data enables proactive maintenance scheduling and efficiency optimization based on fuel consumption trends. These systems can predict component failures, identify developing efficiency problems, and recommend operational changes to improve fuel economy. Integration with maintenance management systems enables automatic work order generation when sensor data indicates potential problems requiring attention.

References and Further Reading

For additional information on fuel consumption measurement, calculation methods, and optimization strategies, consult the following authoritative sources:

  1. EPA Fuel Economy Guide
  2. Department of Energy – Vehicle Technologies Office
  3. SAE International – Fuel Consumption Test Procedures
  4. ScienceDirect – Brake Specific Fuel Consumption Research
  5. Wikipedia – Thrust-Specific Fuel Consumption
  6. Geotab – Fuel Management System Tools
  7. Technoton – Fuel Consumption Monitoring
  8. Omni Calculator – Fuel Consumption Calculator
VR38 Engine
Engine Oils

Engine break-in duration and performance considerations

May 20, 2021 FTE Leave a comment

Engine break-in duration and performance parameters have evolved significantly with modern manufacturing advances, challenging traditional recommendations that often emphasized extended periods and strict limitations. This comprehensive analysis examines contemporary break-in duration requirements, speed considerations, and RPM management strategies that balance component optimization with practical usability. Understanding these modern approaches helps optimize engine performance while avoiding unnecessary restrictions based on outdated practices.

Table of Contents ▼
  • Modern Break-In Duration Standards
  • Mileage Requirements by Application
  • Speed Considerations During Break-In
  • RPM Management and Rev Limits
  • Performance Optimization Strategies
  • Monitoring Break-In Progress
  • Common Break-In Mistakes
  • Professional Insights
  • References

Modern Break-In Duration Standards

Contemporary engine break-in duration standards have undergone dramatic revision compared to traditional recommendations, reflecting advances in manufacturing precision, surface treatment technologies, and improved understanding of tribological processes. Modern approaches emphasize quality of operation over extended duration, with most applications requiring significantly shorter break-in periods than historically recommended.

Historical vs Modern Duration Comparison

Traditional break-in recommendations typically suggested 1,000-1,500 miles of restricted operation, based on manufacturing capabilities and surface finish quality available decades ago. Modern manufacturing with plateau honing, improved tolerances, and advanced materials has reduced these requirements by 60-80% for most applications.

Contemporary break-in duration focuses on the critical first 200 miles where most component conditioning occurs, followed by gradual progression to normal operation. This approach recognizes that modern engines achieve optimal operating characteristics much more quickly than their predecessors, making extended restrictions unnecessary and potentially counterproductive.

Duration Evolution: Modern break-in periods have decreased from traditional 1,000+ miles to 200-500 miles for most applications, with the first 200 miles being most critical for component optimization.

Manufacturing Technology Impact on Duration

Plateau honing technology has fundamentally altered break-in duration requirements by pre-conditioning cylinder surfaces to approximate final operating characteristics. This process effectively performs much of the traditional break-in work during manufacturing, reducing the operational conditioning period required for optimal performance.

Advanced surface treatments, improved materials, and precision manufacturing have created engines that achieve near-optimal performance characteristics immediately upon startup. These improvements have shifted the focus from extended duration to proper initial operation techniques that optimize the remaining component interfaces efficiently.

Mileage Requirements by Application

Break-in mileage requirements vary significantly across different applications, reflecting differences in manufacturing processes, operational demands, and performance expectations. Understanding these variations helps establish appropriate break-in protocols for specific situations while avoiding unnecessary restrictions or inadequate conditioning.

New Vehicle Break-In Mileage

New passenger vehicles typically require 200-500 miles of careful operation, with luxury manufacturers often recommending the lower end of this range due to superior manufacturing quality. The critical period focuses on the first 200 miles, during which most component conditioning occurs, followed by gradual progression to unrestricted operation.

High-performance vehicles may require slightly longer break-in periods (400-600 miles) due to tighter tolerances and more demanding operational parameters. However, even these applications rarely require the extended periods traditionally recommended, with emphasis placed on proper operation technique rather than duration.

Rebuilt Engine Mileage Requirements

Rebuilt engines typically require 500-1,000 miles of break-in due to variables in assembly quality, component combinations, and potential tolerance stack-up issues. The extended duration reflects the need to accommodate assembly variables that don’t exist in factory-controlled manufacturing environments.

Professional rebuilds with precision assembly and quality components may complete break-in within 500 miles, while amateur rebuilds or those using mixed component sources may require the full 1,000-mile period. The key factor is assembly quality rather than component newness, with proper assembly techniques reducing break-in requirements significantly.

Mileage Guidelines: New cars 200-500 miles, motorcycles 200-600 miles, rebuilt engines 500-1,000 miles, with the first 200 miles being most critical regardless of application.

Speed Considerations During Break-In

Speed management during engine break-in has evolved from absolute restrictions to emphasis on variation and avoiding sustained constant-speed operation. Modern understanding recognizes that speed variation is more beneficial than strict limitations, with the goal being optimal component conditioning rather than arbitrary speed restrictions.

Speed Variation Principles

The primary concern during break-in is avoiding sustained constant speeds that may promote bore glazing, rather than absolute speed limitations. Varied speeds create the loading conditions necessary for proper ring seating while preventing the accumulation of combustion deposits that can inhibit optimal sealing.

Modern engines can safely operate at highway speeds during break-in, provided the operation includes speed variation rather than constant cruise control use. Brief periods at higher speeds may actually benefit ring seating by creating the cylinder pressures necessary for optimal component conditioning.

Practical Speed Guidelines

Practical speed management during break-in focuses on avoiding sustained speeds above 65-70 mph during the first 200 miles, while emphasizing speed variation within this range. After the initial period, speeds can be gradually increased while maintaining the principle of variation over constant operation.

City driving with varied speeds and loads often provides better break-in conditions than highway cruising, even at lower absolute speeds. The key is creating varied loading conditions that promote proper component conditioning while avoiding the monotonous operation that may inhibit optimal break-in.

  • First 200 miles: Vary speeds between 25-65 mph, avoid sustained highway cruising
  • 200-500 miles: Gradually increase maximum speeds while maintaining variation
  • Beyond 500 miles: Normal operation without speed restrictions
  • Throughout: Emphasize speed variation over absolute limitations

RPM Management and Rev Limits

RPM management during engine break-in requires balancing component protection with the need for adequate loading to promote proper ring seating and component conditioning. Modern approaches emphasize RPM variation within appropriate ranges rather than strict limitations that may inhibit optimal break-in.

RPM Range Optimization

Optimal break-in RPM management utilizes 25-75% of the engine’s RPM range, avoiding both constant low-RPM operation that may cause glazing and sustained high-RPM operation that may stress incompletely conditioned components. This range provides adequate loading for ring seating while maintaining appropriate safety margins.

Brief excursions to higher RPM levels can actually benefit break-in by creating the cylinder pressures necessary for proper ring seating, while constant operation at any single RPM level may inhibit optimal conditioning. The key is variation within appropriate limits rather than rigid restrictions.

Redline and Rev Limit Considerations

During break-in, redline restrictions typically limit sustained operation to approximately 75% of maximum RPM, while allowing brief excursions to higher levels for proper component conditioning. This approach balances component protection with the need for adequate loading to promote optimal ring seating.

Modern engines are generally more tolerant of RPM variation than traditional wisdom suggests, with brief high-RPM excursions being less problematic than sustained operation at any single RPM level. The focus should be on creating varied loading conditions that promote optimal component conditioning.

RPM Guidelines: Use 25-75% of RPM range during first 200 miles, allow brief excursions higher for ring seating, avoid both constant low RPM and sustained high RPM operation.

Performance Optimization Strategies

Modern break-in performance optimization focuses on creating conditions that promote optimal component conditioning while avoiding practices that may inhibit long-term performance. This approach emphasizes controlled loading and variation over extended restrictions or excessive caution.

Controlled Loading Techniques

Controlled loading during break-in involves systematic application of varied loads that promote proper ring seating without overwhelming incompletely conditioned components. This technique uses moderate acceleration in lower gears combined with engine braking to create the pressure differentials necessary for optimal component conditioning.

The most effective controlled loading occurs during the first 50 miles, when component interfaces are most responsive to conditioning. Gradual load increases during this period establish the foundation for long-term performance while avoiding the risks associated with either excessive gentleness or inappropriate aggression.

Thermal Management During Break-In

Proper thermal management during break-in ensures that components reach optimal operating temperatures without excessive thermal stress that could affect long-term performance. This involves immediate elevation to operating temperature while avoiding sustained high-load operation that may cause overheating.

Extended idling should be avoided during break-in as it fails to provide adequate loading for ring seating while potentially promoting bore glazing. Instead, moderate driving that brings the engine to operating temperature quickly provides better break-in conditions while ensuring proper thermal management.

Monitoring Break-In Progress

Effective break-in monitoring focuses on key performance indicators that reveal component conditioning progress while identifying potential issues before they become serious problems. Modern engines often show subtle changes during break-in, requiring attention to specific parameters that indicate proper conditioning.

Key Performance Indicators

Oil consumption patterns provide valuable insight into ring seating progress, with modern engines typically showing minimal consumption from the start due to improved manufacturing. Initial consumption up to 1 quart per 1,000 miles can be normal, but consumption should stabilize quickly, typically within 200-500 miles.

Performance characteristics such as power delivery, throttle response, and idle quality may show subtle improvements during break-in as components optimize their interfaces. These changes are often more pronounced in rebuilt engines where assembly variables create more opportunity for improvement during conditioning.

Diagnostic Testing During Break-In

Leak-down testing at specific intervals provides objective data about ring seating progress, with modern engines often showing good sealing immediately due to plateau honing. Initial readings of 8-12% are typical, improving to 5-8% after break-in completion, though some engines achieve excellent readings from the start.

Compression testing can supplement leak-down data, though modern engines typically show consistent compression from the start. Significant variations between cylinders may indicate assembly issues rather than normal break-in characteristics, warranting professional evaluation.

Common Break-In Mistakes

Understanding common break-in mistakes helps avoid practices that may inhibit optimal performance development or cause unnecessary anxiety about normal engine operation. Many traditional practices, while well-intentioned, may actually be counterproductive with modern engines.

Excessive Gentleness

Perhaps the most common break-in mistake involves excessive gentleness that fails to provide adequate loading for proper ring seating. Extended gentle operation may actually promote bore glazing, creating smooth cylinder surfaces that inhibit optimal sealing and result in permanent performance limitations.

Modern engines require controlled loading during break-in to achieve optimal performance characteristics. While avoiding abuse is important, excessive caution may be more detrimental than moderate loading that promotes proper component conditioning.

Extended Unnecessary Restrictions

Applying traditional break-in restrictions for extended periods beyond what modern engines require can inhibit normal use without providing additional benefits. Most contemporary engines complete break-in within 200-500 miles, making extended restrictions unnecessary and potentially counterproductive.

Understanding when break-in is complete allows for normal operation without continued anxiety about engine protection. Modern manufacturing quality means that engines are designed to operate optimally from early in their service life, making extended restrictions inappropriate.

Mistake Prevention: Avoid excessive gentleness that may cause glazing, don’t extend restrictions beyond necessary periods, and focus on controlled loading rather than absolute limitations.

Professional Insights

Professional perspectives on modern engine break-in emphasize adapting procedures to contemporary manufacturing realities while maintaining appropriate caution for specific applications. These insights help balance optimal performance development with practical considerations for different use cases.

Field Technician Observations

Experienced technicians consistently report that engines subjected to controlled break-in procedures within the first 200 miles demonstrate superior long-term characteristics compared to those given extended gentle treatment. These field observations support the shift toward shorter, more intensive break-in approaches.

Professional experience indicates that the quality of initial operation matters more than its duration, with proper technique during the critical first 200 miles being more beneficial than extended restrictions. This practical wisdom aligns with theoretical understanding of modern manufacturing capabilities.

Manufacturer Recommendation Evolution

Leading manufacturers have progressively reduced break-in recommendations, with some eliminating specific procedures entirely in favor of general careful operation guidelines. This evolution reflects confidence in manufacturing quality and recognition that extended procedures may not provide benefits commensurate with their inconvenience.

The trend toward minimal break-in procedures represents manufacturer confidence in their production processes and acknowledgment that modern engines achieve optimal performance characteristics much more quickly than their predecessors. This shift has practical implications for owners and service providers.

  • Duration focus: Emphasize first 200 miles rather than extended periods
  • Quality over quantity: Proper technique more important than duration
  • Variation emphasis: Speed and RPM variation over absolute limits
  • Modern reality: Adapt procedures to contemporary manufacturing quality

References

  1. Fuel Tech Experts Engine Break-In Guide
  2. MAHLE Motorsport Break-In Procedures
  3. JE Pistons Engine Break-In Guide
  4. DSport Magazine Performance Break-In
  5. Driven Racing Oil Break-In Guide
an EGR's internals covered in carbon.
Carbon Cleaning

Does carbon cleaning work? Benefits, effectiveness and value for your engine

April 22, 2021 FTE Leave a comment

Carbon cleaning has emerged as one of the most controversial yet potentially beneficial maintenance procedures in modern automotive care, with vehicle owners and industry professionals debating its effectiveness, safety, and economic value.

This comprehensive analysis examines the scientific evidence, real-world performance data, economic considerations, and practical applications of carbon cleaning across different engine types, vehicle categories, and operating conditions to provide definitive answers about its effectiveness and value proposition.

Table of Contents ▼
  • Does Carbon Cleaning Work?
  • Scientific Evidence and Laboratory Testing
  • Real-World Performance Results
  • Comparative Method Effectiveness
  • Is Carbon Cleaning Good or Bad?
  • Comprehensive Safety Assessment
  • Risk Factors and Mitigation Strategies
  • Environmental Impact and Sustainability
  • Is Carbon Cleaning Worth It?
  • Comprehensive Cost-Benefit Analysis
  • Return on Investment Calculations
  • Long-Term Value and Component Protection
  • How Carbon Cleaning Benefits Performance
  • Power and Torque Restoration Mechanisms
  • Fuel Efficiency and Economy Enhancement
  • Drivability and Response Improvements
  • Carbon Cleaning and DPF Issues
  • Understanding the DPF-Carbon Relationship
  • Comprehensive Diesel System Benefits
  • Preventive Maintenance Strategies
  • Carbon Cleaning for Motorcycles
  • Motorcycle-Specific Challenges and Solutions
  • High-Performance and Racing Applications
  • Professional Recommendations and Best Practices

Does Carbon Cleaning Work?

Yes, carbon cleaning works effectively when performed using proper methods, professional equipment, and appropriate techniques for specific engine types and contamination levels. Extensive independent testing, laboratory analysis, and real-world applications have consistently demonstrated measurable improvements in engine performance, fuel efficiency, emissions characteristics, and component longevity across multiple vehicle categories and engine configurations.

The effectiveness of carbon cleaning varies significantly based on several critical factors including the cleaning method employed, initial contamination severity, engine design characteristics, operating conditions, and the quality of equipment and procedures used. Professional hydrogen cleaning systems consistently deliver superior results compared to chemical additives or DIY solutions, while specialized techniques like walnut blasting provide the most thorough cleaning for specific components such as intake valves and ports.

Scientific Evidence and Laboratory Testing

Independent laboratory testing conducted by automotive research institutions, engine manufacturers, and third-party testing facilities provides compelling scientific evidence for carbon cleaning effectiveness. These studies utilize controlled testing environments, standardized measurement protocols, and sophisticated analytical equipment to demonstrate consistent improvements across multiple performance parameters and engine types.

Comprehensive research programs have employed advanced measurement techniques including mass spectrometry for deposit analysis, flow bench testing for airflow characteristics, dynamometer testing for power and torque measurements, and emissions analysis using certified testing equipment. These rigorous testing protocols ensure accurate, repeatable results that can be verified and validated across different testing facilities and conditions.

Laboratory Testing Results – Hydrogen Cleaning Systems:

  • 70-85% carbon deposit removal in single treatment sessions
  • Intake valve flow restoration to 95% of original specifications
  • Measurable improvements in combustion chamber cleanliness and surface finish
  • Reduced deposit formation rates in subsequent operation cycles
  • Enhanced heat transfer characteristics in cleaned components

Laboratory Testing Results – Walnut Blasting Procedures:

  • 95%+ removal of intake valve deposits with complete surface restoration
  • Complete elimination of carbon-induced flow restrictions and turbulence
  • Restoration of valve sealing surfaces to original specifications
  • Improved port flow characteristics and velocity profiles

These laboratory results are achieved through sophisticated testing protocols that measure deposit mass before and after treatment using precision scales, analyze airflow characteristics through cleaned components using computerized flow benches, and conduct comprehensive performance analysis using chassis dynamometers and emissions measurement equipment calibrated to international standards.

Real-World Performance Results

Real-world testing conducted under actual driving conditions demonstrates consistent performance improvements that can be measured and verified through standard automotive diagnostic procedures and customer feedback. These improvements are not subjective impressions but quantifiable changes in engine operation characteristics that can be documented and tracked over extended periods.

Professional carbon cleaning services typically deliver measurable improvements including power output increases of 5-15% depending on initial contamination severity, fuel economy improvements of 8-12% under standardized driving conditions, emissions reductions of up to 30% in hydrocarbon output, idle quality enhancement with reduced vibration and improved stability, and throttle response improvements resulting in faster acceleration and better overall drivability.

These improvements are most pronounced in direct injection engines, which are particularly susceptible to carbon accumulation due to the absence of fuel washing over intake valve surfaces during normal operation. Turbocharged engines also show significant benefits due to their higher operating pressures and temperatures that accelerate deposit formation and create more severe contamination conditions.

Comparative Method Effectiveness

Different carbon cleaning methods demonstrate varying levels of effectiveness based on their mechanisms of action, target areas, and application procedures. Understanding these differences is crucial for selecting the most appropriate cleaning method for specific engine types and contamination conditions.

Cleaning Method Effectiveness Rate Target Areas Treatment Duration
Hydrogen Cleaning 70-85% Entire engine system 45-90 minutes
Walnut Blasting 95%+ Intake valves/ports 2-4 hours
Chemical Treatment 40-60% Fuel system/combustion Multiple treatments
Ultrasonic Cleaning 90%+ Removed components 1-2 hours

The selection of appropriate cleaning methods depends on factors including engine accessibility, contamination severity, available time, budget constraints, and specific performance objectives. Professional service providers often combine multiple methods to achieve optimal results for different engine components and contamination patterns.

Is Carbon Cleaning Good or Bad?

Carbon cleaning is fundamentally beneficial for engine health, performance, and longevity when performed correctly using appropriate methods, professional equipment, and established safety protocols. The procedure addresses a natural and inevitable consequence of internal combustion engine operation that progressively degrades performance and can lead to significant component damage if left untreated over extended periods.

Comprehensive Safety Assessment

Professional carbon cleaning methods have undergone extensive testing and validation to ensure safety for both engine components and operating personnel. Modern hydrogen cleaning systems incorporate multiple safety features including automatic pressure regulation, temperature monitoring, electrical isolation systems, and emergency shutdown capabilities that minimize risk to engines and operators.

The safety profile of professional carbon cleaning includes several key advantages. Non-invasive procedures eliminate the need for engine disassembly, reducing the risk of component damage or improper reassembly. Controlled processes maintain optimal operating parameters throughout the cleaning cycle, preventing excessive temperatures or pressures that could damage sensitive components. Environmental safety is enhanced through the use of hydrogen cleaning systems that produce only water vapor and carbon dioxide as byproducts, eliminating the need for harsh chemical solvents or toxic cleaning agents.

Component protection is achieved through gentle removal processes that preserve delicate surface finishes and maintain critical dimensional tolerances. Professional equipment incorporates sophisticated monitoring systems that continuously track cleaning progress and automatically adjust parameters to prevent over-cleaning or component damage. Operator safety is ensured through low voltage electrical systems, automatic shutdown features, and comprehensive training programs that emphasize proper procedures and safety protocols.

Risk Factors and Mitigation Strategies

While carbon cleaning is generally safe when performed correctly, potential risks exist primarily when procedures are performed incorrectly, using substandard equipment, or by inadequately trained personnel. Understanding these risks and implementing appropriate mitigation strategies helps ensure optimal results while preventing damage to expensive engine components.

Primary Risk Factors and Mitigation Strategies:

Improper Equipment Selection: Use only professional-grade systems with proper safety features, calibration certificates, and manufacturer support. Avoid DIY solutions or unproven equipment that lacks safety features or proper documentation.

Incorrect Procedure Implementation: Ensure technicians receive proper training from equipment manufacturers and follow established protocols. Verify certification and experience levels before allowing personnel to perform cleaning procedures.

Excessive Treatment Duration: Follow manufacturer recommendations for treatment durations and frequencies. Monitor cleaning progress and stop procedures when optimal results are achieved to prevent over-cleaning.

Poor Quality Service Providers: Choose reputable providers with documented experience, proper equipment, insurance coverage, and positive customer feedback. Verify credentials and request references before committing to services.

The key to safe and effective carbon cleaning lies in selecting qualified service providers who invest in professional equipment, maintain current training certifications, follow established protocols, and prioritize customer satisfaction over profit margins. Reputable providers will gladly discuss their procedures, show their equipment, and provide references from satisfied customers.

Environmental Impact and Sustainability

Modern carbon cleaning methods offer significant environmental advantages compared to traditional cleaning approaches and contribute to overall vehicle sustainability through improved efficiency and reduced emissions. Hydrogen cleaning systems produce no harmful byproducts, while walnut blasting uses biodegradable media that decomposes naturally without environmental contamination.

The environmental benefits extend beyond the cleaning process itself to include reduced fuel consumption, lower emissions output, and extended component life that reduces the need for replacement parts and associated manufacturing impacts. Clean engines operate more efficiently, consuming less fuel and producing fewer harmful emissions throughout their operational life.

Is Carbon Cleaning Worth It?

Carbon cleaning represents exceptional value for most vehicles, particularly those equipped with direct injection engines, turbocharging systems, or high mileage accumulation. The economic benefits extend far beyond the initial service cost, encompassing immediate fuel savings, prevented repairs, extended component life, and enhanced resale value that collectively provide substantial return on investment over the vehicle’s operational life.

Comprehensive Cost-Benefit Analysis

Professional carbon cleaning costs must be evaluated against the comprehensive benefits provided, including immediate performance improvements, ongoing fuel savings, prevented component failures, and enhanced vehicle reliability. The analysis becomes even more favorable when considering the escalating costs of modern engine components and the complexity of repairs required when carbon-related damage occurs.

Service Type Initial Cost Annual Fuel Savings Payback Period 5-Year ROI
Hydrogen Cleaning £150-£300 £200-£400 9-18 months 300-500%
Walnut Blasting £600-£900 £300-£500 18-36 months 200-350%
Chemical Treatment £50-£150 £100-£200 6-18 months 400-800%
Combined Approach £400-£700 £400-£600 12-21 months 350-600%

These calculations are based on current UK fuel prices, typical driving patterns of 12,000-15,000 miles annually, and conservative estimates of fuel economy improvements. Vehicles with higher mileage accumulation, those operating under severe conditions, or premium fuel users may experience even greater benefits and shorter payback periods.

Return on Investment Calculations

The return on investment for carbon cleaning extends significantly beyond immediate fuel savings to include prevented repairs, extended component life, enhanced reliability, and improved resale value. These additional benefits substantially enhance the overall value proposition and make carbon cleaning one of the most cost-effective maintenance procedures available for modern engines.

Prevented repair costs represent a major component of carbon cleaning value. Intake valve replacement due to carbon damage typically costs £800-£1,500 including labor and parts. Turbocharger repair or replacement resulting from contamination-related failures ranges from £1,200-£3,000 depending on the vehicle and turbocharger type. Catalytic converter replacement due to premature failure caused by poor combustion costs £500-£1,200, while DPF replacement for diesel vehicles ranges from £1,000-£2,500. In severe cases, carbon-related engine damage can necessitate complete engine rebuilds costing £3,000-£8,000 or more.

Long-Term Value and Component Protection

Long-term value considerations include extended component life, reduced maintenance frequency, improved reliability, and enhanced resale value that contribute to the overall economic benefits of carbon cleaning. Clean engines experience less wear, operate more efficiently, and maintain better performance characteristics throughout their operational life.

Component protection benefits include reduced wear on critical engine parts, extended service intervals for filters and fluids, decreased likelihood of unexpected failures, and maintained performance characteristics that preserve vehicle value. These benefits become increasingly important as vehicles age and component replacement costs escalate.

How Carbon Cleaning Benefits Performance

Carbon cleaning delivers comprehensive performance benefits by addressing the fundamental causes of engine degradation that accumulate progressively over time and operating conditions. These improvements are achieved through restoration of optimal airflow characteristics, combustion efficiency, heat transfer properties, and component operation that directly translate to enhanced driving experience, improved fuel economy, and reduced emissions output.

Power and Torque Restoration Mechanisms

Power restoration occurs through multiple interconnected mechanisms that address different aspects of engine performance degradation caused by carbon deposit accumulation. Carbon deposits on intake valves create significant flow restrictions that limit the engine’s ability to breathe efficiently, while combustion chamber deposits disrupt optimal flame propagation patterns, reduce compression ratios, and interfere with proper heat transfer characteristics.

The power restoration process involves several key mechanisms. Airflow restoration is achieved by removing intake valve deposits that restore full valve opening area and eliminate flow restrictions that reduce volumetric efficiency. Compression recovery occurs when clean combustion chambers restore optimal compression ratios and improve heat transfer characteristics that enhance combustion efficiency. Combustion optimization results from smooth chamber surfaces that promote proper flame propagation and ensure complete fuel burning throughout the combustion cycle. Exhaust flow improvement is accomplished through clean exhaust valves and ports that reduce back pressure and improve scavenging efficiency.

Dynamometer testing consistently demonstrates power increases of 5-15% following professional carbon cleaning procedures, with the greatest improvements observed in engines with severe initial contamination levels. Torque improvements are often even more pronounced, particularly in the mid-range RPM bands where most normal driving occurs, resulting in improved acceleration and enhanced drivability characteristics.

Fuel Efficiency and Economy Enhancement

Fuel efficiency improvements result from optimized combustion characteristics, reduced internal friction, improved heat transfer properties, and enhanced airflow that allow engines to extract maximum energy from each unit of fuel consumed. Clean engines operate more efficiently across all operating conditions, from idle to full load, resulting in measurable fuel economy improvements under real-world driving conditions.

Efficiency gains are achieved through several mechanisms. Complete combustion is promoted by clean chamber surfaces that facilitate thorough fuel burning and reduce unburned hydrocarbon emissions. Optimal ignition timing is restored when proper compression ratios allow engines to operate with manufacturer-specified timing parameters. Reduced internal friction results from smooth surfaces that minimize resistance and improve mechanical efficiency. Improved heat transfer characteristics facilitate proper engine cooling and thermal management. Enhanced airflow through unrestricted intake systems improves volumetric efficiency and breathing characteristics.

Real-world fuel economy testing demonstrates consistent improvements of 8-12% under standardized driving conditions, with even greater benefits observed during highway driving where engines operate at optimal efficiency points for extended periods. These improvements translate to significant annual fuel savings that often exceed the initial cost of carbon cleaning services.

Drivability and Response Improvements

Drivability enhancements represent some of the most immediately noticeable benefits of carbon cleaning, with improvements in throttle response, idle quality, acceleration characteristics, and overall engine smoothness that enhance the driving experience and vehicle refinement. These improvements result from restored engine breathing, optimized combustion, and improved component operation.

Specific drivability improvements include enhanced throttle response with faster engine acceleration and improved power delivery, smoother idle characteristics with reduced vibration and improved stability, better acceleration performance throughout the RPM range, reduced engine noise and improved refinement, and enhanced cold-start performance with faster warm-up times and improved drivability during warm-up periods.

Carbon Cleaning and DPF Issues

Carbon cleaning provides significant benefits for diesel particulate filter (DPF) operation and longevity by addressing the root causes of excessive soot production that lead to frequent regeneration cycles, premature filter clogging, and expensive component failures. While carbon cleaning doesn’t directly clean the DPF itself, it substantially improves the combustion conditions that affect DPF performance and service life.

Understanding the DPF-Carbon Relationship

The relationship between engine carbon deposits and DPF performance is complex but well-established through extensive research and real-world experience. Carbon deposits in combustion chambers, on intake valves, and throughout the intake system disrupt optimal combustion characteristics, leading to increased particulate matter production that overwhelms DPF capacity and triggers frequent regeneration cycles that reduce fuel economy and increase maintenance requirements.

Carbon cleaning helps DPF operation through multiple mechanisms. Combustion optimization is achieved through improved air-fuel mixing that reduces incomplete combustion, optimal combustion temperatures that minimize soot formation, and enhanced flame propagation that ensures complete fuel burning throughout the combustion cycle. Reduced particulate production results in up to 50% reduction in particulate matter output, lower regeneration frequency requirements, and extended DPF service life with reduced maintenance costs.

Comprehensive Diesel System Benefits

Regular carbon cleaning provides substantial benefits for all diesel emission control systems beyond DPF protection, including EGR valves, turbochargers, catalytic converters, and SCR systems. Clean engines place less stress on all emission control components, extending service intervals and reducing maintenance costs across the entire emission control system.

Additional diesel system benefits include EGR valve protection through reduced carbon buildup that prevents valve sticking and maintains proper operation, turbocharger longevity through cleaner exhaust that reduces turbine fouling and bearing contamination, improved injector performance through optimal combustion that reduces injector stress and contamination, and enhanced SCR system efficiency through improved exhaust characteristics that optimize catalyst performance and reduce maintenance requirements.

Preventive Maintenance Strategies

Preventive maintenance strategies incorporating regular carbon cleaning can significantly extend DPF life and reduce overall system maintenance costs. These strategies focus on maintaining optimal combustion conditions that minimize particulate production and reduce the burden on emission control systems.

Effective preventive maintenance includes regular carbon cleaning at appropriate intervals based on operating conditions, quality fuel and oil selection to minimize deposit formation, proper driving techniques that promote complete combustion and natural cleaning, and monitoring of emission system performance to identify issues before they become serious problems.

Carbon Cleaning for Motorcycles

Carbon cleaning is particularly beneficial for motorcycles, especially high-performance machines, sport bikes, and those equipped with modern direct injection systems or advanced emission control equipment. Motorcycles often operate under more severe conditions than automobiles, with higher RPM ranges, aggressive throttle applications, extended periods at wide-open throttle, and frequent engine braking that accelerate carbon deposit formation and create unique cleaning challenges.

Motorcycle-Specific Challenges and Solutions

Motorcycles present unique challenges and opportunities for carbon cleaning due to their design characteristics, operating patterns, and performance requirements. High-performance engines with aggressive cam profiles, high compression ratios, and sophisticated fuel injection systems are particularly susceptible to carbon-related performance degradation that affects both power output and reliability.

Motorcycle-specific benefits include enhanced throttle response that is critical for performance and safety applications, improved power delivery with smoother power curves and reduced flat spots, reduced engine knock that is important for high-compression performance engines, better fuel economy that is significant for touring and commuting applications, and emissions compliance that is essential for modern bikes with strict emission standards and catalytic converters.

Professional carbon cleaning services for motorcycles require specialized knowledge of bike-specific systems, understanding of unique operating conditions, and access to equipment suitable for smaller displacement engines and different engine configurations. Many automotive carbon cleaning systems can be adapted for motorcycle use with proper modifications, specialized fittings, and safety considerations specific to motorcycle engines.

High-Performance and Racing Applications

High-performance and racing motorcycles benefit significantly from carbon cleaning due to their extreme operating conditions, precision requirements, and performance sensitivity. Racing engines operate at maximum performance levels where even small improvements in breathing, combustion efficiency, or power output can provide competitive advantages.

Racing applications require more frequent cleaning intervals, specialized procedures for high-performance components, careful attention to weight considerations, and verification of performance improvements through dyno testing and track performance evaluation. Professional racing teams often incorporate carbon cleaning into their regular maintenance schedules to ensure optimal performance throughout the racing season.

Professional Recommendations and Best Practices

Professional recommendations for carbon cleaning emphasize the importance of preventive maintenance over reactive treatments, proper service provider selection, appropriate cleaning intervals, and comprehensive post-cleaning evaluation. Regular cleaning intervals help maintain optimal performance while preventing severe contamination that necessitates expensive and time-consuming procedures or component replacement.

Service Provider Selection Criteria:

  • Professional-grade equipment with current calibration and safety certifications
  • Documented experience with specific engine types and vehicle categories
  • Comprehensive training and certification from equipment manufacturers
  • Detailed documentation of procedures and before/after measurements
  • Comprehensive warranty coverage and insurance protection
  • Positive customer feedback and verifiable references

Recommended Maintenance Intervals:

  • Direct injection engines: Every 30,000-50,000 miles or 2-3 years
  • High-performance applications: Every 20,000-30,000 miles or annually
  • Severe service conditions: Reduce intervals by 25-30%
  • Diesel engines with DPF: Every 40,000-60,000 miles or as needed
  • Motorcycles: Every 15,000-25,000 miles or seasonally for racing applications

The overwhelming evidence supports carbon cleaning as an effective, safe, and economically beneficial maintenance procedure for modern engines across all vehicle categories. When performed correctly using professional equipment and established methods, carbon cleaning delivers measurable improvements in performance, efficiency, reliability, and longevity that far exceed the initial investment costs and provide substantial long-term value for vehicle owners.

Success with carbon cleaning depends on selecting qualified service providers, following appropriate maintenance intervals, using proper cleaning methods for specific applications, and maintaining realistic expectations based on engine condition and contamination levels. Regular carbon cleaning should be considered an essential component of modern vehicle maintenance programs, particularly for direct injection engines, turbocharged applications, and high-performance vehicles where the benefits are most pronounced.

References

  • Engine Carbon Clean – How It Works
  • Consumer Reports – What Is Walnut Blasting for Cars
  • CR Allen & Sons – Engine Carbon Cleaning Worth
  • Gerry’s Service – When Is Carbon Cleaning Necessary
  • MotorBiscuit – Does Carbon Cleaning Actually Work
  • Archoil AR6400-D Professional Fuel System Cleaner
Fuel pump
Fuel Economy

Fuel Consumption in Other Vehicles and Equipment

April 8, 2021 FTE Leave a comment
Marine and Specialized Vehicle Fuel Consumption Guide

Fuel consumption in marine vessels and specialized equipment represents a complex field encompassing diverse technologies, operational requirements, and efficiency considerations that differ significantly from conventional automotive applications. Understanding fuel consumption patterns across cargo ships, recreational boats, marine generators, fishing trawlers, and outboard motors provides essential insights for operators seeking to optimize costs, reduce environmental impact, and improve operational efficiency in maritime and specialized vehicle applications.

The maritime industry alone accounts for approximately 3% of global greenhouse gas emissions, making fuel efficiency optimization crucial for both economic and environmental sustainability. From massive cargo vessels consuming hundreds of tons of fuel daily to small recreational boats with outboard motors, each category of marine equipment presents unique challenges and opportunities for fuel consumption optimization. This comprehensive analysis examines fuel consumption characteristics, calculation methods, monitoring technologies, and efficiency strategies across the full spectrum of marine and specialized vehicle applications.

Table of Contents ▼
  • Cargo Ship Fuel Consumption Analysis
  • Recreational Boat Fuel Consumption
  • Marine Fuel Consumption Calculation Methods
  • Marine Fuel Monitoring Systems
  • Marine Generator Fuel Consumption
  • Commercial Fishing Vessel Efficiency
  • Outboard Motor Fuel Consumption Specifications

Cargo Ship Fuel Consumption Analysis

Cargo ship fuel consumption represents one of the most complex and scale-intensive aspects of transportation fuel usage, with modern container vessels consuming between 20 to 400 tons of fuel daily depending on vessel size, speed, and operational conditions. Understanding cargo ship fuel consumption requires examining both absolute consumption figures and efficiency metrics that account for the massive cargo capacity these vessels provide. When properly analyzed on a per-ton-mile basis, cargo ships emerge as the most fuel-efficient mode of transportation for bulk goods, significantly outperforming trucks, trains, and aircraft in terms of energy efficiency per unit of cargo transported.

The relationship between cargo ship fuel consumption and automotive fuel usage reveals dramatic differences in scale and efficiency that highlight the advantages of maritime transportation for international trade. While a typical passenger car might consume 500-600 gallons of gasoline annually, a large container ship can burn through 80,000 gallons of fuel in a single day at sea. However, this apparent inefficiency disappears when cargo capacity is considered, as these vessels can transport 10,000 to 24,000 twenty-foot equivalent units (TEU) in a single voyage, achieving remarkable efficiency when measured in fuel consumption per ton of cargo per mile traveled.

Efficiency Comparison: Research demonstrates that cargo ships can move containers 14.6 times more efficiently than trucks, achieving 95.2 miles per gallon per container compared to 6.5 miles per gallon for truck transport. This efficiency advantage makes maritime shipping essential for global trade economics and environmental sustainability.

Modern cargo ship engines utilize heavy fuel oil (HFO) or marine gas oil (MGO) depending on operational requirements and environmental regulations. Heavy fuel oil provides higher energy density and lower cost per unit of energy, making it preferred for open ocean operations where emissions regulations are less stringent. Marine gas oil offers cleaner combustion characteristics and lower sulfur content, making it mandatory in emission control areas and ports where environmental standards are strictly enforced. The choice between fuel types significantly affects both consumption rates and operational costs, with HFO typically providing 10-15% better fuel economy than MGO due to its higher energy content.

Cargo ship fuel consumption patterns vary dramatically with operating speed, following a cubic relationship where fuel consumption increases exponentially with velocity. At economical speeds of 12-15 knots, large container ships achieve optimal fuel efficiency, consuming approximately 150-250 tons of fuel daily. Increasing speed to 20-22 knots can double or triple fuel consumption while reducing voyage time by only 20-30%. This relationship has led to the widespread adoption of “slow steaming” practices where shipping companies reduce vessel speeds to optimize fuel costs, even though this increases voyage duration and requires more vessels to maintain service frequency.

Cargo Ship Efficiency Factors

Weather conditions and sea state significantly impact cargo ship fuel consumption through their effects on hull resistance, propulsion efficiency, and vessel stability. Rough seas can increase fuel consumption by 20-40% compared to calm conditions as vessels must overcome additional wave resistance and maintain course stability. Headwinds create additional aerodynamic resistance that becomes significant for large container ships with high profiles above the waterline. Conversely, following seas and tailwinds can reduce fuel consumption by 10-20% when vessels can take advantage of favorable conditions for improved efficiency.

Cargo loading patterns and vessel trim optimization play crucial roles in fuel consumption efficiency for cargo ships. Proper weight distribution ensures optimal hull attitude in the water, minimizing resistance and maximizing propulsion efficiency. Overloading or improper weight distribution can increase fuel consumption by 5-15% while potentially compromising vessel safety and stability. Modern cargo ships utilize sophisticated loading computer systems to optimize cargo placement for both stability and fuel efficiency, considering factors such as cargo weight distribution, ballast water requirements, and anticipated weather conditions during the voyage.

Engine maintenance and hull condition directly affect cargo ship fuel consumption through their impact on propulsion efficiency and hull resistance. Fouling of the ship’s hull by marine growth can increase fuel consumption by 10-25% depending on the severity and type of fouling. Regular hull cleaning and antifouling coating maintenance are essential for maintaining optimal fuel efficiency. Similarly, engine maintenance including fuel injection system cleaning, turbocharger servicing, and combustion optimization can improve fuel efficiency by 3-8% while extending engine life and reducing emissions. Modern cargo ships incorporate sophisticated engine monitoring systems that track fuel consumption, engine performance, and maintenance requirements to optimize efficiency throughout the vessel’s operational life.

Recreational Boat Fuel Consumption

Recreational boat fuel consumption encompasses a wide range of vessel types, engine configurations, and operating patterns that create significant variation in fuel efficiency and consumption rates. Unlike automotive applications where standardized testing provides consistent fuel economy ratings, boat fuel consumption depends heavily on hull design, engine type, loading conditions, sea state, and operator behavior. Understanding these variables enables boat owners to make informed decisions about vessel selection, operation, and maintenance that can significantly impact fuel costs and environmental impact throughout the vessel’s operational life.

Hull design fundamentally determines recreational boat fuel consumption characteristics through its impact on hydrodynamic resistance and operational efficiency. Displacement hulls, commonly found on trawlers and sailboats with auxiliary power, achieve excellent fuel economy at moderate speeds but are limited by hull speed restrictions that prevent efficient high-speed operation. Planing hulls, typical of sport boats and cruisers, can achieve high speeds but require significantly more power to overcome hydrodynamic resistance, particularly during the transition from displacement to planing mode. Semi-displacement hulls offer a compromise between efficiency and speed, providing reasonable fuel economy across a broader speed range than pure planing designs.

Fuel Economy Range: Recreational boats typically achieve 1.5-3 miles per gallon depending on size, hull design, and operating conditions. Displacement hulls can achieve 3-5 MPG at economical speeds, while planing boats may consume 0.5-2 MPG when operating at high speeds. Proper operation and maintenance can improve these figures by 15-25%.

Engine technology significantly affects recreational boat fuel consumption through differences in thermal efficiency, power delivery characteristics, and operational requirements. Four-stroke gasoline engines typically achieve 25-30% thermal efficiency and provide smooth power delivery with relatively low maintenance requirements. Two-stroke engines, while lighter and more compact, generally consume 15-25% more fuel than equivalent four-stroke designs due to their combustion characteristics and oil mixing requirements. Diesel engines offer superior fuel efficiency with 35-45% thermal efficiency but require higher initial investment and more complex maintenance procedures.

Operating speed dramatically affects recreational boat fuel consumption through its impact on hydrodynamic resistance and engine efficiency. Most recreational boats achieve optimal fuel economy at speeds between 60-75% of maximum RPM, where engines operate efficiently without excessive hydrodynamic resistance. Operating at wide-open throttle can increase fuel consumption by 50-100% compared to economical cruise speeds while providing only modest speed increases. Understanding the relationship between speed and fuel consumption enables boat operators to optimize voyage planning for either speed or efficiency depending on operational requirements and fuel cost considerations.

Environmental and Operational Factors

Sea conditions and weather significantly impact recreational boat fuel consumption through their effects on hull resistance, engine loading, and operational efficiency. Rough seas can increase fuel consumption by 25-50% as boats must overcome additional wave resistance while maintaining course and speed. Headwinds create aerodynamic resistance that becomes particularly significant for boats with large superstructures or high profiles above the waterline. Current and tidal effects can either assist or hinder vessel progress, with strong adverse currents potentially doubling fuel consumption for a given distance traveled.

Boat loading and weight distribution affect fuel consumption through their impact on hull attitude, stability, and hydrodynamic efficiency. Overloading can increase fuel consumption by 10-25% while potentially compromising safety and performance. Improper weight distribution that causes excessive bow-up or bow-down trim can significantly increase resistance and fuel consumption. Modern recreational boats benefit from proper loading procedures that optimize weight distribution for both safety and efficiency, considering factors such as passenger placement, fuel distribution, and equipment storage.

Propeller selection and condition significantly influence recreational boat fuel consumption through their impact on propulsion efficiency and engine loading. Properly matched propellers enable engines to reach optimal RPM ranges while providing maximum thrust efficiency. Damaged, fouled, or incorrectly pitched propellers can increase fuel consumption by 15-30% while reducing performance and potentially damaging engines through improper loading. Regular propeller maintenance including cleaning, inspection, and professional tuning ensures optimal fuel efficiency and engine protection throughout the boating season.

Fuel Efficiency Optimization Strategies

Maintenance optimization represents the most cost-effective approach to improving recreational boat fuel consumption through systematic attention to engine condition, hull cleanliness, and propulsion system efficiency. Regular engine maintenance including fuel system cleaning, ignition system servicing, and compression testing ensures optimal combustion efficiency and fuel economy. Hull cleaning and antifouling maintenance prevent marine growth that can increase fuel consumption by 10-20% during a single season. Propulsion system maintenance including propeller servicing, shaft alignment, and bearing lubrication minimizes parasitic losses and maximizes fuel efficiency.

Operational technique optimization enables significant fuel consumption improvements through proper throttle management, trim adjustment, and route planning. Learning to operate boats at optimal cruise settings rather than maximum speed can reduce fuel consumption by 30-50% while extending engine life and reducing maintenance requirements. Proper trim adjustment using trim tabs or engine trim can improve fuel economy by 5-15% by optimizing hull attitude for minimum resistance. Route planning that considers weather, current, and sea conditions can reduce fuel consumption while improving safety and comfort for passengers and crew.

Technology integration including fuel flow monitoring, GPS navigation, and engine management systems provides real-time feedback that enables continuous fuel consumption optimization. Modern fuel flow meters display instantaneous consumption rates and cumulative usage, allowing operators to identify optimal operating points and monitor efficiency trends. GPS integration enables calculation of actual fuel economy in miles per gallon or nautical miles per gallon, providing objective feedback for operational optimization. Engine monitoring systems track performance parameters that affect fuel consumption, enabling predictive maintenance and early identification of efficiency-degrading problems.

Marine Fuel Consumption Calculation Methods

Accurate marine fuel consumption calculation requires understanding multiple methodologies that range from simple estimation formulas to sophisticated measurement systems incorporating real-time data collection and analysis. The complexity of marine fuel consumption calculation stems from the numerous variables affecting consumption including engine load, sea conditions, hull condition, and operational patterns that create significant variation in fuel usage rates. Developing reliable calculation methods enables vessel operators to plan voyages, optimize operations, and monitor efficiency trends that directly impact operational costs and environmental performance.

The fundamental approach to marine fuel consumption calculation involves establishing the relationship between engine power output and fuel consumption rate under various operating conditions. For gasoline engines, the basic estimation formula divides total engine horsepower by 10 to estimate gallons per hour consumption at wide-open throttle, providing a starting point for fuel planning and consumption estimation. Diesel engines typically follow a more efficient consumption pattern, with total horsepower divided by 16.7 providing gallons per hour estimates that reflect the superior thermal efficiency of diesel combustion systems.

Basic Calculation Formulas: Gasoline engines: Total HP ÷ 10 = GPH at WOT. Diesel engines: Total HP ÷ 16.7 = GPH at WOT. More precise calculations use: (Specific fuel consumption × HP) ÷ Fuel specific weight. These formulas provide baseline estimates that require adjustment for actual operating conditions and engine efficiency.

Advanced fuel consumption calculation methods incorporate specific fuel consumption (SFC) data that accounts for engine efficiency characteristics across different load and RPM ranges. Specific fuel consumption, measured in pounds of fuel per horsepower-hour, varies significantly with engine load, with most marine engines achieving optimal SFC at 75-85% of maximum power output. This relationship enables more accurate fuel consumption predictions by considering actual operating conditions rather than maximum power scenarios that rarely occur during normal vessel operation.

Load factor calculations provide essential refinement to basic fuel consumption estimates by accounting for the reality that marine engines rarely operate at maximum power output during normal operations. Typical recreational boat operations involve engine loads of 40-70% of maximum power, significantly reducing fuel consumption compared to wide-open throttle estimates. Commercial vessels often operate at even lower load factors during economical cruise operations, with cargo ships frequently running at 60-80% of maximum engine power to optimize fuel efficiency while maintaining schedule requirements.

Environmental Correction Factors

Sea state and weather conditions require correction factors in fuel consumption calculations to account for increased resistance and engine loading during adverse conditions. Rough seas can increase fuel consumption by 20-50% compared to calm water conditions, necessitating adjustment factors that consider wave height, period, and direction relative to vessel heading. Wind effects create additional resistance that becomes particularly significant for vessels with large superstructures, requiring correction factors that account for wind speed and direction relative to vessel course and speed.

Current and tidal effects significantly impact fuel consumption calculations by affecting the relationship between engine power output and actual vessel progress over the ground. Strong adverse currents can effectively double fuel consumption for a given distance traveled, while favorable currents can reduce consumption by 20-40%. Accurate fuel consumption calculation requires incorporating current data and tidal predictions to determine actual fuel requirements for specific voyages and operating areas.

Temperature and altitude corrections affect marine fuel consumption calculations through their impact on air density, fuel density, and engine performance characteristics. Cold weather operation typically increases fuel consumption by 5-15% due to increased engine friction, thicker lubricants, and extended warm-up periods. High altitude operation, relevant for vessels operating on inland waterways and high-elevation lakes, reduces air density and engine power output, requiring correction factors to maintain accurate fuel consumption predictions.

Precision Measurement Techniques

Flow meter-based fuel consumption measurement provides the highest accuracy for marine applications by directly measuring fuel flow rates in real-time rather than relying on estimation formulas. Modern marine fuel flow meters achieve accuracy levels of ±1-2% when properly installed and calibrated, enabling precise monitoring of consumption patterns and identification of efficiency optimization opportunities. These systems integrate with engine monitoring and navigation equipment to provide comprehensive fuel management capabilities including consumption trending, efficiency analysis, and predictive maintenance scheduling.

Tank level monitoring systems provide alternative fuel consumption measurement by tracking fuel level changes over time and correlating consumption with operational parameters. While less precise than flow meters due to tank geometry effects and vessel motion, level monitoring systems offer cost-effective consumption tracking for vessels where flow meter installation is impractical. Advanced level monitoring systems incorporate multiple sensors and sophisticated algorithms to compensate for vessel motion and provide reliable consumption data for operational planning and efficiency monitoring.

Engine management system integration enables comprehensive fuel consumption calculation by combining direct measurement with operational data including engine load, RPM, temperature, and efficiency parameters. Modern marine engines incorporate sophisticated monitoring systems that track fuel injection timing, air-fuel ratios, and combustion efficiency to optimize performance and provide accurate consumption data. Integration with vessel navigation systems enables calculation of fuel economy in miles per gallon or nautical miles per gallon, providing objective metrics for operational optimization and efficiency comparison across different operating conditions and vessel configurations.

Marine Fuel Monitoring Systems

Marine fuel monitoring systems represent sophisticated technology solutions that provide real-time fuel consumption data, enabling vessel operators to optimize efficiency, reduce costs, and monitor performance trends throughout vessel operations. These systems range from simple fuel flow meters providing basic consumption data to comprehensive fleet management platforms that integrate fuel monitoring with navigation, engine management, and operational planning systems. Understanding the capabilities and limitations of different monitoring technologies enables informed selection of systems that match operational requirements, budget constraints, and performance objectives for specific marine applications.

Fuel flow meter technology forms the foundation of accurate marine fuel monitoring by directly measuring fuel consumption in real-time rather than relying on estimation or calculation methods. Modern marine fuel flow meters utilize various measurement principles including positive displacement, turbine, ultrasonic, and Coriolis technologies, each offering specific advantages for different applications and fuel types. Positive displacement meters provide high accuracy across wide flow ranges but require regular maintenance to prevent fouling and wear. Turbine meters offer excellent accuracy and reliability for clean fuels but may be affected by contamination or viscosity variations in marine fuel systems.

Monitoring System Capabilities: Modern marine fuel monitoring systems provide instantaneous flow rates, cumulative consumption, fuel economy calculations, and trend analysis. Integration with GPS enables real-time fuel economy monitoring in miles per gallon or nautical miles per gallon, while engine integration provides load-specific consumption data for optimization.

Display and data logging systems provide the interface between fuel monitoring hardware and vessel operators, presenting consumption data in formats that enable real-time decision making and long-term analysis. Modern marine displays show instantaneous fuel flow rates, cumulative consumption, fuel economy calculations, and trend data that help operators identify optimal operating points and monitor efficiency changes over time. Advanced systems incorporate data logging capabilities that store consumption data for analysis, reporting, and maintenance planning, enabling identification of efficiency trends and performance degradation that may indicate maintenance requirements or operational optimization opportunities.

Integration capabilities enable marine fuel monitoring systems to work with other vessel systems including navigation, engine management, and fleet management platforms to provide comprehensive operational oversight. GPS integration enables automatic calculation of fuel economy in real-time, providing immediate feedback on the efficiency impact of speed changes, route selection, and operating techniques. Engine management integration provides correlation between fuel consumption and engine operating parameters, enabling identification of optimal load points and detection of performance issues that affect fuel efficiency.

Commercial Monitoring Solutions

Professional marine fuel monitoring systems designed for commercial applications provide comprehensive fleet management capabilities that extend beyond basic consumption monitoring to include route optimization, maintenance scheduling, and regulatory compliance reporting. These systems typically incorporate multiple fuel flow sensors, tank level monitoring, engine parameter integration, and satellite communication capabilities that enable shore-based monitoring and management of vessel operations. Advanced commercial systems provide predictive analytics that identify efficiency optimization opportunities and maintenance requirements before they impact operations or fuel consumption.

Maretron FFM100 and similar professional-grade fuel flow monitors represent the current state-of-the-art in marine fuel monitoring technology, providing precision measurement capabilities with accuracy levels of ±1% when properly installed and calibrated. These systems integrate with NMEA 2000 networks to share data with other vessel systems and provide comprehensive monitoring capabilities including fuel flow rates, cumulative consumption, fuel economy calculations, and alarm functions for abnormal consumption patterns. Professional systems often include redundant sensors and self-diagnostic capabilities that ensure reliable operation in demanding marine environments.

Fleet management platforms integrate individual vessel fuel monitoring systems into comprehensive management tools that provide fleet-wide visibility into fuel consumption patterns, efficiency trends, and optimization opportunities. These platforms typically include web-based dashboards that display real-time and historical fuel consumption data, automated reporting capabilities for regulatory compliance, and analytics tools that identify best practices and efficiency improvement opportunities across entire fleets. Advanced platforms incorporate machine learning algorithms that provide predictive insights and automated optimization recommendations based on operational data and performance trends.

Recreational Monitoring Options

Recreational marine fuel monitoring systems provide cost-effective solutions for pleasure craft operators seeking to optimize fuel consumption and monitor vessel performance without the complexity and expense of commercial-grade systems. These systems typically focus on essential monitoring functions including instantaneous fuel flow, cumulative consumption, and basic fuel economy calculations that enable operators to identify optimal operating points and track consumption trends. Popular recreational systems include products from Garmin, Lowrance, and specialized marine electronics manufacturers that offer integration with existing navigation and fish-finding equipment.

Portable fuel monitoring solutions provide flexible options for recreational boaters who want fuel consumption data without permanent installation requirements. These systems typically include flow sensors that can be temporarily installed in fuel lines and portable displays that provide real-time consumption data during specific trips or testing periods. While less convenient than permanently installed systems, portable monitors enable fuel consumption analysis for multiple vessels or temporary monitoring during efficiency testing and optimization activities.

Smartphone integration and mobile applications extend the capabilities of recreational fuel monitoring systems by providing data logging, analysis, and sharing capabilities through familiar interfaces. Modern fuel monitoring systems often include Bluetooth or Wi-Fi connectivity that enables smartphone apps to display consumption data, log trip information, and provide analysis tools for identifying efficiency trends and optimization opportunities. These applications often include features such as fuel cost tracking, consumption comparison between trips, and social sharing capabilities that enable boaters to compare efficiency and share best practices with other vessel operators.

Marine Generator Fuel Consumption

Marine generator fuel consumption represents a significant operational expense for vessels requiring electrical power for lighting, navigation, communication, refrigeration, and comfort systems during periods when main engines are not operating. Understanding marine generator fuel consumption patterns enables vessel operators to optimize electrical system usage, select appropriate generator sizes, and implement efficiency strategies that reduce fuel costs while maintaining essential electrical services. Marine generators typically consume 0.5 to 1.0 gallons per hour depending on size, load, and efficiency characteristics, making fuel consumption optimization crucial for extended cruising and commercial operations.

Generator sizing significantly affects fuel consumption through its impact on operating efficiency and load factor optimization. Oversized generators operating at low loads typically consume disproportionately more fuel per kilowatt-hour generated compared to properly sized units operating at optimal load factors of 60-80% of rated capacity. Conversely, undersized generators forced to operate at maximum capacity may experience reduced efficiency, increased maintenance requirements, and shortened service life. Proper generator sizing requires careful analysis of electrical loads, duty cycles, and operational patterns to achieve optimal balance between fuel efficiency and electrical capacity.

Consumption Guidelines: Marine generators typically follow the rule of 7% of rated kilowatts in gallons per hour for diesel units. An 8kW generator consumes approximately 0.7 gallons per hour under load, while a 15kW unit uses about 0.88 gallons per hour at full capacity. Load factor significantly affects consumption, with half-load operation reducing fuel usage substantially.

Load management strategies provide effective methods for optimizing marine generator fuel consumption by coordinating electrical system usage to maintain generators in their most efficient operating ranges. Sequential load management involves operating high-power equipment such as water heaters, battery chargers, and air conditioning systems in sequence rather than simultaneously, enabling smaller generators to handle larger total electrical loads while maintaining optimal efficiency. Automatic load management systems can monitor generator loading and automatically cycle non-essential equipment to maintain optimal operating conditions and fuel efficiency.

Generator technology affects fuel consumption through differences in engine design, electrical generation efficiency, and control system sophistication. Modern marine generators incorporate advanced engine management systems that optimize fuel injection, ignition timing, and air-fuel ratios for maximum efficiency across varying load conditions. Inverter generators provide superior fuel efficiency at light loads by automatically adjusting engine speed to match electrical demand, potentially reducing fuel consumption by 20-40% compared to fixed-speed generators during low-load operation. However, inverter generators typically cost more initially and may have lower maximum power output compared to conventional designs.

Generator Efficiency Optimization

Maintenance optimization significantly affects marine generator fuel consumption through its impact on engine efficiency, electrical generation quality, and overall system performance. Regular maintenance including air filter replacement, fuel system cleaning, valve adjustment, and ignition system servicing can improve fuel efficiency by 5-15% while extending generator life and reducing repair costs. Cooling system maintenance ensures optimal operating temperatures that directly affect combustion efficiency and fuel consumption, while electrical system maintenance including alternator servicing and voltage regulation ensures optimal power generation efficiency.

Fuel quality management affects marine generator performance and consumption through its impact on combustion efficiency, fuel system cleanliness, and engine longevity. High-quality marine diesel fuel with appropriate additives provides optimal combustion characteristics and fuel system protection, while contaminated or degraded fuel can increase consumption by 10-20% while potentially causing expensive fuel system damage. Fuel polishing systems that remove water and contaminants can maintain optimal fuel quality during extended storage periods, ensuring consistent generator performance and fuel efficiency throughout the cruising season.

Operating technique optimization enables significant fuel consumption improvements through proper generator management, load scheduling, and efficiency monitoring. Operating generators at optimal load factors of 60-80% of rated capacity provides maximum fuel efficiency while ensuring adequate electrical capacity for essential systems. Avoiding frequent start-stop cycles reduces fuel consumption associated with warm-up periods and engine cycling, while proper warm-up procedures ensure optimal operating temperatures and combustion efficiency. Modern generators benefit from gradual loading that allows engines to reach optimal operating conditions before applying full electrical loads.

Alternative Power Systems

Solar power systems provide fuel-free electrical generation that can significantly reduce marine generator operating hours and fuel consumption for vessels with appropriate installation space and electrical loads. Modern marine solar panels achieve 15-20% efficiency and can provide substantial electrical power during daylight hours, particularly in tropical and subtropical cruising areas with high solar irradiance. Battery storage systems enable solar power utilization during nighttime hours, potentially eliminating generator operation for lighting, electronics, and low-power equipment during periods of moderate electrical demand.

Wind generation systems offer additional renewable power options for vessels operating in areas with consistent wind patterns, providing fuel-free electrical generation that complements solar systems and reduces generator operating requirements. Marine wind generators typically produce 100-400 watts depending on wind speed and generator design, providing meaningful electrical power for battery charging and low-power equipment operation. Combined solar and wind systems can provide substantial electrical power independence, reducing generator fuel consumption by 50-80% for vessels with appropriate renewable energy installations and energy-efficient electrical systems.

Hybrid power systems that combine generators with renewable energy sources and advanced battery storage provide optimal fuel efficiency while maintaining electrical reliability for demanding marine applications. These systems automatically manage power sources to minimize generator operating hours while ensuring adequate electrical capacity for all vessel systems. Advanced hybrid systems incorporate load forecasting and weather data to optimize power source selection and battery charging schedules, potentially reducing generator fuel consumption by 60-90% while providing superior electrical reliability compared to generator-only systems.

Commercial Fishing Vessel Efficiency

Commercial fishing vessel fuel consumption represents a critical operational expense that directly affects the profitability and sustainability of fishing operations worldwide. Trawlers, longliners, purse seiners, and other commercial fishing vessels face unique fuel consumption challenges due to their specialized equipment, variable operating patterns, and the energy-intensive nature of fishing operations. Understanding fuel consumption patterns in commercial fishing enables vessel operators to optimize efficiency, reduce operational costs, and improve the economic viability of fishing operations while maintaining productivity and safety standards.

Trawler fuel consumption varies significantly with vessel size, fishing method, and operational patterns, with typical consumption rates ranging from 2-4 gallons per hour for smaller coastal vessels to 50-200 gallons per hour for large offshore trawlers. The energy-intensive nature of trawling operations, which involves dragging heavy nets through the water for extended periods, creates unique fuel consumption challenges that require specialized optimization strategies. Understanding the relationship between trawling speed, gear configuration, and fuel consumption enables fishing vessel operators to optimize operations for maximum catch efficiency while minimizing fuel costs.

Fuel consumption intensity, measured as fuel used per unit of catch, provides a more meaningful efficiency metric for commercial fishing operations than simple hourly consumption rates. Research indicates that fuel consumption intensity varies dramatically between fishing methods, with some gear types requiring 2-3 times more fuel per kilogram of fish caught compared to more efficient alternatives. Understanding these relationships enables fishing vessel operators to select gear types and fishing methods that optimize the balance between catch productivity and fuel efficiency for specific fisheries and market conditions.

Seasonal and geographic factors significantly affect fishing vessel fuel consumption through their impact on fish distribution, weather conditions, and fishing ground accessibility. Vessels operating in distant fishing grounds may consume 40-60% of their fuel in transit, making fishing ground selection crucial for overall efficiency. Seasonal variations in fish distribution can dramatically affect fuel consumption per unit of catch, with some fisheries showing 2-3 times higher fuel intensity during poor fishing seasons compared to peak productivity periods.

Efficiency Improvement Strategies

Hull and propulsion system optimization provide fundamental approaches to improving fishing vessel fuel efficiency through reduced resistance and improved propulsive efficiency. Hull cleaning and antifouling maintenance can improve fuel efficiency by 10-20% by reducing friction and biological fouling that increases resistance. Propeller optimization including diameter, pitch, and blade design can improve propulsive efficiency by 5-15% while reducing engine loading and fuel consumption. Modern fishing vessels benefit from computational fluid dynamics analysis that optimizes hull forms and propulsion systems for specific operational requirements and fishing methods.

Engine and power system optimization enable significant fuel consumption improvements through improved combustion efficiency, reduced parasitic losses, and optimized power management. Modern marine diesel engines achieve 40-45% thermal efficiency compared to 30-35% for older designs, providing substantial fuel savings when upgrading propulsion systems. Auxiliary power optimization including hydraulic systems, winches, and processing equipment can reduce total vessel fuel consumption by 10-20% through improved efficiency and load management strategies.

Technology integration including fuel monitoring systems, catch sensors, and navigation optimization provides real-time feedback that enables continuous efficiency improvement in fishing operations. Modern fishing vessels incorporate sophisticated electronics that monitor fuel consumption, fishing gear performance, and catch rates to optimize operations for maximum efficiency. GPS-based fishing ground mapping and weather routing systems can reduce fuel consumption by 15-25% through improved voyage planning and fishing ground selection that minimizes transit time while maximizing fishing productivity and safety.

Outboard Motor Fuel Consumption Specifications

Outboard motor fuel consumption represents a critical consideration for recreational and commercial boat operators seeking to optimize operational costs and range capabilities. Modern outboard motors incorporate advanced technologies including four-stroke engines, direct injection systems, and sophisticated engine management that significantly improve fuel efficiency compared to older two-stroke designs. Understanding outboard motor fuel consumption specifications enables informed selection of propulsion systems that balance performance requirements with fuel efficiency objectives for specific boating applications and operational patterns.

Mercury outboard fuel consumption specifications provide comprehensive data for one of the industry’s leading manufacturers, offering detailed consumption figures across their complete range of engines from small portable units to high-performance racing engines. Mercury’s four-stroke EFI (Electronic Fuel Injection) engines demonstrate superior fuel efficiency compared to carbureted designs, with the 25 EFI consuming 2.40 gallons per hour, the 50 EFI using 4.65 gallons per hour, and the 75 EFI requiring 7.60 gallons per hour at wide-open throttle conditions. These figures represent maximum consumption rates, with actual operational consumption typically 30-50% lower during normal cruising operations.

Mercury Consumption Data: Mercury OptiMax two-stroke engines show: 75 HP (6.9 GPH), 90 HP (7.7 GPH). Four-stroke EFI models: 25 HP (2.40 GPH), 50 HP (4.65 GPH), 75 HP (7.60 GPH). Large engines like the 300 HP Verado consume approximately 55 liters per hour below 3000 RPM, increasing significantly at higher RPMs.

Engine technology significantly affects outboard motor fuel consumption through differences in combustion efficiency, fuel delivery systems, and engine management sophistication. Four-stroke engines typically achieve 20-30% better fuel efficiency than equivalent two-stroke designs due to their complete combustion cycles and elimination of oil mixing requirements. Direct injection two-stroke engines, such as Mercury’s OptiMax series, provide improved fuel efficiency compared to conventional two-stroke designs while maintaining the power-to-weight advantages of two-stroke technology. Modern engine management systems optimize fuel delivery, ignition timing, and air-fuel ratios across varying load and speed conditions to maximize efficiency and performance.

Operating conditions dramatically affect outboard motor fuel consumption through their impact on engine loading, propeller efficiency, and hydrodynamic resistance. The widely-used rule of thumb that gasoline outboards consume approximately 10% of their rated horsepower in gallons per hour applies primarily to wide-open throttle conditions, with actual consumption varying significantly based on throttle position, boat loading, sea conditions, and propeller selection. Most recreational boating operations involve engine loads of 40-70% of maximum power, resulting in fuel consumption rates 30-50% lower than maximum specifications.

Outboard Efficiency Optimization

Propeller selection and optimization provide the most significant opportunities for improving outboard motor fuel efficiency through proper matching of propeller characteristics to engine and boat specifications. Correctly pitched propellers enable engines to reach their optimal RPM ranges while providing maximum thrust efficiency, while improperly matched propellers can increase fuel consumption by 15-30% while potentially damaging engines through improper loading. Modern propeller designs incorporating advanced materials and hydrodynamic optimization can improve fuel efficiency by 5-10% compared to conventional designs while providing superior performance and durability.

Maintenance optimization significantly affects outboard motor fuel consumption through its impact on engine efficiency, fuel system cleanliness, and ignition system performance. Regular maintenance including fuel system cleaning, spark plug replacement, air filter servicing, and lower unit lubrication can improve fuel efficiency by 10-20% while extending engine life and reducing repair costs. Fuel quality management including the use of appropriate additives and regular fuel system cleaning prevents contamination-related efficiency losses that can increase consumption by 15-25% in severely affected engines.

Operating technique optimization enables significant fuel consumption improvements through proper throttle management, trim adjustment, and load distribution. Learning to operate outboards at optimal cruise settings rather than maximum speed can reduce fuel consumption by 30-50% while extending engine life and improving passenger comfort. Proper engine trim adjustment can improve fuel efficiency by 5-15% by optimizing propeller angle and reducing hydrodynamic resistance. Weight distribution and boat loading affect fuel consumption through their impact on hull attitude and hydrodynamic efficiency, with proper loading potentially improving fuel economy by 10-20% compared to poorly distributed loads.

Comparative Analysis and Selection

Outboard motor selection requires careful analysis of fuel consumption specifications relative to performance requirements, operational patterns, and total cost of ownership considerations. While larger engines typically consume more fuel in absolute terms, they may provide better fuel efficiency when measured in miles per gallon due to their ability to operate at lower load factors during cruise conditions. Conversely, oversized engines may show poor fuel efficiency during light-load operation, making proper sizing crucial for optimal fuel economy and operational cost management.

Technology comparison between different outboard manufacturers reveals significant variations in fuel consumption specifications and efficiency characteristics that affect long-term operational costs. Modern four-stroke engines from major manufacturers including Mercury, Yamaha, Honda, and Suzuki show similar fuel consumption patterns, with differences typically within 5-10% for comparable horsepower ratings. However, specific features such as variable valve timing, direct injection, and advanced engine management can provide meaningful efficiency advantages that justify premium pricing through reduced fuel costs over the engine’s operational life.

Total cost of ownership analysis incorporating fuel consumption, maintenance requirements, and resale value provides the most comprehensive approach to outboard motor selection and optimization. While fuel-efficient engines may command higher initial prices, their reduced operational costs often provide superior long-term value for high-usage applications. Understanding the relationship between fuel consumption specifications and real-world operational costs enables informed decision-making that optimizes both performance and economic efficiency for specific boating applications and usage patterns.

References and Further Reading

For additional information on marine fuel consumption, monitoring systems, and optimization strategies, consult the following authoritative sources:

  1. Maritime Page – Cargo Ship Fuel Consumption
  2. The Liquid Grid – Container Ship Fuel Consumption
  3. Boating Magazine – Calculating Boat Fuel Consumption
  4. Maretron – FFM100 Fuel Flow Monitor
  5. Hardy Diesel – Generator Fuel Consumption Chart
  6. Trawler Forum – Fuel Burn Rates
  7. Boat Fuel Economy – Mercury Outboard Consumption
  8. Marine Insight – Ship Fuel Consumption Calculations

Posts navigation

← Previous 1 … 4 5 6 … 9 Next →

categories

Archives

  • March 2026
  • August 2025
  • July 2025
  • June 2025
  • May 2025
  • April 2025
  • March 2025
  • February 2025
  • January 2025
  • December 2024
  • November 2024
  • October 2024

Tag Cloud

Tags
2-ehn, airflow sensor cleaners, carbon removal, car emissions, diesel, diesel emissions, dpf cleaner, dpf cleaners, dpf cleaning, dpf removal, ecu, egr cleaner, egr cleaning, emissions, engine mapping, engine oil, fuel additive, Fuel Additives, fuel catalyst, fuel cleaner, fuel conditioner, Fuel Economy, fuel saver, fuel savers, fuel saving, fully synthetic oil, gas saver, gas savers, improve mpg, increase gas mileage, increase mpg, low sap oil, MON, mpg, octane, octane booster, Octane Boosters, octane test, oil additives, petrol, reduce fuel costs, remap, RON, tuning box, vehicle emissions
Contact us

Email: support@fueltechexperts.com

Info
  • Privacy Policy
  • Terms of Use
  • Sitemap
  • Cookie Policy (UK)
  • https://ec.europa.eu/consumers/odr
Find us on:
  • Fabebook icon
  • Instagram icon
  • YouTube icon
  • TikTok icon

Newsletter

* indicates required


Copyright © 2011-2024 Fuel Tech Experts All Rights Reserved.

Manage Consent
To provide the best experiences, we use technologies like cookies to store and/or access device information. Consenting to these technologies will allow us to process data such as browsing behavior or unique IDs on this site. Not consenting or withdrawing consent, may adversely affect certain features and functions.
Functional Always active
The technical storage or access is strictly necessary for the legitimate purpose of enabling the use of a specific service explicitly requested by the subscriber or user, or for the sole purpose of carrying out the transmission of a communication over an electronic communications network.
Preferences
The technical storage or access is necessary for the legitimate purpose of storing preferences that are not requested by the subscriber or user.
Statistics
The technical storage or access that is used exclusively for statistical purposes. The technical storage or access that is used exclusively for anonymous statistical purposes. Without a subpoena, voluntary compliance on the part of your Internet Service Provider, or additional records from a third party, information stored or retrieved for this purpose alone cannot usually be used to identify you.
Marketing
The technical storage or access is required to create user profiles to send advertising, or to track the user on a website or across several websites for similar marketing purposes.
  • Manage options
  • Manage services
  • Manage {vendor_count} vendors
  • Read more about these purposes
View preferences
  • {title}
  • {title}
  • {title}
