All posts by FTE

Diesel Cleaners, Fuel Addtives, Fuel Quality

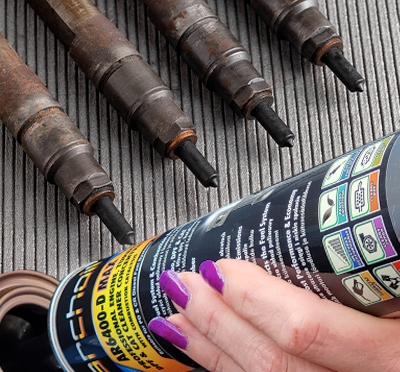

Diesel Cleaner

March 19, 2026 FTE Leave a comment

Are you Using a Diesel Cleaner to Restore Performance and Extend Engine Life?

Is your vehicle not performing at its full potential? Have you noticed a decrease in fuel efficiency or engine power? If so, it may be time to use a cleaner. With the right diesel cleaner, you can restore engine performance and extend its life.

Regular use of a diesel cleaner can effectively remove deposits and contaminants that build up over time, leading to improved fuel combustion and reduced emissions. By cleaning the fuel injectors and removing carbon deposits, the cleaner helps restore lost power and improve overall engine performance.

But the benefits don’t stop there. Diesel cleaners can also offer long-term protection for your engine. By preventing the formation of new deposits, they can help protect the fuel system from damage and extend the engine’s life. This not only saves you money on costly repairs but also ensures a smoother and more reliable driving experience.

Signs that your diesel engine needs cleaning

Recognizing the signs that your diesel engine requires cleaning is the first step in maintaining its optimal performance. One of the most common indicators is a noticeable decrease in fuel efficiency. As deposits build up, the engine has to work harder to overcome the increased resistance, leading to higher fuel consumption.

Another sign is a reduction of power or poor acceleration. Clogged fuel injectors and carbon buildup can impair the engine’s ability to deliver the necessary power, resulting in a sluggish and unresponsive driving experience. You may also notice increased exhaust emissions, indicating incomplete fuel combustion due to engine contamination.

Unusual engine noises, such as knocking or rattling, can also indicate that your diesel engine needs cleaning. Additionally, if you’ve noticed a decline in your engine’s overall smoothness and responsiveness, it’s a clear indication that it’s time to address the issue with a reliable diesel cleaner.

Benefits of using a diesel cleaner

Using a high-quality diesel cleaner can provide numerous benefits to your engine, ultimately improving its performance and extending its lifespan. One of the primary advantages is the restoration of fuel injector efficiency. Diesel cleaner formulations are designed to dissolve and remove deposits on fuel injectors, allowing for better fuel atomization and improved combustion.

This, in turn, increases power output, as the engine can extract more energy from the fuel. Improved fuel combustion also results in better fuel economy, as the engine operates more efficiently and requires less fuel to produce the same power.

Another significant benefit of using a diesel cleaner is the reduction of harmful emissions. By removing deposits and restoring proper fuel combustion, diesel cleaners can help lower the levels of particulate matter, hydrocarbons, and nitrogen oxides in the exhaust, contributing to a more environmentally friendly driving experience.

Furthermore, regular use of a diesel cleaner can help extend your engine’s lifespan by preventing new deposits and protecting critical components from wear and tear. This can lead to fewer costly repairs and a more reliable and durable engine, ultimately saving you money in the long run.

How to choose the right diesel cleaner for your engine

Selecting the right diesel cleaner for your engine is crucial to ensure optimal performance and long-term protection. When choosing a diesel cleaner, consider factors such as how much cetane they deliver, cleaning capability, lubricity, and more.

It’s also important to ensure that the diesel cleaner is compatible with your engine type and fuel system. Most cleaners are formulated for specific fuel types (petrol or diesel), so it’s essential to check the manufacturer’s recommendations to ensure a proper fit. Failure to use a compatible diesel cleaner will likely result in disappointment, and the detergent type and structure will be different from those of a petrol cleaner.

In addition to cleaning capabilities, consider diesel cleaners that offer benefits such as improved lubrication, corrosion protection, or enhanced fuel stability. These added features can further contribute to the overall health and longevity of your diesel engine.

Step-by-step guide on how to use a diesel cleaner

Using a diesel cleaner is a straightforward process that can be easily incorporated into your regular engine maintenance routine. Here’s a step-by-step guide to ensure you get the most out of your diesel cleaner:

  1. Determine the appropriate amount of diesel cleaner to use based on your fuel tank size and the manufacturer’s recommendations. Typically, a single dose of diesel cleaner is sufficient for a full tank of fuel.  All diesel cleaners will have instructions on the package label.
  2. Ensure that your fuel tank is less than half full before adding the diesel cleaner. This will help the cleaner mix thoroughly with the fuel and maximize its effectiveness.
  3. Carefully pour the diesel cleaner into the fuel tank, taking care not to spill or splash the product. Some cleaners may come with a specialized dosing cap or funnel to make the process easier.
  4. Drive your vehicle as you normally would, allowing the diesel cleaner to get to work. Depending on the severity of the deposits, it may take several miles for the full benefits to be realized.  High-end diesel cleaners will show signs of improvement within a few miles of driving.
  5. Repeat the process every few thousand miles or as recommended by the diesel cleaner manufacturer to maintain a clean and efficient engine.

Remember to always follow the manufacturer’s instructions and safety guidelines when using a diesel cleaner. Proper usage and regular maintenance will help you get the most out of your diesel engine and extend its lifespan.

Common misconceptions about diesel cleaners

Despite the proven benefits of using a diesel cleaner, some common misconceptions may deter people from incorporating it into their engine maintenance routine. One of the most prevalent myths is that diesel cleaners are harmful to the engine or fuel system.

This is simply not true. High-quality diesel cleaners are formulated with carefully selected ingredients designed to clean and protect the engine without causing damage. In fact, using a diesel cleaner as directed can actually help prevent long-term damage by removing harmful deposits and contaminants.

Another misconception is that diesel cleaners are only necessary for heavily used or older engines. While it’s true that heavily contaminated engines may see more dramatic improvements, regular use of a diesel cleaner benefits most diesel engines, regardless of age or mileage. Preventive maintenance is key to maintaining optimal engine performance and longevity.

Some people also believe that diesel cleaners are a quick fix for engine problems and that they can replace other essential maintenance tasks, such as oil changes or tune-ups. This is not the case. Diesel cleaners are a complementary tool to be used alongside regular maintenance procedures to ensure the engine’s overall health.

By addressing these common misconceptions and understanding the true benefits of using a diesel cleaner, you can make an informed decision and incorporate it into your engine maintenance routine for optimal performance and longevity.

Frequently asked questions about diesel cleaners

Q: How often should I use a diesel cleaner?

A: The frequency of using a diesel cleaner can vary depending on the manufacturer’s recommendations and the condition of your engine. As a general guideline, it’s recommended to use a diesel cleaner every 3,000 to 6,000 miles or during regular oil changes. For engines with heavy deposits or performance issues, more frequent use may be necessary.

Q: Can I use a diesel cleaner in a gasoline-powered vehicle?

A: No, diesel cleaners are specifically formulated for diesel engines and should not be used in gasoline-powered vehicles. The chemical composition and cleaning agents in diesel cleaners are designed to address the unique challenges of diesel fuel systems. The chemistry is different.

Q: Will a diesel cleaner harm my engine?

A: High-quality diesel cleaners are formulated with carefully selected ingredients that are safe for use in diesel engines when used as directed. Reputable manufacturers ensure their products do not damage the engine or fuel system. However, it’s essential to follow the instructions and dosage recommendations on the product label.

Q: Can I use a diesel cleaner in a vehicle with a particulate filter?

A: Yes, many diesel cleaners are safe for use in vehicles equipped with diesel particulate filters (DPFs). However, it’s always recommended to check the product’s compatibility with your specific vehicle and engine type to ensure it won’t adversely affect the DPF.

Q: How long does it take for a diesel cleaner to work?

A: The time it takes for a diesel cleaner to take effect can vary depending on the severity of the engine deposits and the specific formulation of the product. In general, you may start to notice improvements in performance and fuel efficiency within a few tank refills. However, for heavily contaminated engines, it may take several tank treatments to achieve the full benefits.

Q: Can I use a diesel cleaner in my home heating oil tank?

A: No, diesel cleaners are formulated specifically for automotive diesel engines and should not be used in home heating oil tanks or systems. The chemical composition and intended use of these products differ, and using a diesel cleaner in a home heating system could cause damage or other issues.

dieseldiesel additivediesel cleanerdiesel fuel system cleanerdiesel injector cleanerdiesel turbo cleanerfuel cleanerfuel cleaning
liquid being poured into a coolant system
Engine Cleaning & Flushing

Coolant System Flushing

August 28, 2025 FTE Leave a comment

The cooling system is one of the most important systems in your vehicle. It is responsible for keeping the engine at its optimal operating temperature and preventing it from overheating. Over time, the coolant in your system can become contaminated with rust, scale, and other deposits. This can clog the radiator and other cooling system components, which can lead to overheating and expensive engine damage. A coolant flush is a simple and effective way to remove these contaminants and keep your cooling system working properly. This article will provide a comprehensive overview of coolant system flushing, including why it is important, how to do it, and how to flush specific components such as the radiator and engine block.

Table of Contents ▼
  • How to Flush Engine Coolant
  • Why Flush Engine Coolant
  • How to Flush Engine and Radiator
  • How to Flush an Engine Block

How to Flush Engine Coolant

Flushing your engine coolant is a relatively simple process that can be done at home with a few basic tools. The first step is to make sure the engine is cool. Never attempt to flush the coolant on a hot engine, as this can cause serious burns. Once the engine is cool, remove the radiator cap and open the radiator drain plug to drain the old coolant. It is important to dispose of the old coolant properly, as it is toxic to animals and can contaminate the environment.

Once the old coolant has been drained, close the drain plug and fill the radiator with distilled water. Do not use tap water, as it can contain minerals that can cause scale buildup in the cooling system. Start the engine and let it run until the thermostat opens. You will know the thermostat has opened when you see the water in the radiator start to circulate. Let the engine run for a few minutes to circulate the water throughout the system, and then turn off the engine and drain the water. Repeat this process until the water runs clear. Once the water is clear, you can refill the system with a fresh mixture of coolant and distilled water. It is important to use the correct type of coolant for your vehicle, as using the wrong type can cause serious damage.

Why Flush Engine Coolant

There are a number of reasons why it is important to flush your engine coolant on a regular basis. First, it removes rust, scale, and other deposits that can build up in the cooling system over time. These deposits can clog the radiator and other cooling system components, which can lead to overheating and expensive engine damage. Second, flushing the coolant removes the old, depleted coolant and replaces it with fresh coolant. The additives in coolant break down over time, which can reduce its ability to protect the engine from corrosion. Fresh coolant will restore the proper level of corrosion protection and help to extend the life of your engine.

In addition to preventing corrosion, flushing the coolant also helps to lubricate the water pump. The water pump is a critical component of the cooling system, and it needs to be properly lubricated to function correctly. The additives in fresh coolant will help to lubricate the water pump and extend its life. Finally, flushing the coolant helps to maintain the proper freeze protection. The antifreeze in coolant prevents the water in the cooling system from freezing in cold weather. Over time, the antifreeze can break down, which can reduce its effectiveness. Flushing the coolant and replacing it with fresh coolant will ensure that your engine is protected from freezing, even in the coldest weather.

How to Flush Engine and Radiator

Flushing the engine and radiator is a more thorough process than simply draining and refilling the coolant. It involves using a radiator flush product to dissolve any stubborn deposits that may have built up in the system. The first step is to drain the old coolant from the radiator. Once the coolant has been drained, close the drain plug and add the radiator flush product to the radiator. Then, fill the radiator with distilled water and start the engine. Let the engine run for the recommended amount of time, and then turn it off and drain the system.

After you have drained the system, you will need to flush it with clean water to remove any remaining flush product. Fill the radiator with distilled water, start the engine, and let it run for a few minutes. Then, drain the system and repeat the process until the water runs clear. Once the water is clear, you can refill the system with a fresh mixture of coolant and distilled water. It is important to use the correct type of coolant for your vehicle, as using the wrong type can cause serious damage.

Thermostat Removal: For an even more thorough flush, you can remove the thermostat before you begin the process. This will allow the water to flow freely through the engine and radiator, which will help to remove more deposits. However, it is important to be careful when removing the thermostat, as it can be a delicate component.

How to Flush an Engine Block

Flushing the engine block is the most thorough way to clean your cooling system. It involves removing the engine block drain plugs and flushing the block with a garden hose or pressure washer. This will remove any sediment or deposits that have built up in the block, which can be a major cause of overheating. The first step is to locate the engine block drain plugs. They are usually located on the sides of the block, near the bottom. Once you have located the plugs, remove them and drain the coolant from the block.

Once the coolant has been drained, you can begin flushing the block. Use a garden hose or pressure washer to flush the block from multiple angles. Be sure to flush all of the passages in the block, including the water jackets around the cylinders. If the block is heavily contaminated, you may need to use a radiator flush product to dissolve the deposits. Once you have flushed the block, reinstall the drain plugs with new gaskets and refill the system with a fresh mixture of coolant and distilled water.

Cetane Calculator
Tools

2-EHN Cetane Increase Calculator

July 20, 2025 FTE Leave a comment

This calculator is designed to predict the cetane number increase of diesel fuel when adding 2-EHN (2-Ethylhexyl Nitrate) or additives containing 2-EHN to diesel.

First, enter the base cetane number of the diesel you are using (e.g. 51).

Then insert the amount of additive you wish to use (e.g. 50ml), followed by the amount of fuel you wish to treat (e.g. 50L).

This example would represent a treatment ratio of 1:1,000.

Finally, insert the percentage of 2-EHN in the additive you are using. Pure 2-EHN would be 100, and a product that contains approximately 50% 2-EHN would be entered as 50.

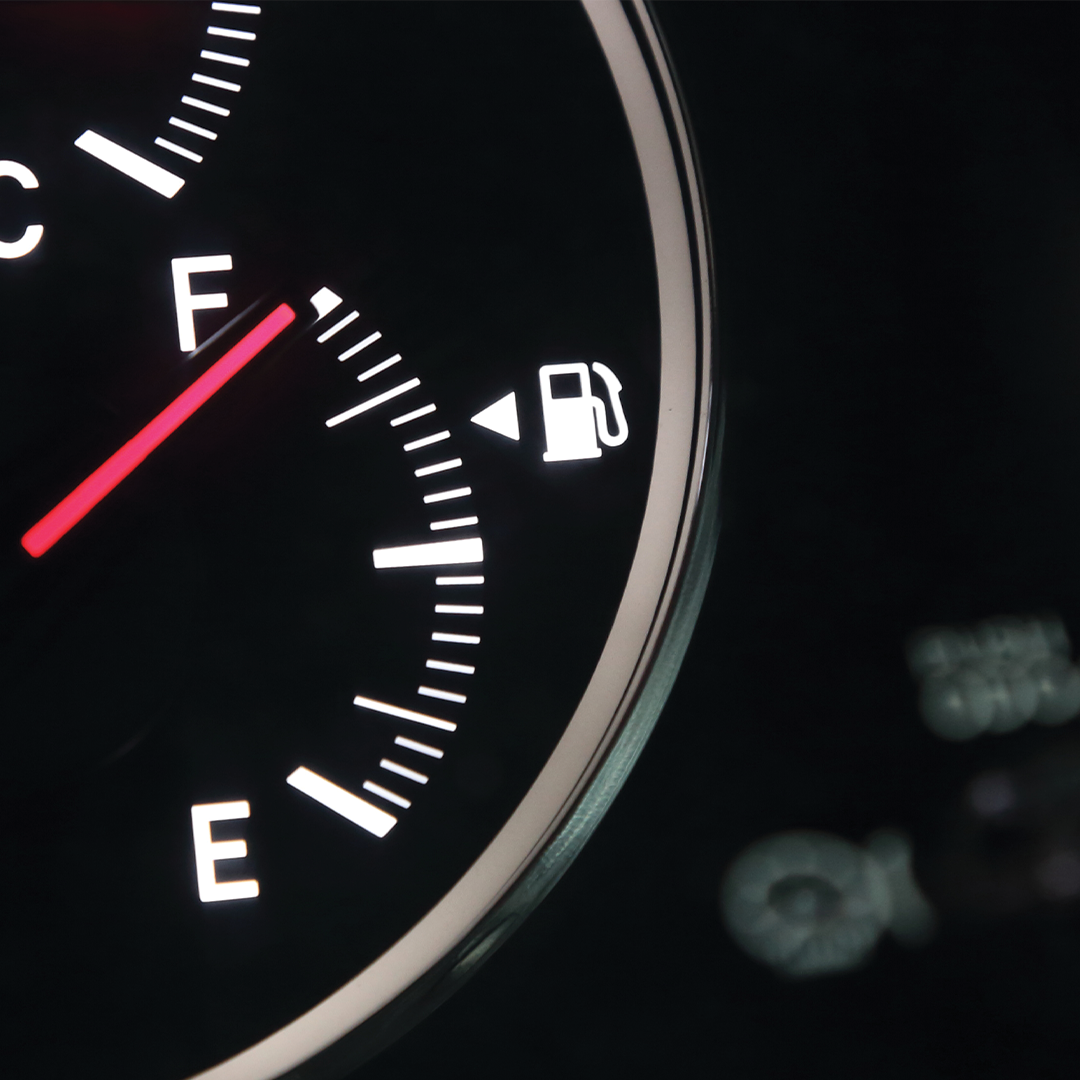

Fuel gauge in a car
Fuel Economy

Factors Affecting Fuel Consumption and How to Improve it

July 3, 2025 FTE Leave a comment
Factors Affecting Fuel Consumption: Comprehensive Guide

Fuel consumption represents one of the most significant ongoing expenses for vehicle owners and fleet operators, making understanding the factors that influence efficiency crucial for both economic and environmental reasons. Modern vehicles consume fuel at varying rates depending on numerous interconnected factors including driving behavior, vehicle maintenance, environmental conditions, and mechanical modifications. This comprehensive guide examines the primary factors affecting fuel consumption and provides practical strategies for optimization that can reduce fuel costs by 15-25% through informed decision-making and behavioral changes.

The relationship between vehicle operation and fuel consumption involves complex interactions between engine design, aerodynamics, weight, driving patterns, and maintenance status. While some factors remain beyond driver control, such as vehicle design and environmental conditions, many aspects of fuel consumption can be optimized through proper maintenance, efficient driving techniques, and strategic modifications. Understanding these relationships enables vehicle owners to make informed decisions that significantly impact both operational costs and environmental footprint throughout the vehicle’s operational life.

Table of Contents ▼
  • Primary Factors Affecting Fuel Consumption
  • Driving Style Impact on Efficiency
  • Mechanical Modifications for Efficiency
  • Vehicle Systems and Fuel Consumption
  • Maintenance Factors and Optimization
  • Engine Idling and Consumption Patterns
  • Comprehensive Improvement Strategies

Primary Factors Affecting Fuel Consumption

Understanding the primary factors that influence fuel consumption provides the foundation for implementing effective efficiency improvements and making informed decisions about vehicle operation and maintenance. These factors operate independently and in combination, creating complex relationships that determine overall fuel economy under various operating conditions. Vehicle design characteristics, operational parameters, environmental conditions, and maintenance status all contribute significantly to fuel consumption patterns, with some factors offering greater optimization potential than others.

Vehicle weight represents one of the most fundamental factors affecting fuel consumption, as heavier vehicles require more energy to accelerate and maintain speed. The relationship between weight and fuel consumption follows predictable patterns, with every 100 pounds of additional weight typically reducing fuel economy by 1-2% depending on vehicle size and driving conditions. This impact becomes more pronounced during acceleration and hill climbing, where the engine must work harder to overcome gravitational and inertial forces. Fleet operators and individual drivers can achieve meaningful efficiency improvements by removing unnecessary cargo, equipment, and accessories that add weight without providing operational value.

Weight Impact Analysis: Research demonstrates that reducing vehicle weight by 10% can improve fuel economy by 6-8% in city driving and 4-6% in highway conditions. This relationship makes weight reduction one of the most cost-effective methods for improving fuel efficiency, particularly for vehicles that frequently carry unnecessary cargo or equipment.

Aerodynamic efficiency plays an increasingly important role in fuel consumption as vehicle speed increases, with aerodynamic drag forces growing exponentially with velocity. At highway speeds above 50 mph, aerodynamic resistance becomes the dominant force that engines must overcome, making vehicle shape, surface smoothness, and external accessories critical factors in fuel economy. Modern vehicles incorporate sophisticated aerodynamic design features including underbody panels, active grille shutters, and optimized body shapes to minimize drag coefficients and improve efficiency.

Engine efficiency characteristics determine how effectively fuel energy converts to mechanical work, with modern engines incorporating advanced technologies to optimize combustion, reduce friction, and improve thermal efficiency. Direct injection systems, variable valve timing, turbocharging, and sophisticated engine management systems all contribute to improved fuel efficiency by ensuring optimal air-fuel mixtures, combustion timing, and operating parameters across different load and speed conditions. These technologies enable smaller engines to produce equivalent power to larger naturally aspirated designs while consuming less fuel under typical driving conditions.

Environmental and Operational Factors

Environmental conditions significantly impact fuel consumption through their effects on engine efficiency, aerodynamic resistance, and auxiliary system loads. Temperature extremes require additional energy for cabin heating or cooling, while cold weather reduces engine efficiency through increased friction, thicker lubricants, and extended warm-up periods. Hot weather increases air conditioning loads and reduces air density, affecting both engine performance and aerodynamic efficiency. Altitude changes impact engine performance by altering air density and oxygen content, requiring fuel system adjustments to maintain optimal combustion.

Road conditions and traffic patterns create substantial variations in fuel consumption through their impact on driving dynamics and engine operating conditions. Stop-and-go traffic forces engines to operate in inefficient low-load conditions while requiring frequent acceleration and deceleration cycles that waste energy. Highway driving typically provides better fuel economy by allowing engines to operate in their optimal efficiency range at steady speeds, though excessive speeds above 65 mph can dramatically increase fuel consumption due to aerodynamic drag. Road grade, surface conditions, and traffic density all influence fuel consumption patterns and optimization strategies.

Vehicle age and technology level affect fuel consumption through engine wear, emissions control system efficiency, and the availability of advanced fuel-saving technologies. Older vehicles may experience declining fuel economy due to engine wear, carbon buildup, and degraded emissions control components. However, proper maintenance can minimize these effects and maintain fuel efficiency throughout the vehicle’s operational life. Newer vehicles benefit from advanced technologies including hybrid systems, continuously variable transmissions, and sophisticated engine management systems that optimize efficiency across diverse operating conditions.

Driving Style Impact on Efficiency

Driving style represents one of the most significant controllable factors affecting fuel consumption, with research demonstrating that aggressive driving behaviors can reduce fuel economy by 15-30% at highway speeds and 10-40% in stop-and-go traffic conditions. The relationship between driving behavior and fuel consumption stems from how different driving patterns affect engine load, operating efficiency, and energy waste through unnecessary acceleration and braking cycles. Understanding these relationships enables drivers to modify their behavior for substantial fuel savings without compromising safety or significantly increasing travel time.

Acceleration patterns profoundly impact fuel consumption through their effect on engine load and operating efficiency. Rapid acceleration forces engines to operate at high load conditions where fuel consumption increases dramatically to provide the necessary power output. Gradual acceleration allows engines to operate closer to their optimal efficiency range while requiring less fuel to achieve the same final speed. The difference between aggressive and moderate acceleration can result in 20-30% variation in fuel consumption during acceleration events, making smooth acceleration one of the most effective driving techniques for improving fuel economy.

Acceleration Efficiency: Studies by Oak Ridge National Laboratory found that sensible driving behavior can improve fuel economy by 10-20% compared to aggressive driving patterns. The optimal acceleration rate for fuel efficiency typically involves reaching cruising speed gradually over 15-20 seconds rather than rapid acceleration in 5-10 seconds.

Speed management significantly affects fuel consumption through its impact on aerodynamic drag, engine efficiency, and transmission operation. Most vehicles achieve optimal fuel economy at speeds between 45-55 mph, where the balance between aerodynamic drag and engine efficiency reaches its optimal point. Speeds above 65 mph typically result in exponentially increasing fuel consumption due to aerodynamic drag forces that grow with the square of velocity. Maintaining consistent speeds through cruise control or careful throttle management can improve fuel economy by 5-15% compared to variable speed driving patterns.

Braking behavior affects fuel consumption by determining how much kinetic energy is wasted rather than recovered through coasting or regenerative braking systems. Hard braking converts vehicle momentum into heat through brake friction, wasting energy that could be preserved through anticipatory driving and gradual deceleration. Efficient drivers anticipate traffic conditions, maintain appropriate following distances, and use engine braking or coasting to reduce speed whenever possible. This approach can reduce fuel consumption by 5-10% while improving safety through reduced collision risk.

Traffic Management Strategies

Traffic navigation strategies significantly impact fuel consumption through their effect on driving patterns, engine operating conditions, and trip efficiency. Route selection that avoids heavy traffic, construction zones, and frequent stops can improve fuel economy by 10-20% compared to congested alternatives, even when the efficient route covers slightly greater distance. Modern navigation systems incorporate real-time traffic data to optimize routes for fuel efficiency, considering factors such as traffic speed, stop frequency, and road grade to recommend the most efficient path.

Following distance management affects fuel consumption through its impact on acceleration and braking frequency in traffic conditions. Maintaining adequate following distances allows drivers to anticipate traffic flow changes and adjust speed gradually rather than through frequent acceleration and braking cycles. This technique, known as “traffic surfing,” can improve fuel economy by 5-15% in congested conditions while reducing driver stress and improving safety. The optimal following distance varies with speed and traffic conditions but generally involves maintaining 2-3 seconds of travel time between vehicles.

Trip planning and consolidation strategies reduce overall fuel consumption by minimizing cold starts, optimizing route efficiency, and reducing total vehicle miles traveled. Cold engines operate inefficiently during warm-up periods, consuming 12-40% more fuel than fully warmed engines depending on ambient temperature and trip length. Combining multiple errands into single trips, planning efficient route sequences, and avoiding unnecessary trips can reduce fuel consumption by 10-25% while saving time and reducing vehicle wear.

Advanced Driving Techniques

Pulse and glide driving techniques can achieve exceptional fuel economy improvements in appropriate conditions by alternating between efficient acceleration and coasting periods. This technique involves accelerating to slightly above target speed using moderate throttle input, then coasting or using minimal throttle to maintain speed. While not practical for all driving conditions, pulse and glide can improve fuel economy by 20-40% on highways with light traffic. The technique works by keeping the engine in its most efficient operating range during acceleration while minimizing fuel consumption during coasting periods.

Eco-driving training programs demonstrate measurable improvements in fuel consumption through systematic behavior modification and feedback systems. Professional eco-driving courses typically achieve 5-15% fuel economy improvements that persist long-term when drivers receive ongoing feedback and reinforcement. These programs focus on acceleration management, speed optimization, anticipatory driving, and efficient use of vehicle systems. Fleet operators implementing comprehensive eco-driving programs often achieve 10-20% fuel savings across their entire fleet through driver training and ongoing monitoring.

Mechanical Modifications for Efficiency

Mechanical modifications to improve fuel efficiency encompass a wide range of interventions from basic maintenance optimization to advanced engine and drivetrain upgrades. These modifications work by reducing parasitic losses, improving combustion efficiency, optimizing aerodynamics, or reducing vehicle weight. While some modifications provide substantial efficiency improvements, others offer minimal benefits or may even reduce fuel economy under certain conditions. Understanding the principles behind different modifications enables informed decision-making about cost-effective efficiency improvements.

Engine tuning and optimization represent some of the most effective mechanical modifications for improving fuel efficiency. Modern engine management systems offer extensive calibration possibilities for optimizing fuel injection timing, ignition advance, and air-fuel ratios across different operating conditions. Professional engine tuning can improve fuel economy by 5-15% while maintaining or improving performance, particularly in vehicles with conservative factory calibrations. Advanced modifications including variable valve timing retrofits, direct injection conversions, and turbocharger installations can provide even greater efficiency improvements when properly implemented.

Turbocharger Efficiency: Properly implemented turbocharging can improve fuel efficiency by 10-20% by allowing smaller engines to produce equivalent power to larger naturally aspirated designs. However, aggressive driving that frequently uses boost can increase fuel consumption, making driving style crucial for realizing efficiency benefits.

Exhaust system modifications affect fuel consumption through their impact on engine back pressure, scavenging efficiency, and emissions control system operation. While straight pipe exhausts may reduce back pressure slightly, the efficiency gains are typically minimal (1-2%) and may be offset by negative effects on low-end torque and emissions control system operation. More sophisticated exhaust modifications including high-flow catalytic converters, optimized header designs, and tuned exhaust systems can provide meaningful efficiency improvements when properly matched to engine characteristics and operating conditions.

Intake system modifications can improve fuel efficiency by optimizing airflow characteristics, reducing restriction, and improving combustion quality. Cold air intake systems that draw cooler, denser air can improve efficiency by 2-5% while providing modest performance gains. More advanced modifications including variable intake manifolds, optimized throttle bodies, and high-flow air filters can provide additional benefits when combined with appropriate engine tuning. However, modifications that significantly alter air-fuel ratios may require ECU recalibration to maintain optimal efficiency and emissions compliance.

Drivetrain and Transmission Modifications

Transmission modifications and upgrades can significantly impact fuel consumption by optimizing gear ratios, reducing internal friction, and improving shift characteristics. Manual transmission conversions in vehicles originally equipped with automatic transmissions can improve fuel economy by 5-15% by eliminating torque converter losses and enabling more precise control over engine operating points. However, the efficiency advantage depends heavily on driving conditions and driver skill, with automatic transmissions potentially providing better efficiency in stop-and-go traffic through optimized shift programming.

Final drive ratio modifications can optimize fuel consumption for specific driving patterns by changing the relationship between engine speed and vehicle speed. Taller (numerically lower) gear ratios reduce engine RPM at cruising speeds, potentially improving highway fuel economy by 3-8% at the expense of acceleration performance. Conversely, shorter ratios may improve efficiency in city driving by keeping the engine in more efficient operating ranges during acceleration. The optimal ratio depends on vehicle characteristics, driving patterns, and performance requirements.

Differential and driveline modifications can reduce parasitic losses and improve efficiency through reduced friction and optimized power transfer characteristics. Limited-slip differentials, upgraded bearings, and synthetic lubricants can reduce driveline losses by 1-3% while improving durability and performance. More extensive modifications including lightweight driveshafts, optimized CV joints, and reduced-friction wheel bearings can provide additional efficiency improvements when combined with other modifications in a comprehensive efficiency program.

Aerodynamic and Weight Reduction Modifications

Aerodynamic modifications can provide substantial fuel economy improvements at highway speeds by reducing drag forces that increase exponentially with velocity. Front air dams, rear spoilers, side skirts, and underbody panels can reduce drag coefficients by 5-15% when properly designed and implemented. However, poorly designed aerodynamic modifications may actually increase drag or create handling problems, making professional design and testing important for achieving meaningful efficiency improvements.

Weight reduction modifications offer consistent efficiency improvements across all driving conditions by reducing the energy required for acceleration and hill climbing. Lightweight wheels, carbon fiber body panels, aluminum components, and interior modifications can reduce vehicle weight by 100-500 pounds, improving fuel economy by 2-10% depending on the extent of modifications and driving patterns. The cost-effectiveness of weight reduction varies significantly, with some modifications providing excellent value while others offer minimal benefits relative to their cost and complexity.

Tire and wheel modifications affect fuel consumption through their impact on rolling resistance, aerodynamics, and vehicle weight. Low rolling resistance tires can improve fuel economy by 3-6% with minimal impact on performance or handling characteristics. Lightweight wheels reduce unsprung weight and rotational inertia, improving acceleration efficiency and reducing energy required for speed changes. Proper tire pressure maintenance remains one of the most cost-effective modifications, with optimal inflation improving fuel economy by 2-4% while extending tire life and improving safety.

Vehicle Systems and Fuel Consumption

Vehicle auxiliary systems significantly impact fuel consumption through their electrical and mechanical loads on the engine, with some systems creating substantial efficiency penalties under certain operating conditions. Understanding how different systems affect fuel consumption enables informed decisions about system usage and optimization strategies that can reduce overall fuel consumption without compromising comfort or functionality. The impact of auxiliary systems varies dramatically with driving conditions, ambient temperature, and system design characteristics.

Air conditioning systems represent one of the most significant auxiliary loads affecting fuel consumption, particularly in hot weather conditions and during city driving. Modern automotive air conditioning systems can reduce fuel economy by up to 25% under extreme conditions, with typical impacts ranging from 5-15% depending on ambient temperature, system efficiency, and usage patterns. The fuel consumption penalty results from the mechanical load imposed by the air conditioning compressor, which can require 3-5 horsepower of engine output during maximum cooling operation.

Air Conditioning Efficiency: Research by the Department of Energy shows that air conditioning impact varies significantly with driving conditions. At highway speeds, the aerodynamic penalty of open windows often exceeds the fuel consumption penalty of air conditioning, making A/C the more efficient choice above 50 mph.

The relationship between air conditioning usage and fuel consumption depends heavily on driving conditions, with city driving showing greater A/C penalties than highway operation. During stop-and-go traffic, the air conditioning compressor operates at maximum load while the engine produces minimal power for propulsion, creating a high percentage impact on fuel consumption. Highway driving dilutes the A/C impact across higher total power requirements, reducing the percentage penalty while still consuming additional fuel for cooling system operation.

Catalytic converter systems affect fuel consumption through their impact on exhaust back pressure and engine tuning requirements, though the effects are generally minimal in properly functioning systems. Modern three-way catalytic converters create modest back pressure that engines must overcome, potentially affecting fuel consumption by 1-3% compared to unrestricted exhaust systems. However, removing catalytic converters often triggers rich fuel mixture compensation by oxygen sensors, potentially increasing rather than decreasing fuel consumption while creating serious legal and environmental consequences.

Electrical System Impacts

Electrical system loads affect fuel consumption through their impact on alternator loading and engine mechanical losses. High electrical loads including headlights, heated seats, defrosters, and entertainment systems can increase fuel consumption by 1-5% depending on the total electrical demand and engine operating conditions. The impact becomes more pronounced during idle and low-speed operation where electrical loads represent a higher percentage of total engine output requirements.

Modern vehicles incorporate increasingly sophisticated electrical systems that can significantly impact fuel consumption through their power requirements and operational characteristics. Electric power steering systems typically improve fuel economy by 2-4% compared to hydraulic systems by eliminating the constant parasitic load of a hydraulic pump. However, electric systems may show greater load variation depending on steering input requirements and system design characteristics.

Battery condition and charging system efficiency affect fuel consumption through their impact on alternator loading and electrical system operation. Weak batteries require higher charging currents, increasing alternator load and fuel consumption. Conversely, efficient charging systems and high-capacity batteries can reduce fuel consumption by minimizing charging requirements and enabling more efficient electrical system operation. Regular battery maintenance and replacement when necessary can maintain optimal fuel efficiency while ensuring reliable vehicle operation.

Emissions Control System Effects

Emissions control systems including exhaust gas recirculation (EGR), positive crankcase ventilation (PCV), and evaporative emission controls can affect fuel consumption through their impact on engine operation and efficiency. EGR systems reduce combustion temperatures and NOx emissions but may slightly increase fuel consumption by diluting the air-fuel mixture and reducing combustion efficiency. Properly functioning EGR systems typically impact fuel consumption by less than 2%, while malfunctioning systems can create significant efficiency penalties.

Secondary air injection systems and other emissions control components create additional mechanical and electrical loads that can affect fuel consumption. These systems typically operate only during specific conditions such as cold starts or catalyst warm-up periods, minimizing their impact on overall fuel economy. However, malfunctioning emissions control systems can trigger rich fuel mixture operation or other compensation strategies that significantly increase fuel consumption while reducing emissions control effectiveness.

Diesel exhaust fluid (DEF) systems in modern diesel vehicles affect fuel consumption through their impact on engine calibration and emissions control system operation. Selective catalytic reduction (SCR) systems enable more aggressive engine tuning for improved fuel efficiency while maintaining emissions compliance. Properly functioning DEF systems can actually improve fuel economy by 3-5% compared to earlier emissions control technologies, though system malfunctions can trigger power reduction modes that significantly impact efficiency and performance.

Maintenance Factors and Optimization

Proper vehicle maintenance represents one of the most cost-effective approaches to optimizing fuel consumption, with well-maintained vehicles typically achieving 5-15% better fuel economy than neglected vehicles. Maintenance-related factors affect fuel consumption through their impact on engine efficiency, rolling resistance, aerodynamic drag, and auxiliary system operation. Understanding the relationship between specific maintenance items and fuel consumption enables prioritization of maintenance activities for maximum efficiency improvement while ensuring reliable vehicle operation and longevity.

Tire pressure maintenance represents the single most important maintenance factor affecting fuel consumption, with underinflated tires creating substantial rolling resistance penalties that directly impact fuel economy. For every 1 PSI drop in tire pressure below recommended levels, fuel economy typically decreases by approximately 0.2%. Severely underinflated tires (50% of recommended pressure) can reduce fuel economy by 10% at moderate speeds and 5% at highway speeds, making regular pressure monitoring essential for optimal efficiency.

Tire Pressure Impact: Department of Energy research demonstrates that maintaining proper tire pressure can improve fuel economy by 3-5% while extending tire life by 25-50%. This makes tire pressure monitoring one of the highest-return maintenance activities for both efficiency and cost savings.

Engine air filter condition significantly affects fuel consumption through its impact on airflow restriction and combustion efficiency. Dirty air filters can reduce fuel economy by 6-11% in older carbureted vehicles and 1-3% in modern fuel-injected engines with sophisticated engine management systems. The reduced impact in modern vehicles results from electronic fuel injection systems that compensate for airflow restrictions by adjusting fuel delivery, though this compensation cannot fully eliminate the efficiency penalty of restricted airflow.

Engine oil condition and viscosity affect fuel consumption through their impact on internal friction and lubrication efficiency. Using the manufacturer-recommended oil viscosity can improve fuel economy by 1-2% compared to heavier oils, while synthetic oils may provide additional efficiency benefits through superior lubrication characteristics and thermal stability. Regular oil changes maintain optimal lubrication properties and prevent the efficiency degradation associated with contaminated or degraded lubricants.

Engine Maintenance Optimization

Spark plug condition and gap specification directly affect combustion efficiency and fuel consumption in gasoline engines. Worn or improperly gapped spark plugs can increase fuel consumption by 2-5% through incomplete combustion, misfiring, and reduced engine efficiency. Modern platinum and iridium spark plugs provide longer service intervals while maintaining consistent performance, though regular inspection and replacement according to manufacturer specifications ensures optimal efficiency throughout the service interval.

Fuel system maintenance including fuel filter replacement, injector cleaning, and fuel quality management affects consumption through its impact on fuel delivery precision and combustion quality. Clogged fuel filters can restrict fuel flow and reduce engine performance, while dirty fuel injectors may create uneven fuel distribution and poor atomization. Professional fuel system cleaning services can restore optimal fuel delivery characteristics and improve fuel economy by 2-4% in vehicles with contaminated fuel systems.

Ignition system maintenance including distributor adjustment, timing verification, and coil testing ensures optimal combustion timing and efficiency. Advanced ignition timing can improve fuel economy but may increase knock tendency and emissions, while retarded timing reduces efficiency and increases exhaust temperatures. Modern engines with electronic ignition systems require less frequent maintenance but benefit from periodic inspection of ignition components and timing verification to maintain optimal efficiency.

Drivetrain and Cooling System Maintenance

Transmission maintenance affects fuel consumption through its impact on shift quality, internal friction, and torque converter operation in automatic transmissions. Regular transmission fluid changes maintain optimal lubrication and hydraulic operation, while contaminated or degraded fluid can increase internal friction and reduce efficiency. Manual transmissions benefit from proper gear oil maintenance, while automatic transmissions require attention to fluid level, condition, and filter replacement according to manufacturer specifications.

Cooling system maintenance ensures optimal engine operating temperatures that directly affect combustion efficiency and fuel consumption. Overheating engines typically run rich fuel mixtures for component protection, increasing fuel consumption by 5-15% depending on severity. Conversely, engines that run too cool may not reach optimal operating efficiency, particularly during cold weather operation. Regular coolant changes, thermostat inspection, and radiator maintenance ensure optimal temperature control for maximum efficiency.

Wheel alignment and suspension maintenance affect fuel consumption through their impact on rolling resistance and tire wear patterns. Misaligned wheels create additional rolling resistance and uneven tire wear that can reduce fuel economy by 2-5% while significantly shortening tire life. Regular alignment checks and suspension maintenance ensure optimal tire contact with the road surface, minimizing rolling resistance and maximizing fuel efficiency while improving handling and safety characteristics.

Engine Idling and Consumption Patterns

Engine idling represents a significant source of fuel waste in both personal and commercial vehicle operations, consuming fuel while producing zero useful work in terms of vehicle movement. Understanding idling fuel consumption patterns enables the development of effective reduction strategies that can substantially reduce operational costs and environmental impact. Idling consumption varies significantly between vehicle types, engine sizes, and operating conditions, with modern engines generally showing improved idle efficiency compared to older designs.

Passenger car idling consumption typically ranges from 0.2 to 0.5 gallons per hour depending on engine size, condition, and auxiliary loads. Smaller four-cylinder engines generally consume fuel at the lower end of this range, while larger V6 and V8 engines approach the higher consumption rates. Modern engines with advanced idle control systems, variable valve timing, and sophisticated fuel injection can achieve better idle efficiency than older designs, though the fundamental inefficiency of idling operation remains unchanged across all engine technologies.

Idling Economics: For passenger vehicles, idling for more than 10 seconds typically consumes more fuel than restarting the engine. This principle forms the basis for automatic start-stop systems that can reduce fuel consumption by 3-8% in city driving conditions with frequent stops.

Light truck and SUV idling consumption generally ranges from 0.3 to 0.8 gallons per hour, reflecting their larger engines and higher auxiliary loads compared to passenger cars. Pickup trucks with large V8 engines, four-wheel drive systems, and extensive electrical accessories typically consume fuel at the higher end of this range. The impact of air conditioning, heating systems, and other comfort features can increase idling consumption by 20-50% depending on ambient conditions and system usage patterns.

Heavy-duty truck idling consumption represents a major operational expense for commercial fleets, with typical consumption rates ranging from 0.6 to 1.0 gallons per hour for diesel engines. Sleeper cab trucks with extensive auxiliary systems including air conditioning, heating, refrigeration, and electrical accessories can consume up to 1.5 gallons per hour during extended idling periods. Annual idling costs for long-haul trucks can reach $1,800 to $4,000 per vehicle, making idle reduction a critical component of fleet fuel management strategies.

Idle Reduction Technologies

Automatic start-stop systems represent the most widespread idle reduction technology in modern passenger vehicles, automatically shutting off the engine during stops and restarting when the driver releases the brake pedal. These systems can reduce fuel consumption by 3-8% in city driving conditions with frequent stops, though the benefit diminishes in highway driving where stops are infrequent. Advanced start-stop systems incorporate battery condition monitoring, climate control requirements, and engine temperature to optimize operation while maintaining driver comfort and vehicle functionality.

Auxiliary power units (APUs) provide an alternative to main engine idling for heavy-duty trucks requiring electrical power and climate control during rest periods. Diesel APUs typically consume 0.1 to 0.3 gallons per hour while providing equivalent comfort and electrical power, representing 70-80% fuel savings compared to main engine idling. Electric APUs powered by shore power or battery systems can eliminate fuel consumption entirely during stationary periods, though they require appropriate infrastructure and may have limited operating duration.

Hybrid vehicle systems provide inherent idle reduction benefits by automatically switching to electric operation during stops and low-speed operation. Full hybrid systems can eliminate fuel consumption entirely during idling and low-speed operation, while mild hybrid systems reduce idle consumption through improved alternator efficiency and engine load reduction. The idle reduction benefits of hybrid systems become more pronounced in stop-and-go traffic where conventional vehicles spend significant time idling.

Idle Consumption Calculation Methods

Accurate idle fuel consumption calculation requires consideration of multiple variables including engine size, ambient temperature, electrical loads, and auxiliary system operation. The basic calculation formula involves multiplying idle time in hours by the vehicle-specific idle consumption rate in gallons per hour. However, real-world consumption can vary significantly from baseline rates depending on operating conditions, making detailed monitoring and measurement important for accurate cost analysis and reduction planning.

Fleet management systems and telematics devices provide detailed idle monitoring capabilities that enable precise consumption calculation and optimization. These systems can track idle time, fuel consumption, engine load, and auxiliary system operation to provide comprehensive idle analysis. Advanced systems incorporate fuel price data, operational costs, and efficiency metrics to calculate the economic impact of idling and identify optimization opportunities across entire fleets.

Mobile applications and online calculators provide simplified idle consumption estimation for individual vehicle owners and small fleet operators. These tools typically use vehicle specifications, local fuel prices, and estimated idle time to calculate consumption costs and potential savings from idle reduction strategies. While less precise than professional fleet monitoring systems, these tools provide valuable insights for developing idle reduction awareness and motivation among drivers and fleet managers.

Comprehensive Improvement Strategies

Implementing comprehensive fuel consumption improvement strategies requires a systematic approach that addresses multiple factors simultaneously to achieve maximum efficiency gains. Individual improvements typically provide modest benefits, but combining multiple strategies can result in cumulative fuel savings of 15-25% or more. Successful improvement programs prioritize high-impact, low-cost modifications while considering the specific operating conditions, vehicle characteristics, and budget constraints that affect implementation feasibility and effectiveness.

Behavioral modification represents the most cost-effective approach to fuel consumption improvement, requiring no capital investment while providing immediate and sustained benefits. Driver training programs that focus on efficient acceleration, speed management, route optimization, and idle reduction can achieve 10-20% fuel savings that persist long-term when reinforced through ongoing feedback and monitoring. The key to successful behavioral programs involves providing drivers with real-time feedback, setting achievable goals, and creating incentive structures that reward efficient driving practices.

Integrated Approach Benefits: Fleet operators implementing comprehensive efficiency programs combining driver training, vehicle maintenance, route optimization, and technology upgrades typically achieve 20-30% fuel savings within the first year, with continued improvements through ongoing optimization and technology advancement.

Maintenance optimization provides consistent efficiency improvements while ensuring reliable vehicle operation and extending component life. Establishing systematic maintenance schedules that prioritize fuel-efficiency-related items including tire pressure, air filters, engine tuning, and fluid changes can maintain optimal efficiency throughout the vehicle’s operational life. Predictive maintenance programs using telematics data and condition monitoring can identify efficiency-degrading problems before they become severe, minimizing both fuel consumption penalties and repair costs.

Technology integration enables advanced efficiency optimization through real-time monitoring, automated systems, and data-driven decision making. Fleet management systems that combine GPS tracking, fuel monitoring, driver behavior analysis, and maintenance scheduling provide comprehensive efficiency oversight and optimization capabilities. Advanced technologies including hybrid powertrains, automatic start-stop systems, and aerodynamic enhancements can provide substantial efficiency improvements when properly integrated with operational requirements and driver training programs.

Implementation and Monitoring

Successful fuel efficiency improvement programs require systematic implementation with clear goals, measurable metrics, and ongoing monitoring to ensure sustained benefits. Establishing baseline fuel consumption measurements before implementing improvements enables accurate assessment of program effectiveness and return on investment. Regular monitoring and reporting help maintain focus on efficiency goals while identifying additional optimization opportunities as they emerge through operational experience and technology advancement.

Cost-benefit analysis guides investment decisions by comparing the costs of efficiency improvements with their projected fuel savings over realistic time periods. High-impact, low-cost improvements including driver training, maintenance optimization, and operational changes typically provide excellent returns on investment within months. More expensive modifications including vehicle upgrades, technology installations, and infrastructure improvements require longer payback periods but may provide greater long-term benefits and operational advantages.

Continuous improvement processes ensure that efficiency programs evolve with changing conditions, new technologies, and operational requirements. Regular program reviews, driver feedback sessions, and technology assessments help identify emerging opportunities and address implementation challenges. Successful programs maintain flexibility to adapt strategies based on results, changing fuel prices, regulatory requirements, and technological developments that affect efficiency optimization opportunities.

References and Further Reading

For additional information on factors affecting fuel consumption and optimization strategies, consult the following authoritative sources:

  1. U.S. Environmental Protection Agency – Factors Affecting Fuel Economy
  2. EPA – Your Mileage May Vary
  3. Oak Ridge National Laboratory – Sensible Driving Research
  4. Department of Energy – Fuel Economy in Hot Weather
  5. DOE – Effect of Tire Pressure on Fuel Economy
  6. Car and Driver – Turbocharged Engine Efficiency
  7. Motive – True Cost of Truck Idling Time
  8. Alternative Fuels Data Center – Fuel Consumption and Efficiency
Additive being added to an engine
Oil Additives

Friction Modifier Application and Compatibility in Automotive Systems

June 19, 2025 FTE Leave a comment

Understanding friction modifier applications and compatibility across automotive systems represents one of the most critical yet frequently misunderstood aspects of modern vehicle maintenance. From limited slip differentials to manual transmissions, from diesel engines to wet brake systems, each automotive application presents unique requirements for friction modification that can dramatically impact performance, longevity, and safety. This comprehensive guide examines the specific applications, compatibility requirements, and proper procedures for friction modifier use across all major automotive systems, providing the technical knowledge needed to make informed decisions about lubricant selection and maintenance practices.

Table of Contents ▼
  • Limited Slip Differentials and Friction Modifiers
  • Manual Transmission Applications
  • Diesel Engine Systems
  • Transfer Case Compatibility
  • Power Steering and Hydraulic Systems
  • Wet Brake Systems
  • Open Differential Considerations
  • Engine Oil Compatibility and Aftermarket Additives
  • Application Procedures and Best Practices

Limited Slip Differentials and Friction Modifiers

Limited slip differentials represent the most critical application for friction modifier additives in automotive systems, where proper friction modification is not optional but absolutely essential for correct operation and component longevity. Understanding the relationship between limited slip differential mechanics and friction modifier chemistry provides the foundation for all other automotive friction modifier applications, as the principles established in differential lubrication extend throughout the drivetrain and beyond.

Clutch-Type Limited Slip Mechanisms

Clutch-type limited slip differentials operate through a sophisticated system of friction plates and springs that automatically distribute torque between wheels based on traction conditions. When both wheels maintain adequate traction, the clutch plates bind together tightly yet slip smoothly enough to allow chatter-free cornering. This delicate balance requires precise friction characteristics that can only be achieved through proper friction modifier treatment of the gear lubricant.

The fundamental challenge in limited slip differential operation lies in the varying demands placed on the clutch system throughout different driving conditions. During straight-line acceleration with equal traction, the clutches must remain engaged to transfer maximum torque. During cornering, they must slip smoothly to accommodate the natural speed difference between inside and outside wheels. When one wheel encounters low traction, the system must quickly engage to redirect torque to the wheel with better grip. Each of these scenarios requires different friction characteristics, making friction modifier selection critical for optimal performance.

Modern limited slip differentials employ various clutch configurations, including cone clutches, disc clutches, and combination systems that utilize both types. Cone clutches provide high torque capacity in compact packages but are particularly sensitive to friction modifier chemistry due to their large contact areas and wedging action. Disc clutches offer more predictable engagement characteristics but require friction modifiers that can maintain consistent performance across the full range of slip speeds encountered during operation.

Understanding and Preventing Chatter

Chatter represents the most common and problematic symptom of improper friction modification in limited slip differentials, manifesting as repetitive stick-slip oscillations that create characteristic noise, vibration, and accelerated wear. The phenomenon occurs when the static friction coefficient exceeds the kinetic friction coefficient by a significant margin, causing the clutches to alternately grab and release rather than maintaining smooth, controlled slip.

The physics of chatter development involves complex interactions between clutch surface roughness, lubricant film thickness, temperature, and load conditions. As the differential begins to slip, friction heating reduces lubricant viscosity and film thickness, potentially leading to boundary lubrication conditions where surface asperities make direct contact. Without proper friction modification, these contact events create high friction spikes that cause the clutches to grab suddenly, followed by rapid acceleration that breaks the grip and initiates the next cycle.

Environmental factors significantly influence chatter susceptibility, with cold temperatures, high loads, and aggressive driving styles all contributing to increased chatter tendency. Cold gear oil exhibits higher viscosity and reduced friction modifier effectiveness, making morning startup particularly problematic for improperly treated differentials. High-load conditions, such as those encountered during trailer towing or off-road driving, increase clutch pressures and temperatures, potentially overwhelming inadequate friction modifier systems.

Critical Requirement: ALL clutch-type limited slip differentials require friction modifier additives for proper operation. Without friction modification, chatter is inevitable and will cause premature clutch wear, noise, and potential differential damage.

Proper Application Procedures

Adding friction modifier to limited slip differentials requires careful attention to treat rates, mixing procedures, and compatibility considerations. The typical treat rate ranges from 1-4 ounces per differential, depending on the differential size, clutch configuration, and severity of chatter symptoms. Smaller passenger car differentials typically require 1-2 ounces, while larger truck and SUV differentials may need 3-4 ounces for complete chatter elimination.

The application procedure begins with warming the differential to operating temperature through normal driving, which ensures proper mixing and distribution of the friction modifier throughout the gear oil. The differential should then be positioned level, and a small amount of gear oil drained through the fill plug to create space for the friction modifier. The additive should be added gradually, with test drives conducted after each ounce to determine the minimum effective dose.

Professional installation techniques involve using a pump or syringe to inject the friction modifier directly into the differential housing, ensuring complete mixing without introducing air bubbles or contaminants. The differential should be driven immediately after treatment to circulate the additive and allow the friction modifier molecules to adsorb onto the clutch surfaces. Full effectiveness typically develops within 50-100 miles of driving as the additive reaches equilibrium concentration on all friction surfaces.

Product Selection and Compatibility

Commercial friction modifier products for limited slip differentials fall into several categories, each optimized for specific applications and differential types. AMSOIL Slip Lock represents a premium option formulated with advanced friction modifiers designed to eliminate chatter in both synthetic and petroleum gear lubricants. The product features convenient squeeze-tube packaging that facilitates precise dosing and clean application in field conditions.

Red Line Limited Slip Friction Modifier offers compatibility with both petroleum and synthetic gear oils while providing additional benefits such as reduced break-in temperatures and enhanced wear protection. The product is particularly effective in high-performance applications where differentials experience severe duty cycles, including racing, towing, and off-road use. The formulation includes temperature-stable friction modifiers that maintain effectiveness across wide temperature ranges.

Some premium synthetic gear oils, such as those from Royal Purple and Mobil 1, incorporate friction modifiers directly into their formulations, eliminating the need for separate additives in many applications. However, the effectiveness of integrated friction modifiers varies with differential design, clutch materials, and operating conditions, making supplemental treatment necessary in some cases. Users should monitor differential behavior and add friction modifier if any chatter develops, regardless of the base oil’s claimed limited slip compatibility.

Manual Transmission Applications

Manual transmission friction modifier applications represent a specialized field that differs fundamentally from differential applications, requiring unique formulations designed specifically for synchronizer performance rather than clutch pack operation. The friction modifiers used in manual transmissions must optimize the engagement characteristics of brass, carbon, and composite synchronizer materials while maintaining compatibility with gear tooth lubrication requirements and seal materials throughout the transmission.

Synchronizer Mechanics and Friction Requirements

Synchronizers function as speed-matching devices that eliminate the need for double-clutching during gear changes by bringing the gear and shaft to the same rotational speed before engagement. The process involves three distinct phases: initial contact where the synchronizer cone touches the gear cone, speed synchronization where friction brings the components to matching speeds, and final engagement where the gear locks to the shaft. Each phase requires different friction characteristics that must be carefully balanced through proper friction modifier selection.

The initial contact phase demands sufficient friction to initiate speed matching without causing harsh engagement or excessive force requirements. During speed synchronization, the friction coefficient must remain stable across the full range of speed differences encountered, typically from several hundred RPM down to zero. The final engagement phase requires the friction to drop sufficiently to allow smooth gear locking without binding or resistance that could cause gear clash or difficult shifting.

Modern synchronizers employ various friction materials including brass, carbon fiber, and paper-based composites, each with unique friction modifier requirements. Brass synchronizers, common in older transmissions, require friction modifiers that can work effectively with copper alloys while preventing corrosion and wear. Carbon fiber synchronizers demand friction modifiers that maintain effectiveness at higher temperatures and pressures while avoiding chemical interactions that could degrade the carbon matrix.

GM Synchromesh Friction Modified Technology

General Motors developed Synchromesh Friction Modified fluid specifically to address the unique requirements of their New Venture manual transmissions, particularly the NV1500 series used in various GM trucks and SUVs. This semi-synthetic formulation incorporates specialized friction modifiers that optimize synchronizer engagement while providing enhanced wear protection for transmission gears and bearings. The friction modification system remains effective throughout the fluid’s service life, maintaining consistent shift quality even as the base oil ages.

The friction modifiers in GM Synchromesh fluid are specifically calibrated for the brass and composite synchronizer materials used in GM transmissions, providing the precise friction-speed characteristics required for smooth shifting across all gear ranges. The formulation includes temperature-stable additives that maintain effectiveness from cold startup conditions through high-temperature operation, ensuring consistent shift quality regardless of operating conditions.

Field experience with GM Synchromesh Friction Modified fluid demonstrates significant improvements in shift quality, particularly in second gear engagement where synchronizer wear commonly causes grinding or resistance. Users report smoother shifts, reduced effort requirements, and elimination of gear clash symptoms that often develop in high-mileage transmissions. The fluid’s enhanced wear protection also extends synchronizer life, reducing the frequency of transmission rebuilds and component replacements.

Critical Compatibility Warnings

The most critical aspect of manual transmission friction modifier application involves understanding the fundamental incompatibility between different friction modifier types. Friction modifiers designed for limited slip differentials contain sulfur-based compounds and specific friction characteristics that can severely damage automatic transmissions and may cause problems in some manual transmission applications. These differential friction modifiers are formulated to reduce friction coefficients, which is exactly opposite to the requirements of many transmission clutch systems.

Automatic transmissions represent the most critical incompatibility, as differential friction modifiers can cause clutch slippage, delayed engagement, and complete transmission failure. The friction modifiers designed for differential clutch packs reduce the friction coefficient to prevent chatter, but automatic transmission clutches require specific friction-speed characteristics for proper engagement timing and torque capacity. Adding differential friction modifier to automatic transmission fluid can result in catastrophic transmission damage requiring complete rebuild or replacement.

Even within manual transmission applications, compatibility varies significantly based on transmission design, synchronizer materials, and operating requirements. Transmissions designed for specific friction-modified fluids, such as the GM NV1500, require their designated fluids for proper operation. Using incorrect friction modifiers or standard gear oils in these applications can cause synchronizer damage, difficult shifting, and premature wear that may not be covered under warranty.

Critical Warning: NEVER add differential friction modifier to automatic transmissions. Only use friction modifiers specifically designed for manual transmission synchronizers in compatible applications. Always consult manufacturer specifications before adding any friction modifier to transmission systems.

Application Guidelines and Best Practices

Proper application of friction modifiers in manual transmissions requires careful identification of transmission type, synchronizer materials, and manufacturer specifications. The process begins with consulting the vehicle service manual or transmission manufacturer documentation to determine if friction-modified fluid is required or recommended. Many modern manual transmissions are designed to operate with standard gear oils and do not require friction modification, while others specifically require friction-modified fluids for proper operation.

When friction-modified fluid is required, the entire transmission fluid should be replaced rather than attempting to add friction modifier to existing fluid. This ensures proper concentration and distribution of the friction modifier throughout the transmission while removing any contamination or degraded fluid that could interfere with synchronizer operation. The replacement procedure should follow manufacturer specifications for fluid capacity, fill procedures, and break-in requirements.

Post-installation evaluation involves testing shift quality across all gear ranges under various operating conditions including cold startup, normal operating temperature, and high-load situations. Proper friction modification should result in smooth, effortless shifts with no grinding, resistance, or gear clash. Any persistent shifting problems after friction modifier application may indicate synchronizer wear, incorrect fluid specification, or transmission mechanical problems requiring professional diagnosis and repair.

Diesel Engine Systems

Diesel engine applications present unique challenges and opportunities for friction modifier technology, with specialized formulations designed to address the severe operating conditions, extended service intervals, and specific mechanical issues encountered in diesel powerplants. The high compression ratios, elevated combustion temperatures, and increased mechanical stresses inherent in diesel operation create tribological demands that exceed those found in gasoline engines, making friction modifier selection and application critical for optimal performance and longevity.

Diesel-Specific Tribological Challenges

Diesel engines operate under significantly more severe conditions than their gasoline counterparts, with peak cylinder pressures often exceeding 2000 PSI and combustion temperatures reaching 4000°F. These extreme conditions create intense mechanical stresses throughout the engine, from piston rings and cylinder bores to valve trains and bearing surfaces. The higher compression ratios required for diesel combustion also result in increased loads on all rotating and reciprocating components, making effective friction modification essential for component protection and performance optimization.

The combustion characteristics of diesel fuel contribute additional challenges through the production of soot, acids, and other combustion byproducts that can contaminate the engine oil and interfere with friction modifier effectiveness. Diesel combustion produces significantly more particulate matter than gasoline combustion, leading to higher soot loading in the engine oil that can abrade friction modifier films and accelerate component wear. The acidic byproducts of diesel combustion can also attack friction modifier molecules, reducing their effectiveness over time and necessitating more frequent oil changes or enhanced additive packages.

Extended service intervals common in diesel applications place additional demands on friction modifier durability and thermal stability. While gasoline engines typically operate on 5,000-7,500 mile oil change intervals, diesel engines often extend to 10,000-15,000 miles or more between services. This extended exposure to high temperatures, contamination, and mechanical stress requires friction modifiers with exceptional stability and longevity to maintain protection throughout the entire service interval.

Power Stroke Injector Stiction Solutions

Ford Power Stroke engines, particularly the 6.0L and 7.3L variants, present a unique application for friction modifier technology through their Hydraulically-actuated Electronic Unit Injector (HEUI) systems. These systems use engine oil pressure to actuate fuel injectors, creating extreme pressure and temperature conditions that can cause oil degradation and deposit formation within the injector mechanisms. The resulting static friction, commonly called “stiction,” can disrupt injector operation and cause significant performance problems including hard starting, rough idling, and power loss.

The HEUI system subjects engine oil to pressures exceeding 3000 PSI and temperatures above 300°F within the injector bodies, conditions that rapidly degrade conventional engine oils and cause deposit formation on critical surfaces. These deposits accumulate on spool valves and poppet valves within the injectors, creating static friction that prevents proper injector operation. The gradual buildup of deposits significantly impacts engine performance, with symptoms becoming more pronounced as the deposits thicken and harden over time.

Archoil AR9100 represents a specialized friction modifier solution designed specifically to address Power Stroke stiction problems through advanced nano-lubrication technology. The product’s formulation includes deposit-dissolving agents that break down existing stiction-causing deposits while forming protective lubricating films that prevent future deposit formation. The treatment requires a full 16-ounce bottle per oil change in Power Stroke applications, significantly higher than the 1.2 ounces per quart used in conventional diesel engines, reflecting the severity of the HEUI system’s operating conditions.

Quantified Performance Benefits

Independent testing of diesel engine friction modifiers demonstrates significant quantifiable benefits across multiple performance parameters. ASTM testing of AR9100 friction modifier shows wear reduction of up to 43% compared to untreated engine oils, with particularly impressive results in boundary lubrication conditions common during cold starts and high-load operation. This wear reduction translates directly to extended component life and reduced maintenance costs over the engine’s service life.

Load-carrying capacity improvements represent another significant benefit, with ASTM testing showing increases from 3,964 pounds to over 4,500 pounds in treated lubricants. This 13% improvement in load-carrying ability provides enhanced protection during peak stress conditions such as heavy acceleration, trailer towing, and high-altitude operation where engine loads can exceed normal design parameters. The improved load capacity also provides additional safety margin for engines operating under severe duty cycles or extended service intervals.

Oil life extension represents a critical economic benefit, with Blackstone Laboratories testing demonstrating that oil treated with AR9100 showed similar degradation levels at 10,000 miles as untreated oil at 5,500 miles. This 82% improvement in oil stability enables extended drain intervals while maintaining adequate protection, reducing both lubricant costs and maintenance labor. For commercial diesel operations, this oil life extension can result in substantial cost savings while improving equipment availability through reduced maintenance downtime.

Application Procedures and Dosage Guidelines

Proper application of friction modifiers in diesel engines requires careful attention to dosage rates, timing, and compatibility with existing oil formulations. For general diesel applications, the standard treat rate of 1.2 ounces per quart of engine oil provides optimal friction reduction and wear protection without over-treating the system. This dosage should be added during oil changes to ensure proper mixing and distribution throughout the lubrication system.

Power Stroke engines require significantly higher dosage rates due to the severe conditions within the HEUI injection system. The recommended treatment involves removing 16 ounces of engine oil and replacing it with a full bottle of AR9100 friction modifier, resulting in approximately 4% concentration by volume. This high concentration is necessary to dissolve existing deposits while providing adequate protection against future stiction formation. The treatment should be applied with every oil change to maintain effectiveness.

Installation procedures for diesel friction modifiers should account for the larger oil capacities and higher operating temperatures typical of diesel engines. The engine should be warmed to operating temperature before treatment to ensure proper mixing and circulation of the friction modifier. Post-treatment operation should include a thorough warm-up cycle and test drive to circulate the treated oil throughout all lubrication circuits and allow the friction modifier to reach equilibrium on all friction surfaces.

Diesel Benefits: Friction modifiers in diesel engines provide up to 43% wear reduction, 13% load capacity increase, and 82% improvement in oil stability, with specialized formulations available for Power Stroke injector stiction problems.

Transfer Case Compatibility

Transfer case friction modifier compatibility represents one of the most misunderstood aspects of drivetrain lubrication, with conflicting information and manufacturer variations creating confusion about proper treatment procedures. The majority of transfer cases do not require friction modifier additives and may actually be damaged by inappropriate friction modifier use, making proper identification of transfer case type and lubrication requirements essential for avoiding costly repairs and maintaining optimal performance.

Most conventional transfer cases operate with simple gear trains and chain drives that function effectively with standard 75W-90 gear oil without friction modification. These systems rely on hydrodynamic and elastohydrodynamic lubrication regimes where the gear oil’s viscosity and pressure-viscosity characteristics provide adequate protection. Adding friction modifier to these systems provides no performance benefit and may introduce sulfur-based compounds that can attack bronze bushings, seals, and other transfer case components over time.

However, some transfer cases incorporate limited slip mechanisms or lockable center differentials that may benefit from friction modifier treatment. These systems typically feature clutch packs or cone clutches similar to those found in limited slip differentials, requiring similar friction modification for proper operation. Identification of these systems requires careful consultation of manufacturer specifications and service documentation, as external appearance may not indicate the presence of limited slip mechanisms.

Power Steering and Hydraulic Systems

Power steering and hydraulic systems benefit from friction modifier technology primarily through the prevention of stick-slip phenomena that can cause steering wheel vibration, pump noise, and reduced system precision. The high-pressure, low-speed conditions common in power steering systems create ideal conditions for stick-slip oscillations, particularly in systems using ATF-based power steering fluids that may lack adequate friction modification for smooth operation under all conditions.

Specialized power steering fluids such as PSC Tru Blue incorporate unique friction modifiers specifically designed to reduce power steering noise while maintaining proper hydraulic function. These friction modifiers work by smoothing the transition between static and kinetic friction in the steering gear and pump, eliminating the sudden friction changes that cause noise and vibration. The broad temperature range formulation ensures consistent performance from cold startup through high-temperature operation.

Industrial hydraulic systems, particularly those used in precision manufacturing and automation, require friction modifiers to maintain smooth and predictable motion characteristics. Servo valves and proportional valves depend on precise friction characteristics for accurate control, while hydraulic cylinders require smooth operation to prevent stick-slip that can affect product quality and system precision. The friction modifier selection must consider compatibility with seals and the wide range of operating temperatures encountered in industrial applications.

Wet Brake Systems

Wet brake systems in tractors and heavy equipment represent a specialized application where friction modifiers must provide controlled friction characteristics rather than friction reduction. These systems operate with brake discs immersed in hydraulic fluid, requiring precise friction-speed characteristics to ensure consistent braking performance without chatter or fade. The friction modifier must maintain stable friction levels across the wide range of speeds and temperatures encountered during braking while preventing the stick-slip phenomena that can cause brake chatter and reduced stopping effectiveness.

John Deere PEMO Anti-Chatter Additive represents a specialized friction modifier designed specifically for wet brake applications, formulated to enhance the performance of brake components while maintaining compatibility with hydraulic system seals and components. The 355ml bottles provide convenient dosing for tractor hydraulic systems, with the friction modifier designed to integrate seamlessly with existing hydraulic fluids without affecting pump performance or system operation.

Mobil Mobilfluid 422 exemplifies the integrated approach to wet brake friction modification, incorporating special frictional characteristics directly into the hydraulic fluid formulation. This multipurpose tractor lubricant prevents squawk and chatter in wet brake systems while delivering consistent braking performance across all operating conditions. The formulation balances the competing requirements of hydraulic system operation and brake performance, providing optimal function for both applications.

Open Differential Considerations

Open differentials represent the most straightforward case in friction modifier applications, as these systems provide no benefit from friction modifier treatment and should not receive friction modifier additives under normal circumstances. Open differentials lack the clutch packs or friction surfaces that require friction modification, operating instead through simple gear trains that function effectively with standard gear oils. Adding friction modifier to open differentials represents unnecessary expense without performance improvement.

The fundamental difference between open and limited slip differentials lies in their torque distribution mechanisms. Open differentials allow wheels to rotate at different speeds without restriction, automatically directing torque to the wheel with least resistance. This operation requires no friction modification, as there are no clutch surfaces to optimize. Limited slip differentials, conversely, use clutch packs to restrict speed differences and redistribute torque, requiring friction modification for proper clutch operation.

While limited slip friction modifier will not damage open differentials, it provides no functional benefit and represents wasted expense. The friction modifier molecules will circulate harmlessly in the gear oil but cannot improve performance in the absence of clutch surfaces to treat. Vehicle owners should verify differential type before purchasing friction modifier additives, as the external appearance of differentials may not clearly indicate their internal configuration.

Engine Oil Compatibility and Aftermarket Additives

Modern engine oils already incorporate sophisticated friction modifier packages designed to optimize fuel economy, reduce wear, and meet stringent emission requirements. These carefully balanced formulations include organic friction modifiers, organomolybdenum compounds, and other tribological additives that work synergistically with anti-wear agents, antioxidants, and detergent-dispersants to provide comprehensive engine protection. Adding aftermarket friction modifiers to these fully formulated oils can disrupt this careful balance and potentially cause more harm than good.

Professional lubricant experts consistently warn against adding supplementary additives to fully formulated engine oils, describing the practice as potentially dangerous due to the complex interactions between different additive chemistries. Modern engine oil formulations represent the result of extensive testing and optimization, with each component selected to work harmoniously with all others. Introducing additional friction modifiers can cause precipitation, incompatibility reactions, or performance degradation that may not become apparent until significant engine damage has occurred.

The risks of aftermarket engine oil additives extend beyond simple incompatibility to include deposit formation, seal degradation, and catalytic converter contamination. Many aftermarket friction modifiers contain metallic compounds or sulfur-based additives that can poison catalytic converters or damage emission control systems. The potential for warranty voiding represents an additional risk, as many manufacturers specifically prohibit the use of aftermarket oil additives and may deny warranty claims for engines treated with unauthorized additives.

Application Procedures and Best Practices

Successful friction modifier application requires systematic identification of system requirements, proper product selection, and careful attention to application procedures and dosage rates. The process begins with accurate identification of the system type and manufacturer specifications, as incorrect application can cause expensive damage or void warranties. Service manuals, manufacturer bulletins, and professional consultation should be utilized to verify friction modifier requirements before proceeding with treatment.

Product selection should prioritize compatibility with existing lubricants and system materials while meeting the specific performance requirements of the application. Generic friction modifiers may not provide optimal performance in specialized applications, making application-specific products preferable despite higher costs. Quality considerations should include thermal stability, longevity, and compatibility with seals and other system components that may be affected by friction modifier chemistry.

Application procedures must account for proper mixing, circulation, and break-in requirements specific to each system type. Differential applications require warming and test driving to achieve proper distribution and effectiveness. Transmission applications may require complete fluid replacement rather than additive treatment. Engine applications should be avoided in favor of properly formulated oils that include appropriate friction modifier packages from the factory.

References

  1. AMSOIL Blog – What Does a Limited-Slip Additive Do?
  2. Archoil – AR9100 Oil Additive
  3. Red Line Synthetic Oil – Limited-Slip Friction Modifier
  4. GM Synchromesh Friction Modified Transmission Fluid
  5. John Deere PEMO Anti-Chatter Additive
  6. Mobil Mobilfluid 422
  7. BobIsTheOilGuy Forums – Friction Modifiers
  8. Machinery Lubrication – Pros and Cons of Aftermarket Oil Additives

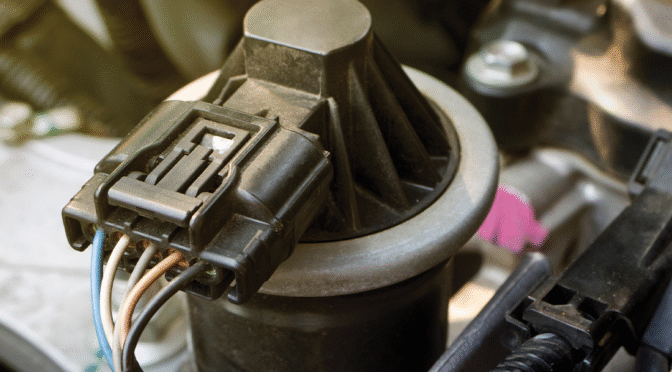

EGR valve connector.
EGR Cleaning & Maintenance

Understanding EGR Valves: Function, Location and Operation

May 9, 2025 FTE Leave a comment

The Exhaust Gas Recirculation (EGR) valve represents one of the most critical yet misunderstood components in modern automotive emission control systems. As environmental regulations become increasingly stringent and vehicle manufacturers strive to meet ever-tightening NOx emission standards, understanding the function, operation, and maintenance of EGR valves has become essential for automotive professionals, technicians, and vehicle owners alike.

This comprehensive guide explores every aspect of EGR valve technology, from fundamental operating principles to advanced diagnostic procedures. Whether you’re troubleshooting a check engine light, planning preventive maintenance, or simply seeking to understand how modern emission systems work, this article provides the technical depth and practical insights needed to master EGR valve systems across both diesel and petrol applications.

Table of Contents ▼
  • What is an EGR Valve?
  • How EGR Valves Work
  • EGR Operation in Diesel Engines
  • EGR Operation in Petrol Engines
  • EGR Cooler Function and Operation
  • NOx Reduction Mechanisms
  • EGR Valve Opening and Closing Conditions
  • EGR Valve Location and Installation
  • EGR Sensors and Solenoids
  • EGR System Connections
  • Are EGR Valves Necessary?
  • Which Cars Have EGR Valves?
  • Historical Development and Innovation

What is an EGR Valve?

The Exhaust Gas Recirculation (EGR) valve stands as one of the most sophisticated and essential components in modern automotive emission control systems. At its core, an EGR valve is a precisely engineered device that creates a controlled pathway for exhaust gases to return from the exhaust manifold to the intake manifold, fundamentally altering the combustion process to achieve significant reductions in harmful nitrogen oxide (NOx) emissions.

The fundamental principle underlying EGR technology stems from a deep understanding of combustion chemistry and thermodynamics. During normal engine operation, the air entering the combustion chamber consists of approximately 78% nitrogen and 21% oxygen, with the remaining 1% comprising various trace gases. Under normal atmospheric conditions, nitrogen remains largely inert and does not participate in the combustion process. However, when exposed to the extreme temperatures generated during combustion—often exceeding 1370°C (2500°F)—this normally stable nitrogen becomes highly reactive and readily combines with oxygen to form various nitrogen oxides, collectively known as NOx.

The EGR valve addresses this fundamental challenge by introducing a measured quantity of exhaust gases back into the intake stream. These exhaust gases, having already undergone combustion, contain significantly reduced oxygen levels and elevated concentrations of carbon dioxide and water vapor. When this oxygen-depleted mixture enters the combustion chamber, it effectively dilutes the fresh air charge, reducing the overall oxygen concentration available for combustion. This dilution effect serves multiple purposes: it slows the combustion process, reduces peak combustion temperatures, and creates an environment where nitrogen is less likely to become reactive and form NOx compounds.

Technical Insight: The effectiveness of EGR in reducing NOx emissions is directly related to the temperature reduction achieved during combustion. Research has demonstrated that EGR can reduce peak combustion temperatures by approximately 150°C (270°F), which corresponds to NOx reduction rates of 50-70% depending on the specific engine design and operating conditions.

Modern EGR valves represent the culmination of decades of engineering refinement and technological advancement. Unlike the simple orifice-based systems of the 1970s, contemporary EGR valves incorporate sophisticated electronic control systems, precision-machined components, and advanced materials designed to withstand the harsh operating environment of the exhaust system. These valves must operate reliably across a wide range of temperatures, pressures, and chemical exposures while maintaining precise control over exhaust gas flow rates.

The integration of EGR technology into modern engines extends beyond simple emission control. Advanced engine management systems utilize EGR as a tool for optimizing combustion efficiency, reducing pumping losses, and improving fuel economy under specific operating conditions. In turbocharged engines, EGR can help reduce the tendency toward knock or detonation, allowing for more aggressive timing strategies and improved performance. This multifaceted approach to EGR implementation demonstrates how emission control technologies can be leveraged to enhance overall engine performance rather than simply serving as a regulatory compliance measure.

The physical construction of an EGR valve typically consists of several key components working in harmony to achieve precise flow control. The valve body houses the primary flow control mechanism, which may be a butterfly valve, pintle valve, or rotary valve depending on the specific application. Electronic EGR valves incorporate stepper motors or servo motors for precise positioning, while older vacuum-operated systems rely on diaphragm actuators controlled by engine vacuum signals. Position feedback sensors, typically potentiometers or Hall effect sensors, provide real-time valve position information to the engine control unit (ECU), enabling closed-loop control of EGR flow rates.

Types and Classifications of EGR Valves

The automotive industry has developed several distinct types of EGR valves, each optimized for specific engine configurations and operating requirements. Understanding these different valve types is crucial for proper diagnosis, maintenance, and replacement procedures. The primary classifications of EGR valves are based on their control mechanism, operating pressure, and intended application.

Vacuum-Operated EGR Valves represent the earliest and simplest form of EGR technology. These valves utilize engine vacuum as the primary control signal, with a diaphragm actuator responding to vacuum levels generated by the intake manifold. The vacuum signal is typically modulated by a vacuum solenoid controlled by the ECU, allowing for basic on/off control or simple modulation of EGR flow. While these systems are relatively simple and cost-effective, they offer limited precision in flow control and are primarily found on older vehicles or basic engine applications.

Electronic EGR Valves represent the current state-of-the-art in EGR technology, offering precise control over exhaust gas flow rates through sophisticated electronic actuators. These valves typically employ stepper motors or servo motors to position the valve element with high accuracy, enabling the ECU to implement complex EGR strategies based on multiple engine parameters. Electronic valves often incorporate multiple sensors, including position feedback, temperature monitoring, and flow measurement capabilities, providing comprehensive system diagnostics and enabling advanced control algorithms.

High-Pressure EGR Systems are predominantly used in diesel engine applications where exhaust gas is extracted from the exhaust manifold before passing through the diesel particulate filter (DPF). This configuration allows for high flow rates but requires the EGR system to handle exhaust gases with elevated soot content and temperatures. High-pressure systems typically incorporate robust valve designs with enhanced sealing capabilities and materials specifically chosen for their resistance to carbon buildup and thermal cycling.

Low-Pressure EGR Systems extract exhaust gases from the exhaust stream after treatment by the DPF and other emission control devices. While the flow rates are typically lower than high-pressure systems, the exhaust gas is significantly cleaner, reducing the potential for carbon buildup and extending component life. Low-pressure systems are often used in conjunction with high-pressure systems in advanced diesel engines to optimize NOx reduction across the entire operating range.

How EGR Valves Work

The operational principles of EGR valves are rooted in fundamental combustion science and thermodynamics, representing a sophisticated approach to emission control that works by modifying the basic chemistry of the combustion process. To understand how EGR valves function, it is essential to first examine the conditions under which nitrogen oxides form and how the introduction of exhaust gases can effectively disrupt this formation process.

During normal combustion, the air-fuel mixture burns rapidly, creating a flame front that propagates through the combustion chamber at speeds that can exceed 40 meters per second. This rapid combustion generates peak temperatures that routinely exceed 1370°C (2500°F), creating an environment where the normally inert nitrogen in the air becomes highly reactive. At these extreme temperatures, nitrogen readily combines with oxygen to form various nitrogen oxide compounds, including nitric oxide (NO) and nitrogen dioxide (NO2), which collectively constitute the NOx emissions that modern emission regulations seek to minimize.

The EGR valve interrupts this process by introducing exhaust gases into the intake stream, fundamentally altering the composition of the charge entering the combustion chamber. Exhaust gases contain significantly reduced oxygen concentrations—typically 12-15% compared to the 21% found in fresh air—along with elevated levels of carbon dioxide, water vapor, and other combustion products. When these oxygen-depleted gases mix with the fresh air charge, they create a diluted mixture that burns more slowly and at lower peak temperatures.

Combustion Chemistry: The presence of carbon dioxide and water vapor in exhaust gases serves as a heat sink during combustion, absorbing thermal energy that would otherwise contribute to peak temperature formation. This thermal absorption effect, combined with the reduced oxygen availability, can lower peak combustion temperatures by 100-200°C, dramatically reducing the formation rate of NOx compounds.

The precise control of EGR flow rates is critical to achieving optimal emission reduction while maintaining acceptable engine performance. Modern EGR systems employ sophisticated control algorithms that continuously monitor engine operating conditions and adjust valve position accordingly. The ECU considers factors such as engine load, speed, temperature, throttle position, and ambient conditions to determine the optimal EGR flow rate for any given operating point. This dynamic control ensures that NOx reduction is maximized during conditions where it is most needed while avoiding excessive EGR flow that could compromise engine performance or fuel economy.

The physical mechanism by which EGR valves control exhaust gas flow varies depending on the valve design and application. In vacuum-operated systems, the valve position is controlled by the vacuum level applied to a diaphragm actuator. As vacuum increases, the diaphragm moves against spring pressure, opening the valve and allowing exhaust gas to flow into the intake manifold. The vacuum level is modulated by a solenoid valve controlled by the ECU, providing basic flow control capabilities.

Electronic EGR valves offer significantly more precise control through the use of stepper motors or servo actuators. These systems can position the valve element with high accuracy, enabling the implementation of complex EGR strategies that optimize emission reduction across the entire engine operating range. Position feedback sensors provide real-time valve position information to the ECU, enabling closed-loop control that compensates for component wear, temperature effects, and other variables that might affect valve performance.

EGR Flow Dynamics and Control

The flow of exhaust gases through the EGR system is governed by complex fluid dynamics that must be carefully managed to achieve optimal performance. The driving force for EGR flow is the pressure differential between the exhaust and intake manifolds, which varies significantly with engine operating conditions. During idle and light load conditions, this pressure differential is relatively small, requiring careful valve design to achieve adequate flow rates. Under high load conditions, the pressure differential increases substantially, necessitating precise flow control to prevent excessive EGR rates that could compromise engine performance.

The temperature of exhaust gases presents additional challenges for EGR system design and operation. Exhaust gas temperatures can range from 200°C during idle conditions to over 800°C under high load operation. These elevated temperatures affect gas density, flow characteristics, and the thermal stress experienced by system components. Advanced EGR systems incorporate temperature monitoring and compensation algorithms to account for these thermal effects and maintain consistent flow control across all operating conditions.

The integration of EGR systems with other emission control technologies requires careful coordination to optimize overall system performance. In diesel engines, EGR systems must work in harmony with diesel particulate filters (DPF), selective catalytic reduction (SCR) systems, and diesel oxidation catalysts (DOC) to achieve comprehensive emission control. The timing and magnitude of EGR flow must be coordinated with DPF regeneration cycles, SCR dosing strategies, and other emission control functions to ensure optimal performance of the entire emission system.

Modern EGR control strategies employ predictive algorithms that anticipate changes in engine operating conditions and pre-position the EGR valve to minimize response delays. These systems utilize inputs from accelerator pedal position sensors, transmission control modules, and other vehicle systems to predict upcoming load changes and adjust EGR flow accordingly. This predictive approach helps maintain optimal emission control during transient operating conditions, which represent a significant portion of real-world driving scenarios.

EGR Operation in Diesel Engines

Diesel engines present unique challenges and opportunities for EGR implementation due to their fundamental operating characteristics and emission profiles. Unlike gasoline engines, diesel engines operate with lean air-fuel ratios and rely on compression ignition rather than spark ignition, creating distinct combustion conditions that significantly influence EGR system design and operation. The inherently high compression ratios of diesel engines—typically ranging from 14:1 to 23:1—generate elevated combustion temperatures that make NOx formation particularly problematic, necessitating more aggressive EGR strategies than those employed in gasoline applications.

The lean combustion characteristics of diesel engines result in excess oxygen availability throughout most of the operating range, creating ideal conditions for NOx formation when combined with the high combustion temperatures inherent to compression ignition. Research has demonstrated that diesel engines can produce NOx emissions that are 40-60% higher than equivalent gasoline engines under similar operating conditions, making EGR technology absolutely critical for meeting modern emission standards. This elevated NOx production potential has driven the development of sophisticated dual-loop EGR systems that combine both high-pressure and low-pressure recirculation paths to maximize emission reduction effectiveness.

High-pressure EGR systems in diesel applications extract exhaust gases directly from the exhaust manifold, upstream of the turbocharger and emission control devices. This configuration provides several advantages, including high flow rates due to elevated exhaust pressures and immediate availability of exhaust gases for recirculation. However, high-pressure systems must contend with exhaust gases that contain elevated soot concentrations and temperatures, presenting significant challenges for component durability and system reliability. The soot content in pre-treatment exhaust gases can exceed 100 mg/m³, requiring robust valve designs and materials specifically engineered to resist carbon buildup and maintain proper sealing over extended operating periods.

Diesel EGR Efficiency: Modern diesel EGR systems can achieve NOx reduction rates of 50-70% when properly calibrated and maintained. The most effective systems combine high-pressure and low-pressure EGR paths, with high-pressure systems providing rapid response during transient conditions and low-pressure systems offering sustained NOx reduction during steady-state operation.

Low-pressure EGR systems extract exhaust gases from the exhaust stream after treatment by the diesel particulate filter and other emission control devices. While the available pressure differential is lower than high-pressure systems, the exhaust gases are significantly cleaner, with soot concentrations reduced by 95% or more compared to untreated exhaust. This cleaner gas composition reduces the potential for carbon buildup in the EGR system and extends component service life. Low-pressure systems are particularly effective during steady-state operating conditions where sustained EGR flow is beneficial for NOx reduction.

The integration of EGR systems with turbocharging technology in diesel engines requires careful consideration of the interactions between boost pressure, EGR flow, and overall engine performance. In turbocharged diesel engines, the EGR valve must work in coordination with the turbocharger’s variable geometry or wastegate control to maintain optimal air-fuel ratios and boost pressures. Advanced control systems monitor turbocharger speed, boost pressure, and EGR flow rates to ensure that emission reduction objectives are met without compromising engine performance or turbocharger durability.

The thermal management challenges associated with diesel EGR systems are particularly acute due to the elevated exhaust gas temperatures characteristic of diesel combustion. Exhaust gas temperatures in diesel engines can exceed 600°C during normal operation and approach 800°C under high load conditions. These elevated temperatures necessitate the use of heat-resistant materials and sophisticated cooling strategies to maintain component integrity and ensure reliable operation. Many modern diesel EGR systems incorporate dedicated EGR coolers that use engine coolant to reduce exhaust gas temperatures before recirculation, improving the effectiveness of the NOx reduction process while protecting downstream components.

Unique Challenges in Diesel EGR Systems

The implementation of EGR technology in diesel engines presents several unique challenges that require specialized engineering solutions and maintenance approaches. The high soot content of diesel exhaust gases creates a particularly problematic environment for EGR components, as carbon particles can accumulate on valve surfaces, in connecting passages, and throughout the intake system. This carbon buildup can lead to valve sticking, reduced flow capacity, and eventual system failure if not properly managed through design optimization and preventive maintenance.

The corrosive nature of diesel exhaust gases, which contain elevated concentrations of sulfur compounds, nitrogen oxides, and other reactive species, places additional demands on EGR system materials and coatings. Components must be engineered to resist chemical attack while maintaining dimensional stability and sealing integrity over extended operating periods. Advanced material technologies, including specialized stainless steel alloys and ceramic coatings, are employed to address these durability challenges and ensure reliable long-term operation.

The coordination of EGR systems with diesel particulate filter regeneration cycles presents another layer of complexity in diesel applications. During DPF regeneration, exhaust gas temperatures can exceed 600°C, requiring EGR systems to either shut down completely or implement specialized high-temperature operating modes. The timing and frequency of DPF regeneration events must be coordinated with EGR operation to ensure that emission reduction objectives are maintained while protecting system components from thermal damage.

Modern diesel EGR systems increasingly incorporate advanced diagnostic capabilities to monitor system performance and detect potential issues before they result in component failure or emission compliance problems. These diagnostic systems monitor parameters such as EGR flow rates, valve position, temperature profiles, and pressure differentials to provide comprehensive system health assessment. Predictive maintenance algorithms can identify trends that indicate impending component wear or performance degradation, enabling proactive maintenance interventions that minimize downtime and repair costs.

EGR Operation in Petrol Engines

The implementation of EGR technology in petrol engines differs significantly from diesel applications due to the fundamental differences in combustion characteristics, operating conditions, and emission profiles. Petrol engines operate with stoichiometric or near-stoichiometric air-fuel ratios, utilize spark ignition, and generate different temperature and pressure profiles compared to their diesel counterparts. These operational differences necessitate distinct EGR system designs and control strategies optimized for the unique requirements of gasoline combustion.

In petrol engines, the primary driving force for EGR flow is the natural vacuum created by the downward motion of pistons during the intake stroke. This vacuum effect draws exhaust gases through the EGR valve and into the intake manifold, where they mix with the fresh air charge before entering the combustion chambers. The magnitude of this vacuum varies significantly with engine load and throttle position, requiring sophisticated control systems to maintain optimal EGR flow rates across the entire operating range. During idle conditions, intake manifold vacuum can reach 50-60 kPa below atmospheric pressure, providing substantial driving force for EGR flow. However, under wide-open throttle conditions, this vacuum essentially disappears, limiting the effectiveness of vacuum-driven EGR systems.

The exhaust gas composition in petrol engines is markedly different from diesel applications, with lower soot content but higher concentrations of unburned hydrocarbons and carbon monoxide. This cleaner exhaust gas composition reduces the potential for carbon buildup in EGR systems but introduces different challenges related to the recirculation of partially combusted fuel components. Modern gasoline direct injection (GDI) engines, in particular, can produce elevated particulate emissions that must be considered in EGR system design and operation.

Petrol EGR Benefits: Beyond NOx reduction, EGR in petrol engines provides additional benefits including reduced pumping losses (improving fuel economy by 2-5%), enhanced knock resistance in turbocharged applications, and improved combustion stability under certain operating conditions. These secondary benefits make EGR an attractive technology even in applications where NOx reduction is not the primary concern.

The control strategies employed in petrol EGR systems are typically less complex than those used in diesel applications, reflecting the different emission challenges and operating characteristics of gasoline engines. Most petrol EGR systems operate primarily during part-load conditions, where NOx formation is most problematic and the benefits of reduced pumping losses are most significant. During idle and low-load operation, EGR rates can reach 15-25% of the total intake flow, providing substantial NOx reduction while maintaining acceptable combustion stability.

The integration of EGR systems with modern gasoline engine technologies, including turbocharging, direct injection, and variable valve timing, requires careful calibration to optimize overall engine performance. In turbocharged gasoline engines, EGR can provide significant benefits for knock resistance, allowing for more aggressive ignition timing and improved fuel economy. The cooled exhaust gases help reduce charge temperatures, increasing the density of the intake charge and reducing the tendency toward knock or pre-ignition under high boost conditions.

Variable valve timing systems can be coordinated with EGR operation to optimize the mixing of exhaust gases with fresh air and improve overall combustion quality. By adjusting intake and exhaust valve timing in conjunction with EGR flow rates, engine management systems can achieve optimal charge motion, mixing, and combustion characteristics across a wide range of operating conditions. This integrated approach to engine control represents the current state-of-the-art in gasoline engine technology.

Modern Applications in Gasoline Engines

The application of EGR technology in modern gasoline engines has evolved significantly from the simple vacuum-operated systems of the past. Contemporary petrol EGR systems increasingly utilize electronic control for improved precision and integration with other engine management functions. These advanced systems can modulate EGR flow rates with high accuracy, enabling the implementation of sophisticated control strategies that optimize emission reduction, fuel economy, and performance simultaneously.

In naturally aspirated gasoline engines, EGR is primarily employed during part-load operation to reduce NOx emissions and improve fuel economy through reduced pumping losses. The system typically operates most actively during steady-state cruising conditions, where the benefits of EGR are most pronounced and the potential for combustion instability is minimized. Modern control systems can seamlessly transition EGR operation based on driving conditions, ensuring optimal performance across all operating scenarios.

Turbocharged gasoline engines represent a particularly promising application for EGR technology, as the cooled exhaust gases can significantly improve knock resistance and allow for more aggressive engine calibrations. In these applications, EGR can enable higher compression ratios, more advanced ignition timing, and increased boost pressures, resulting in improved power output and fuel economy. The thermal benefits of EGR are particularly valuable in downsized turbocharged engines, where thermal management is critical for maintaining performance and durability.

The future development of gasoline EGR systems is likely to focus on improved integration with hybrid powertrains, advanced combustion strategies, and enhanced diagnostic capabilities. As gasoline engines continue to evolve toward higher efficiency and lower emissions, EGR technology will play an increasingly important role in achieving these objectives while maintaining the performance and drivability characteristics that consumers expect.

EGR Cooler Function and Operation

The EGR cooler represents a critical advancement in exhaust gas recirculation technology, serving as a sophisticated heat exchanger that dramatically enhances the effectiveness of NOx reduction while protecting downstream components from thermal damage. By reducing exhaust gas temperatures from typical values of 400-600°C to approximately 80-120°C before recirculation, EGR coolers enable significantly higher EGR flow rates and more aggressive emission reduction strategies than would be possible with uncooled systems.

The fundamental principle underlying EGR cooler operation is the relationship between gas temperature and density, combined with the temperature-dependent nature of NOx formation during combustion. Cooled exhaust gases are denser than hot gases, allowing for greater mass flow rates through the EGR system and more effective dilution of the fresh air charge. Additionally, the introduction of cooled gases into the combustion chamber provides enhanced thermal absorption capacity, further reducing peak combustion temperatures and NOx formation rates. Research has demonstrated that properly designed EGR coolers can increase NOx reduction effectiveness by 40-70% compared to uncooled systems.

The construction of EGR coolers typically follows a shell-and-tube or plate-type heat exchanger design, with exhaust gases flowing through one circuit while engine coolant flows through a separate circuit to remove heat. The heat transfer surfaces are engineered to maximize thermal efficiency while minimizing pressure drop and fouling potential. Advanced cooler designs incorporate features such as turbulence-inducing fins, optimized flow paths, and specialized coatings to enhance heat transfer performance and resist corrosion from exhaust gas constituents.

Cooling Effectiveness: Modern EGR coolers can achieve cooling effectiveness ratings of 85-95%, meaning they remove 85-95% of the available thermal energy from the exhaust gas stream. This high level of thermal performance is essential for maximizing NOx reduction while maintaining acceptable intake charge temperatures and engine performance.

The integration of EGR coolers with engine cooling systems requires careful consideration of thermal loads and coolant flow distribution. The heat removed from exhaust gases must be dissipated through the vehicle’s radiator system, potentially increasing cooling system loads by 5-15% depending on EGR flow rates and operating conditions. Advanced cooling system designs incorporate dedicated EGR cooler circuits with separate thermostats and flow control valves to optimize thermal management and prevent overcooling of the engine during cold operation.

The durability challenges associated with EGR coolers are significant, as these components must withstand thermal cycling, corrosive exhaust gas environments, and potential fouling from soot and other particulates. Thermal cycling between ambient temperatures and operating temperatures of 600°C or higher can induce significant mechanical stresses in cooler components, requiring robust designs and materials specifically chosen for their thermal expansion characteristics and fatigue resistance. Corrosion resistance is particularly critical in diesel applications, where exhaust gases contain elevated concentrations of sulfur compounds and other corrosive species.

EGR Cooler Failure Modes and Prevention

EGR coolers are subject to several distinct failure modes that can compromise system performance and potentially cause significant engine damage if not properly addressed. The most common failure mode is internal leakage between the exhaust gas and coolant circuits, which can result in coolant loss, exhaust gas contamination of the cooling system, and potential engine overheating. This type of failure is typically caused by thermal stress cracking, corrosion, or manufacturing defects in the heat exchanger core.

External fouling of EGR coolers represents another significant challenge, particularly in diesel applications where soot and other particulates can accumulate on heat transfer surfaces and reduce cooling effectiveness. Advanced cooler designs incorporate self-cleaning features such as optimized flow velocities and turbulence patterns to minimize fouling potential. Regular maintenance procedures, including periodic cleaning and inspection, are essential for maintaining optimal cooler performance and preventing premature failure.

The development of bypass systems and fail-safe operating modes has become increasingly important in modern EGR cooler applications. These systems allow continued engine operation in the event of cooler failure while maintaining some level of emission control capability. Bypass valves can redirect exhaust gas flow around a failed cooler, enabling uncooled EGR operation until repairs can be completed. Advanced diagnostic systems monitor cooler performance and can detect impending failures before they result in catastrophic damage or complete system shutdown.

NOx Reduction Mechanisms

The mechanism by which EGR systems achieve NOx reduction is fundamentally rooted in the temperature-dependent kinetics of nitrogen oxide formation during combustion. Understanding these mechanisms is essential for optimizing EGR system design, calibration, and maintenance procedures. The formation of NOx compounds occurs through several distinct chemical pathways, with thermal NOx formation being the dominant mechanism under most engine operating conditions.

Thermal NOx formation follows the Zeldovich mechanism, a series of chemical reactions that become increasingly active as combustion temperatures exceed approximately 1300°C. The rate of NOx formation increases exponentially with temperature, meaning that relatively small reductions in peak combustion temperature can yield dramatic reductions in NOx emissions. EGR achieves these temperature reductions through multiple mechanisms, including thermal dilution, reduced oxygen availability, and enhanced heat absorption by exhaust gas constituents.

The thermal dilution effect occurs when exhaust gases, which have lower specific heat ratios than fresh air, absorb thermal energy during combustion without contributing to the combustion process itself. Carbon dioxide and water vapor, the primary constituents of exhaust gas, have higher heat capacities than nitrogen and oxygen, enabling them to absorb more thermal energy per unit mass. This enhanced thermal absorption reduces the peak temperatures achieved during combustion, directly inhibiting the formation of thermal NOx.

The reduction in oxygen availability achieved through EGR implementation creates a secondary mechanism for NOx reduction by limiting the availability of oxygen atoms necessary for NOx formation reactions. While this effect is generally less significant than thermal dilution, it becomes increasingly important at higher EGR rates and can contribute substantially to overall NOx reduction effectiveness. The optimal balance between thermal dilution and oxygen displacement effects varies with engine design and operating conditions, requiring careful calibration to maximize emission reduction benefits.

EGR Valve Opening and Closing Conditions

The precise timing and control of EGR valve operation represents one of the most critical aspects of modern emission control systems, requiring sophisticated algorithms that balance NOx reduction objectives with engine performance, fuel economy, and drivability requirements. Modern EGR control strategies employ complex decision matrices that consider multiple engine parameters simultaneously, including load, speed, temperature, throttle position, and ambient conditions to determine optimal valve positioning for any given operating scenario.

During engine startup and warm-up phases, EGR valves remain completely closed to ensure optimal combustion stability and rapid catalyst light-off. Cold engines require precise air-fuel ratios and stable combustion to achieve proper warm-up characteristics and minimize cold-start emissions. The introduction of exhaust gases during this critical phase could compromise combustion stability and delay the achievement of optimal operating temperatures. Most EGR systems remain inactive until engine coolant temperatures exceed 60-80°C, ensuring that basic engine operation is fully established before emission control functions are activated.

At idle and low-load conditions, EGR valves gradually open to provide maximum NOx reduction benefits while maintaining acceptable combustion stability. During these operating conditions, NOx formation rates are typically lower due to reduced combustion temperatures, but EGR can still provide significant emission benefits with minimal impact on engine performance. EGR rates during idle can reach 15-25% of total intake flow in gasoline engines and 30-40% in diesel applications, representing the maximum sustainable EGR rates for most engine designs.

Operating Strategy: Modern EGR systems can modulate valve position up to 100 times per second, enabling precise control of exhaust gas flow rates in response to rapidly changing engine conditions. This high-frequency control capability is essential for maintaining optimal emission reduction during transient operating conditions that characterize real-world driving scenarios.

During acceleration and high-load operation, EGR valves close rapidly to ensure maximum oxygen availability for combustion and optimal engine performance. The transition from EGR operation to full closure must be carefully managed to avoid combustion instability or performance degradation. Advanced control systems employ predictive algorithms that anticipate load changes based on accelerator pedal position and other inputs, enabling proactive EGR valve positioning that minimizes response delays and maintains smooth engine operation.

The coordination of EGR operation with other engine management functions, including turbocharger control, fuel injection timing, and variable valve timing, requires sophisticated integration strategies that optimize overall system performance. Modern engine management systems employ model-based control approaches that predict the effects of EGR flow changes on combustion characteristics, emissions, and performance, enabling optimal coordination of all engine control functions.

EGR Valve Location and Installation

The physical location and installation of EGR valves within the engine compartment is determined by several critical factors, including packaging constraints, thermal management requirements, accessibility for maintenance, and integration with other engine systems. The optimal placement of EGR components requires careful consideration of the entire system architecture, from exhaust gas extraction points to intake manifold connection locations, ensuring efficient operation while maintaining serviceability and durability.

In most automotive applications, the EGR valve is mounted directly on or adjacent to the intake manifold, providing the shortest possible path for exhaust gas recirculation and minimizing pressure losses in the system. This mounting configuration also facilitates integration with intake manifold vacuum sources in vacuum-operated systems and simplifies electrical connections for electronically controlled valves. The valve body is typically secured using bolted flanges with gasket seals to ensure proper sealing and prevent vacuum leaks that could compromise engine performance.

The connection between the EGR valve and exhaust system is typically accomplished through metal tubing or internal engine passages, depending on the specific engine design and packaging requirements. External tubing offers advantages in terms of serviceability and thermal isolation but requires additional mounting hardware and protection from road debris and thermal cycling. Internal passages, while more compact and protected, can be more difficult to service and may be subject to carbon buildup that is challenging to remove during maintenance procedures.

In many engine designs, the EGR valve is positioned on the rear side of the engine near the firewall, where space constraints are typically less severe and access to exhaust manifold connections is more straightforward. This location also provides some protection from road debris and environmental contamination while maintaining reasonable accessibility for maintenance procedures. However, rear-mounted EGR valves can be more challenging to access during routine service, requiring specialized tools and procedures for inspection and replacement.

The thermal environment surrounding EGR valve installations presents significant challenges for component durability and performance. Exhaust gas temperatures, radiant heat from exhaust manifolds, and engine compartment temperatures can combine to create operating environments that exceed 150°C for extended periods. EGR valve designs must incorporate appropriate materials, thermal barriers, and cooling strategies to ensure reliable operation under these demanding conditions. Heat shields, thermal barriers, and strategic positioning relative to cooling airflow paths are commonly employed to manage thermal loads and protect sensitive components.

EGR Sensors and Solenoids

The sensor and control systems associated with modern EGR valves represent sophisticated technologies that enable precise monitoring and control of exhaust gas recirculation rates. These systems provide the feedback and control capabilities necessary for optimal EGR operation across all engine operating conditions while enabling comprehensive diagnostic capabilities that facilitate maintenance and troubleshooting procedures.

EGR valve position sensors, typically implemented as potentiometers or Hall effect sensors, provide real-time feedback regarding valve position to the engine control unit. These sensors enable closed-loop control of EGR flow rates, allowing the ECU to compensate for component wear, temperature effects, and other variables that might affect valve performance. Position feedback is essential for implementing advanced control strategies that optimize emission reduction while maintaining engine performance and drivability characteristics.

Temperature sensors integrated into EGR systems monitor exhaust gas temperatures at various points in the recirculation path, providing critical information for thermal management and system protection. These sensors enable the ECU to implement temperature-based control strategies that prevent component damage while optimizing EGR effectiveness. In systems with EGR coolers, temperature sensors before and after the cooler provide feedback for cooling system control and diagnostic monitoring of cooler performance.

Pressure sensors and flow measurement devices are increasingly incorporated into advanced EGR systems to provide direct measurement of exhaust gas flow rates and system performance. These sensors enable more precise control of EGR operation and provide enhanced diagnostic capabilities for detecting system malfunctions or performance degradation. Mass airflow sensors in the intake system can also provide indirect measurement of EGR flow rates by detecting changes in total intake flow characteristics.

EGR System Connections

The connection architecture of EGR systems encompasses multiple interfaces that must work in harmony to achieve optimal performance, including mechanical connections between exhaust and intake systems, electrical interfaces for control and monitoring, and integration with engine management networks. Understanding these connection requirements is essential for proper installation, maintenance, and troubleshooting of EGR systems across different vehicle applications.

The primary mechanical connection of the EGR valve creates a controlled pathway between the exhaust manifold and intake manifold, typically through a flanged mounting arrangement that ensures proper sealing and alignment. The exhaust side connection must withstand elevated temperatures and pressures while maintaining gas-tight sealing over extended operating periods. High-temperature gaskets, often manufactured from multi-layer steel or specialized composite materials, provide reliable sealing while accommodating thermal expansion and contraction cycles.

Vacuum connections in vacuum-operated EGR systems provide the control signals necessary for valve operation, typically sourced from ported vacuum taps in the throttle body or intake manifold. These vacuum lines must be properly routed and secured to prevent damage from engine vibration, thermal cycling, and environmental exposure. Vacuum line deterioration represents a common failure mode in older EGR systems, as rubber and plastic materials can become brittle and crack over time, leading to vacuum leaks that compromise system operation.

Electrical connections for electronic EGR valves include power supply circuits, ground connections, and communication interfaces with the engine control unit. Modern EGR valves often utilize Controller Area Network (CAN) or other digital communication protocols to exchange information with the ECU, enabling sophisticated control strategies and comprehensive diagnostic capabilities. These electrical connections must be protected from moisture, vibration, and electromagnetic interference to ensure reliable operation in the demanding automotive environment.

Are EGR Valves Necessary?

The necessity of EGR valves in modern automotive applications is fundamentally driven by increasingly stringent emission regulations and the legal requirements for NOx reduction in both diesel and gasoline engines. From a regulatory perspective, EGR systems are not merely recommended but are legally mandated components for achieving compliance with emission standards in most developed markets worldwide. The removal or disabling of EGR systems can result in significant legal penalties, including fines exceeding £1,000 in the UK and potential vehicle registration issues.

Beyond regulatory compliance, EGR valves serve essential functions in modern engine operation that extend beyond simple emission control. In diesel engines, EGR systems are critical for achieving the NOx reduction levels necessary for meeting Euro 6 and equivalent emission standards, with some engines relying on EGR for up to 70% of their total NOx reduction capability. The removal of EGR systems in these applications would result in NOx emissions that exceed regulatory limits by factors of 3-5, making legal operation impossible.

From a technical perspective, modern engines are calibrated and optimized with EGR systems as integral components of their operation. The removal of EGR can disrupt carefully balanced combustion strategies, potentially leading to increased fuel consumption, reduced engine longevity, and compromised performance characteristics. Advanced engine management systems rely on EGR operation for optimal calibration, and disabling these systems can trigger fault codes, reduced power modes, and other protective measures implemented by the ECU.

Legal Considerations: In the UK, tampering with emission control systems can result in MOT test failures, insurance complications, and potential prosecution under environmental protection legislation. Vehicle owners should be aware that EGR system modifications may void manufacturer warranties and create liability issues in the event of emission-related problems.

The economic implications of EGR system removal extend beyond immediate legal penalties to include potential impacts on vehicle resale value, insurance coverage, and long-term maintenance costs. Vehicles with modified or removed emission control systems may be difficult to sell, particularly in markets with strict emission testing requirements. Additionally, the removal of EGR systems may accelerate wear in other engine components due to altered combustion characteristics and increased operating temperatures.

Which Cars Have EGR Valves?

The implementation of EGR technology across different vehicle categories and engine types reflects the diverse approaches manufacturers have taken to meet emission regulations while maintaining performance and cost objectives. Understanding which vehicles incorporate EGR systems is essential for automotive professionals, vehicle owners, and anyone involved in maintenance or modification of modern vehicles.

Virtually all modern diesel passenger vehicles manufactured since 2000 incorporate EGR systems as a fundamental component of their emission control strategy. This includes diesel cars, SUVs, light commercial vehicles, and trucks across all major manufacturers. The reliance on EGR technology in diesel applications is particularly pronounced due to the inherently high NOx production characteristics of compression ignition engines and the effectiveness of EGR in addressing this specific emission challenge.

In gasoline engine applications, EGR implementation varies significantly based on engine design, market requirements, and manufacturer strategies. Approximately 70% of modern gasoline engines incorporate some form of EGR system, with higher implementation rates in turbocharged and direct injection applications where the benefits of EGR extend beyond simple emission control to include knock resistance and fuel economy improvements. Naturally aspirated port fuel injection engines may or may not include EGR systems depending on specific emission requirements and cost considerations.

Luxury and performance vehicle manufacturers have increasingly adopted EGR technology as a means of achieving emission compliance without compromising performance characteristics. Advanced EGR systems in these applications often incorporate sophisticated control strategies and premium components to minimize any potential impact on engine responsiveness or power output. Some high-performance applications utilize EGR primarily for knock resistance in turbocharged engines, enabling more aggressive calibrations and improved performance.

Commercial vehicle applications, including trucks, buses, and heavy equipment, represent some of the most sophisticated implementations of EGR technology. These applications often incorporate dual-loop EGR systems, advanced cooling strategies, and comprehensive diagnostic capabilities to achieve the stringent emission requirements applicable to commercial vehicles while maintaining the durability and reliability expectations of commercial operators.

Historical Development and Innovation

The development of EGR technology represents one of the most significant innovations in automotive emission control, with a history spanning over five decades of continuous refinement and advancement. The origins of EGR technology can be traced to the early 1970s when General Motors engineers first recognized the potential for exhaust gas recirculation to reduce NOx emissions in response to emerging environmental regulations and growing public awareness of air quality issues.

The initial implementation of EGR systems in 1973 represented a relatively crude approach compared to modern standards, with simple orifice-based designs that provided limited control over exhaust gas flow rates. These early systems were often criticized for their negative impact on engine performance and drivability, earning them the nickname “anti-performance valves” among automotive enthusiasts. However, these pioneering systems established the fundamental principles that would guide decades of subsequent development and refinement.

The evolution of EGR technology through the 1980s and 1990s focused primarily on improving control precision and reducing performance impacts through the development of vacuum-operated valves with electronic control. The introduction of engine management systems enabled more sophisticated EGR control strategies that could optimize emission reduction while minimizing negative effects on engine performance and fuel economy. This period also saw the development of position feedback sensors and diagnostic capabilities that improved system reliability and serviceability.

The modern era of EGR technology, beginning in the early 2000s, has been characterized by the development of electronic valves, advanced cooling systems, and integration with comprehensive engine management strategies. The introduction of EGR coolers represented a particularly significant advancement, enabling much higher EGR flow rates and more aggressive NOx reduction strategies. Contemporary EGR systems incorporate sophisticated materials, precision manufacturing techniques, and advanced control algorithms that represent the culmination of decades of engineering development and refinement.

References

  1. Delphi Technologies – The Basics of EGRs
  2. Wikipedia – Exhaust Gas Recirculation
  3. MS Motorservice – Function of an EGR Cooler
  4. DieselNet – Exhaust Gas Recirculation
  5. Fuel Tech Experts – Which Cars Have EGR Valves
Lorry with a fuel tank
Fuel Quality

Fuel Technology Trends and Innovations: 2025 Overview

April 8, 2025 FTE Leave a comment

The fuel technology sector is undergoing rapid transformation in 2025, driven by advances in fuels, additives, engine design, lubrication, and digital integration. Here’s a comprehensive look at the most significant trends and innovations shaping the industry this year.

Clean Energy and Alternative Fuels

Clean energy solutions are gaining momentum, with significant progress in hydrogen, sustainable aviation fuels, and advanced nuclear energy. The industry is deploying a mix of technologies—such as energy storage, clean hydrogen, and renewables—to address growing energy demands and climate goals. Research and development investments are accelerating, focusing on improving efficiency, reducing costs, and maturing emerging technologies like batteries, electrolyzers, and carbon management.

Fuel Additives: Growth and Innovation

The global fuel additives market is expanding, propelled by strict emission regulations and the push for cleaner, more efficient fuels. Key trends include:

  • Shift to Bio-based and Sustainable Additives: Companies are increasingly adopting bio-based and eco-friendly additives, responding to regulatory pressures and consumer demand for sustainability.
  • Advanced Nanotechnology: Next-generation additives use nanotechnology to enhance combustion, reduce deposits, and extend engine life.
  • Multifunctional Additives: There’s a move toward additives that deliver multiple benefits, such as improved fuel efficiency, reduced emissions, and better engine protection.
  • Digital and AI Integration: AI-driven fuel optimization and digital monitoring technologies are being developed to further enhance additive performance and fuel management.

These trends are not only shaping automotive fuels but also impacting aviation, marine, and industrial sectors, where high-performance additives are essential for efficiency and equipment longevity.

Engine Technology: Efficiency and Sustainability

Engine design is evolving to meet stricter emissions standards and the demand for higher efficiency. Notable trends include:

  • Advanced Combustion and Materials: Innovations like high bypass ratio engines, improved aerodynamics, and advanced materials are reducing fuel burn and emissions in aviation and automotive sectors.
  • Hybrid and Electric Propulsion: Electric and hybrid systems are increasingly used, especially for short-haul flights and urban vehicles, as part of the broader shift toward sustainable mobility.
  • Software-Defined and Autonomous Vehicles: The automotive industry is adopting software-defined vehicles and autonomous technologies, enabling real-time performance optimization and enhanced safety.

Lubrication: Smart Solutions and Sustainability

Lubrication technologies are advancing with the integration of digital tools and sustainable formulations:

  • IoT and Real-Time Monitoring: Sensors and connected systems enable continuous monitoring of lubricant conditions, allowing predictive maintenance and reducing downtime.
  • AI-Driven Formulations: Artificial intelligence is used to develop lubricants tailored to specific operating conditions, improving efficiency and extending service intervals.
  • Eco-Friendly Lubricants: There’s a growing market for lubricants derived from renewable sources, supporting environmental goals and regulatory compliance.

Digital Transformation and Retail Fuel Innovation

Digitalization is revolutionizing fuel delivery and retail operations:

  • Smart Fuel Management: AI and IoT are optimizing inventory, reducing waste, and improving supply chain efficiency for fuel retailers and distributors.
  • Connected Payment Solutions: Innovations like in-car payments and mobile apps are enhancing customer convenience at fuel stations.
  • Business Intelligence: Data analytics is being leveraged to understand consumer behavior, optimize pricing, and tailor marketing strategies.

Aviation and Regulatory Landscape

The aviation sector is experiencing a surge in demand for fuel additives that boost efficiency and reduce emissions. Sustainable Aviation Fuels (SAF) and bio-based additives are becoming standard as regulators impose stricter pollution controls. The industry is also investing in carbon-negative technologies and localized, sustainable production methods.

Conclusion

In 2025, the fuel technology landscape is defined by sustainability, digital integration, and advanced materials. Companies are innovating across the value chain—from cleaner fuels and smarter additives to efficient engines and predictive maintenance—while adapting to evolving regulations and market demands. The future of fuels, engines, and lubrication is increasingly high-tech, sustainable, and customer-centric, promising greater efficiency and lower environmental impact for years to come.

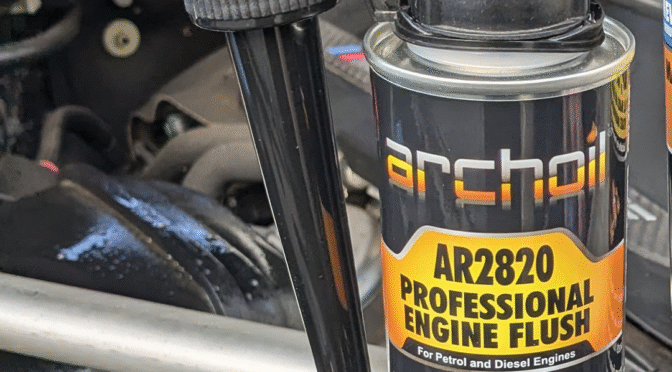

Archoil AR2820 Professional engine flush
Engine Cleaning & Flushing

Understanding Engine Flushes, What They Are And How They Work

March 28, 2025 FTE Leave a comment

Engine flushes are a hotly debated topic in the automotive world. Some swear by them as a necessary maintenance step to keep engines clean and running smoothly, while others dismiss them as an unnecessary upsell that can do more harm than good. The truth, as is often the case, lies somewhere in between. This comprehensive guide will explore the world of engine flushes, explaining what they are, how they work, and when they might be a good idea for your vehicle. We’ll also delve into the different types of flushes, compare them to other cleaning methods, and provide you with the information you need to make an informed decision about whether an engine flush is right for you.

Table of Contents ▼
  • What is an Engine Flush?
  • What Does an Engine Flush Do?
  • How Engine Flush Works
  • What is Flushing Oil vs. an Additive?
  • What is Deep Engine Flush?
  • Valve or Piston Cleaning Additives?
  • Injector Cleaner vs. Engine Flush

What is an Engine Flush?

An engine flush is a chemical additive designed to clean the internal components of your engine. Over time, as your engine runs, it can accumulate harmful deposits such as sludge, varnish, and carbon. These deposits can restrict oil flow, cause moving parts to stick, and generally degrade your engine’s performance and lifespan. An engine flush is introduced into the engine’s oil system before an oil change. The engine is then run for a short period, allowing the flush to circulate and dissolve these deposits. The old, contaminated oil, along with the dissolved gunk, is then drained away, leaving a cleaner engine for the new oil.

Think of it like a deep cleaning for your engine’s circulatory system. Just as plaque can build up in your arteries, sludge and other deposits can clog the vital oil passages in your engine. An engine flush acts as a solvent, breaking down this buildup and allowing it to be safely removed. This can be particularly beneficial for older vehicles, vehicles with a poor maintenance history, or those that are frequently driven in stop-and-go traffic, which can accelerate the formation of sludge.

What Does an Engine Flush Do?

A properly administered engine flush can provide a number of benefits, particularly for engines that have been neglected or are showing signs of sludge buildup. By removing harmful deposits, an engine flush can help to:

  • Improve Oil Circulation: Sludge and other deposits can clog narrow oil passages, restricting the flow of oil to critical engine components. This can lead to increased wear and tear, and in severe cases, catastrophic engine failure. An engine flush can clear these blockages, ensuring that all parts of the engine receive the lubrication they need.
  • Free Sticking Components: Deposits can cause moving parts, such as piston rings and hydraulic lifters, to stick. This can lead to a loss of compression, increased oil consumption, and a noisy engine. By dissolving these deposits, an engine flush can help to free these components and restore proper engine function.
  • Reduce Engine Noise: A lack of proper lubrication can cause increased friction and noise in the engine. By improving oil flow and freeing sticking components, an engine flush can help to quiet a noisy engine.
  • Extend Engine Life: By removing harmful deposits and ensuring proper lubrication, an engine flush can help to reduce wear and tear on engine components, potentially extending the life of your engine.

A Word of Caution: While engine flushes can be beneficial, they are not without risks. In older engines with heavy deposit buildup, a flush can dislodge large chunks of sludge that can then clog the oil pump pickup screen, leading to oil starvation and engine damage. It is important to assess the condition of your engine before performing a flush and to use a quality product according to the manufacturer’s instructions.

How Engine Flush Works

The process of performing an engine flush is relatively simple, but it must be done correctly to avoid potential damage. Here is a step-by-step guide to how an engine flush works:

  1. Add the Flush: With the engine off, the engine flush additive is poured into the engine’s oil filler neck, mixing with the old oil.
  2. Circulate the Flush: The engine is then started and allowed to idle for 10-15 minutes. This circulates the flush throughout the engine, allowing it to dissolve sludge, varnish, and other deposits. It is crucial not to drive the vehicle during this time, as the thinned oil will not provide adequate protection under load.
  3. Drain the Oil: After the specified time, the engine is turned off and the old oil, now contaminated with the flush and dissolved deposits, is drained from the engine.
  4. Replace the Filter and Add New Oil: A new oil filter is installed, and the engine is filled with fresh, clean oil.

The magic behind an engine flush lies in its chemical composition. These products contain a powerful blend of detergents, solvents, and other additives that are specifically designed to break down and dissolve the complex organic compounds that make up engine sludge and varnish. The detergents help to lift deposits from metal surfaces, while the solvents work to dissolve them into a liquid form that can be easily drained away. Some more advanced formulas, like those found in Oilsyn’s Engine Flush, may also contain ester-based compounds that provide a gentle yet effective cleaning action while also adding a layer of protection to metal surfaces.

What is Flushing Oil vs. an Additive?

When it comes to cleaning your engine’s internals, there are two main approaches: using a flushing oil or an engine flush additive. While both aim to achieve the same goal, they work in different ways and have their own set of pros and cons.

Flushing Oil

A flushing oil is a very thin, low-viscosity oil that is used to completely replace the old oil in your engine. The idea is that this thin oil can penetrate into tight spaces and narrow oil passages more easily than a thicker oil, allowing it to flush out deposits. However, because it is so thin, it provides very little lubrication, which can be risky for your engine’s bearings and other moving parts. For this reason, flushing oils are not as common as they once were and are generally not recommended for modern engines.

Engine Flush Additive

An engine flush additive, on the other hand, is a concentrated chemical cleaner that is added to your existing oil before an oil change. This is the more common and generally safer method of flushing an engine. The additive circulates with the old oil, dissolving deposits and suspending them in the oil so they can be drained away. Because the additive is mixed with the existing oil, it maintains a higher level of lubrication than a flushing oil, reducing the risk of engine damage. Products like Archoil’s AR9100 Friction Modifier & Cleaner are a good example of a modern engine flush additive that can be used to safely and effectively clean your engine.

What is Deep Engine Flush?

A deep engine flush is a more intensive cleaning process that is typically reserved for engines with severe sludge and deposit buildup. This can involve using a stronger, more aggressive cleaning agent, or it may involve a multi-step process to ensure a thorough cleaning. For example, a deep flush might involve an initial flush with a standard additive, followed by a second flush with a more powerful solvent. In some cases, a deep flush may also involve the use of specialized equipment that can circulate the cleaning solution at a higher pressure to dislodge stubborn deposits.

While a deep flush can be effective at removing heavy buildup, it also carries a higher risk of dislodging large chunks of sludge that can clog oil passages and cause engine damage. For this reason, a deep flush should only be performed by a qualified mechanic who can properly assess the condition of the engine and take the necessary precautions to avoid damage. In many cases, a more gradual approach to cleaning, such as using a gentle flush additive over several oil changes, may be a safer and more effective option for engines with heavy deposit buildup.

Valve or Piston Cleaning Additives?

While engine flushes are designed to clean the entire oil system, there are also a number of specialized additives that are designed to clean specific components of your engine. These can be a good option if you are dealing with a specific problem, such as sticking valves or piston rings, and you want to target your cleaning efforts.

Valve Cleaning Additives

Valve cleaning additives are typically added to your fuel tank and are designed to remove carbon deposits from the intake valves. These deposits can restrict airflow into the engine, leading to a loss of performance and fuel economy. By cleaning these deposits, a valve cleaner can help to restore lost power and improve fuel efficiency.

Piston Cleaning Additives

Piston cleaning additives are designed to remove carbon deposits from the piston rings and ring grooves. These deposits can cause the piston rings to stick, leading to a loss of compression, increased oil consumption, and blow-by. By cleaning these deposits, a piston cleaner can help to free sticking rings and restore proper engine function. Some piston cleaners are added to the fuel, while others are introduced directly into the combustion chamber through the spark plug holes.

While these specialized additives can be effective at cleaning specific components, they will not provide the comprehensive cleaning of an engine flush. If you are dealing with widespread sludge and deposit buildup, an engine flush is likely to be a more effective solution.

Injector Cleaner vs. Engine Flush

It is a common point of confusion for car owners, but injector cleaners and engine flushes are two completely different products that serve two completely different purposes. An injector cleaner is a fuel additive that is designed to clean the fuel system, while an engine flush is an oil additive that is designed to clean the engine’s lubrication system.

Injector Cleaner

An injector cleaner is added to your fuel tank and circulates with the fuel to clean the fuel injectors, intake valves, and combustion chambers. Over time, these components can become clogged with carbon deposits, which can disrupt the fuel spray pattern and lead to a variety of problems, including poor performance, reduced fuel economy, and increased emissions. By cleaning these deposits, an injector cleaner can help to restore proper fuel flow and improve engine performance.

Engine Flush

An engine flush, as we have discussed, is added to your engine’s oil to clean the internal components of the lubrication system. It removes sludge, varnish, and other deposits from the oil pan, oil pump, oil passages, and other components. By cleaning these deposits, an engine flush can help to improve oil circulation, reduce engine wear, and extend engine life.

In short, an injector cleaner cleans the fuel system, while an engine flush cleans the oil system. Both can be beneficial for your engine, but they are not interchangeable. If you are experiencing problems with your fuel system, an injector cleaner is the right choice. If you are dealing with sludge and deposit buildup in your oil system, an engine flush is the way to go.

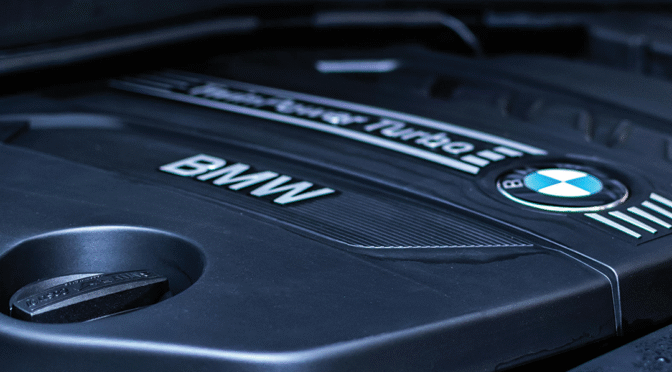

Engine with an engine cover
Engine Oils

Understanding engine break-in what it is and why it’s necessary

March 8, 2025 FTE Leave a comment

Engine break-in remains one of the most debated topics in automotive circles, with traditional wisdom often conflicting with modern manufacturing realities. This comprehensive guide examines both perspectives, exploring how advances in manufacturing technology have transformed break-in requirements while providing practical guidance for optimizing new engine performance. Understanding the balance between traditional caution and modern efficiency is essential for making informed decisions about your engine’s initial operation.

Table of Contents ▼
  • What Is Engine Break-In?
  • Modern vs Traditional Approaches
  • The Plateau Honing Revolution
  • Is Break-In Really Necessary?
  • Quick Controlled Break-In Method
  • Monitoring Break-In Progress
  • Common Misconceptions
  • Professional Perspectives
  • References

What Is Engine Break-In?

Engine break-in, also known as bedding-in or running-in, refers to the initial operational period during which new engine components settle into their optimal operating conditions. This process has traditionally involved extended periods of gentle operation, but modern manufacturing advances have fundamentally changed both the necessity and duration of break-in procedures.

The fundamental concept centers on the interface between piston rings and cylinder walls, where microscopic surface interactions determine long-term sealing effectiveness, oil consumption, and overall engine performance. However, the extent to which modern engines require this process has become a subject of considerable debate among automotive professionals.

Traditional Understanding

Historically, engine break-in involved extended periods of gentle operation, typically 500-1000 miles, during which drivers were advised to avoid high RPM, full throttle applications, and sustained high-speed operation. This approach developed during an era when manufacturing tolerances were less precise and cylinder honing techniques left relatively rough surface finishes that required substantial wearing-in periods.

Traditional break-in procedures emphasized gradual load increases, frequent oil changes, and careful monitoring of oil consumption and engine performance. These methods were developed based on the understanding that new engines required extensive conditioning to achieve optimal performance and longevity.

Modern vs Traditional Approaches

The automotive industry has witnessed a fundamental shift in break-in philosophy, driven by significant advances in manufacturing technology, improved materials, and better understanding of tribological processes. Modern approaches challenge many traditional assumptions about break-in necessity and duration.

Manufacturing Technology Advances

Contemporary engine manufacturing employs precision machining techniques that achieve surface finishes and dimensional tolerances unimaginable just decades ago. Computer-controlled honing processes, advanced materials, and quality control systems have dramatically reduced the variability and surface roughness that once necessitated extended break-in periods.

Modern piston rings feature advanced coatings and surface treatments that provide immediate sealing effectiveness, while cylinder bores are finished to specifications that closely approximate the final operating condition. These improvements have led many professionals to question whether traditional break-in procedures remain relevant or may even be counterproductive.

Key Insight: Modern manufacturing tolerances have improved by approximately 80% compared to engines produced 20-30 years ago, significantly reducing the theoretical need for extensive break-in procedures.

Performance Comparison Studies

Independent testing has revealed interesting disparities between traditional break-in methods and modern quick-bedding approaches. Engines subjected to controlled loading during the initial 200 miles often demonstrate superior long-term performance compared to those given extended gentle treatment.

Research indicates that modern engines are approximately 70% more tolerant of immediate normal operation compared to designs from previous decades. This tolerance stems from improved manufacturing precision, better materials, and advanced surface treatments that provide immediate operational effectiveness.

The Plateau Honing Revolution

Perhaps no single technological advancement has impacted break-in requirements more significantly than the widespread adoption of plateau honing techniques. This finishing process has fundamentally altered the cylinder bore surface characteristics, effectively pre-conditioning cylinders to approximate the final operating state.

Understanding Plateau Honing

Plateau honing involves a two-stage process where initial rough honing creates the basic surface texture, followed by a fine finishing stage that removes the sharp peaks while preserving the oil-retaining valleys. This process simulates much of the wear pattern that would traditionally develop during extended break-in periods.

The resulting surface profile provides immediate sealing effectiveness while maintaining appropriate oil retention characteristics. Plateau honing essentially performs much of the “break-in” work during manufacturing, reducing the need for extended operational conditioning.

  • Immediate sealing: Plateau surfaces provide effective ring sealing from first operation
  • Reduced debris: Minimal metal removal during initial operation
  • Consistent performance: Predictable surface characteristics across production
  • Oil retention: Optimized valley structure for lubrication

Impact on Break-In Requirements

Engines featuring plateau-honed cylinders demonstrate markedly different break-in characteristics compared to conventionally honed units. Oil consumption is typically minimal from the start, compression readings remain stable, and leak-down test results often show good sealing immediately after initial startup.

This technological advancement has led many manufacturers to reduce recommended break-in periods significantly or eliminate specific break-in procedures entirely, relying instead on general recommendations for careful initial operation without extended restrictions.

Is Break-In Really Necessary?

The necessity of engine break-in has become increasingly debated among automotive professionals, with compelling arguments on multiple sides. Understanding these perspectives helps inform practical decisions about new engine operation while avoiding both unnecessary restrictions and potential risks.

Arguments Against Extended Break-In

Proponents of minimal break-in procedures argue that modern manufacturing has largely eliminated the conditions that historically necessitated extended conditioning periods. They point to plateau honing, improved tolerances, and advanced materials as evidence that contemporary engines achieve optimal performance characteristics immediately.

Furthermore, extended gentle operation may actually be counterproductive, potentially leading to bore glazing where combustion deposits and oxidized oil create smooth surfaces that inhibit proper ring sealing. This glazing effect can result in permanent performance limitations that extended break-in was intended to prevent.

Professional Opinion: Many experienced technicians report that engines subjected to controlled loading during the first 200 miles often outperform those given extended gentle treatment, particularly regarding long-term oil consumption and compression stability.

Arguments for Controlled Break-In

While acknowledging manufacturing improvements, some professionals maintain that controlled break-in procedures still provide benefits, particularly for optimizing the ring-to-cylinder interface. They argue that even plateau-honed surfaces benefit from controlled loading to establish final sealing characteristics.

This perspective emphasizes the importance of avoiding extremes – neither excessive gentleness nor immediate abuse – while focusing on controlled loading that optimizes component interfaces without risking damage. The key distinction lies in the duration and intensity of break-in procedures rather than their complete elimination.

Quick Controlled Break-In Method

The quick controlled break-in method represents a modern approach that balances the benefits of component conditioning with the realities of contemporary manufacturing. This method typically completes the break-in process within 200 miles while providing more effective results than traditional extended procedures.

Initial Operation Protocol

The quick break-in method begins with immediate elevation to full operating temperature, avoiding extended idling that can promote bore glazing. The engine should reach normal operating temperature through moderate driving rather than stationary warm-up periods that provide insufficient loading for proper ring seating.

Initial driving should involve moderate acceleration in lower gears (2nd and 3rd), utilizing engine braking during deceleration to create the cylinder pressure differentials necessary for optimal ring seating. This controlled loading approach provides the conditions needed for component optimization without risking damage from excessive stress.

  • Immediate temperature elevation: Reach operating temperature quickly through moderate driving
  • Controlled acceleration: Use 2nd-3rd gear moderate acceleration cycles
  • Engine braking: Utilize deceleration loading for ring seating pressure
  • Varied loading: Avoid constant RPM or sustained gentle operation

Progressive Loading Schedule

The first 50 miles represent the most critical period, during which loading should be gradually increased from moderate to more substantial levels. This progression allows components to adapt while ensuring adequate pressure for proper seating without overwhelming incompletely conditioned surfaces.

Between 50-200 miles, normal driving with occasional spirited acceleration provides the varied loading conditions necessary for complete optimization. Full throttle applications in mid-range gears help establish final sealing characteristics while avoiding the sustained high-RPM operation that may stress incompletely seated components.

Critical Timeline: The first 50 miles are most important for establishing basic sealing characteristics, while miles 50-200 complete the optimization process. Beyond 200 miles, most modern engines have achieved their final operating characteristics.

Monitoring Break-In Progress

Effective break-in monitoring focuses on key indicators that reveal component conditioning progress while identifying potential issues before they become serious problems. Modern engines often show minimal changes during break-in, reflecting improved manufacturing quality and reduced conditioning requirements.

Oil Consumption Patterns

Oil consumption during modern engine break-in varies significantly from traditional patterns. Many contemporary engines show minimal consumption from the start due to improved manufacturing tolerances and plateau honing. Initial consumption rates up to 1 quart per 1,000 miles can be normal, but consumption should stabilize quickly, typically within 200-500 miles.

Unlike traditional break-in where consumption gradually decreased over 1,000+ miles, modern engines often achieve stable consumption rates much earlier. Excessive consumption may indicate manufacturing or assembly issues rather than normal break-in characteristics, warranting professional evaluation.

Break-In Debris Analysis

Modern engines produce significantly less break-in debris compared to traditional designs, with plateau honing reducing metal removal by approximately 60% during initial operation. Fine metallic particles remain normal during the first few hundred miles, but the quantity and characteristics differ markedly from older engines.

First oil change at 500-1,000 miles provides an opportunity to evaluate debris characteristics and quantity. Excessive particles may indicate manufacturing issues rather than normal break-in processes, particularly in engines with modern surface treatments and precision manufacturing.

Leak-Down Testing in Modern Engines

Leak-down testing reveals interesting characteristics in modern engines, with many units showing good sealing immediately due to improved manufacturing tolerances and plateau honing. Initial readings of 8-12% are typical, improving to 5-8% after break-in completion, though some engines achieve excellent readings from the start.

Testing at 200 and 500 miles provides useful progress data, though dramatic improvements are less common than with traditional engines. Consistently good readings from the start indicate quality manufacturing and may suggest that extended break-in procedures are unnecessary for that particular engine.

Common Misconceptions

Engine break-in remains surrounded by misconceptions that can lead to suboptimal procedures or unnecessary anxiety about new engine operation. Understanding these misconceptions helps separate fact from fiction while making informed decisions about break-in approaches.

The “Gentle Operation” Myth

Perhaps the most persistent misconception involves the belief that new engines require extensive gentle operation to achieve optimal performance. This approach, while well-intentioned, may actually be counterproductive with modern engines, potentially leading to bore glazing and suboptimal ring seating.

Extended gentle operation fails to provide the cylinder pressures necessary for proper ring seating while allowing combustion deposits and oxidized oil to accumulate on cylinder walls. This accumulation can create glazed surfaces that inhibit proper sealing, resulting in permanent performance limitations.

Synthetic Oil Prohibition Myth

Another common misconception suggests that synthetic oils should be avoided during break-in because they are “too slippery” and prevent proper ring seating. While this concern had some validity with older engines and early synthetic formulations, modern synthetic oils and engine designs have largely eliminated this issue.

Many manufacturers now fill new engines with synthetic oil from the factory and recommend its continued use throughout the engine’s life. The key factor is not oil type but rather the break-in procedure itself, with controlled loading being more important than specific oil selection.

Reality Check: Modern engines are designed to work optimally with the oils and procedures recommended by their manufacturers, regardless of traditional break-in wisdom that may no longer apply to contemporary designs.

Professional Perspectives

Professional opinions on engine break-in vary considerably, reflecting the ongoing evolution in understanding and the diversity of engine designs and applications. Examining these perspectives provides insight into the practical realities of modern engine break-in while acknowledging that different approaches may be appropriate for different situations.

Manufacturer Recommendations

Automotive manufacturers have generally reduced break-in recommendations significantly compared to historical practices. Many now suggest careful operation for the first few hundred miles without specific restrictions, while others have eliminated break-in procedures entirely, relying on general recommendations for new vehicle operation.

This shift reflects confidence in modern manufacturing processes and recognition that extended break-in procedures may not provide benefits commensurate with their inconvenience. However, manufacturers must balance optimal performance with warranty considerations and diverse operating conditions across global markets.

Technician Field Experiences

Experienced automotive technicians often report that engines subjected to quick controlled break-in procedures demonstrate superior long-term characteristics compared to those given extended gentle treatment. These observations, while anecdotal, provide valuable real-world perspective on break-in effectiveness.

Field experience suggests that the quality of initial operation matters more than its duration, with controlled loading during the first 200 miles being more beneficial than extended restrictions. This practical wisdom aligns with theoretical understanding of modern manufacturing capabilities and surface treatment technologies.

Balanced Approach Recommendations

The most practical approach to modern engine break-in involves avoiding extremes while focusing on controlled initial operation. This balanced perspective acknowledges both manufacturing improvements and the potential benefits of proper component conditioning without imposing unnecessary restrictions or anxiety.

Key recommendations include immediate elevation to operating temperature, controlled loading during the first 200 miles, avoidance of extended gentle operation that may cause glazing, and normal driving thereafter. This approach optimizes component interfaces while recognizing the reduced break-in requirements of modern engines.

  • Focus on the first 200 miles: Most critical conditioning occurs early
  • Use controlled loading: Moderate acceleration and engine braking
  • Avoid extended restrictions: Normal operation after initial conditioning
  • Monitor key indicators: Oil consumption, performance, and unusual symptoms

References

  1. Fuel Tech Experts Engine Break-In Guide
  2. MAHLE Motorsport Engine Break-in Procedures
  3. JE Pistons Engine Break-In Guide
  4. DSport Magazine Performance Engine Break-In
  5. Driven Racing Oil Break-In Guide

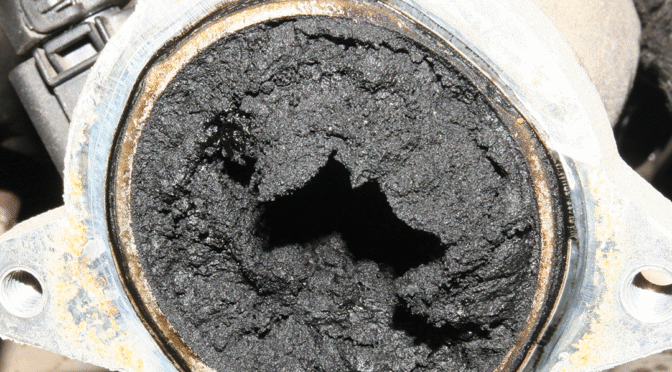

EGR blocked by carbon.
EGR Cleaning & Maintenance

Diagnosing and Troubleshooting EGR Valve Problems

February 24, 2025 FTE Leave a comment

Diagnosing and troubleshooting EGR valve problems represents one of the most challenging yet essential skills for modern automotive technicians and vehicle owners. As emission control systems become increasingly sophisticated and integral to engine operation, understanding the complex symptoms, failure modes, and diagnostic procedures associated with EGR valves has become critical for maintaining vehicle performance, compliance, and reliability.

This comprehensive diagnostic guide provides detailed insights into every aspect of EGR valve troubleshooting, from recognizing early warning signs to implementing advanced testing procedures. Whether you’re dealing with intermittent performance issues, persistent fault codes, or complete system failures, this article delivers the technical knowledge and practical strategies needed to accurately diagnose and effectively resolve EGR valve problems across all vehicle types and engine configurations.

Table of Contents ▼
  • Signs and Symptoms of EGR Valve Failure
  • Why EGR Valves Fail
  • Effects of Stuck Open or Closed Valves
  • Testing and Diagnostic Procedures
  • Diagnosing Insufficient EGR Flow
  • Fixing EGR Flow Errors
  • EGR Impact on Engine Performance
  • EGR Interactions with Other Systems
  • Advanced Diagnostic Techniques

Signs and Symptoms of EGR Valve Failure

Recognizing the early warning signs of EGR valve failure is crucial for preventing more serious engine problems and maintaining optimal vehicle performance. EGR valve malfunctions manifest through a variety of symptoms that can range from subtle performance degradation to obvious operational issues. Understanding these symptoms and their underlying causes enables technicians and vehicle owners to identify problems before they escalate into costly repairs or complete system failures.

The most common and immediately noticeable symptom of EGR valve failure is rough engine idle, which affects approximately 85% of vehicles with faulty EGR systems. This rough idle occurs because a malfunctioning EGR valve disrupts the carefully calibrated air-fuel mixture that engines require for stable combustion at low speeds. When an EGR valve sticks in the open position, it allows exhaust gases to enter the intake manifold during idle conditions when they should be excluded, creating an overly lean or diluted mixture that causes irregular combustion patterns and noticeable engine vibration.

Engine stalling represents another critical symptom that frequently accompanies EGR valve problems, particularly in vehicles with stuck-open valves. Stalling typically occurs during idle conditions, such as when stopped at traffic lights or during parking maneuvers, when the engine’s tolerance for air-fuel mixture variations is at its lowest. Research indicates that vehicles with severely compromised EGR valves may experience stalling rates that are 300-400% higher than normal, creating significant safety concerns and drivability issues for vehicle operators.

Diagnostic Insight: The timing and severity of rough idle symptoms can provide valuable diagnostic information. Rough idle that occurs immediately upon startup and persists throughout the warm-up cycle typically indicates a stuck-open EGR valve, while rough idle that develops only after the engine reaches operating temperature may suggest electronic control system problems or intermittent valve sticking.

Loss of engine power during acceleration represents a significant performance symptom that affects both diesel and gasoline engines with EGR valve problems. This power loss occurs through different mechanisms depending on whether the valve is stuck open or closed. A stuck-open valve reduces the oxygen content of the intake charge by 15-25%, directly limiting the engine’s ability to generate power during acceleration. Conversely, a stuck-closed valve can cause engine knock and force the engine management system to retard ignition timing, resulting in power reductions of 10-20% to protect the engine from damage.

Poor fuel economy is another telltale sign of EGR valve malfunction that often develops gradually over time, making it less immediately obvious than other symptoms. Vehicles with faulty EGR valves typically experience fuel economy degradation of 10-25%, depending on the specific nature of the failure and driving conditions. This increased fuel consumption occurs because the engine management system attempts to compensate for the disrupted air-fuel balance by adjusting fuel delivery, often resulting in richer mixtures that consume more fuel while producing less power.

The activation of the check engine light (CEL) provides the most definitive indication of EGR system problems, with modern engine management systems capable of detecting even subtle deviations from expected EGR performance parameters. Studies show that approximately 80% of EGR valve failures trigger diagnostic trouble codes within the first 100-200 miles of operation, making OBD-II scanning an essential first step in any EGR diagnostic procedure. The most common codes associated with EGR valve problems include P0400 (EGR flow malfunction), P0401 (insufficient EGR flow), and P0402 (excessive EGR flow), each providing specific insights into the nature of the malfunction.

Advanced Symptom Recognition

Engine knock or pinging sounds represent more serious symptoms that typically indicate a stuck-closed EGR valve allowing combustion temperatures to exceed safe limits. These metallic knocking sounds occur when the air-fuel mixture ignites prematurely due to elevated combustion chamber temperatures, creating pressure waves that can cause significant engine damage if left unaddressed. The frequency and intensity of knock symptoms often correlate directly with engine load and ambient temperature conditions, with more severe knocking occurring during hot weather or under heavy acceleration.

Excessive exhaust emissions, while not always immediately apparent to vehicle operators, represent a critical symptom that can be detected through emission testing or visual observation of exhaust smoke. Vehicles with stuck-closed EGR valves typically produce NOx emissions that are 200-400% higher than normal levels, while stuck-open valves may cause visible black smoke in diesel applications due to incomplete combustion. These emission increases not only indicate EGR system problems but also create environmental compliance issues that can result in failed emission tests and legal penalties.

Unusual fuel odors, particularly noticeable during idle or low-speed operation, can indicate EGR valve problems that are causing incomplete combustion and allowing unburned fuel components to pass through the exhaust system. These odors are most commonly associated with stuck-open EGR valves that create overly rich combustion conditions, though they can also occur with stuck-closed valves that cause misfiring and incomplete fuel consumption. The presence of fuel odors should always be investigated promptly, as they may indicate conditions that could lead to catalytic converter damage or other emission system problems.

Why EGR Valves Fail

Understanding the root causes of EGR valve failure is essential for implementing effective repair strategies and preventing recurring problems. EGR valve failures result from a combination of environmental factors, operational stresses, and maintenance-related issues that accumulate over the vehicle’s service life. The harsh operating environment of EGR systems, which must function reliably while exposed to corrosive exhaust gases, extreme temperatures, and mechanical stresses, creates multiple pathways for component degradation and eventual failure.

Carbon buildup represents the single most common cause of EGR valve failure, accounting for approximately 70% of all EGR-related problems across all vehicle types. This carbon accumulation occurs as exhaust gases containing unburned hydrocarbons, soot particles, and other combustion byproducts pass through the EGR system and deposit on valve surfaces, connecting passages, and control mechanisms. Over time, these deposits can accumulate to thicknesses of several millimeters, creating sufficient interference to prevent proper valve operation and causing the valve to stick in either the open or closed position.

The rate of carbon accumulation varies significantly based on driving patterns, fuel quality, and engine operating conditions. Vehicles operated primarily in stop-and-go traffic or short-trip scenarios experience accelerated carbon buildup due to incomplete combustion cycles and reduced exhaust gas temperatures that fail to burn off deposits naturally. Research indicates that vehicles with average trip lengths of less than 10 miles experience carbon buildup rates that are 40-60% higher than vehicles used primarily for highway driving, where sustained high exhaust temperatures help maintain cleaner EGR system components.

Maintenance Factor: Poor fuel quality significantly accelerates carbon buildup in EGR systems. Fuels with high sulfur content, excessive aromatic compounds, or contamination can increase carbon deposition rates by 50-100% compared to high-quality fuels. Regular use of fuel system cleaners and high-quality fuels can substantially extend EGR valve service life.

Thermal stress represents another major failure mechanism that affects EGR valve durability and reliability. EGR valves must operate across temperature ranges that can span from ambient conditions during cold starts to over 600°C during high-load operation. This extreme temperature cycling creates thermal expansion and contraction stresses that can cause cracking in valve bodies, warping of sealing surfaces, and fatigue failures in moving components. Materials science studies have shown that EGR valve components experience thermal stress cycles equivalent to those found in jet engine applications, highlighting the demanding nature of the operating environment.

Corrosion from exhaust gas constituents creates additional failure pathways that are particularly problematic in diesel applications where exhaust gases contain elevated concentrations of sulfur compounds, nitrogen oxides, and other reactive species. These corrosive agents attack metal surfaces, causing pitting, scaling, and eventual structural failure of valve components. The corrosion process is accelerated by the presence of moisture in exhaust gases, which can create acidic conditions that rapidly degrade valve materials and sealing surfaces.

Mechanical wear in vacuum-operated EGR valves represents a significant failure mode that affects older vehicles and systems with high mileage. The diaphragms used in vacuum-actuated valves are subject to constant flexing cycles that can eventually cause material fatigue and rupture. Additionally, the vacuum control solenoids and associated vacuum lines are prone to deterioration from heat, vibration, and environmental exposure, leading to vacuum leaks that compromise valve operation and control precision.

Effects of Stuck Open or Closed Valves

The specific position in which an EGR valve becomes stuck creates distinctly different sets of symptoms and operational problems, making it essential for diagnostic technicians to understand the unique characteristics of each failure mode. A stuck-open EGR valve and a stuck-closed EGR valve present opposing challenges that require different diagnostic approaches and repair strategies. Understanding these differences enables more accurate diagnosis and prevents misidentification of the underlying problem.

When an EGR valve becomes stuck in the open position, it allows continuous flow of exhaust gases into the intake manifold regardless of engine operating conditions. This constant exhaust gas recirculation creates an overly diluted air-fuel mixture that severely compromises engine performance, particularly during idle and low-speed operation when precise mixture control is most critical. The excess exhaust gas can reduce the oxygen content of the intake charge by 20-30%, creating conditions similar to operating at high altitude where reduced oxygen availability limits combustion efficiency and power output.

The most immediate and noticeable effect of a stuck-open EGR valve is severe rough idle that often progresses to complete stalling. The engine management system is calibrated to expect specific air-fuel ratios during idle conditions, and the introduction of excessive exhaust gases disrupts these carefully balanced parameters. Studies indicate that vehicles with severely stuck-open EGR valves may experience idle quality degradation of 60-80%, with some engines becoming completely unable to maintain stable idle operation without constant throttle input from the operator.

Performance Impact: Stuck-open EGR valves typically cause fuel economy degradation of 15-25% due to incomplete combustion and the engine management system’s attempts to compensate for the disrupted air-fuel balance. This increased fuel consumption is often accompanied by reduced power output of 20-35%, making acceleration sluggish and highway merging dangerous.

Acceleration performance suffers dramatically with stuck-open EGR valves, as the reduced oxygen availability limits the engine’s ability to generate power when demanded. The diluted intake charge burns more slowly and less completely, reducing the peak pressures and temperatures that drive piston motion and create torque. This effect is most pronounced during wide-open throttle conditions, where the engine requires maximum oxygen availability to produce peak power output. Drivers typically report that vehicles feel “sluggish” or “lacking power,” particularly when climbing hills or attempting to merge into highway traffic.

In contrast, a stuck-closed EGR valve creates an entirely different set of problems centered around elevated combustion temperatures and increased NOx emissions. When the EGR valve fails to open during normal operation, the engine loses the temperature-moderating effect of exhaust gas recirculation, allowing combustion temperatures to rise 100-200°C above normal levels. These elevated temperatures create ideal conditions for NOx formation and can lead to engine knock, pre-ignition, and potential engine damage if the condition persists over extended periods.

Engine knock or pinging represents the most serious immediate consequence of a stuck-closed EGR valve, as the elevated combustion temperatures can cause the air-fuel mixture to ignite prematurely, creating destructive pressure waves within the combustion chamber. Modern engine management systems typically detect knock conditions and respond by retarding ignition timing to prevent damage, but this protective measure results in reduced power output and fuel economy. Severe knock conditions can cause piston damage, bearing wear, and other internal engine problems that require major repairs to correct.

The emission implications of stuck-closed EGR valves are particularly severe, with NOx emissions typically increasing by 200-400% above normal levels. This dramatic increase in harmful emissions not only creates environmental concerns but also results in failed emission tests and potential legal penalties for vehicle owners. In regions with strict emission testing requirements, a stuck-closed EGR valve can render a vehicle legally inoperable until repairs are completed, creating significant inconvenience and expense for vehicle owners.

Long-Term Consequences and System Interactions

The long-term consequences of operating with stuck EGR valves extend beyond immediate performance and emission issues to include potential damage to other engine and emission control components. Stuck-open valves can cause carbon buildup in intake manifolds, throttle bodies, and intake valves due to the continuous introduction of exhaust gases containing soot and other particulates. This carbon accumulation can eventually affect the operation of other engine systems and require extensive cleaning or component replacement to restore proper function.

Catalytic converter damage represents another serious long-term consequence of EGR valve problems, particularly with stuck-open valves that cause incomplete combustion and allow unburned fuel to reach the exhaust system. The catalytic converter can become overwhelmed by excessive unburned hydrocarbons, leading to overheating and permanent damage to the catalyst substrate. Catalytic converter replacement costs can exceed £1,500, making early detection and repair of EGR valve problems a critical economic consideration for vehicle owners.

Testing and Diagnostic Procedures

Effective EGR valve testing requires a systematic approach that combines electronic diagnostics, visual inspection, and functional testing to accurately identify the nature and extent of system problems. Modern EGR systems incorporate sophisticated control and monitoring capabilities that provide valuable diagnostic information when properly accessed and interpreted. Understanding the various testing methods and their appropriate applications enables technicians to efficiently diagnose EGR problems and implement targeted repair strategies.

The diagnostic process should always begin with a comprehensive scan for diagnostic trouble codes using a professional-grade OBD-II scanner capable of accessing manufacturer-specific codes and live data streams. Generic code readers may miss important EGR-related codes or fail to provide the detailed information necessary for accurate diagnosis. Professional scan tools can access real-time data including EGR valve position, commanded position, flow rates, and temperature readings that provide crucial insights into system operation and failure modes.

Visual inspection represents the next critical step in the diagnostic process, focusing on the identification of obvious problems such as carbon buildup, vacuum leaks, damaged wiring, or corroded connections. The EGR valve should be removed and inspected for carbon deposits, valve seat damage, and proper movement of internal components. Connecting passages and tubes should be examined for blockages or restrictions that could impede exhaust gas flow. This visual inspection often reveals problems that may not be apparent through electronic testing alone.

Testing Safety: Always ensure the engine is cool before removing EGR components for inspection, as exhaust gas temperatures can exceed 600°C during operation. Use appropriate personal protective equipment and follow manufacturer safety procedures when working with EGR systems to prevent burns or exposure to harmful exhaust gases.

Functional testing of EGR valves varies depending on the type of valve and control system employed. Vacuum-operated valves can be tested by applying vacuum directly to the actuator using a hand-held vacuum pump and observing valve movement and vacuum retention. A properly functioning vacuum valve should move smoothly when vacuum is applied and hold vacuum without leakage for at least 30 seconds. Electronic EGR valves require scan tool activation to command valve movement while observing actual position feedback and system response.

Position sensor testing is critical for electronic EGR valves, as these sensors provide the feedback necessary for closed-loop control of valve operation. Position sensors typically operate as potentiometers with voltage outputs that vary linearly with valve position. Normal sensor operation should produce smooth voltage transitions across the full range of valve movement, typically from 0.5V in the closed position to 4.5V in the fully open position. Erratic voltage readings, dead spots, or voltages outside the normal range indicate sensor problems that require replacement.

Flow testing provides the most comprehensive assessment of EGR system performance but requires specialized equipment and procedures. Professional flow testing involves measuring actual exhaust gas flow rates under various operating conditions and comparing these measurements to manufacturer specifications. This testing can identify partial blockages, valve leakage, and control system problems that may not be apparent through other diagnostic methods. Flow testing is particularly valuable for diagnosing intermittent problems or subtle performance degradation that may not trigger diagnostic codes.

Diagnosing Insufficient EGR Flow

Insufficient EGR flow, typically indicated by diagnostic trouble code P0401, represents one of the most common EGR system problems affecting modern vehicles. This condition occurs when the engine management system detects that actual EGR flow rates are significantly lower than commanded values, indicating blockages, valve malfunctions, or control system problems that prevent proper exhaust gas recirculation. Diagnosing insufficient flow requires a systematic approach that examines all potential causes and verifies system operation under various operating conditions.

The P0401 code is triggered when the engine control unit (ECU) detects a discrepancy between commanded and actual EGR flow that exceeds predetermined thresholds, typically 15-20% deviation from expected values. This detection relies on various sensors and feedback mechanisms, including mass airflow sensors, oxygen sensors, and EGR position sensors, which collectively provide the ECU with information about actual system performance. Understanding how these detection systems work is crucial for accurate diagnosis and effective repair of insufficient flow conditions.

Carbon buildup in EGR passages represents the most common cause of insufficient flow, accounting for approximately 60% of P0401 codes in vehicles with more than 80,000 miles of operation. These carbon deposits can accumulate in valve seats, connecting tubes, intake manifold passages, and exhaust manifold ports, creating restrictions that significantly reduce flow capacity. Even relatively small amounts of carbon buildup can cause substantial flow reductions, with deposits as thin as 2-3mm capable of reducing flow capacity by 40-50% in critical passage areas.

Diagnostic Strategy: When diagnosing P0401 codes, always begin with a thorough visual inspection of EGR passages and components before proceeding to electronic testing. Many insufficient flow problems can be identified and resolved through proper cleaning procedures, avoiding unnecessary component replacement and reducing repair costs.

Valve sticking represents another significant cause of insufficient flow that can result from carbon buildup, corrosion, or mechanical wear. A partially stuck valve may appear to operate normally during casual observation but fail to achieve full opening under operating conditions, resulting in reduced flow capacity and P0401 codes. This condition is particularly common in high-mileage vehicles where carbon deposits have accumulated on valve stems and seating surfaces, creating interference that prevents complete valve operation.

Vacuum leaks in vacuum-operated EGR systems can cause insufficient flow by preventing the valve from achieving full opening even when maximum vacuum is applied. These leaks can occur in vacuum lines, diaphragm assemblies, or vacuum control solenoids, and may be intermittent or load-dependent, making diagnosis challenging. Vacuum leak testing requires careful inspection of all vacuum components and may require pressurization testing to identify small leaks that are not immediately apparent during visual inspection.

Electronic control system problems, including faulty position sensors, wiring issues, or ECU malfunctions, can also cause insufficient flow codes even when the physical EGR valve is functioning properly. These problems typically manifest as discrepancies between commanded and actual valve positions, with the ECU detecting that the valve is not responding appropriately to control signals. Diagnosing electronic problems requires careful testing of sensor outputs, control signals, and wiring integrity using appropriate diagnostic equipment.

Fixing EGR Flow Errors

Effective repair of EGR flow errors requires a comprehensive approach that addresses both the immediate symptoms and underlying causes of the problem. Simply replacing components without addressing root causes often results in recurring failures and unnecessary expense. Successful EGR system repairs typically involve a combination of cleaning procedures, component replacement, and system calibration to restore proper operation and prevent future problems.

Carbon cleaning represents the most common and often most effective repair procedure for EGR flow errors. This process involves the complete removal and disassembly of EGR system components to access all carbon-contaminated surfaces and passages. Professional carbon cleaning requires specialized solvents and tools designed specifically for automotive carbon removal, as improper cleaning techniques can damage sensitive components or leave residues that accelerate future carbon buildup.

The EGR valve itself should be completely disassembled where possible, with all carbon deposits removed from valve seats, stems, and internal passages. Ultrasonic cleaning baths provide the most effective method for removing stubborn carbon deposits, though manual cleaning with appropriate solvents and brushes can also be effective when performed carefully. All sealing surfaces must be inspected for damage or warping that could prevent proper valve sealing after reassembly.

EGR passage cleaning requires access to intake and exhaust manifold ports, connecting tubes, and internal engine passages where applicable. These areas often contain the heaviest carbon accumulations and may require mechanical removal techniques in addition to chemical cleaning. Care must be taken to prevent carbon debris from entering the engine during cleaning procedures, and all passages should be thoroughly flushed and inspected before reassembly.

Repair Best Practice: Always replace EGR valve gaskets and seals during repair procedures, even if they appear to be in good condition. The thermal cycling and chemical exposure experienced by these components often causes deterioration that may not be immediately visible but can lead to vacuum leaks and recurring problems.

Component replacement may be necessary when cleaning procedures fail to restore proper operation or when components show signs of permanent damage. EGR valves with warped seating surfaces, cracked diaphragms, or damaged position sensors typically require replacement rather than repair. When replacing EGR valves, it is essential to use components that meet or exceed original equipment specifications and to follow manufacturer procedures for installation and calibration.

System calibration and adaptation procedures are often required after EGR valve replacement or major cleaning operations. Many modern vehicles require the ECU to “learn” the operating characteristics of new or cleaned EGR components through specific adaptation procedures that must be performed using professional diagnostic equipment. Failure to complete these procedures can result in poor system operation, recurring codes, or component damage due to improper control strategies.

Preventive maintenance recommendations should be provided to vehicle owners following EGR system repairs to minimize the likelihood of recurring problems. These recommendations typically include regular use of high-quality fuels, periodic fuel system cleaning treatments, and driving pattern modifications that promote higher exhaust gas temperatures and natural carbon burnoff. Vehicles used primarily for short trips or stop-and-go driving may benefit from periodic highway driving sessions that help maintain cleaner EGR system components.

EGR Impact on Engine Performance

The relationship between EGR valve malfunctions and various engine performance issues extends far beyond simple power loss or rough idle symptoms. EGR system problems can trigger a cascade of effects that impact multiple aspects of engine operation, from fuel economy and emissions to component longevity and overall reliability. Understanding these interconnected relationships is crucial for accurate diagnosis and comprehensive repair of EGR-related problems.

Limp mode activation represents one of the most serious performance impacts of EGR valve malfunctions, as modern engine management systems are programmed to protect the engine and emission control components from damage caused by improper EGR operation. When the ECU detects significant EGR system malfunctions, it may activate limp mode to limit engine power and speed, preventing further damage but severely restricting vehicle operation. Studies indicate that approximately 30% of EGR-related problems result in limp mode activation, making prompt diagnosis and repair essential for maintaining vehicle usability.

Turbocharger underboost conditions can result from EGR valve problems, particularly in diesel engines where EGR and turbocharger systems are closely integrated. A stuck-open EGR valve can reduce exhaust gas energy available to drive the turbocharger, resulting in reduced boost pressure and triggering P0299 underboost codes. This condition not only reduces engine performance but can also cause the turbocharger to work harder to achieve target boost levels, potentially accelerating turbocharger wear and reducing component life.

Engine misfiring and combustion instability frequently accompany EGR valve problems, particularly with stuck-open valves that introduce excessive exhaust gases during conditions where stable combustion is critical. These misfires can cause catalytic converter damage, increased emissions, and poor drivability. The random nature of EGR-induced misfires often makes diagnosis challenging, as the symptoms may be intermittent and load-dependent, requiring careful analysis of misfire patterns and operating conditions to identify the root cause.

EGR Interactions with Other Systems

Modern EGR systems operate as integral components of comprehensive engine management strategies that coordinate multiple systems to achieve optimal performance, emissions, and efficiency. Understanding these system interactions is crucial for accurate diagnosis, as EGR problems can manifest as symptoms in seemingly unrelated systems, and conversely, problems in other systems can cause apparent EGR malfunctions. This interconnected nature of modern engine systems requires a holistic diagnostic approach that considers all potential system interactions.

The relationship between EGR systems and engine overheating represents a critical interaction that can have serious consequences if not properly understood. EGR systems help reduce combustion temperatures by introducing inert exhaust gases that absorb thermal energy during combustion. When EGR valves stick closed, combustion temperatures can increase by 100-200°C, potentially contributing to engine overheating, particularly under high-load conditions or in hot ambient temperatures. Additionally, EGR cooler failures can cause coolant loss and disrupt cooling system operation, creating direct pathways for overheating problems.

Exhaust smoke production, particularly in diesel engines, often correlates directly with EGR system operation and malfunction. Black smoke typically indicates incomplete combustion caused by improper air-fuel ratios, which can result from stuck-open EGR valves that introduce excessive exhaust gases and reduce oxygen availability. White smoke, while less common, can occur when EGR cooler failures allow coolant to enter the exhaust stream, creating visible steam and indicating serious cooling system contamination that requires immediate attention.

System Integration: Modern diesel engines often employ dual-loop EGR systems that work in conjunction with variable geometry turbochargers, diesel particulate filters, and selective catalytic reduction systems. Problems in any one of these systems can affect the operation of others, requiring comprehensive diagnostic approaches that consider all system interactions.

Starting problems, while rarely caused directly by EGR valve malfunctions, can occur in severe cases where stuck-open valves create such poor idle quality that engines cannot maintain operation immediately after starting. This condition is most common in vehicles with severely compromised EGR systems that allow excessive exhaust gas recirculation during idle conditions. While complete no-start conditions are uncommon, engines may start and immediately stall, creating the appearance of starting system problems when the actual cause is EGR-related.

The integration of EGR systems with advanced emission control technologies requires careful consideration during diagnostic procedures. In vehicles equipped with diesel particulate filters (DPF), EGR system problems can affect DPF regeneration cycles and overall emission system performance. Similarly, selective catalytic reduction (SCR) systems may be impacted by EGR malfunctions that alter exhaust gas composition and temperature profiles, affecting the efficiency of NOx reduction processes.

Advanced Diagnostic Techniques

Advanced EGR diagnostic techniques employ sophisticated testing equipment and procedures to identify subtle problems that may not be apparent through basic diagnostic methods. These techniques are particularly valuable for diagnosing intermittent problems, performance degradation that has not yet triggered diagnostic codes, and complex system interactions that require detailed analysis of multiple parameters simultaneously. Professional diagnostic facilities increasingly rely on these advanced methods to provide accurate diagnosis and effective repair solutions.

Real-time data analysis using professional scan tools provides unprecedented insight into EGR system operation under actual driving conditions. Modern diagnostic equipment can monitor dozens of parameters simultaneously, including EGR valve position, commanded position, flow rates, temperatures, and pressure differentials, while recording this data for later analysis. This capability enables technicians to identify patterns and correlations that may not be apparent during static testing, particularly for problems that occur only under specific operating conditions.

Pressure differential testing provides direct measurement of EGR system flow capacity and can identify restrictions or blockages that may not be apparent through other testing methods. This testing involves measuring pressure differences across the EGR valve and connecting passages under various flow conditions, providing quantitative data about system performance. Pressure testing is particularly valuable for identifying partial blockages that may not completely prevent EGR operation but significantly reduce flow capacity and system effectiveness.

Temperature profiling of EGR systems using infrared thermometers or thermal imaging equipment can reveal problems with EGR coolers, flow distribution, and thermal management. This testing can identify hot spots that indicate restricted flow, cooler malfunctions, or thermal stress concentrations that may lead to component failure. Temperature profiling is particularly valuable for diagnosing EGR cooler problems that may not be apparent through other testing methods.

Exhaust gas analysis using professional emission testing equipment provides direct measurement of the effectiveness of EGR systems in reducing NOx emissions. This testing can quantify the actual emission reduction achieved by the EGR system and identify problems that may not trigger diagnostic codes but still compromise emission control effectiveness. Exhaust gas analysis is essential for verifying repair effectiveness and ensuring compliance with emission regulations.

Predictive diagnostic techniques using trend analysis and pattern recognition are increasingly employed to identify EGR system problems before they result in complete failure or significant performance degradation. These techniques analyze historical data from vehicle operation to identify gradual changes in system performance that may indicate developing problems. Early identification of these trends enables proactive maintenance interventions that can prevent more serious problems and reduce overall repair costs.

References

  1. Innova – Common Signs of a Faulty EGR Valve
  2. Snap-On – EGR Valve Fault Codes & Testing
  3. CarParts.com – Bad EGR Valve Testing Procedure
  4. AutoZone – Symptoms of a Bad EGR Valve
  5. Fuel Tech Experts – EGR Valve and Limp Mode
  6. CarParts.com – P0401 Code EGR Flow Insufficient

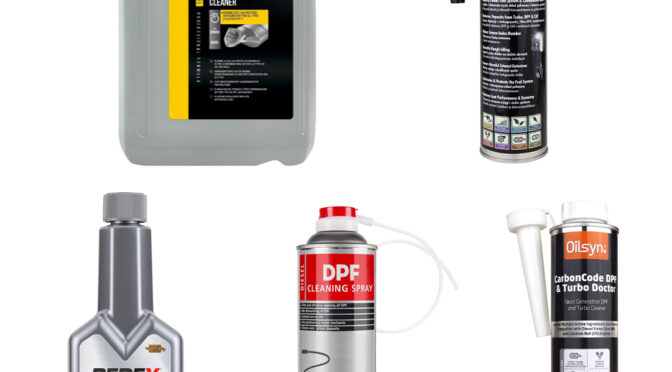

collage of DPF cleaners
Reviews UK

Best DPF Cleaner Products for 2026 UK

February 24, 2025 FTE Leave a comment
Affiliate Disclosure
Affiliate Disclosure As an Amazon Associate I earn from qualifying purchases. This site contains affiliate links for which I may receive a small commission at no additional cost to you. This helps support the site and allows me to continue creating high-quality reviews. I only recommend products I genuinely believe in. Thank you for your support!

Best DPF Cleaner Products for 2026 UK

Expert Reviews and Recommendations for Optimal Diesel Performance

Best DPF Cleaner Products for 2026 UK

DPF cleaners help maintain your diesel vehicle’s particulate filter, preventing costly repairs and performance issues. Diesel Particulate Filters (DPFs) trap soot from exhaust gases, but they can become clogged over time. A quality DPF cleaner breaks down carbon deposits and soot, extending the life of your filter and improving fuel efficiency.

We’ve noticed that many drivers wait until warning lights appear before addressing DPF issues. Regular use of a DPF cleaner can prevent these problems altogether. These products come in different formulations – some work through the fuel system while others require direct application to the filter itself.

When choosing a DPF cleaner, pay attention to the application method, compatibility with your vehicle, and whether it offers additional benefits like turbo cleaning. The concentration of active ingredients and how frequently you need to use the product are also important factors. Let’s explore the best DPF cleaners currently available to help keep your diesel engine running smoothly.

Best DPF Cleaners

We’ve carefully selected five of the top DPF cleaners available on the market today. Our comprehensive list features products that help remove soot buildup and restore your diesel particulate filter to optimal performance. Oilsyn CarbonCode DPF and Turbo Doctor stands out as our top choice due to its exceptional multi-function cleaning capabilities, while Archoil AR6400-D MAX secures a well-deserved second place.

Oilsyn CarbonCode DPF Cleaner Overlay Image

Oilsyn CarbonCode DPF Cleaner

We consider the Oilsyn CarbonCode Complete Diesel DPF Cleaner a wise choice for vehicle owners looking to restore engine performance and help eliminate warning lights due to its comprehensive cleaning formulation, which comprises four cleaning technologies in one package.

Pros

  • Cleans multiple systems including fuel system, DPF, turbo and catalytic converter
  • High-Strength formula that removes carbon deposits

Cons

  • Higher price point than basic cleaners
  • Requires concentrated dosage for maximum effectiveness

This 400ml bottle of Oilsyn CarbonCode uses advanced Fueloxy carbon removal technology to tackle stubborn deposits throughout your diesel engine system. The formula works quickly to clear blocked DPFs, clean catalytic converters, and remove carbon buildup from turbos – addressing multiple issues with a single product.

Many drivers report overall performance improvments as well as restored DPF function. This is because CarbonCode contains multiple detergent technologies that address the fuel system and combustion chamber too, not just the DPF and Turbo. The product contains Oilsyn Modified Ester lubricant that protects your fuel system during the cleaning process. This protection is vital when breaking down tough carbon deposits.

We appreciate that this cleaner meets important standards including BS EN590 and REACH compliance. It’s designed for easy use – simply pour into your fuel tank before filling up. While not every user experiences dramatic results, most report eliminated warning lights and smoother engine performance, making this a solid investment for diesel owners facing DPF issues.

Amazon Logo
Check Price
Archoil DPF Cleaner Overlay Image

Archoil DPF Cleaner

Archoil AR6400-D MAX offers a comprehensive cleaning solution for diesel engines with impressive results for DPF and fuel system maintenance.

Pros

  • Cleans multiple engine components including DPF, CAT, and fuel injectors
  • Users reports it has restored fuel economy and engine performance noticeably
  • Includes professional support and emissions pass guarantee

Cons

  • Higher price point than some competitors
  • May need multiple treatments for severely clogged systems

We’ve found that the Archoil AR6400-D MAX stands out as a powerful solution for diesel vehicle owners facing DPF issues. The product works throughout the entire fuel system, tackling carbon deposits in the particulate filter, EGR valve (results vary), and injectors. Many users report smoother engine performance after just one treatment.

The formula contains a special blend of detergents and lubricants that help remove stubborn carbon buildup. This isn’t just about cleaning—it also adds ester lubrication and cetane improvement. These features help restore lost power while potentially improving your vehicle’s chances of passing emissions tests.

What makes this product particularly appealing is the support backing it. Archoil offers professional guidance and a performance guarantee, which provides peace of mind for drivers. The 400ml bottle is enough for several treatments depending on your vehicle size, but a full can to a full tank of fuel is advised for best results. Though not the cheapest option available, the comprehensive cleaning action makes it worth considering for diesel owners experiencing warning lights or reduced performance.

Amazon Logo
Check Price
Redex DPF Cleaner Overlay Image

Redex DPF Cleaner

Redex DPF Cleaner is a reliable solution for diesel vehicle owners looking to maintain their particulate filters without expensive garage visits.

Pros

  • Reduces soot build-up by lowering burn temperature
  • Simple pour-in application through fuel filler
  • Prevents warning lights and costly repairs

Cons

  • Requires regular use for best results
  • May need multiple treatments for severe blockages
  • Works gradually rather than instantly

This diesel particulate filter cleaner from Redex tackles one of the most common issues diesel car owners face today. The product works by lowering the temperature at which soot burns in your DPF, allowing normal driving to clear blockages without requiring extreme engine temperatures or garage intervention.

We find the application process straightforward and mess-free. Simply pour the 250ml bottle directly into your fuel tank before filling up with diesel. The specially designed bottle makes this process clean and simple, with no need for funnels or other tools.

Regular maintenance is key with DPF issues. Adding Redex every 2-3 tanks of fuel can prevent problems before they start. Many users report success in clearing existing blockages and warning lights, potentially saving hundreds of pounds in garage repair bills. With over a century of experience, Redex has established itself as a trusted brand in the automotive maintenance sector.

Amazon Logo
Check Price
JLM DPF Spray Overlay Image

JLM DPF Spray

The JLM Diesel DPF Cleaner provides a practical solution for maintaining diesel particulate filters without requiring professional servicing.

Pros

  • Fast-acting formula dissolves soot deposits effectively
  • No dismantling required for application
  • Helps improve fuel efficiency and engine performance

Cons

  • Mixed results depending on severity of DPF clogging
  • Single application may not be sufficient for heavily clogged filters
  • Some users report no improvement after use

This aerosol spray offers diesel vehicle owners a straightforward approach to DPF maintenance. The concentrated formula works by breaking down and removing soot deposits that accumulate in the particulate filter. Many users find it significantly cheaper than professional cleaning services that can cost upwards of £250.

Application couldn’t be easier, as the product comes in a handy spray can that allows direct application to the DPF without any need to remove parts. We appreciate how this makes it accessible for everyday motorists who might not have advanced mechanical skills or special tools. Regular use can help extend the service life of your DPF and potentially save costly repairs down the line.

The environmental benefits shouldn’t be overlooked. A clean DPF means reduced harmful emissions from your vehicle. While not every user experiences dramatic results, the relatively low cost makes it worth trying before resorting to more expensive options. For those experiencing warning lights or reduced performance due to a partially clogged DPF, this cleaner provides a reasonable first step in troubleshooting.

Amazon Logo
Check Price
Wynn's DPF Cleaner Overlay Image

Wynn’s DPF Cleaner

Wynn’s Diesel Particulate Filter Cleaner offers a professional-grade solution for severely clogged DPFs when standard regeneration methods have failed.

Pros

  • Effectively dissolves stubborn soot in heavily clogged DPFs
  • Ready-to-use formula requires no dilution
  • Biodegradable composition safe for all DPF types

Cons

  • Requires filter removal from vehicle
  • Two-hour soak time needed for best results
  • Price point higher than basic DPF additives

This heavy-duty workshop cleaner targets DPFs with over 70% soot loading where conventional methods aren’t working. Its powerful formula penetrates deep into the filter structure, breaking down accumulated soot, ash and other particulates that restrict airflow and harm engine performance.

Application is straightforward though it does require professional skills. You’ll need to dismount the DPF from the vehicle before applying the pre-mixed solution directly to the filter. The cleaner then needs about two hours to soak through and work its magic, dissolving contaminants that would otherwise require costly filter replacement.

We appreciate that Wynn’s formulated this product with environmental responsibility in mind. The biodegradable composition won’t damage catalytic elements within the filter, maintaining emissions system integrity while thoroughly cleaning. For workshops dealing with severely blocked DPFs, this 5L container provides an effective alternative to replacing expensive filters, restoring proper pressure levels and improving overall engine efficiency.

Amazon Logo
Check Price

Buying Guide

When shopping for a DPF cleaner, we need to consider several important factors. The right product can extend the life of your diesel particulate filter and improve your vehicle’s performance.

Cleaning Method

Different cleaners work in different ways. Some are added to the fuel tank, while others are sprayed directly into the intake system.

Cleaning Method Best For
Fuel Additive Regular maintenance
Direct Spray Severe clogging
Combined Formula Complete system cleaning

Products with multiple cleaning functions tend to be more effective as they can address both DPF and turbo issues simultaneously.

Compatibility

Always check if the cleaner works with your specific vehicle. Most products list compatible engines on their packaging.

Not all cleaners work with all diesel engines. Using an incompatible product might damage your vehicle or void your warranty.

Application Frequency

Some cleaners are designed for regular use, while others are for occasional deep cleaning.

Regular maintenance products are typically used every 3,000-5,000 miles, while intensive cleaners might be used once or twice a year.

Value for Money

Consider the cost per treatment rather than just the bottle price. Some concentrated formulas may seem expensive but provide more treatments.

Products that clean multiple components (DPF, turbo, EGR) offer better value than single-purpose cleaners.

Environmental Considerations

Frequently Asked Questions

People often wonder which DPF cleaners work best and how to use them properly. Here are answers to common questions about diesel particulate filter cleaners to help you make informed decisions for your vehicle.

What are the top-rated additives for cleaning a diesel particulate filter?

Oilsyn CarbonCode DPF and Turbo Doctor ranks as the best DPF cleaner on the market due to its comprehensive cleaning capabilities. It not only cleans the DPF but also addresses turbo issues and carbon deposits throughout the engine system.

Archoil AR6400-D MAX comes in as our second choice, offering excellent regeneration support and soot reduction properties. It’s particularly effective for vehicles that frequently operate in stop-start conditions.

Other notable products include Liqui Moly Pro-Line DPF Cleaner and Wynn’s DPF Cleaner, both providing reliable performance at reasonable price points.

How does Oilsyn’s particulate filter cleaning treatment compare with other brands?

Oilsyn’s formula stands out for its multi-functional approach. While many competitors focus solely on DPF cleaning, Oilsyn targets carbon build-up in the turbo and throughout the exhaust system as well.

We’ve found it requires fewer applications compared to other brands, making it more economical in the long run despite a higher initial cost. Users report noticeable improvements in vehicle performance after just one treatment.

The product also contains lower levels of harsh chemicals than some competing brands, reducing potential harm to engine components over time.

What should I consider before purchasing a DPF cleaning additive for my vehicle?

Compatibility with your specific diesel engine model is essential. Check your vehicle’s manual or consult with a mechanic before using any DPF cleaning product.

Consider your driving patterns—if you mainly drive short distances, you’ll likely need a more powerful DPF cleaner as your vehicle doesn’t reach temperatures needed for natural regeneration.

Your vehicle’s age and mileage matter too. Older vehicles or those with higher mileage might require stronger formulas or more frequent applications.

Budget is another factor—cheaper options might seem appealing but often require more frequent use, potentially costing more over time than premium products.

How often should I use a DPF Cleaner?

Most manufacturers recommend using DPF cleaners every 2,000 to 3,000 miles for preventative maintenance. However, this varies based on your driving conditions and vehicle specifics.

Vehicles used primarily for short journeys should receive treatments more frequently—perhaps every 1,500 miles—as they rarely achieve the temperatures needed for automatic regeneration.

Watch for warning signs that indicate more immediate treatment is needed: decreased fuel efficiency, reduced power, or illuminated engine management lights. These symptoms suggest your DPF may be becoming clogged.

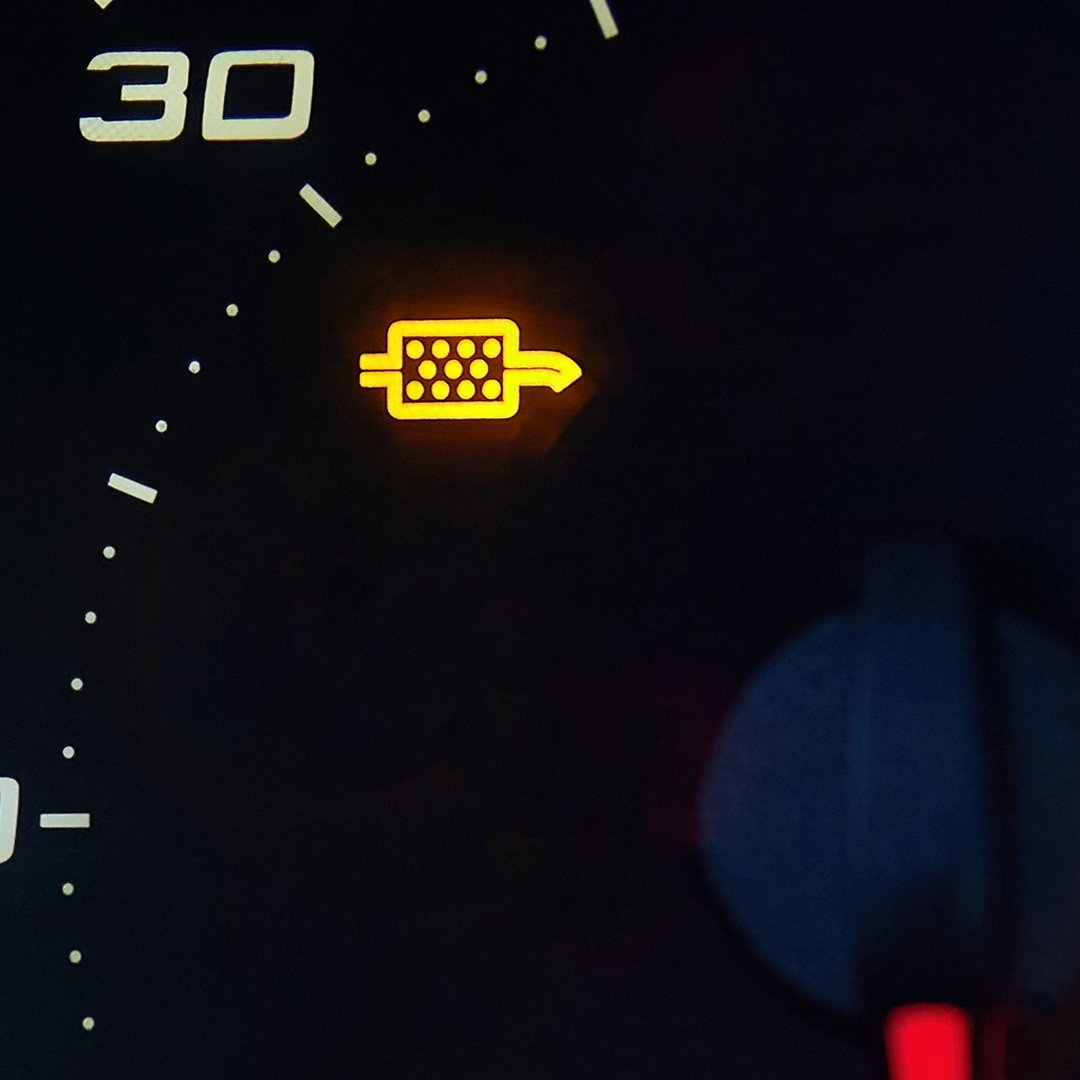

DPF light on a dash
DPF Cleaning & Maintenance

DPF Regeneration Process Troubleshooting and Frequency

February 16, 2025 FTE Leave a comment

DPF regeneration represents the critical self-cleaning process that maintains diesel particulate filter effectiveness throughout a vehicle’s operational life. Understanding regeneration mechanisms, recognising when regeneration occurs, and troubleshooting regeneration problems is essential for preventing expensive DPF failures and maintaining optimal vehicle performance.

This comprehensive guide explores the science behind DPF regeneration, practical procedures for initiating regeneration cycles, and diagnostic approaches for resolving regeneration problems. From understanding natural passive regeneration to performing forced regeneration procedures, this resource provides the knowledge needed for effective DPF maintenance and troubleshooting.

Table of Contents ▼
  • What is DPF Regeneration and How It Works
  • What Happens During DPF Regeneration
  • Types of DPF Regeneration
  • How to Regenerate DPF While Driving
  • Forced DPF Regeneration Procedures
  • Regeneration Triggers and Failure Causes
  • Recognising When DPF is Regenerating
  • Regeneration Frequency and Timing
  • Regeneration Duration and Completion
  • References

What is DPF Regeneration and How It Works

DPF regeneration is the sophisticated self-cleaning process that maintains filter effectiveness by periodically burning off accumulated soot particles. This process is essential for DPF operation, as without regeneration, the filter would quickly become blocked and cease to function effectively. Understanding regeneration principles provides insight into proper DPF maintenance and operation.

The Science Behind Regeneration

Regeneration operates through thermal oxidation, where accumulated carbon particles (soot) are heated to temperatures of 600-700°C, causing them to react with oxygen to form carbon dioxide and water vapour. This chemical process effectively converts solid particulate matter into harmless gases that can be expelled through the exhaust system.

The oxidation reaction requires specific conditions including adequate temperature, oxygen availability, and sufficient time for complete combustion. The reaction can be enhanced through catalytic assistance, where precious metal catalysts reduce the temperature required for soot oxidation and improve the efficiency of the regeneration process.

Regeneration Chemistry:

  • Primary reaction: C + O₂ → CO₂ (carbon + oxygen → carbon dioxide)
  • Temperature requirement: 600-700°C for complete oxidation
  • Catalytic enhancement: Reduces temperature to 400-500°C
  • Products: CO₂ and H₂O (harmless gases)

Why Regeneration is Necessary

Without regular regeneration, DPFs would quickly become saturated with soot particles, leading to complete blockage and system failure. The filter’s capacity is finite, typically storing 5-15 grams of soot before regeneration becomes necessary. Continuous soot accumulation without removal would render the filter ineffective within a few hundred miles of operation.

Regeneration also maintains filter efficiency by preventing the formation of permanent deposits that could reduce filtration effectiveness. Regular regeneration cycles ensure that the filter substrate remains clean and capable of capturing new particulate matter with maximum efficiency throughout the vehicle’s operational life.

What Happens During DPF Regeneration

The regeneration process involves a carefully orchestrated sequence of events that elevate DPF temperature, monitor combustion progress, and ensure complete soot removal. Understanding these events helps drivers recognise normal regeneration behaviour and identify potential problems that may require attention.

Regeneration Process Phases

Regeneration begins with a pre-heating phase where the system elevates exhaust temperatures to initiate soot combustion. This may involve post-injection of diesel fuel, activation of electric heating elements, or utilisation of natural exhaust heat during high-load operation. Temperature sensors monitor the heating process to ensure optimal conditions are achieved.

The active combustion phase follows, where soot particles begin oxidising at temperatures above 600°C. This phase is characterised by rapid temperature increases as the exothermic combustion reaction generates additional heat. Pressure sensors monitor the reduction in filter restriction as soot is consumed and filter capacity is restored.

The completion phase involves temperature stabilisation and system monitoring to ensure regeneration success. The control system verifies that soot levels have dropped to acceptable levels (typically below 20% of capacity) before terminating the regeneration cycle and returning to normal operation.

Observable Effects During Regeneration

Drivers can observe several indicators during regeneration cycles. Engine noise typically increases due to higher idle speeds and cooling fan operation required to manage elevated temperatures. Exhaust temperatures rise significantly, and drivers may notice heat shimmer or steam from the exhaust outlet, particularly in cold weather conditions.

Fuel consumption increases temporarily during active regeneration due to the additional fuel required for heating. This increase is typically 10-20% above normal consumption during the regeneration period but averages out over the complete cycle. Some vehicles display regeneration status on the dashboard to inform drivers of the process.

  • Engine effects: Increased idle speed, cooling fan activation
  • Exhaust effects: Higher temperatures, visible steam or heat shimmer
  • Performance effects: Temporary fuel consumption increase
  • Sensory effects: Strong diesel odour, unusual exhaust smoke

Types of DPF Regeneration

Modern DPF systems employ three distinct regeneration methods, each designed for specific operating conditions and soot loading levels. Understanding these different approaches helps optimise DPF performance and select appropriate regeneration strategies for various operational scenarios.

Passive Regeneration

Passive regeneration occurs naturally when exhaust temperatures reach 550-600°C during normal vehicle operation, typically during highway driving or sustained high-load conditions. This process requires no system intervention and represents the most efficient regeneration method, as it utilises waste heat that would otherwise be lost.

The effectiveness of passive regeneration depends heavily on driving patterns and operating conditions. Vehicles operating primarily on highways with sustained speeds above 50 mph often experience sufficient passive regeneration to maintain optimal DPF performance without requiring active intervention. However, urban driving rarely generates adequate temperatures for effective passive regeneration.

Active Regeneration

Active regeneration involves system-initiated heating when passive regeneration is insufficient to maintain filter cleanliness. The most common method uses post-injection of diesel fuel into the exhaust stream, where it combusts in the presence of a diesel oxidation catalyst to generate the required heat. This process typically activates automatically when soot loading reaches predetermined thresholds.

Alternative active regeneration methods include electric heating elements, separate burner systems, or microwave heating technology. These systems provide precise temperature control and can operate independently of engine load conditions, making them suitable for vehicles with challenging duty cycles or frequent stop-start operation.

Regeneration Method Comparison:

  • Passive: Natural exhaust heat, no fuel penalty, requires highway driving
  • Active: System-initiated heating, 10-20% fuel increase, works during city driving
  • Forced: Service-initiated, highest fuel consumption, for problem situations

Forced Regeneration

Forced regeneration represents the most aggressive regeneration method, typically reserved for situations where passive and active regeneration have failed to maintain filter cleanliness. This process requires professional diagnostic equipment and controlled conditions to ensure safe and effective operation.

Forced regeneration procedures are designed to address severe blockage conditions that cannot be resolved through normal regeneration cycles. The process involves higher temperatures and longer duration than other regeneration methods, making it suitable for recovering heavily loaded filters that might otherwise require replacement.

How to Regenerate DPF While Driving

Regenerating a DPF while driving involves creating and maintaining the conditions necessary for passive regeneration through appropriate driving techniques and route selection. This approach represents the most fuel-efficient and environmentally friendly method for maintaining DPF cleanliness.

Creating Optimal Driving Conditions

Successful driving regeneration requires sustained highway speeds of 50+ mph for 15-30 minutes to generate sufficient exhaust temperatures. The engine should operate above 2000 RPM with moderate to high load conditions that promote elevated exhaust temperatures. Avoid stop-start driving, excessive idling, or low-speed operation during regeneration attempts.

Engine temperature is critical for effective regeneration, so ensure the engine reaches full operating temperature before beginning regeneration driving. Cold engines produce lower exhaust temperatures that may be insufficient for soot combustion, making warm-up periods essential for regeneration success.

Step-by-Step Regeneration Driving Procedure

Begin by ensuring adequate fuel levels, as regeneration increases fuel consumption and running out of fuel during the process can cause system damage. Plan a route that allows for sustained highway driving without frequent stops or traffic congestion that could interrupt the regeneration process.

Start the engine and allow it to reach normal operating temperature before beginning highway driving. Maintain speeds between 50-70 mph with engine RPM above 2000, using moderate acceleration and avoiding excessive gear changes that could reduce exhaust temperatures. Continue driving until the DPF warning light extinguishes or regeneration completion is confirmed.

  • Preparation: Check fuel level, plan highway route
  • Warm-up: Allow engine to reach operating temperature
  • Driving: Maintain 50+ mph, keep RPM above 2000
  • Duration: Continue for 15-30 minutes or until completion

Monitoring Regeneration Progress

Monitor regeneration progress through dashboard indicators, exhaust temperature changes, and engine behaviour modifications. Many vehicles provide regeneration status displays or warning light changes that indicate process initiation and completion. Increased engine noise and cooling fan operation often accompany active regeneration cycles.

If regeneration does not initiate after 20-30 minutes of appropriate driving, the DPF may be too heavily loaded for passive regeneration, or underlying problems may prevent the process. In such cases, professional diagnosis and potentially forced regeneration may be required to restore filter function.

Forced DPF Regeneration Procedures

Forced regeneration procedures represent the most intensive method for restoring DPF function when passive and active regeneration methods have proven insufficient. These procedures require professional equipment, controlled environments, and technical expertise to ensure safe and effective execution.

When Forced Regeneration is Necessary

Forced regeneration becomes necessary when normal regeneration cycles fail to maintain filter cleanliness, typically indicated by persistent DPF warning lights, limp mode activation, or diagnostic codes indicating excessive soot loading. This situation often results from extended periods of inappropriate driving conditions or underlying engine problems that increase soot production.

The decision to perform forced regeneration should be based on diagnostic data showing soot loading levels above 80-90% and confirmation that normal regeneration methods have been attempted without success. Forced regeneration should not be used as routine maintenance but reserved for problem situations requiring intervention.

Required Equipment and Preparation

Forced regeneration requires professional diagnostic equipment capable of communicating with the vehicle’s engine management system and initiating regeneration cycles. The equipment must be compatible with the specific vehicle make and model, as regeneration procedures vary significantly between manufacturers and systems.

Preparation involves ensuring adequate ventilation, as forced regeneration produces significant heat and exhaust emissions that require proper extraction. The vehicle must have sufficient fuel for the procedure, and all engine fluids should be at appropriate levels. Safety equipment including fire extinguishers should be readily available due to the high temperatures involved.

Forced Regeneration Requirements:

  • Equipment: Professional diagnostic scanner with regeneration capability
  • Environment: Well-ventilated area with exhaust extraction
  • Safety: Fire extinguisher, heat-resistant surfaces
  • Vehicle: Adequate fuel, proper fluid levels

Forced Regeneration Procedure

The forced regeneration procedure begins with connecting diagnostic equipment and verifying system readiness through pre-regeneration checks. The technician initiates the process through the diagnostic interface, which activates heating systems and monitors temperature progression throughout the cycle.

During the procedure, temperatures may reach 700-800°C, significantly higher than normal regeneration cycles. The process typically requires 30-60 minutes depending on soot loading levels and system design. Continuous monitoring is essential to ensure safe operation and prevent overheating that could damage the DPF or surrounding components.

Upon completion, the system performs verification checks to confirm successful soot removal and filter restoration. Post-regeneration testing may include pressure differential measurements and diagnostic code clearing to ensure the system returns to normal operation.

Regeneration Triggers and Failure Causes

Understanding what triggers regeneration cycles and why regeneration may fail provides insight into optimising DPF performance and preventing regeneration problems. These factors directly impact DPF longevity and maintenance requirements throughout the vehicle’s operational life.

Regeneration Trigger Mechanisms

Regeneration is primarily triggered by soot loading levels detected through pressure differential sensors that monitor restriction across the DPF. When the pressure difference exceeds predetermined thresholds (typically corresponding to 70-80% soot loading), the system initiates regeneration cycles to restore filter capacity.

Secondary triggers include time-based parameters that initiate regeneration after specific mileage intervals, regardless of soot loading levels. This prevents excessive soot accumulation in vehicles with very clean combustion or those operating under conditions that produce minimal particulate emissions. Temperature-based triggers may also activate regeneration when optimal conditions are detected.

Common Regeneration Failure Causes

Regeneration failures often result from insufficient exhaust temperatures caused by inappropriate driving patterns, particularly short journeys and stop-start urban driving that prevent engines from reaching optimal operating temperatures. Cold weather operation exacerbates this problem by reducing exhaust temperatures and extending warm-up periods.

Sensor failures can prevent regeneration by providing incorrect data to the engine management system. Faulty pressure sensors may not detect soot loading accurately, whilst temperature sensors may prevent regeneration initiation or cause premature termination. Fuel quality problems can also interfere with regeneration by affecting combustion characteristics or introducing contaminants that inhibit soot oxidation.

  • Driving factors: Short journeys, stop-start operation, insufficient temperatures
  • System factors: Sensor failures, control unit problems, fuel quality issues
  • Engine factors: Poor combustion, excessive soot production, maintenance neglect
  • Environmental factors: Cold weather, altitude, fuel contamination

Preventing Regeneration Problems

Preventing regeneration problems requires attention to driving patterns, maintenance schedules, and fuel quality. Regular highway driving that allows for passive regeneration represents the most effective prevention strategy, as it maintains filter cleanliness without requiring active system intervention.

Proper maintenance including regular oil changes using appropriate specifications, air filter replacement, and fuel system cleaning helps ensure optimal engine operation that minimises soot production and supports effective regeneration. Using quality fuel and appropriate fuel additives can also improve regeneration effectiveness and prevent system problems.

Recognising When DPF is Regenerating

Recognising regeneration cycles enables drivers to understand normal DPF operation and avoid interrupting the process, which could lead to incomplete regeneration and potential system problems. Understanding regeneration indicators also helps identify when regeneration is not occurring as expected.

Visual and Dashboard Indicators

Many modern vehicles provide dashboard displays indicating regeneration status, ranging from simple warning light changes to detailed information screens showing regeneration progress. These displays may show “DPF Regenerating,” countdown timers, or progress bars that help drivers understand the process duration and completion status.

Visual indicators from the exhaust system include heat shimmer, steam, or unusual smoke during regeneration cycles. In cold weather, water vapour from the combustion process may be visible as white steam, whilst heat distortion around the exhaust outlet indicates elevated temperatures. These visual cues are normal during regeneration and should not cause concern.

Auditory and Performance Indicators

Engine noise typically increases during regeneration due to higher idle speeds and cooling fan activation required to manage elevated temperatures. The engine may sound busier or more laboured, particularly at idle, as the system works to maintain optimal regeneration conditions.

Fuel consumption increases temporarily during active regeneration, which may be noticeable on vehicles with real-time fuel economy displays. This increase is normal and temporary, typically lasting 15-45 minutes depending on the regeneration type and soot loading levels.

Regeneration Recognition Checklist:

  • Dashboard: Regeneration status displays, warning light changes
  • Engine: Increased noise, higher idle speed, cooling fan operation
  • Exhaust: Heat shimmer, steam, elevated temperatures
  • Performance: Temporary fuel consumption increase

Recognising Regeneration Completion

Regeneration completion is typically indicated by the return of normal engine operation, including reduced noise levels and cooling fan deactivation. Dashboard warning lights should extinguish, and any regeneration status displays should indicate successful completion or return to normal monitoring mode.

Exhaust temperatures gradually return to normal levels, and the visible indicators such as heat shimmer or steam should diminish. Fuel consumption returns to normal levels, and the engine should operate smoothly without the elevated idle speeds characteristic of active regeneration cycles.

Regeneration Frequency and Timing

Regeneration frequency varies significantly based on driving patterns, engine condition, fuel quality, and environmental factors. Understanding these variables helps set appropriate expectations for regeneration intervals and identify when frequency patterns indicate potential problems requiring attention.

Typical Regeneration Frequency Patterns

Vehicles with mixed driving patterns typically require regeneration every 300-600 miles, representing a balance between urban and highway operation that allows for some passive regeneration whilst requiring periodic active intervention. This frequency provides a baseline for normal DPF operation under average conditions.

Urban-focused vehicles may require regeneration every 150-300 miles due to higher soot production and limited opportunities for passive regeneration. Conversely, highway-focused vehicles may extend regeneration intervals to 600-1000 miles through effective passive regeneration during sustained high-speed operation.

Factors Affecting Regeneration Frequency

Engine condition significantly impacts regeneration frequency, with well-maintained engines producing less soot and requiring less frequent regeneration. Worn engines, faulty injectors, or poor combustion can double or triple soot production, dramatically increasing regeneration requirements and potentially overwhelming the DPF’s capacity.

Fuel quality affects both soot production and regeneration effectiveness. Poor-quality fuel increases particulate emissions whilst potentially interfering with regeneration chemistry. Seasonal factors including cold weather operation and altitude changes also influence regeneration frequency by affecting combustion efficiency and exhaust temperatures.

  • Highway driving: 600-1000 miles between regenerations
  • Mixed driving: 300-600 miles between regenerations
  • Urban driving: 150-300 miles between regenerations
  • Problem conditions: 100-200 miles or less

Identifying Abnormal Frequency Patterns

Abnormally frequent regeneration (every 100-200 miles or less) indicates underlying problems that require investigation. Potential causes include engine problems increasing soot production, sensor failures affecting regeneration control, or fuel quality issues that interfere with normal operation.

Conversely, infrequent regeneration may indicate sensor problems preventing proper soot detection or system failures that prevent regeneration initiation. Both extremes require professional diagnosis to identify and correct underlying causes before expensive damage occurs.

Regeneration Duration and Completion

Regeneration duration varies based on the regeneration type, soot loading levels, and system design characteristics. Understanding typical duration ranges helps drivers plan for regeneration cycles and identify when processes may be taking longer than expected, potentially indicating problems.

Duration Variations by Regeneration Type

Passive regeneration during highway driving typically requires 15-30 minutes of sustained high-temperature operation to achieve complete soot removal. This duration depends on initial soot loading levels and the consistency of operating conditions that maintain optimal regeneration temperatures.

Active regeneration cycles initiated by the vehicle system typically require 20-45 minutes to complete, as the system must first elevate temperatures before beginning soot combustion. Forced regeneration procedures may require 30-60 minutes due to higher soot loading levels and the need for more aggressive heating strategies.

Factors Affecting Regeneration Duration

Soot loading levels directly impact regeneration duration, with heavily loaded filters requiring longer cycles to achieve complete cleaning. Filters loaded to 90% capacity may require twice the regeneration time of filters at 70% loading, emphasising the importance of regular regeneration to maintain optimal performance.

Environmental conditions including ambient temperature, altitude, and humidity can affect regeneration duration by influencing combustion efficiency and heat transfer characteristics. Cold weather operation typically extends regeneration times due to increased heat losses and reduced combustion efficiency.

Typical Regeneration Durations:

  • Passive regeneration: 15-30 minutes during highway driving
  • Active regeneration: 20-45 minutes system-initiated
  • Forced regeneration: 30-60 minutes professional procedure
  • Problem situations: May require multiple cycles or extended duration

Incomplete Regeneration and Restart Cycles

Incomplete regeneration cycles may occur when operating conditions change during the process, such as transitioning from highway to urban driving or engine shutdown before completion. Modern systems typically restart regeneration automatically when appropriate conditions resume, but repeated interruptions can lead to progressive soot accumulation.

Monitoring regeneration completion through dashboard indicators or diagnostic equipment helps ensure successful cycles and identify when intervention may be required. Incomplete regeneration patterns may indicate the need for forced regeneration or investigation of underlying problems preventing successful completion.

References

  1. SAE International: DPF Regeneration Strategies and Optimization
  2. Bosch DPF Regeneration Technology
  3. DieselNet: DPF Regeneration Methods and Control
  4. Cummins: Understanding DPF Regeneration Cycles
  5. Caterpillar DPF Regeneration Procedures
  6. Continental Automotive DPF Regeneration Systems
  7. Renewable Energy Reviews: DPF Regeneration Technologies
  8. Tenneco DPF Regeneration Solutions

Posts navigation

1 2 … 9 Next →

categories

Archives

  • March 2026
  • August 2025
  • July 2025
  • June 2025
  • May 2025
  • April 2025
  • March 2025
  • February 2025
  • January 2025
  • December 2024
  • November 2024
  • October 2024

Tag Cloud

Tags
2-ehn, airflow sensor cleaners, carbon removal, car emissions, diesel, diesel emissions, dpf cleaner, dpf cleaners, dpf cleaning, dpf removal, ecu, egr cleaner, egr cleaning, emissions, engine mapping, engine oil, fuel additive, Fuel Additives, fuel catalyst, fuel cleaner, fuel conditioner, Fuel Economy, fuel saver, fuel savers, fuel saving, fully synthetic oil, gas saver, gas savers, improve mpg, increase gas mileage, increase mpg, low sap oil, MON, mpg, octane, octane booster, Octane Boosters, octane test, oil additives, petrol, reduce fuel costs, remap, RON, tuning box, vehicle emissions
Contact us

Email: support@fueltechexperts.com

Info
  • Privacy Policy
  • Terms of Use
  • Sitemap
  • Cookie Policy (UK)
  • https://ec.europa.eu/consumers/odr
Find us on:
  • Fabebook icon
  • Instagram icon
  • YouTube icon
  • TikTok icon

Newsletter

* indicates required


Copyright © 2011-2024 Fuel Tech Experts All Rights Reserved.

Manage Consent
To provide the best experiences, we use technologies like cookies to store and/or access device information. Consenting to these technologies will allow us to process data such as browsing behavior or unique IDs on this site. Not consenting or withdrawing consent, may adversely affect certain features and functions.
Functional Always active
The technical storage or access is strictly necessary for the legitimate purpose of enabling the use of a specific service explicitly requested by the subscriber or user, or for the sole purpose of carrying out the transmission of a communication over an electronic communications network.
Preferences
The technical storage or access is necessary for the legitimate purpose of storing preferences that are not requested by the subscriber or user.
Statistics
The technical storage or access that is used exclusively for statistical purposes. The technical storage or access that is used exclusively for anonymous statistical purposes. Without a subpoena, voluntary compliance on the part of your Internet Service Provider, or additional records from a third party, information stored or retrieved for this purpose alone cannot usually be used to identify you.
Marketing
The technical storage or access is required to create user profiles to send advertising, or to track the user on a website or across several websites for similar marketing purposes.
  • Manage options
  • Manage services
  • Manage {vendor_count} vendors
  • Read more about these purposes
View preferences
  • {title}
  • {title}
  • {title}
